Description

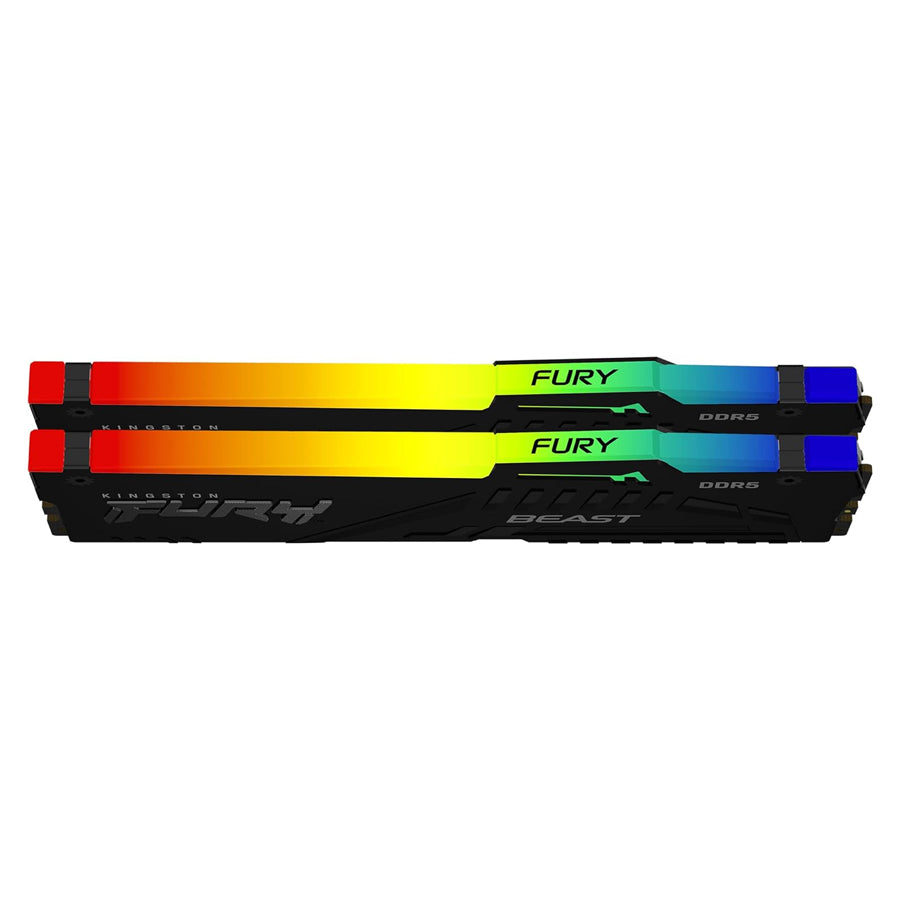

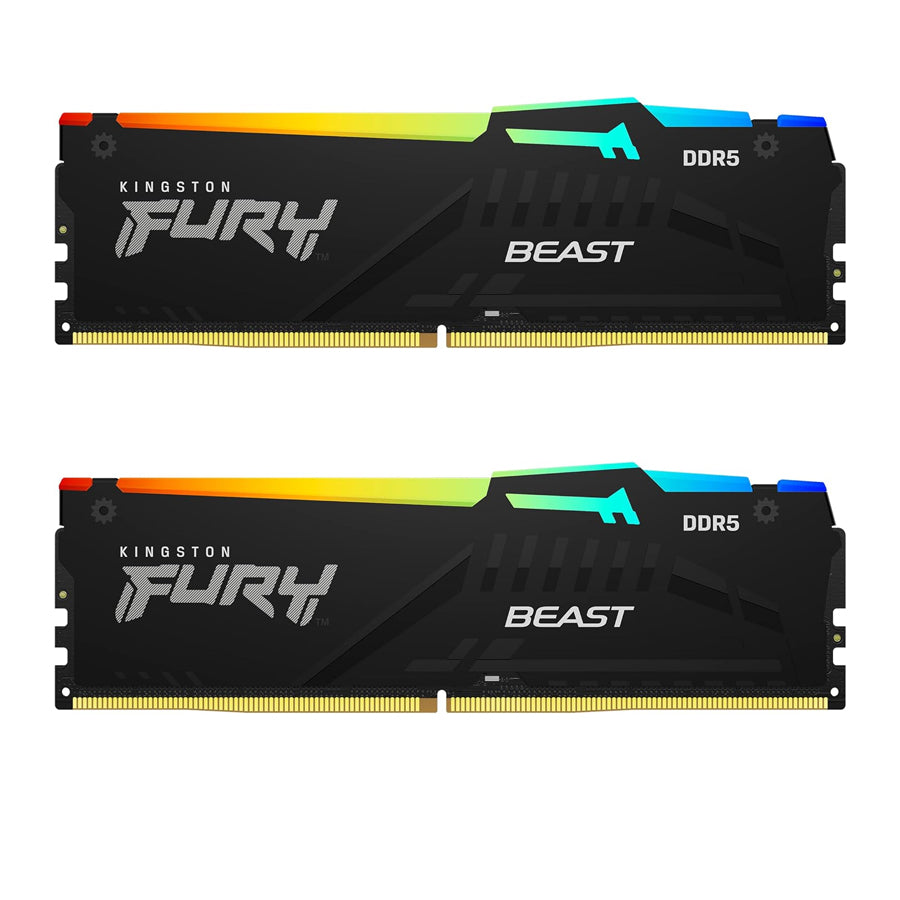

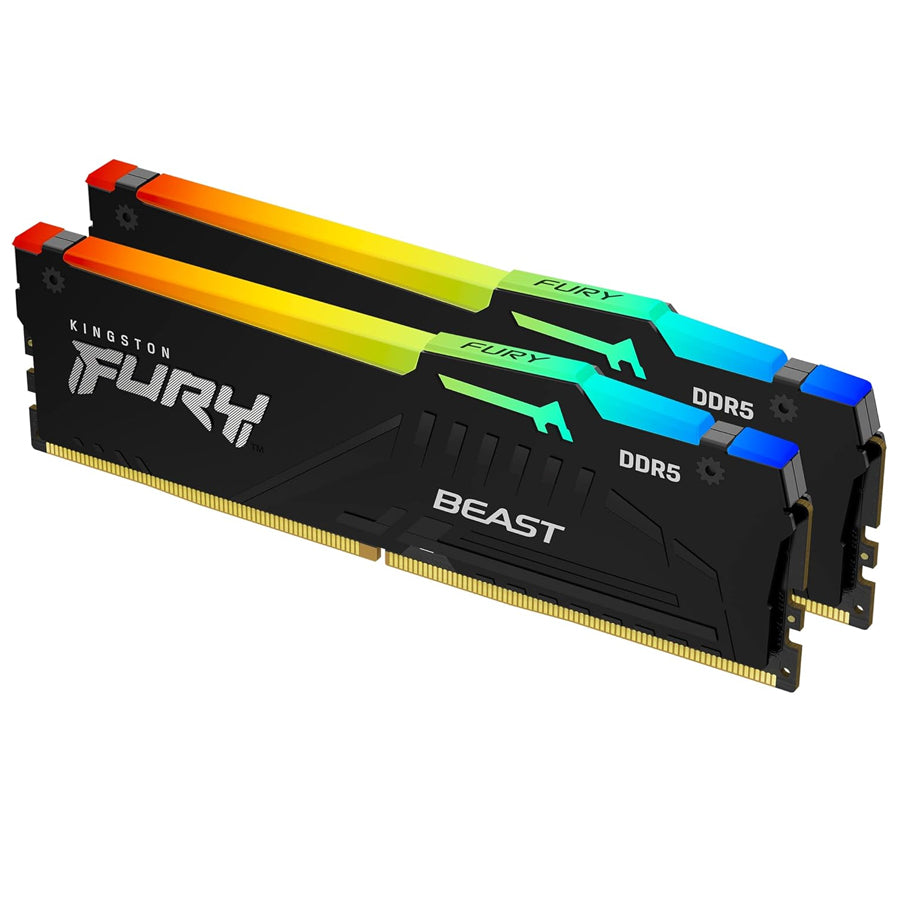

Kingston FURY KF552C40BBAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx8 memory modules, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel® XMP) 3.0. The total kit capacity is 32GB.
Each module has been tested to run at DDR5-5200 with low-latency timings of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC-standard DDR5-4800 timings of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications:
| CL (IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48 ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295 ns (min.) |
| Row Active Time (tRASmin) | 32 ns (min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Factory Timing - Default (JEDEC) | DDR5-4800 CL40-39-39 @ 1.1V |
| Factory Timing - XMP Profile #1 | DDR5-5200 CL40-40-40 @ 1.25V |
| Factory Timing - XMP Profile #2 | DDR5-4800 CL38-38-38 @ 1.1V |
| Power Supply (VDD) | 1.1V Typical |
| VDDQ | 1.1V Typical |
| VPP | 1.8V Typical |
| VDDSPD | 1.8V to 2.0V |
| On-Die ECC | Supported |
| Module Height | 1.66” (42.23 mm) with heatsink |
