Description

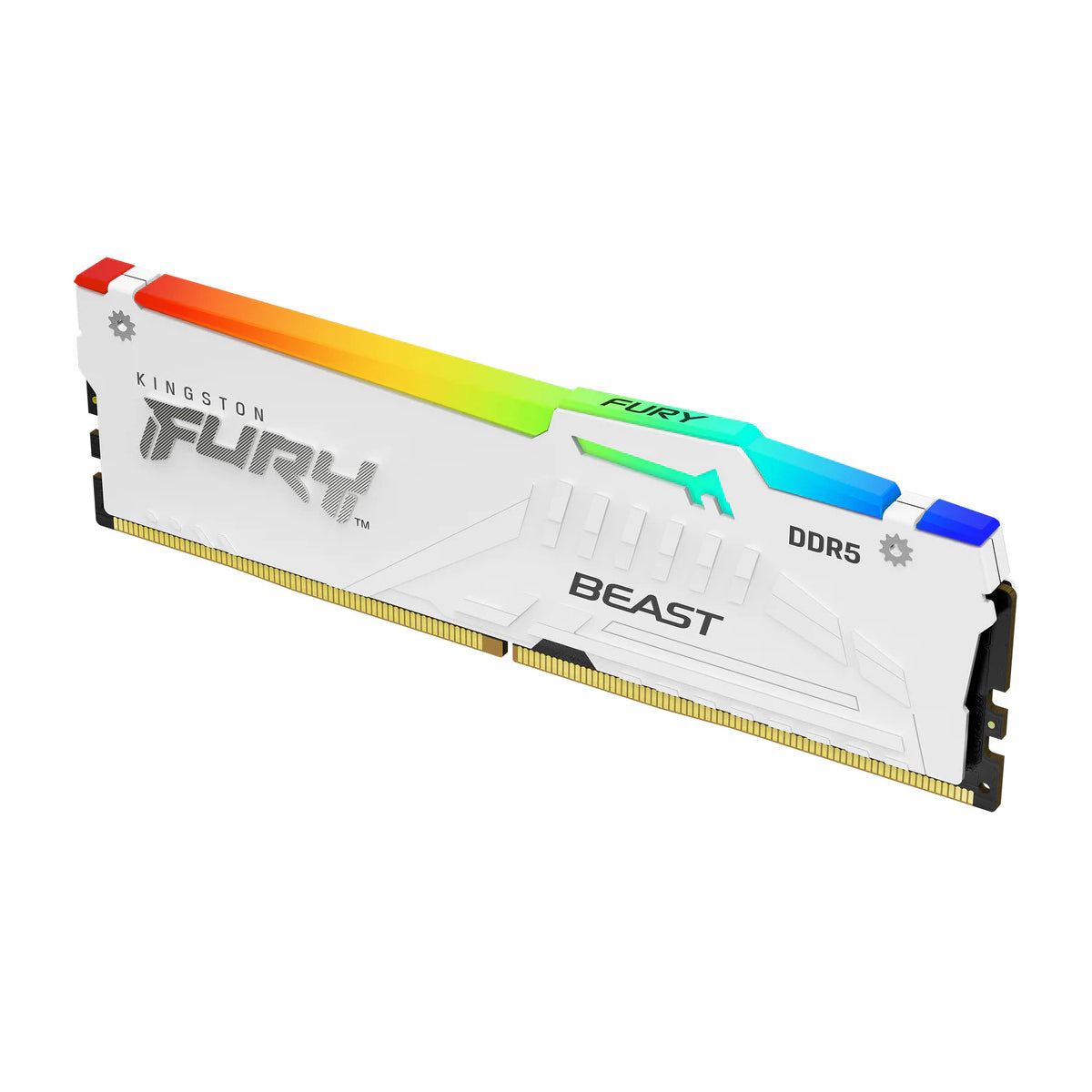

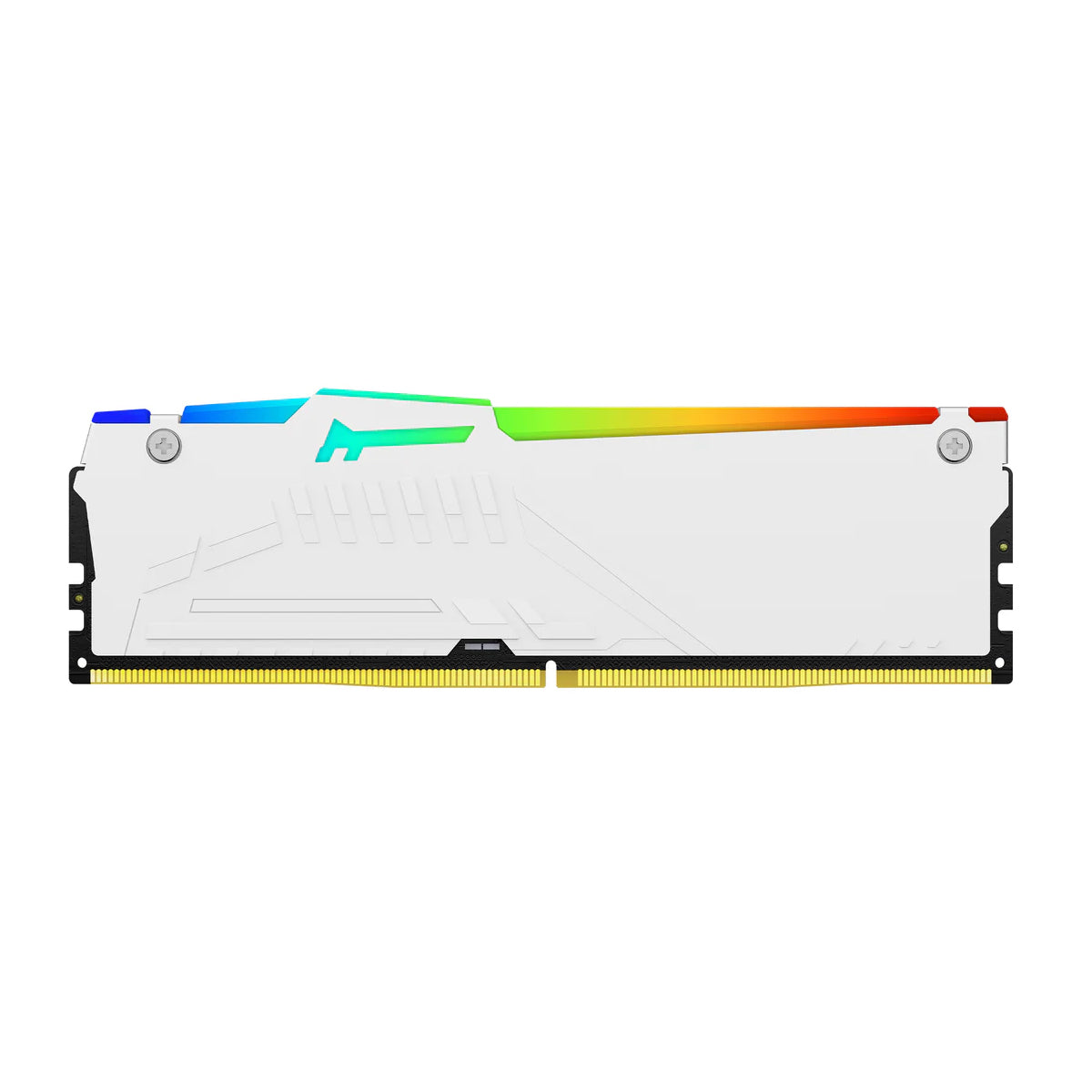

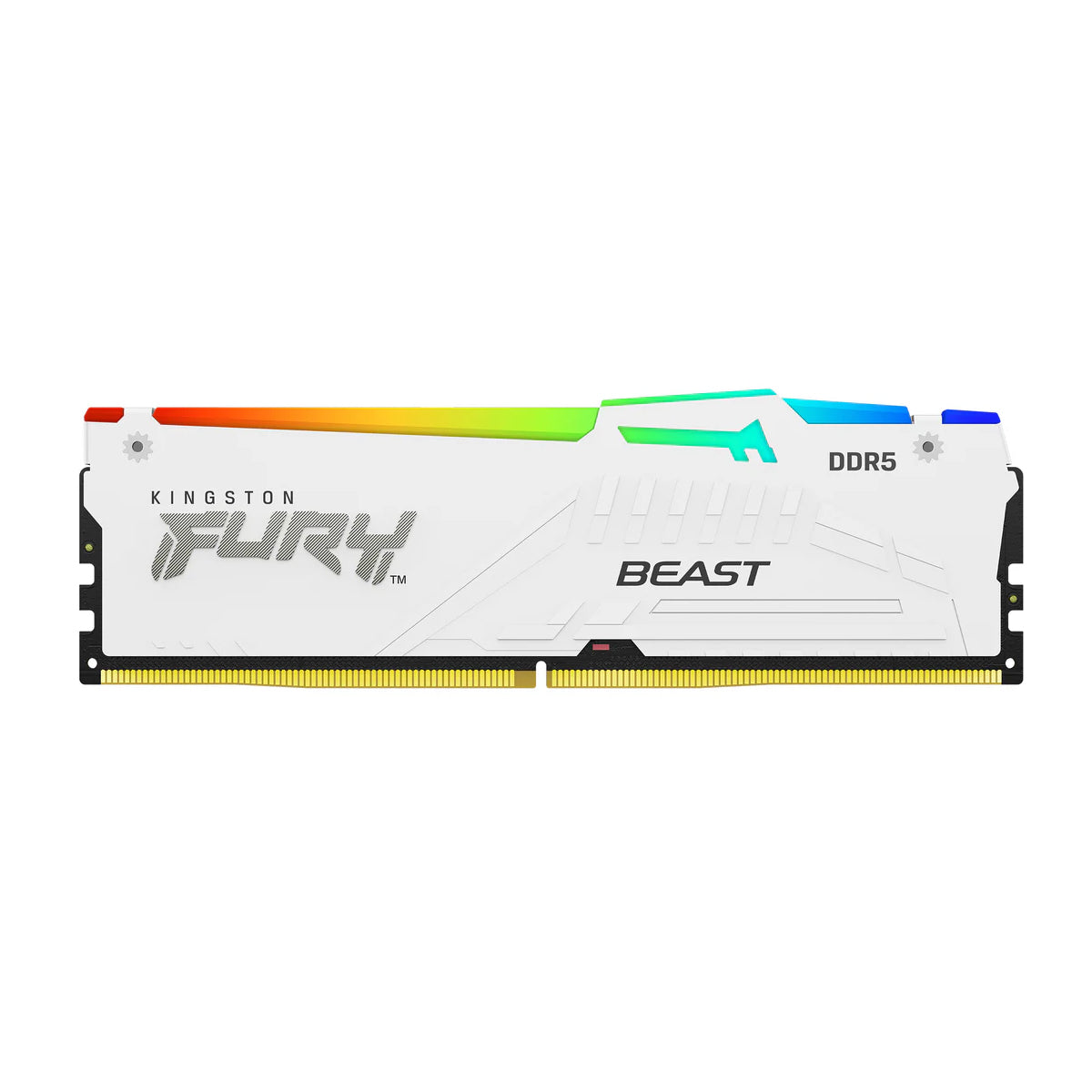

The FURY KF560C36BWE2A-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8 memory module based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to operate at DDR5-6000 at low latency with 36-44-44 timings at 1.35V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each DIMM memory module has 288 pins with gold contacts. The JEDEC standard electrical and mechanical specifications are as follows:
Factory Timing Parameters:
• EXPO Profile #0: DDR5-6000 CL36-44-44 @1.35V
• JEDEC Standard: DDR5-4800 CL40-39-39 @ 1.1V
Features:
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height: 34.9mm, with heatsink
Specifications:
• CL (DDI): 40 cycles
• Line Cycle Time (tRCmin): 48ns (min.)
• Update Rate / Command Time (tRFCmin): 295ns (min.)
• Line Active Time (tRASmin): 32ns (min.)
• UL Rating: 94 V-0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: -55°C to +100°C
