Description
Efficient performance for thinner notebooks and systems

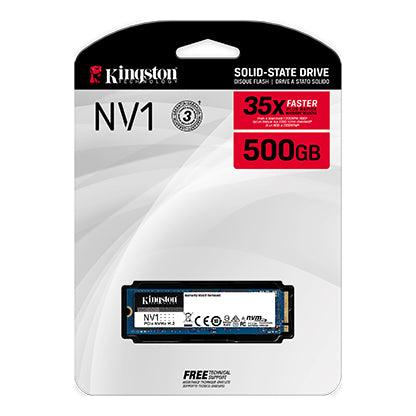

Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write1 speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.
SPECIFICATION
| Form Factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
| Capacities2 | 250GB, 500GB, 1TB, 2TB |
| Sequential Read/Write1 | 250GB – 2100/1100MB/s 500GB, 1TB, 2TB – 2100/1700MB/s |
| Endurance3 | 250GB – 60TBW 500GB – 120TBW 1TB – 240TBW 2TB – 480TBW |
| Power Consumption | 250GB: 5mW Idle / 85.5mW Avg / 0.99W (MAX) Read / 1.5W (MAX) Write 500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write 1TB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write 2TB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write |
| Storage Temperature | -40°C~85°C |
| Operating Temperature | 0°C~70°C |
| Dimensions | 22mm x 80mm x 2.1mm |
| Weight | 7g (All capacities) |
| Vibration Operating | 2.17G (7-800 Hz) |
| Vibration Non-operating | 20G (20-1000Hz) |
| MTBF | 1,500,000 hours |
