Description

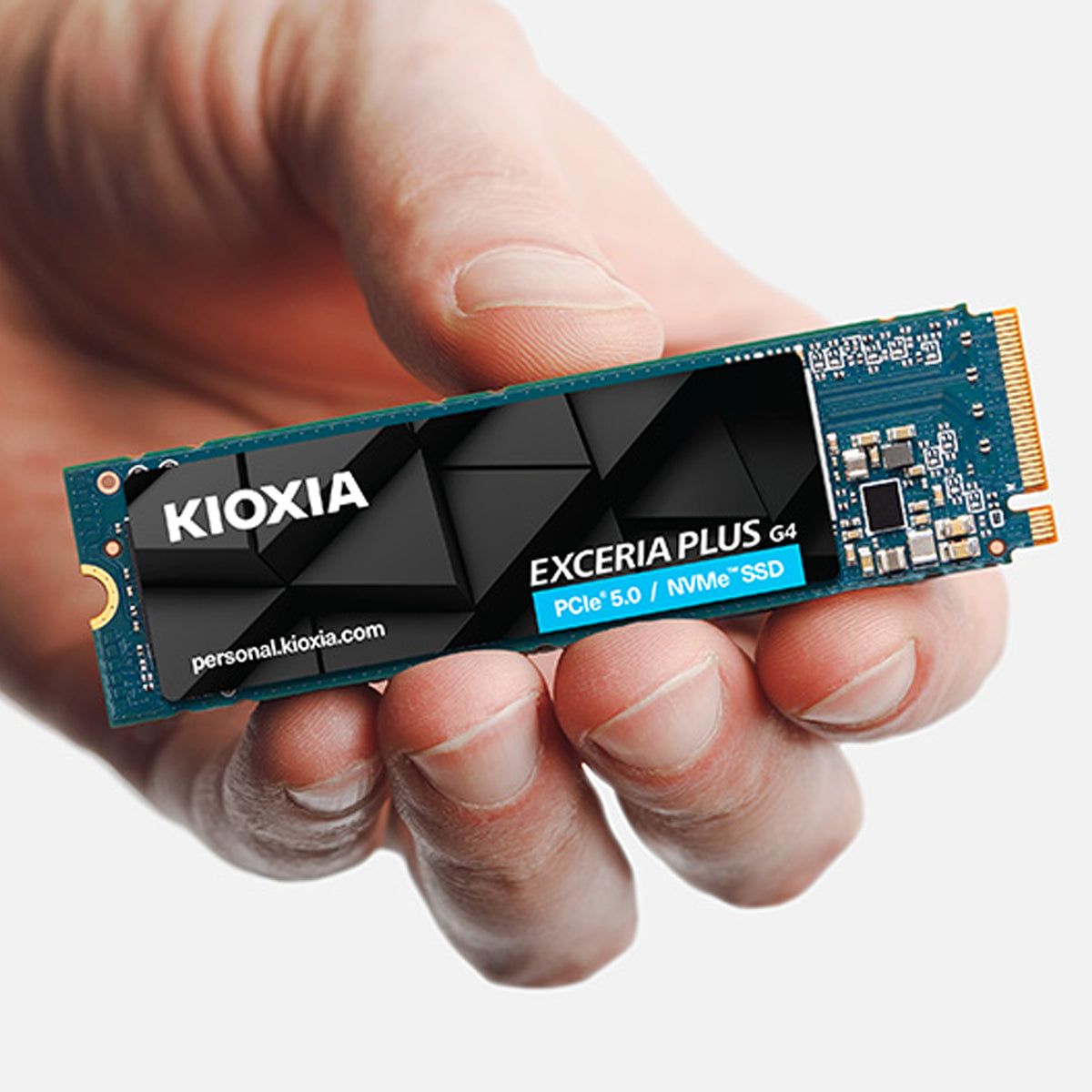

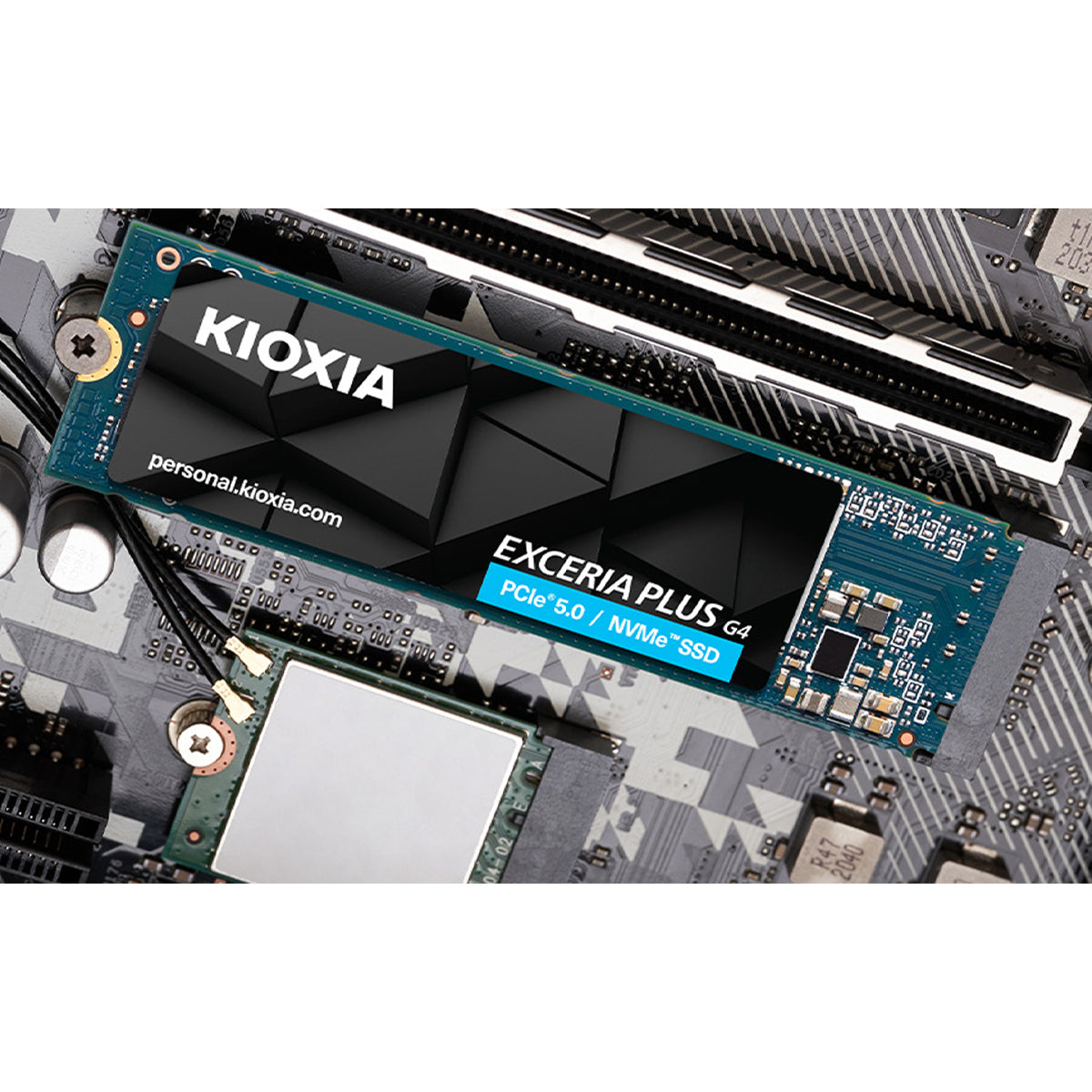

Get an enhanced PC experience with the all-new KIOXIA EXCERIA PLUS G4 SSD series featuring a state-of-the-art PCIe® 5.0 interface. Offering improved performance and up to 2TB of capacity for gamers and video editors, the EXCERIA PLUS G4 series delivers low power consumption and reduced heat generation.
| Capacity / dimensions | |
|---|---|

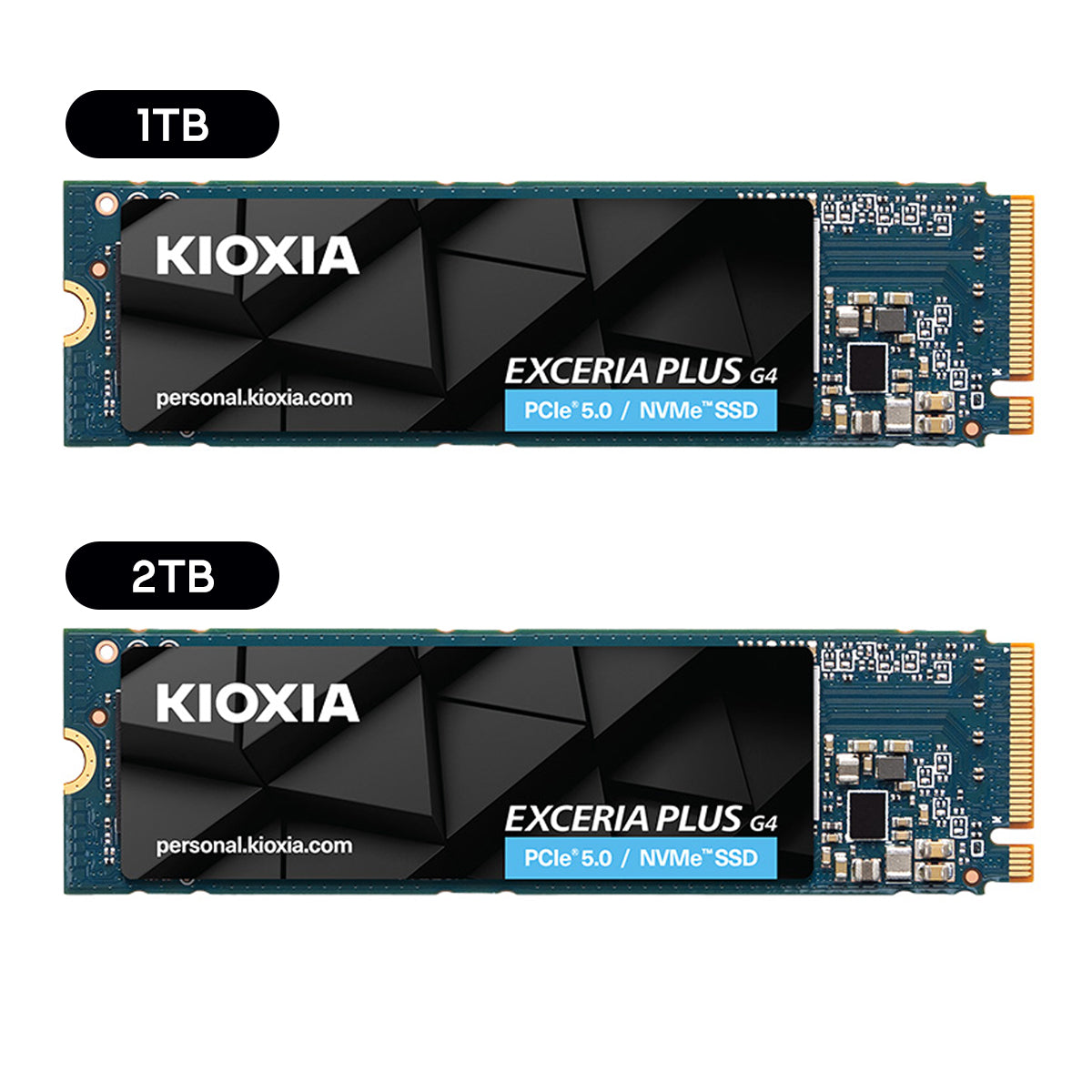

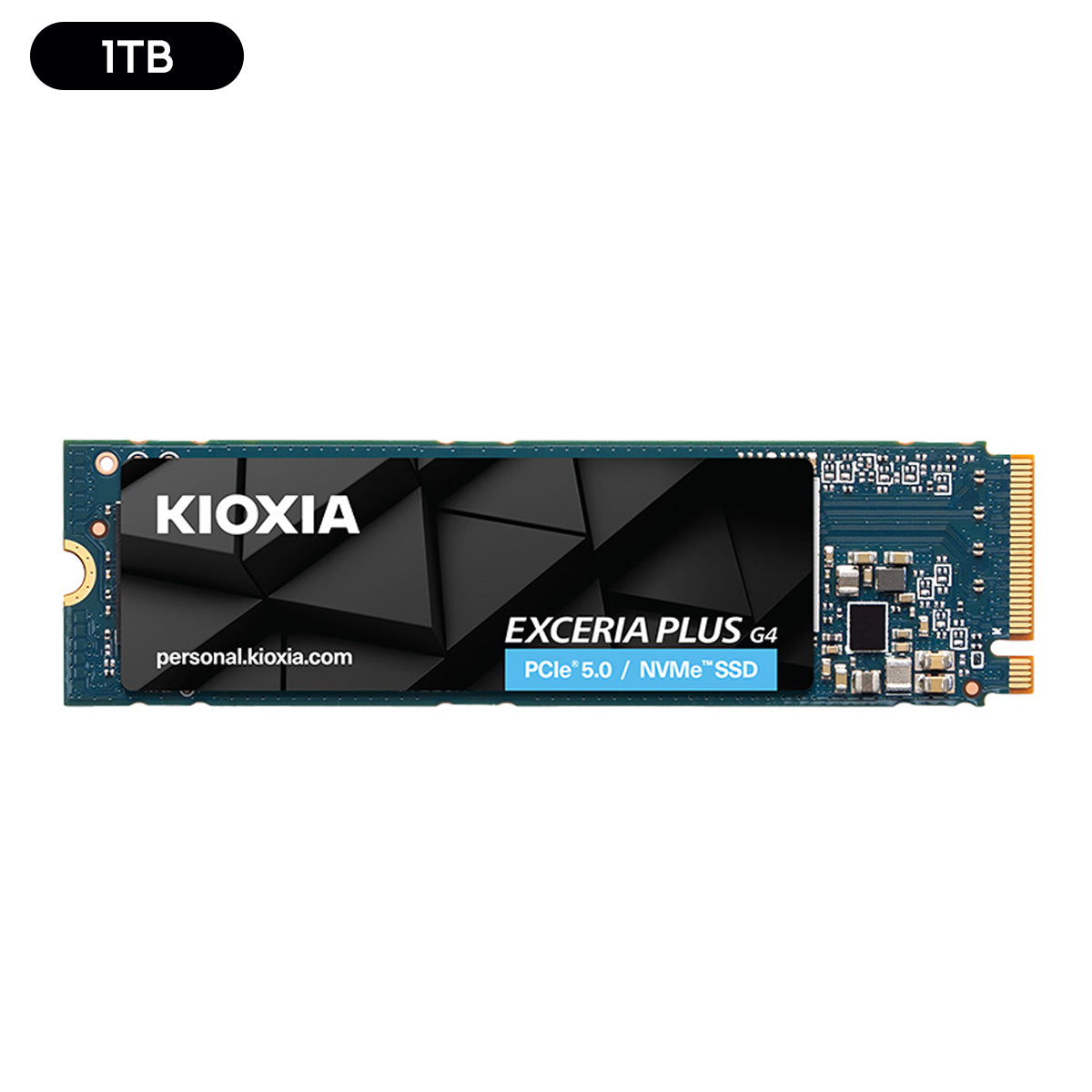

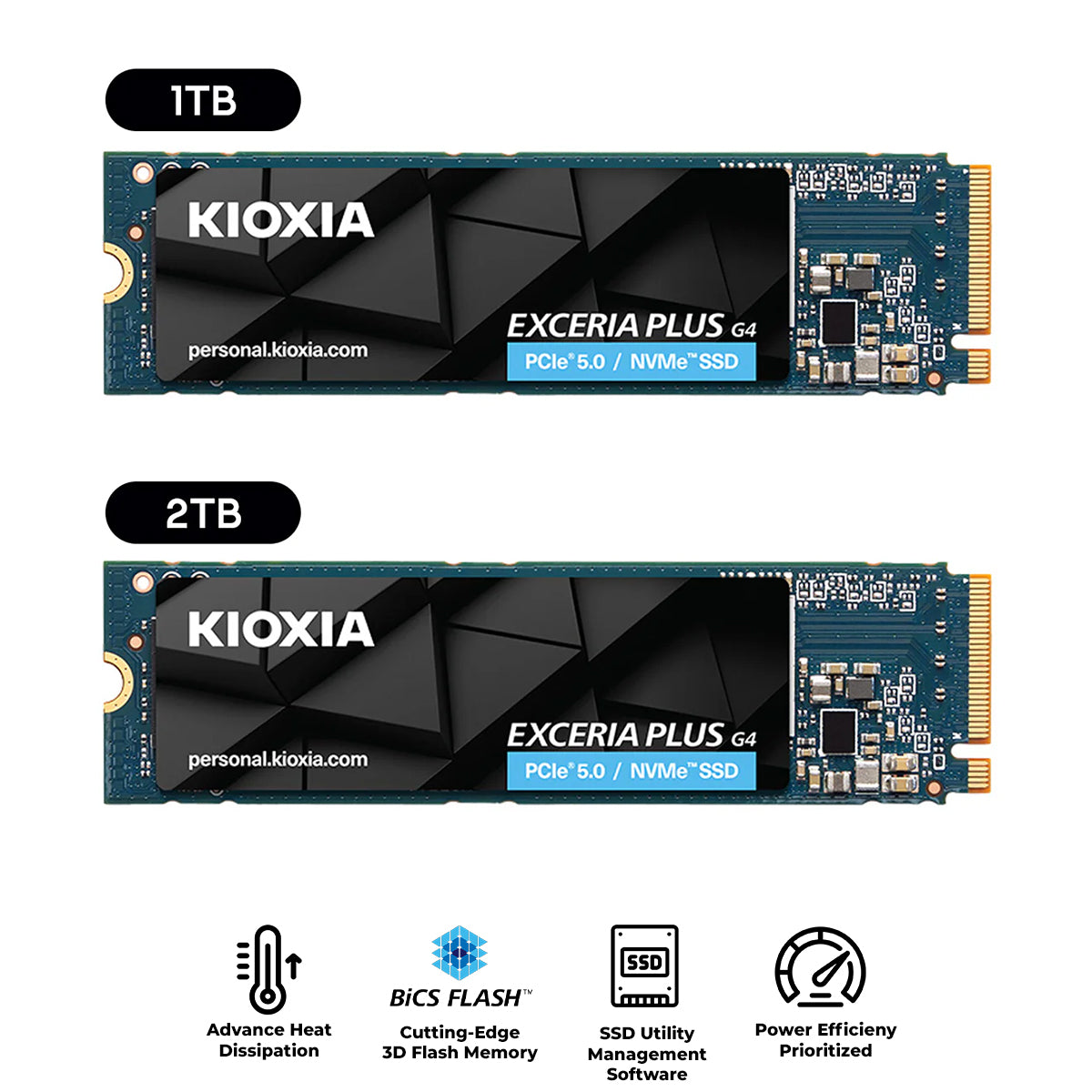

| Capacity | 1TB, 2TB |
| Form Factor | M.2 Type 2280-S3-M |
| Interface | PCI Express® Base Specification Revision 5.0 (PCIe®) |
| Flash Memory type | BiCS FLASH™ TLC |
| Interface Maximum Speed | 128 GT/s (PCIe® Gen5x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.38 mm |
| Interface Protocol | NVM Express™ Base Specification 2.0c |
| Weight | 1TB: 5.6 g (typ.), 2TB: 5.7 g (typ.) |
| Performance | |
| Max Sequential Read Speed*1 | 10,000 MB/s |
| Max Sequential Write Speed*1 | 1TB: 7,900 MB/s, 2TB: 8,200 MB/s |
| Max Random Read Speed*2 | 1,300,000 IOPS |
| Max Random Write Speed*2 | 1,400,000 IOPS |
| Endurance: TBW*3 | 1TB: 600 TB, 2TB: 1,200 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption | PS3: 50 mW (typ.), PS4: 5 mW (typ.) |
| Power Consumption (Active) | 5.3 W (typ.) |
| Compatibility | |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Others | |
| Services and Support | Up to 5-year manufacturer's warranty*4 |
| Performance Optimization | TRIM, Idle Time Garbage Collection, Host Memory Buffer |
