Description
Specifications:
| PERFORMANCE | |
|---|---|
| Processor | AMD Ryzen™ 7 260 (8C / 16T, 3.8 / 5.1GHz, 8MB L2 / 16MB L3) |
| AI PC Category | AI-Powered Gaming PC |
| NPU | Integrated AMD Ryzen™ AI, up to 16 TOPS |
| Graphics | NVIDIA® GeForce RTX™ 5050 8GB GDDR7, Boost Clock 2662MHz, TGP 115W, 440 AI TOPS |
| Chipset | AMD SoC Platform |
| Memory | 1x 16GB SO-DIMM DDR5-5600 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 32GB DDR5-5600 offering |
| Storage | 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Max Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
| Optical | None |
| Card Reader | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Microphone | 2x, Array |
| Camera | HD 720p with E-shutter |
| Battery | 80Wh |
| Power Adapter | 245W Slim Tip (3-pin) |
| Special Features | AI Chip: LA1 |
| DESIGN | |

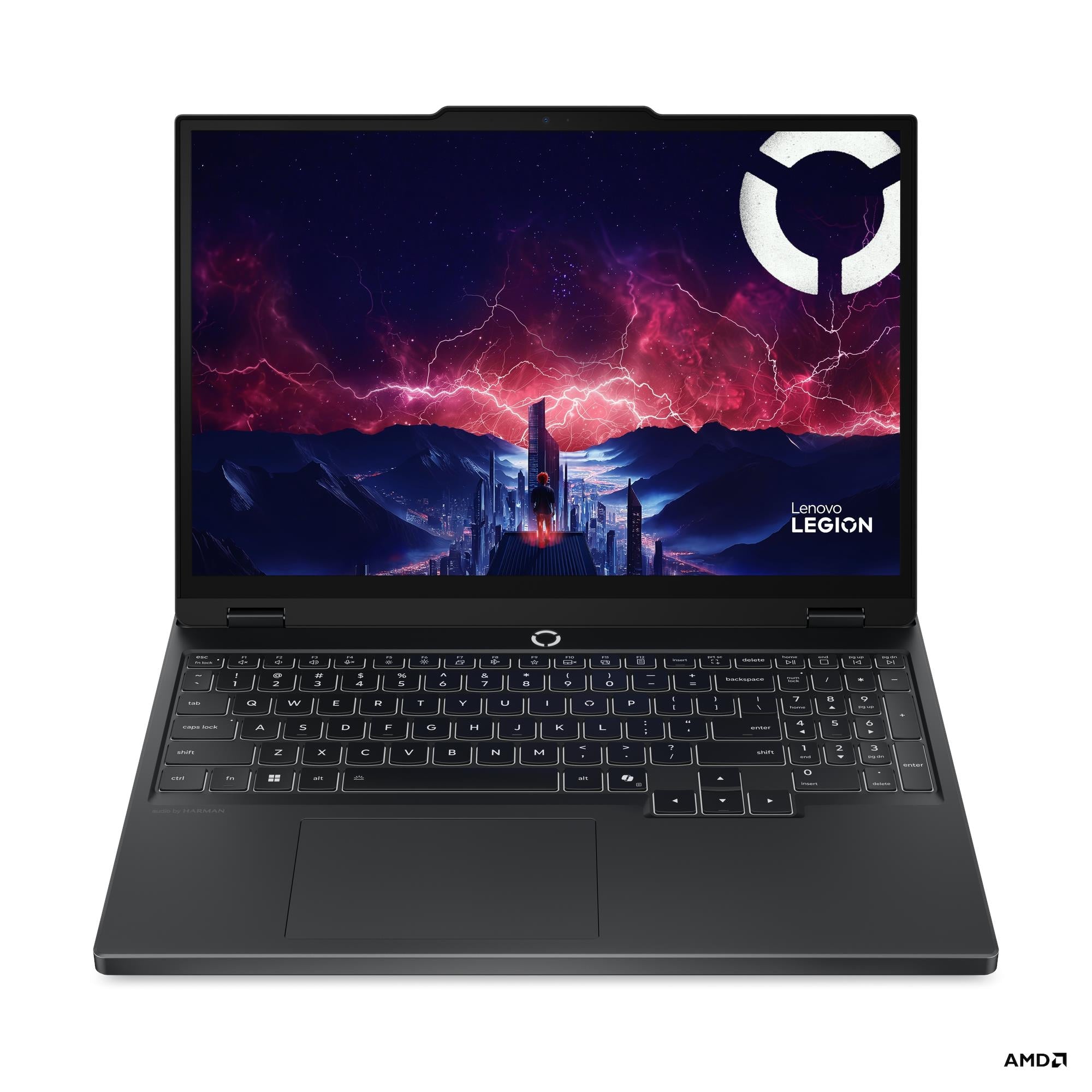

| Display | 15.3" WUXGA (1920x1200) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, G-SYNC® |
| Touchscreen | None |
| Screen-to-Body Ratio | IPS models: 90.9% AAR (active area ratio) |
| Color Calibration | Factory Color Calibration |
| Pen | Pen Not Supported |

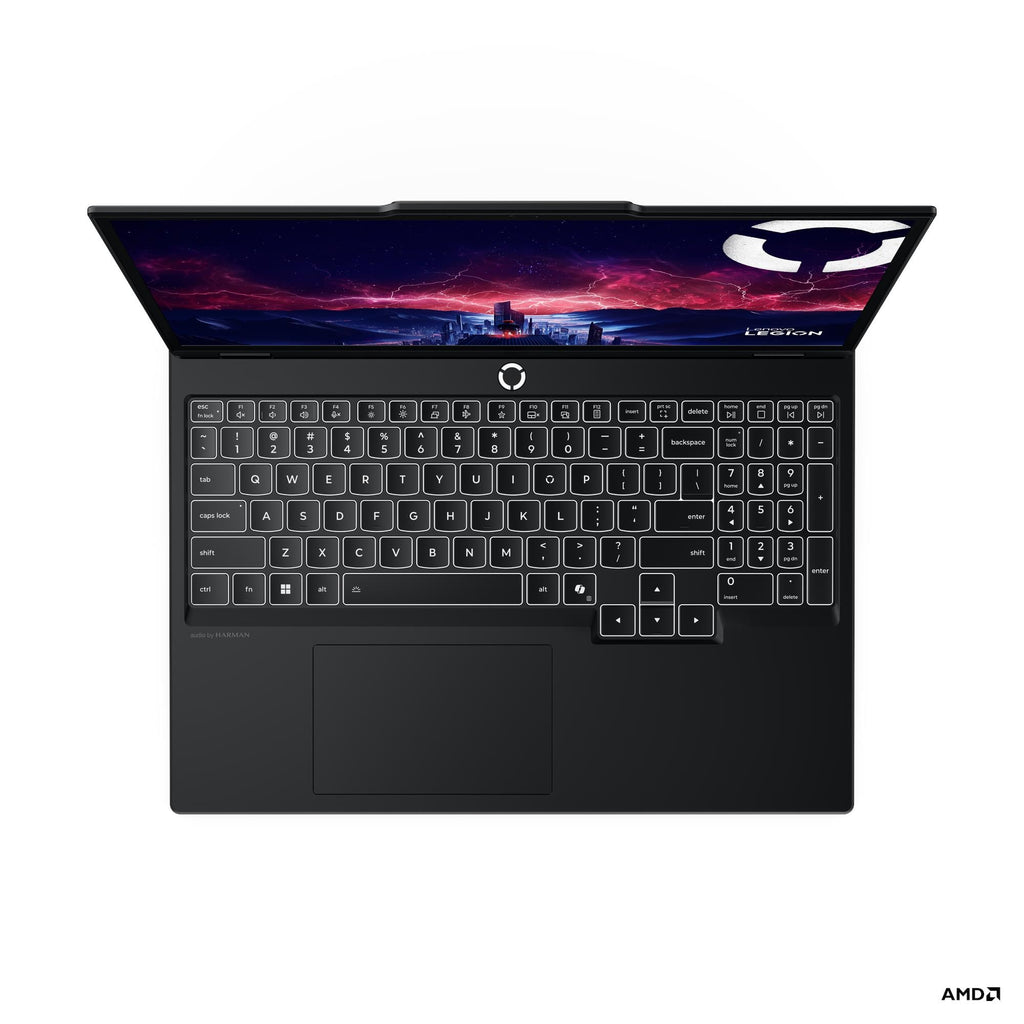

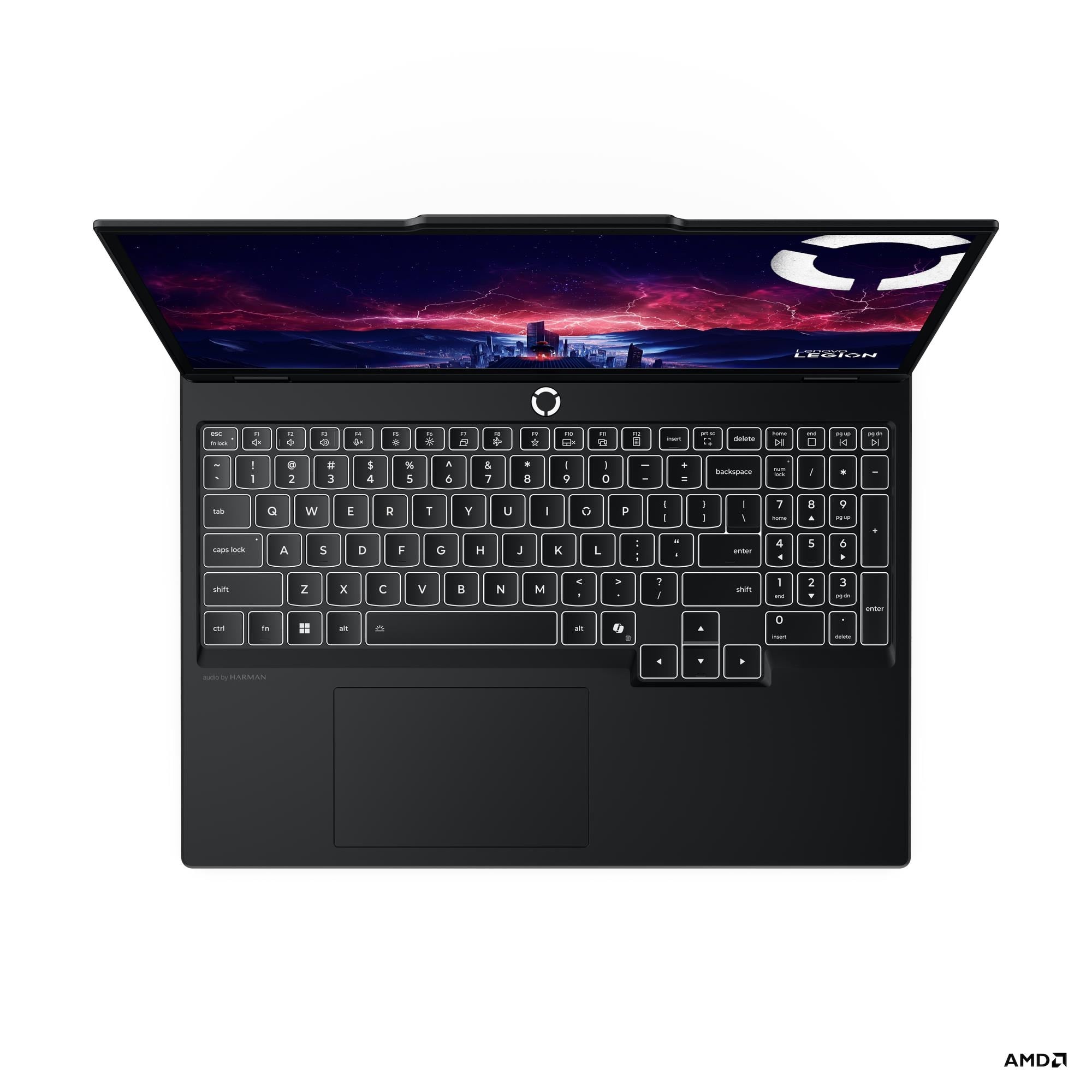

| Keyboard | White Backlit, English |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) | 344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.89-0.94 inches) |
| Weight | Starting at 2.1 kg (4.63 lbs) |
| Case Color | Eclipse Black |
| Case Material | PC-ABS + 15% Talc (Top), PC-ABS + 15% Talc (Bottom) |
| Surface Treatment | Painting |
| SOFTWARE | |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | Office Home 2024 + Lenovo® AI Now |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi® 6, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | 100/1000M (RJ-45) |

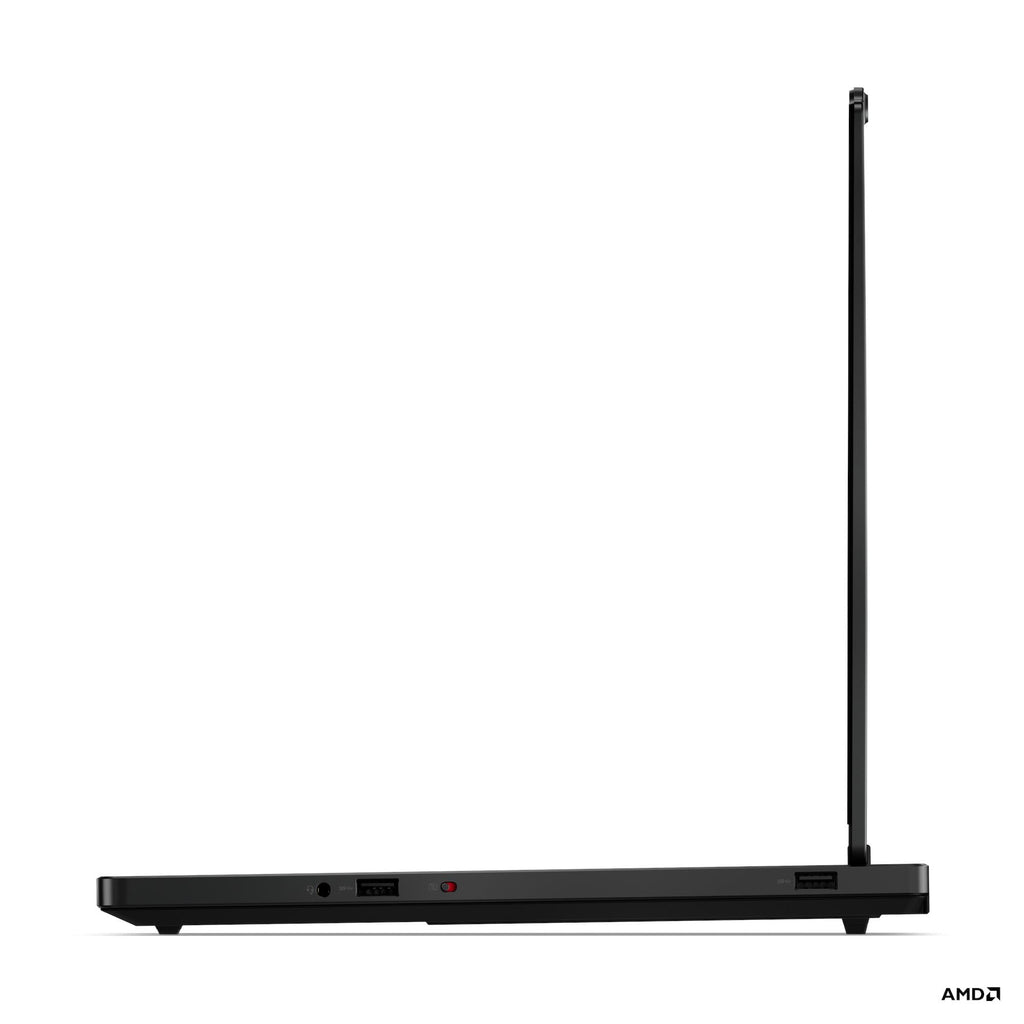

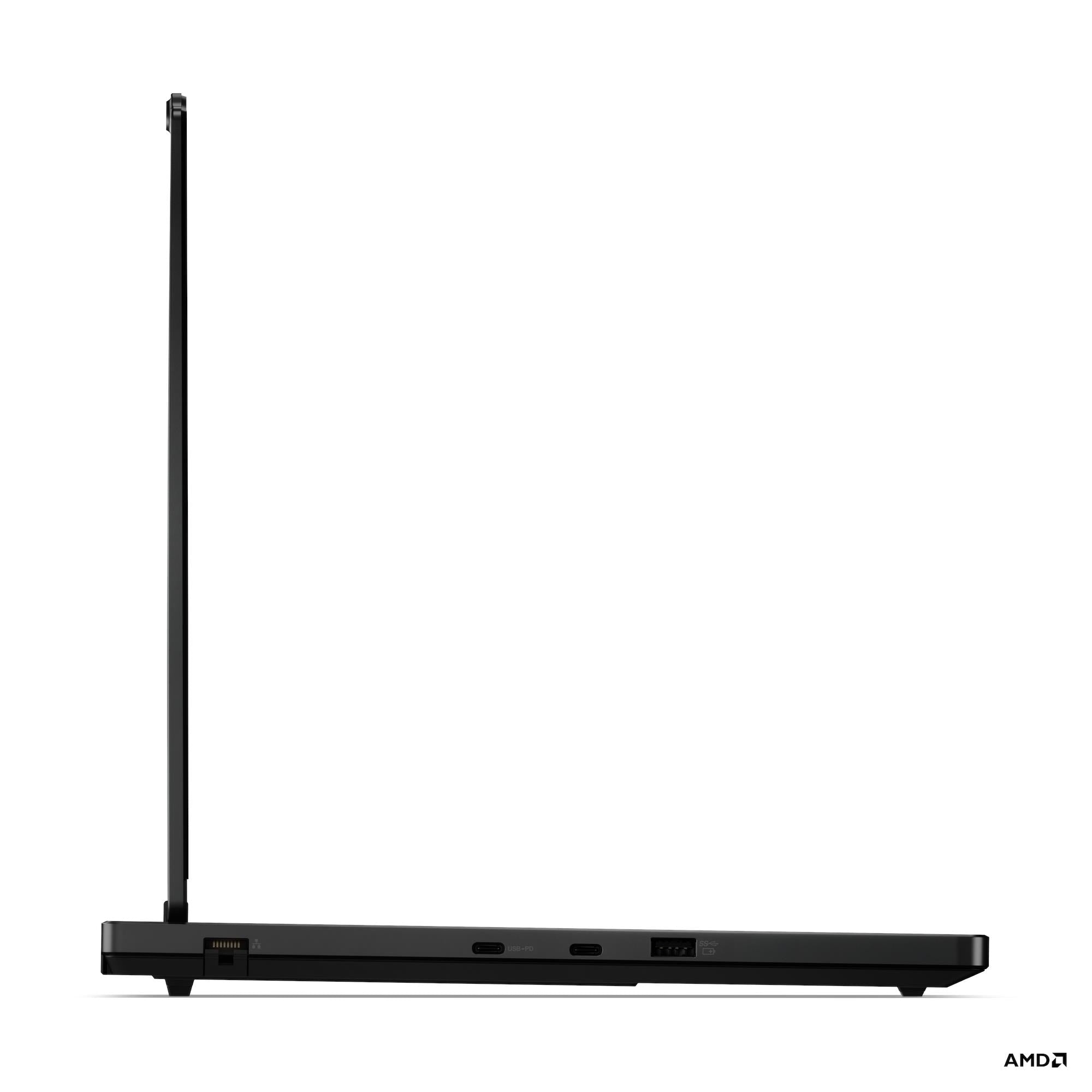

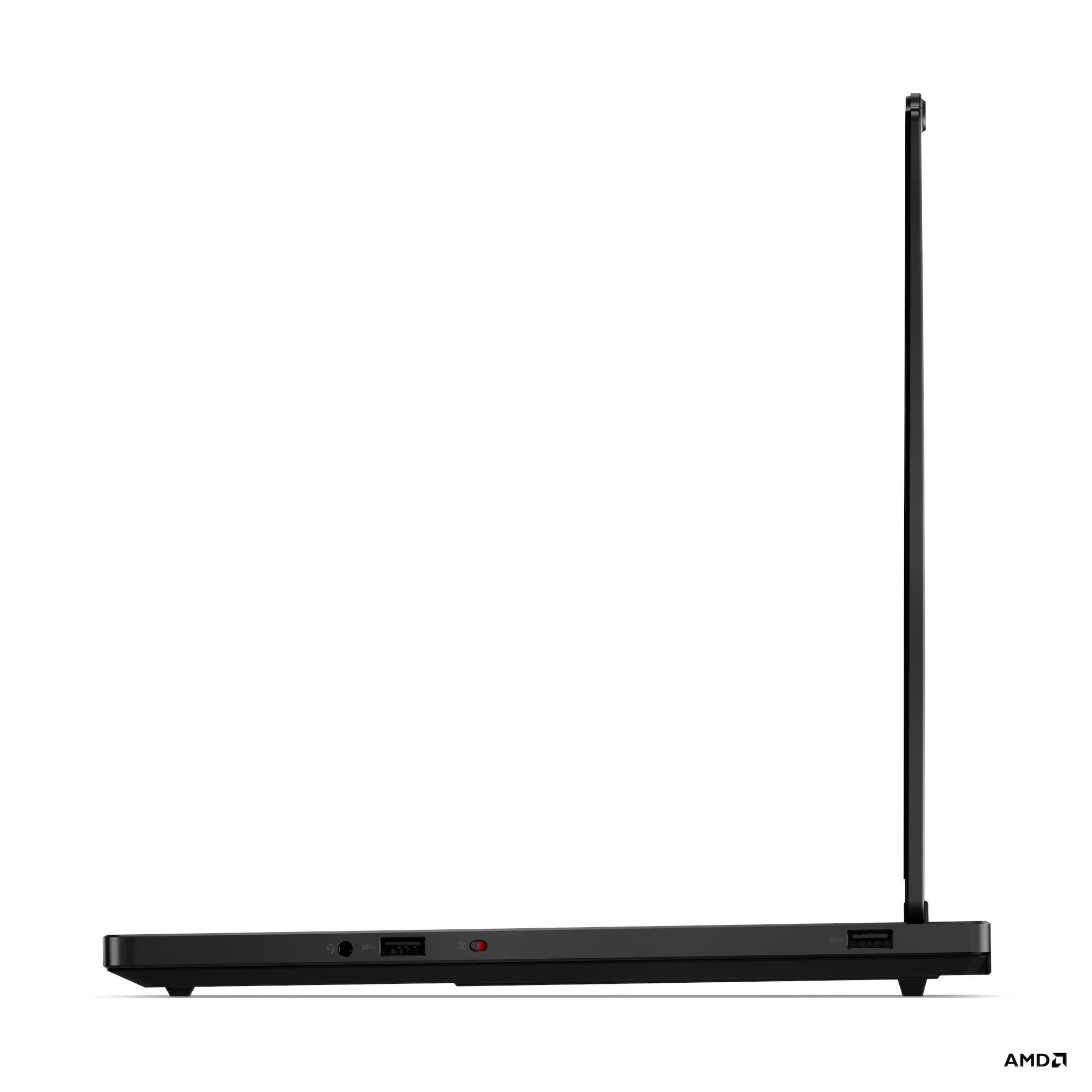

| Standard Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1 1x USB-C® (USB4® 40Gbps), with DP 1.4 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Docking | Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15AHP10 |
| SECURITY & PRIVACY | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Legion Ultimate Support -IPMAIN (ESS) |
| ACCESSORIES | |
| Bundled Accessories | None |
| CERTIFICATIONS | |
| Green Certifications | ENERGY STAR® 9.0, EPEAT™ Gold Registered, ErP Lot 6/26, RoHS compliant |
| Other Certifications | TÜV Rheinland® Low Blue Light (Hardware Solution) |
