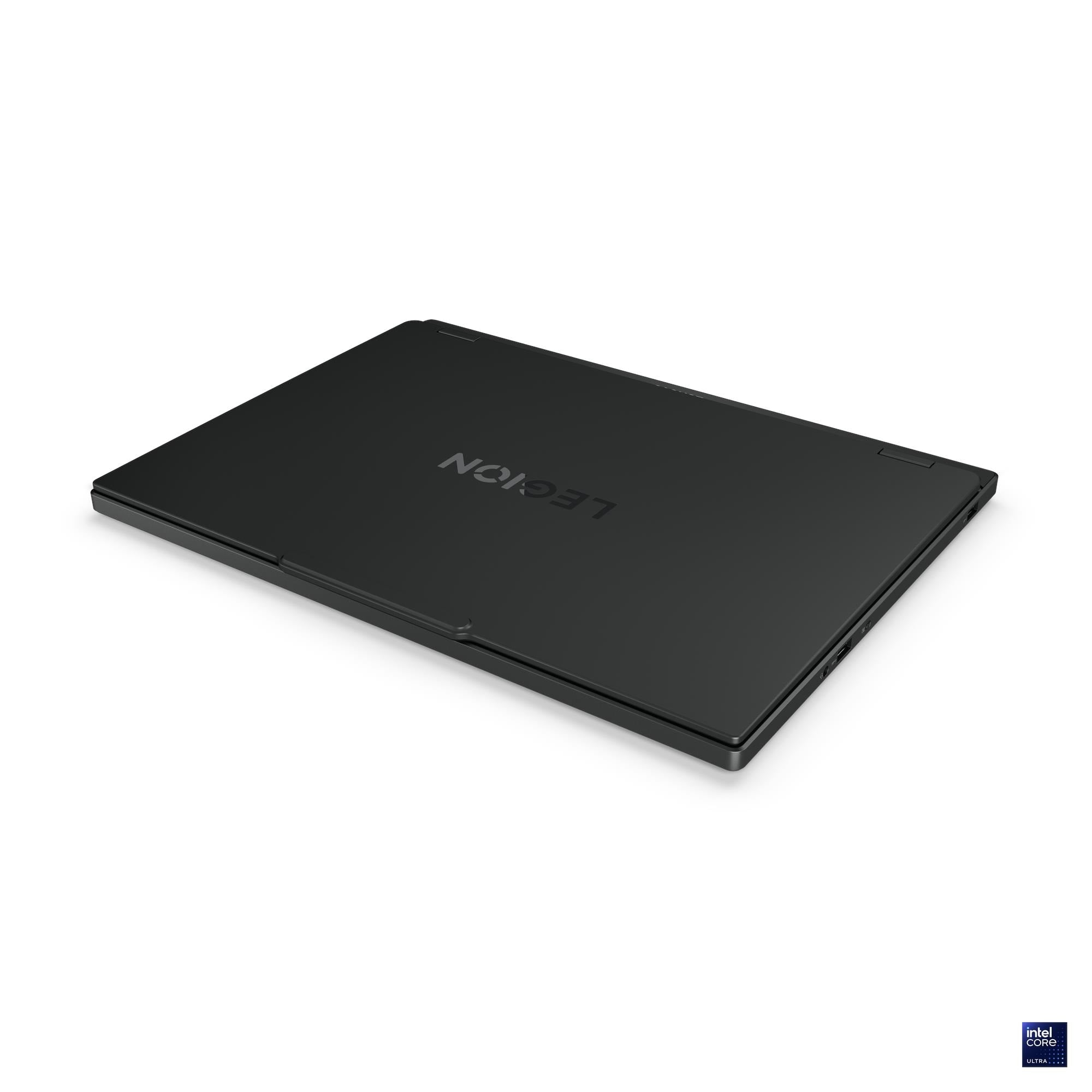

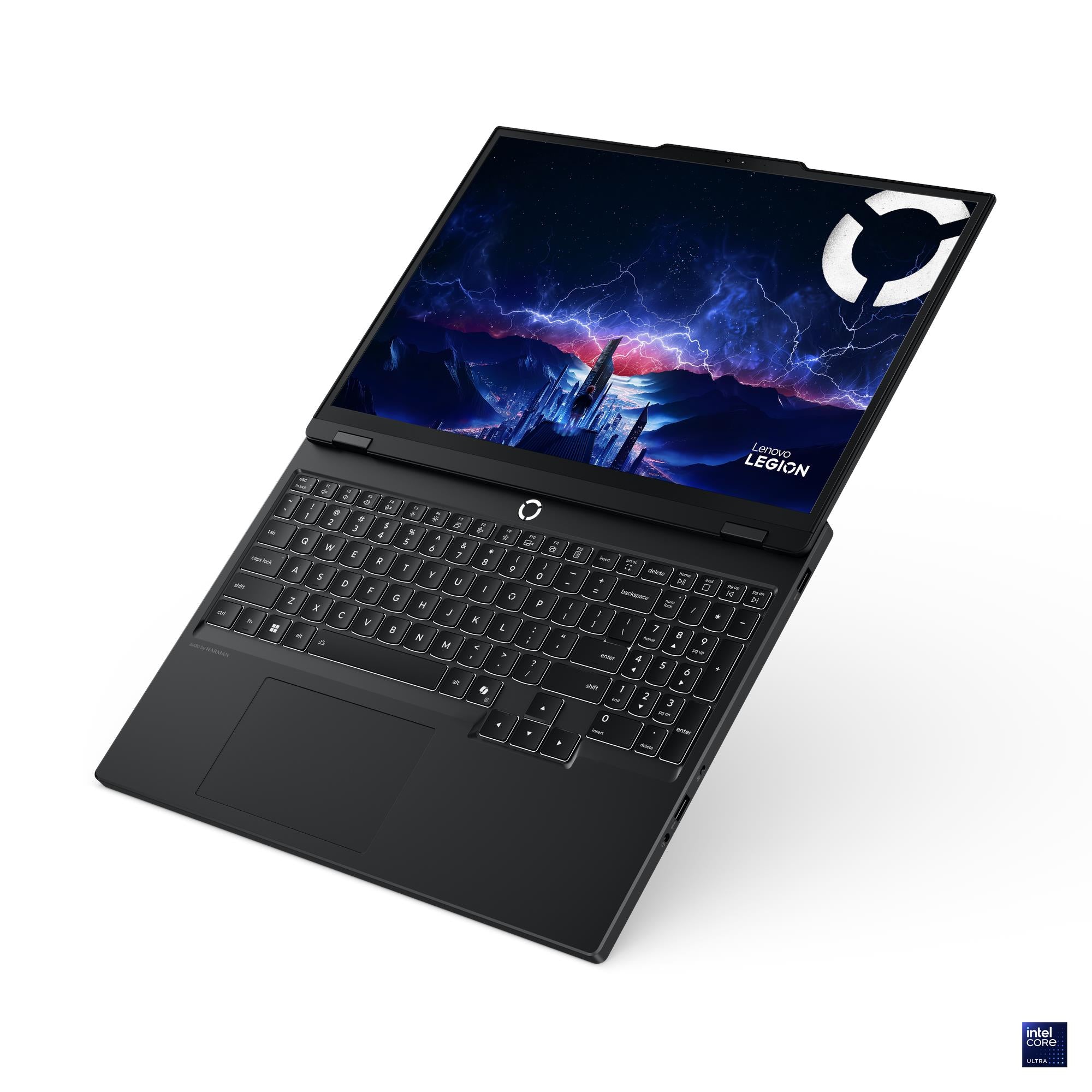

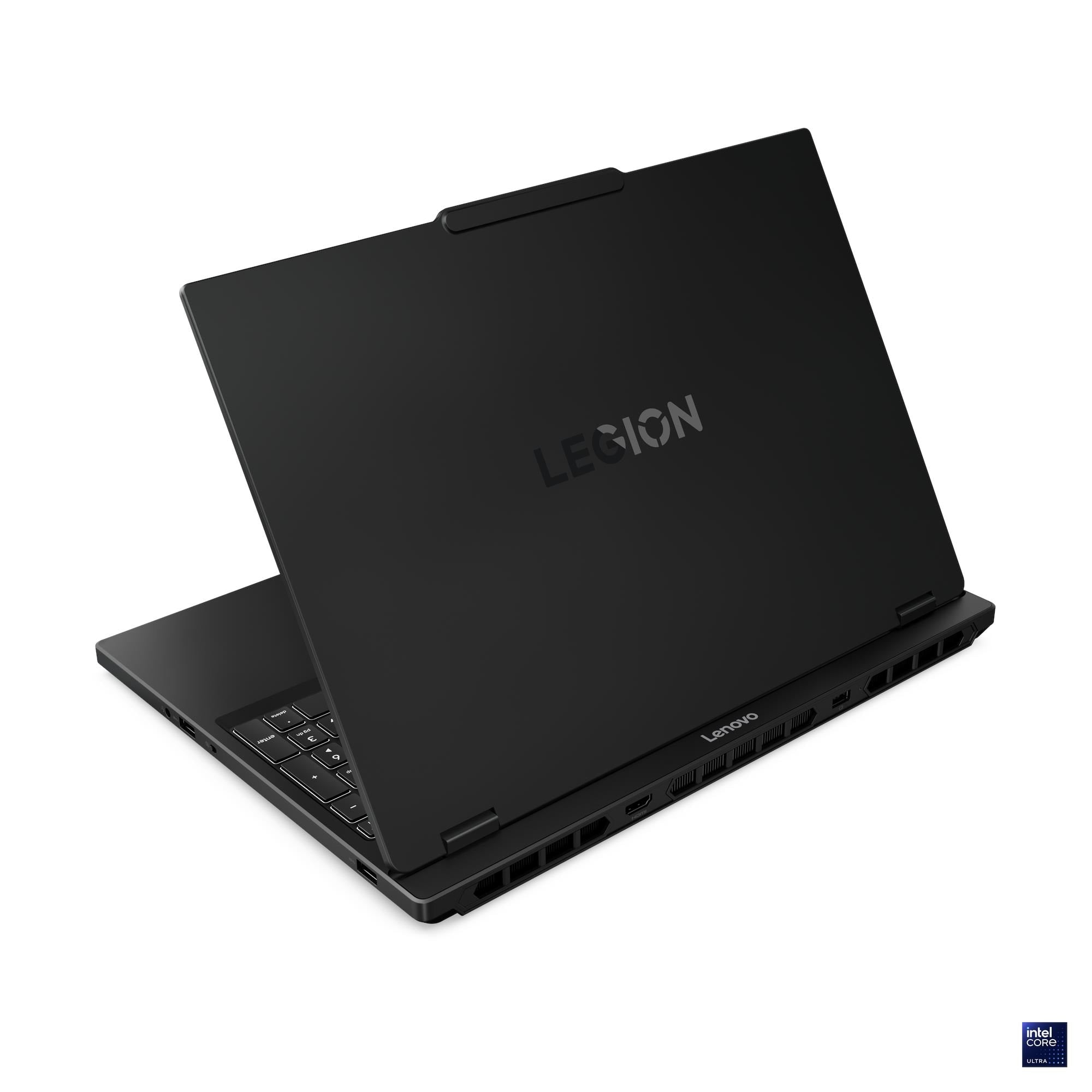

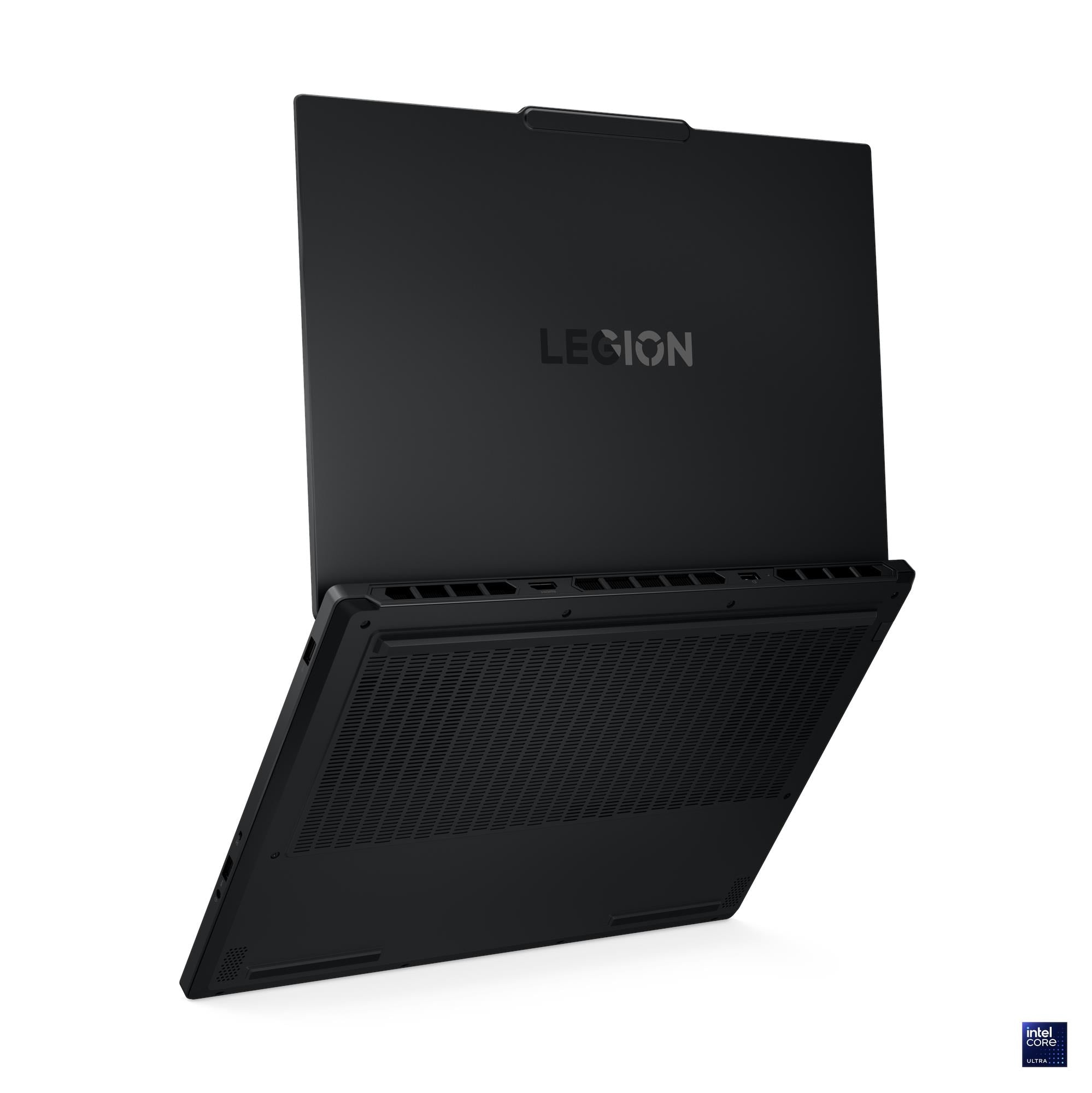

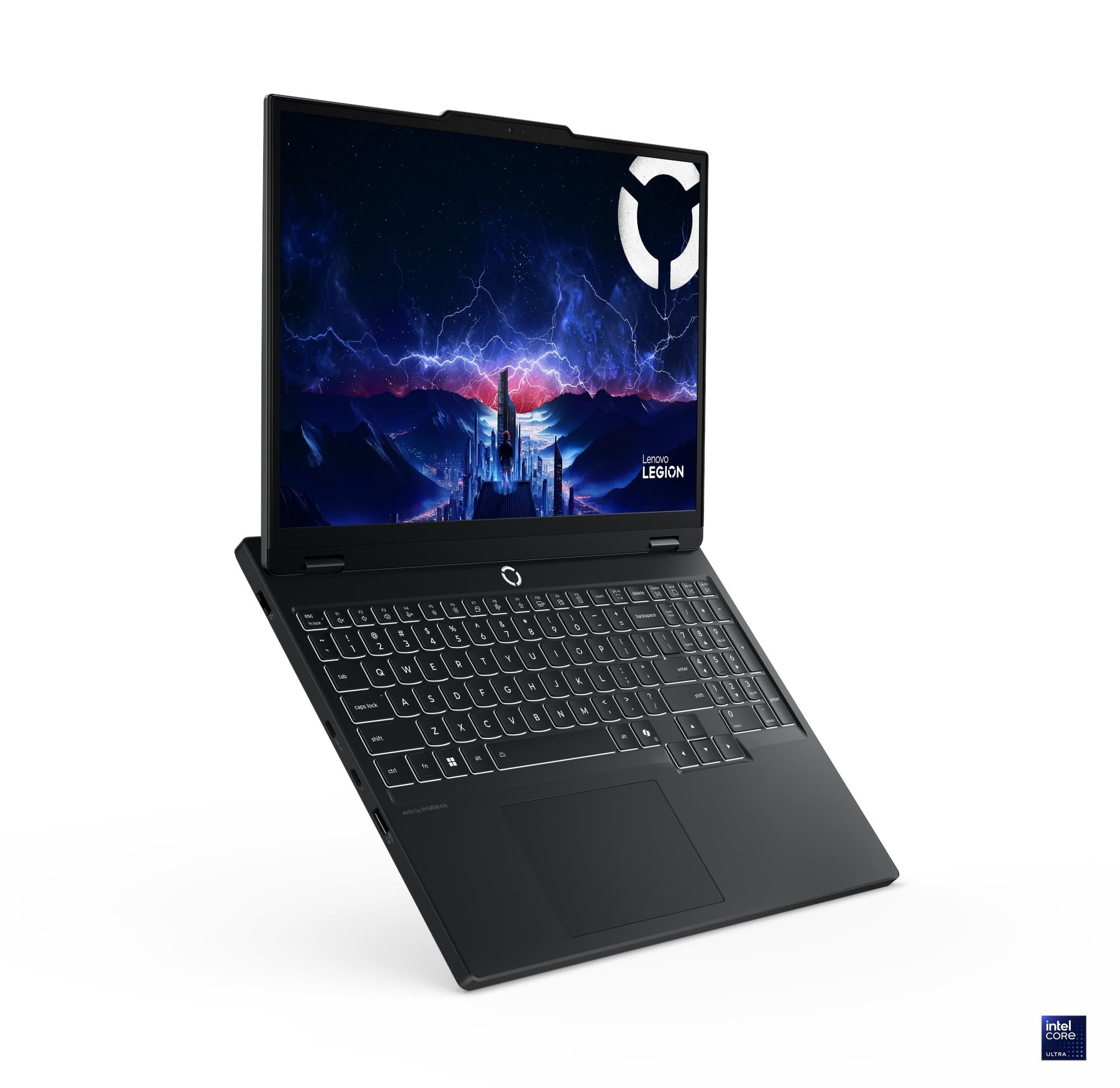

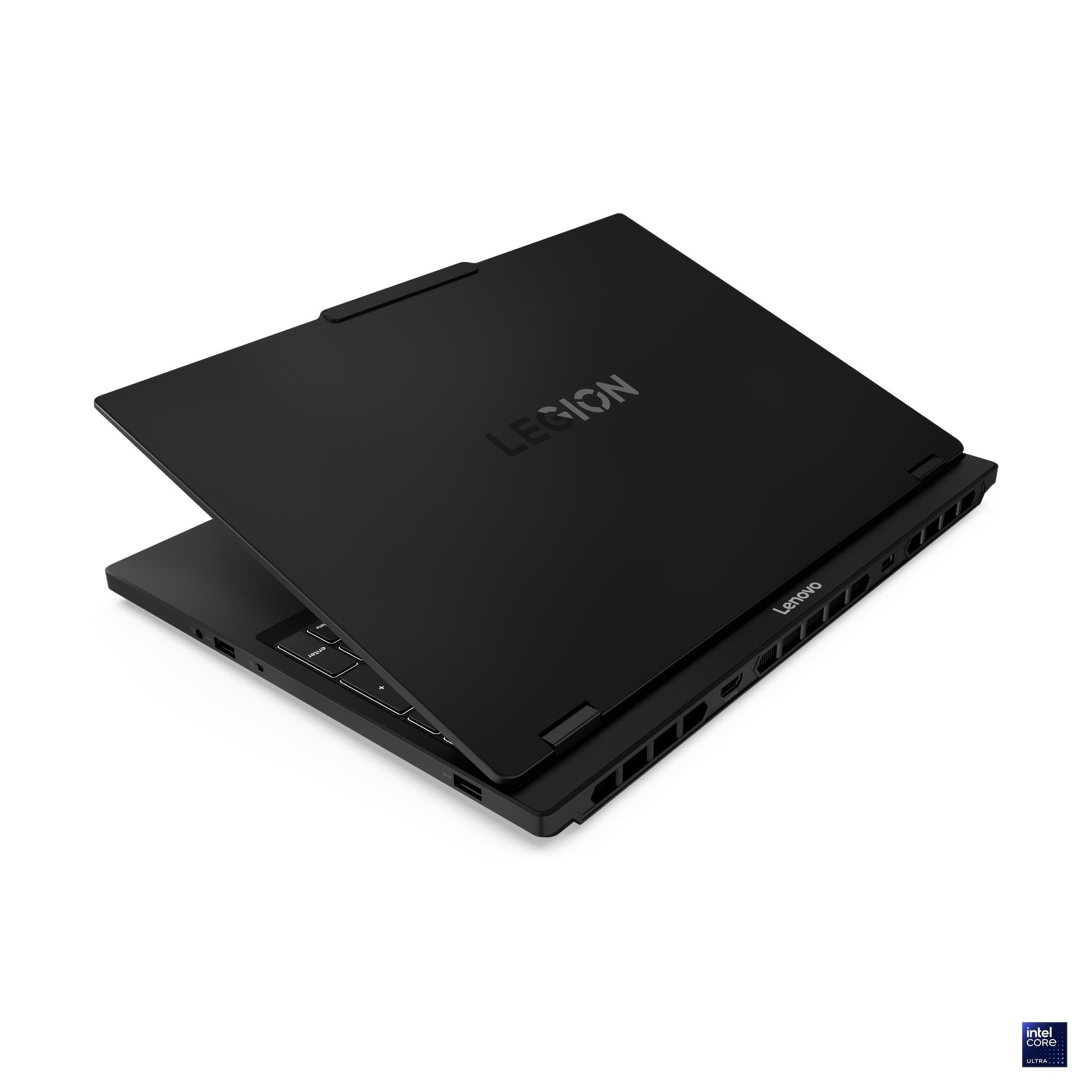

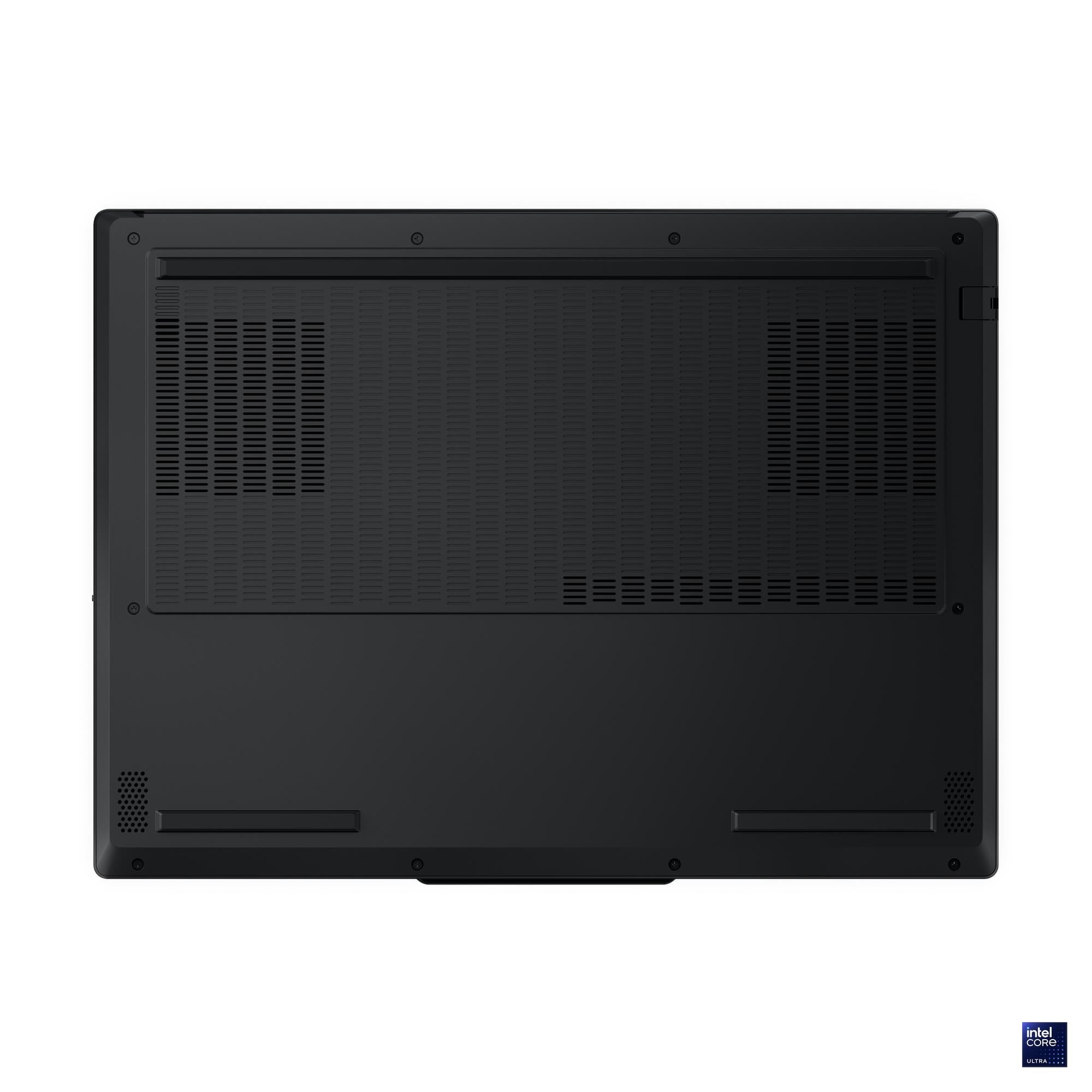

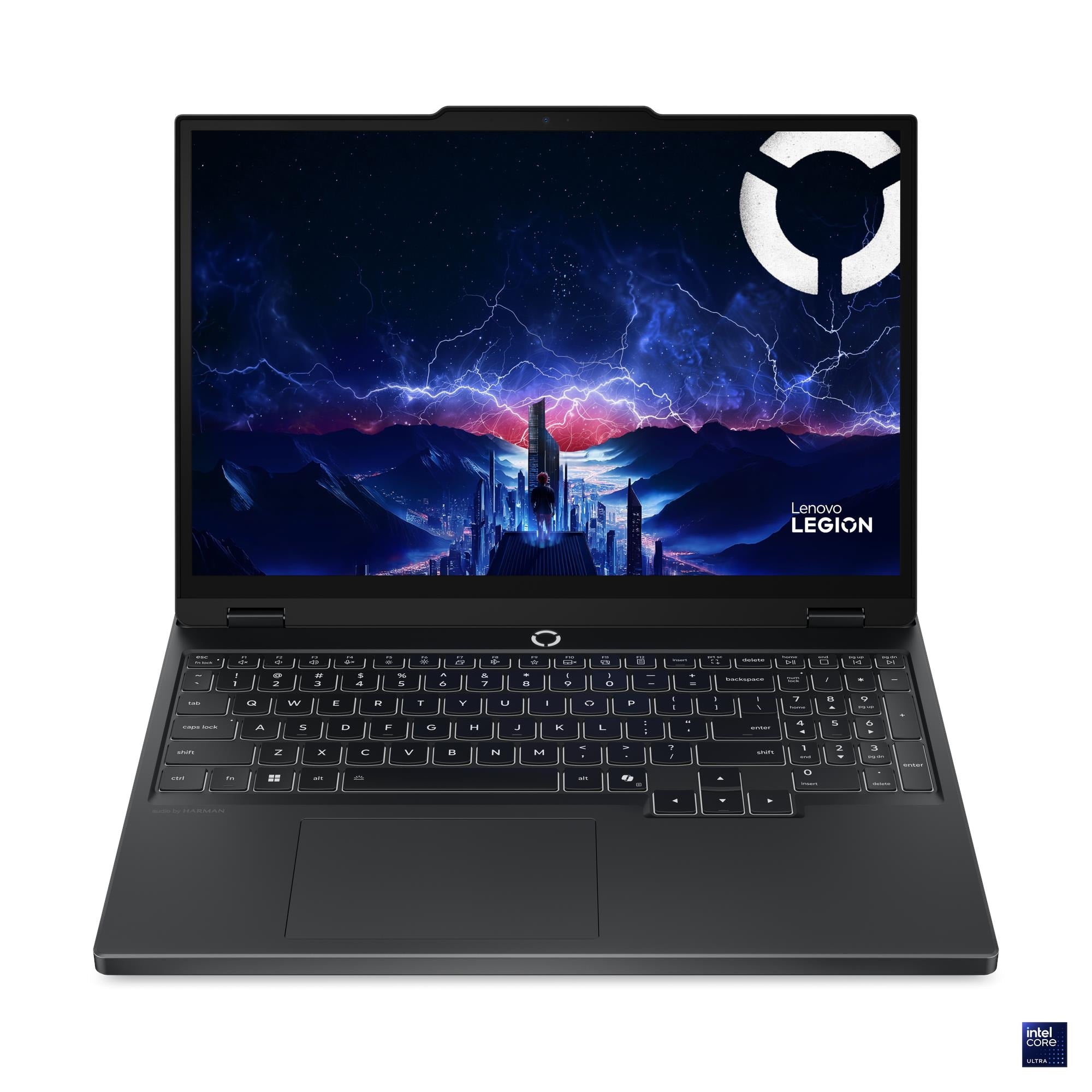

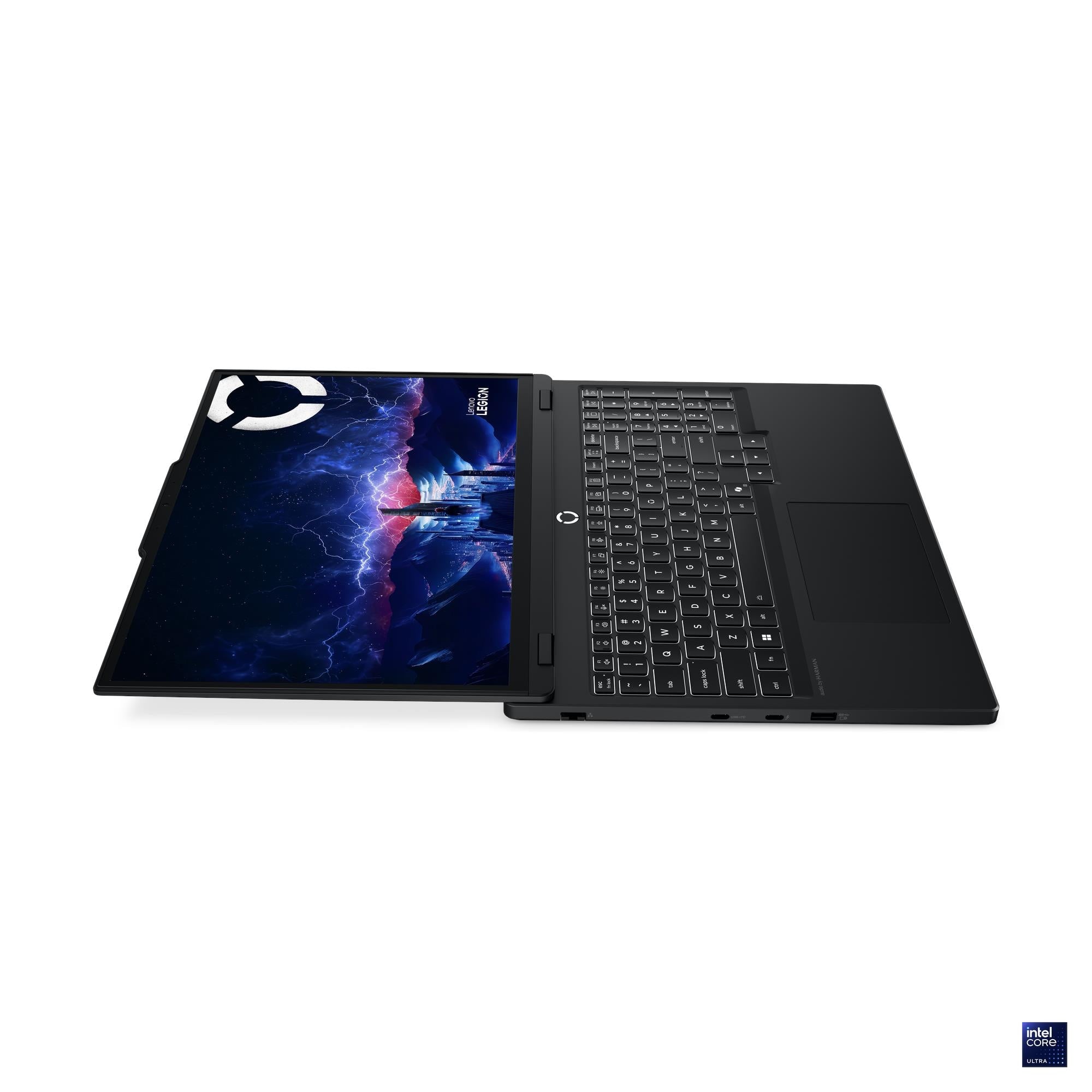

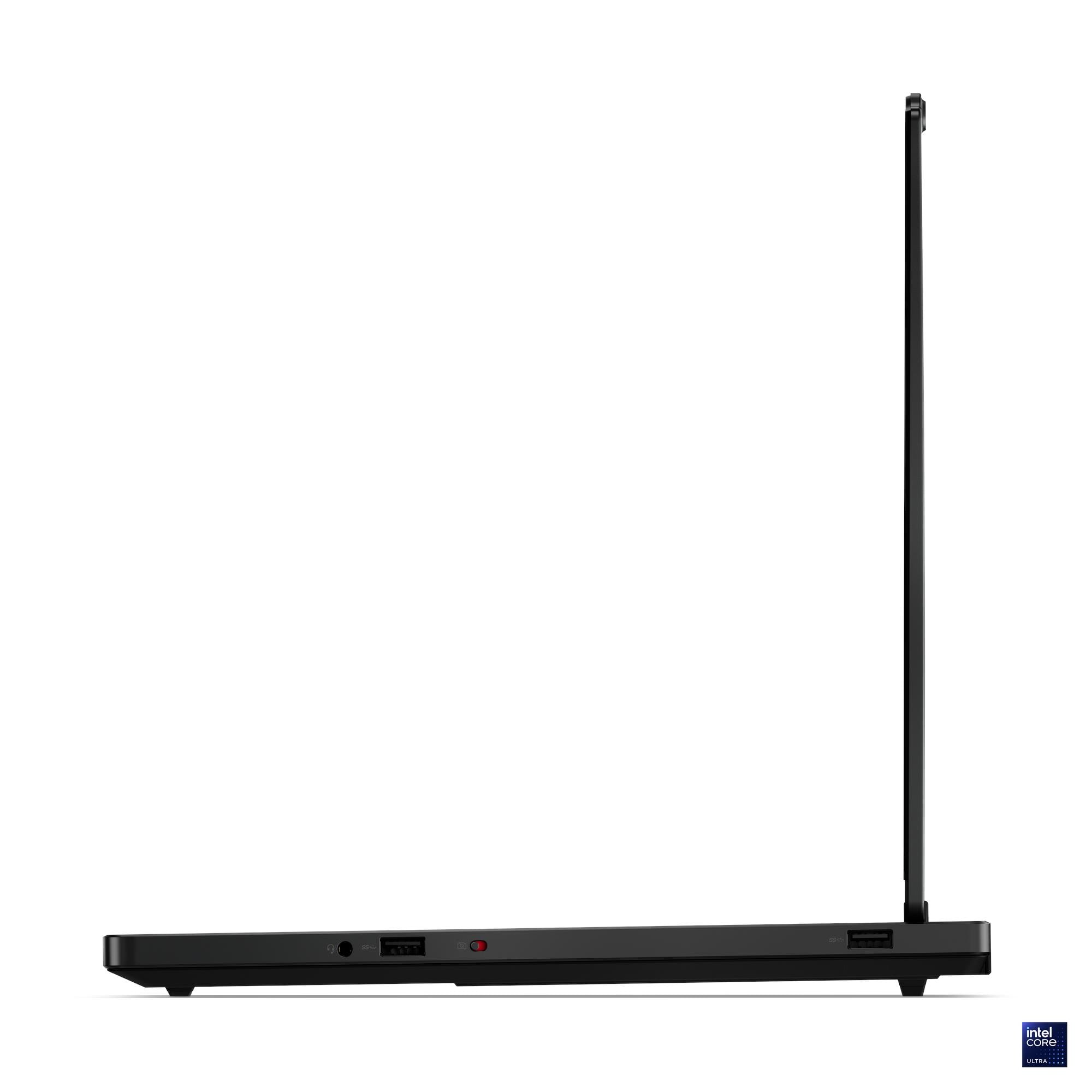

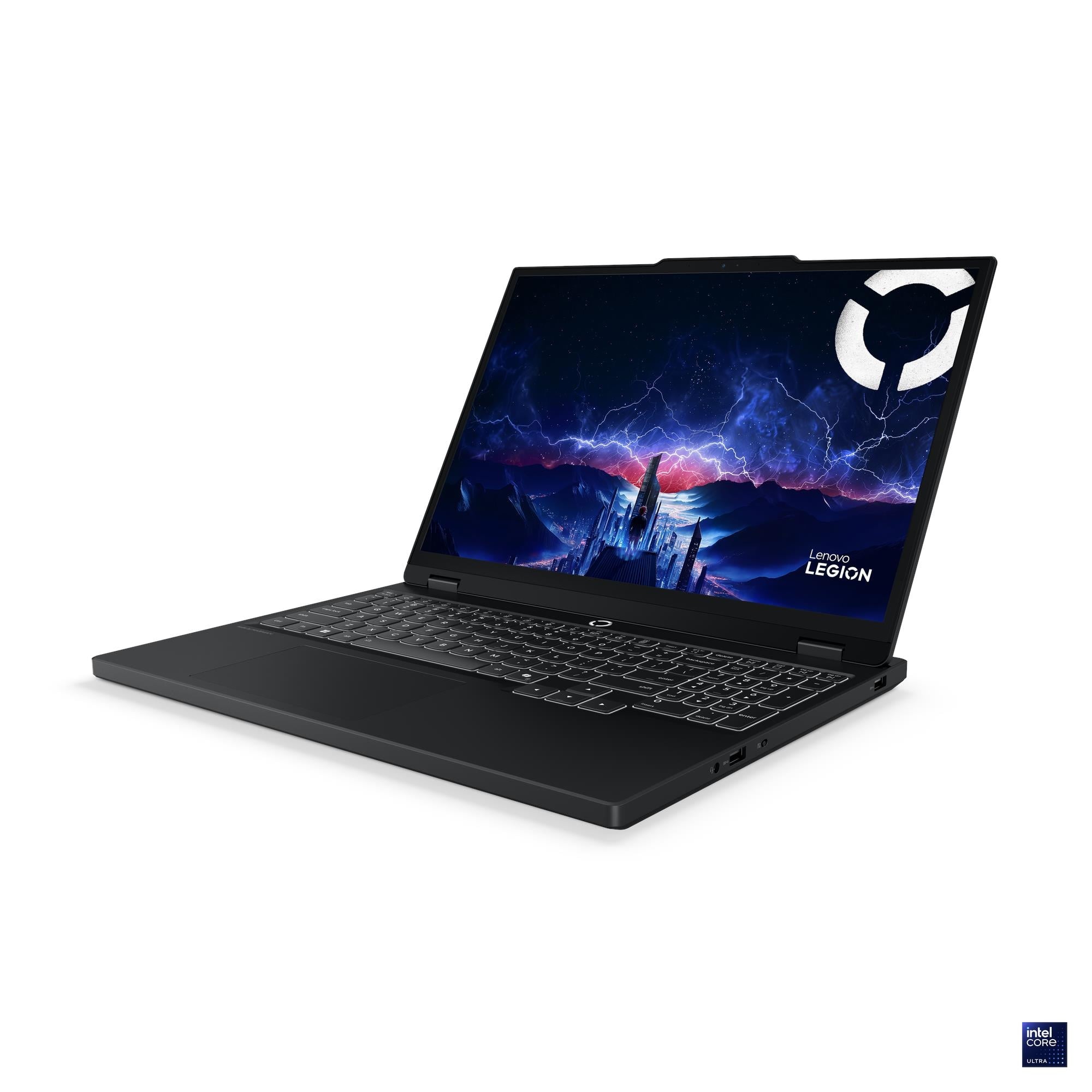

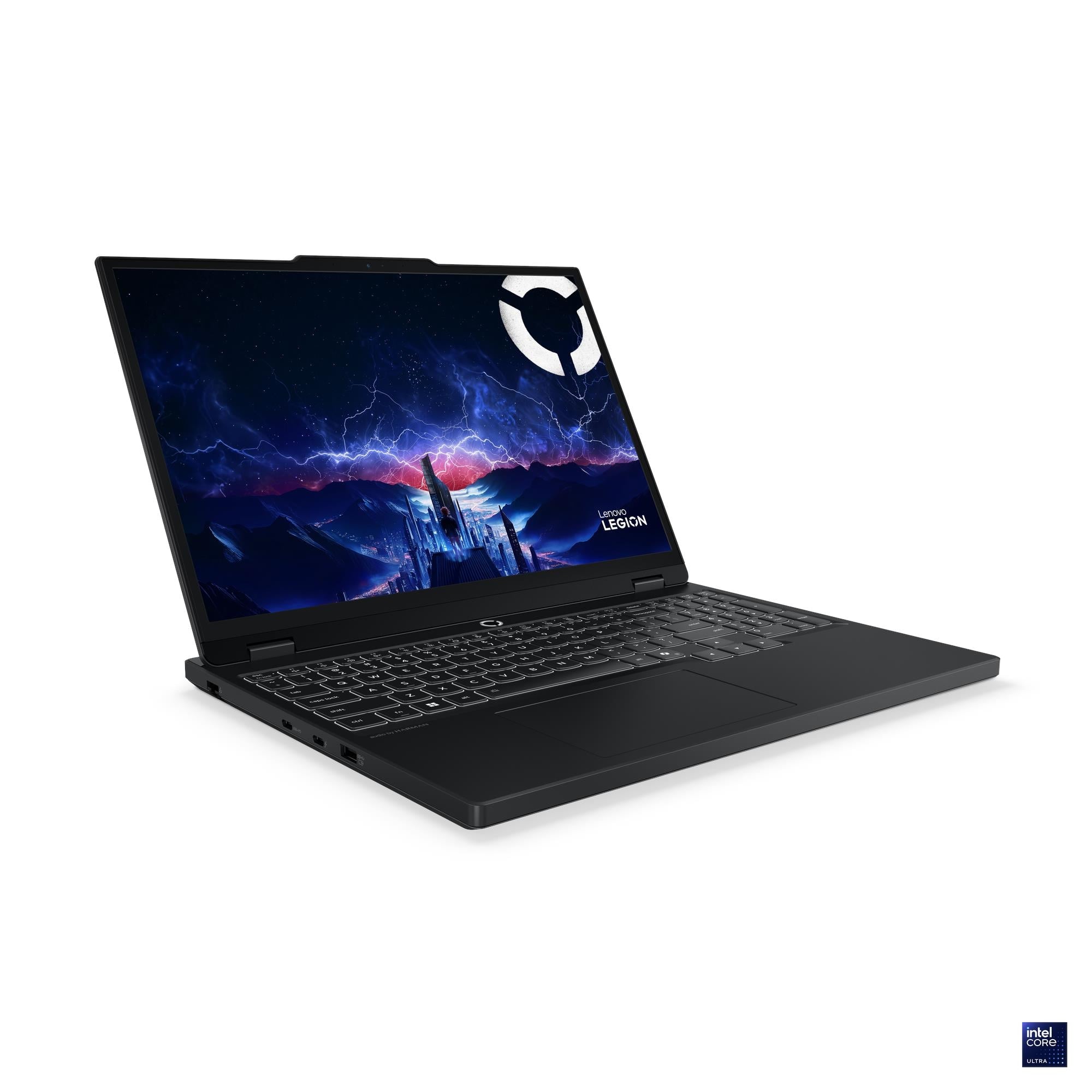

Lenovo Legion 5 15IAX10 83F0008UPH Gaming Laptop (Eclipse Black) | 15.1" WQXGA (2560x1600) OLED 165Hz | Core Ultra 7 255HX | 32GB RAM | 512GB SSD | RTX 5070 | Windows 11 Home | MS Office Home 2024 + Legion Gaming Backpack GB400
Description
Step into next-generation gaming with the Lenovo Legion 5 15IAX10 (Eclipse Black)—built for players who demand power, speed, and immersive visuals. Featuring a stunning 15.1" WQXGA OLED display with 165Hz refresh rate, it delivers ultra-sharp detail, vibrant colors, and incredibly smooth motion for competitive and cinematic gaming.
Powered by the Intel Core Ultra 7 255HX processor, paired with 32GB RAM and a fast 512GB SSD, it ensures elite multitasking performance and rapid load times. The NVIDIA GeForce RTX 5070 brings next-level graphics power for AAA gaming, creative workloads, and high-FPS competitive play.
Pre-installed with Windows 11 Home and MS Office Home 2024, it’s ready for both productivity and play. The included Legion Gaming Backpack GB400 adds portability and protection for gamers on the move.
Powerful, immersive, and built for victory—this is Legion at its peak.
Specification:
| PERFORMANCE | |
| Processor |
Intel Core™ Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel® Smart Cache
|
| AI PC Category |
AI-Powered Gaming PC
|
| NPU |
Integrated Intel® AI Boost, up to 13 TOPS
|
| Graphics |
NVIDIA GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
|
| Chipset |
Intel® HM870 Chipset
|
| Memory |
2x 16GB SODIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SODIMM slots, dual-channel capable
|
| Max Memory |
Up to 32GB DDR5-5600 offering
|
| Storage |
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
|
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots
|
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
|
| Optical |
None
|
| Card Reader |
No Card Reader
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3287 codec
|
| Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
|
| Microphone |
2x, Array
|
| Camera |
5.0MP with E-shutter
|
| Battery |
80Wh
|
| Power Adapter |
245W Slim Tip (3-pin)
|
| Special Features |
AI Chip: LA3
|
| DESIGN | |
| Display |
15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600
|
| Touchscreen |
None
|
| Screen-to-Body Ratio |
OLED models: 90% AAR (active area ratio)
|
| Color Calibration |
Factory Color Calibration
|
| Pen |
Pen Not Supported
|

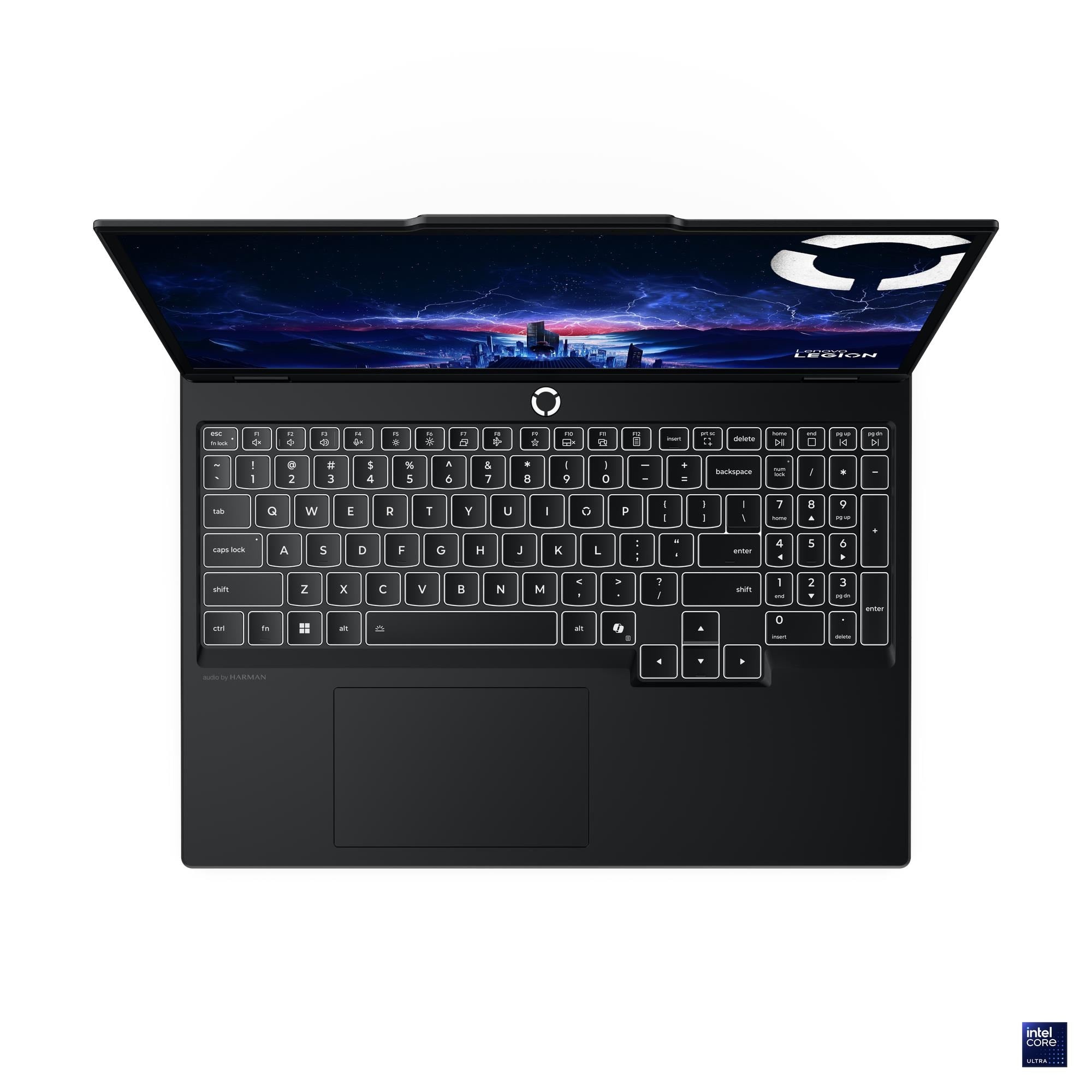

| Keyboard |
24-Zone RGB Backlit, English
|
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
|
| Dimensions (WxDxH) |
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches)
|
| Weight |
Starting at 1.9 kg (4.19 lbs)
|
| Case Color |
Eclipse Black
|
| Case Material |
Aluminium (Top), PC-ABS (Bottom)
|
| Surface Treatment |
Aluminium Stamping (Anodized with Sandblasting)
|
| SOFTWARE | |
| Operating System |
Windows® 11 Home Single Language, English
|
| Bundled Software |
Office Home 2024 + Lenovo® AI Now
|
| CONNECTIVITY | |
| WLAN + Bluetooth |
Wi-Fi® 7, 802.11be 2x2 + BT5.4
|
| WWAN |
WWAN Not Supported
|
| Ethernet |
100/1000M (RJ-45)
|

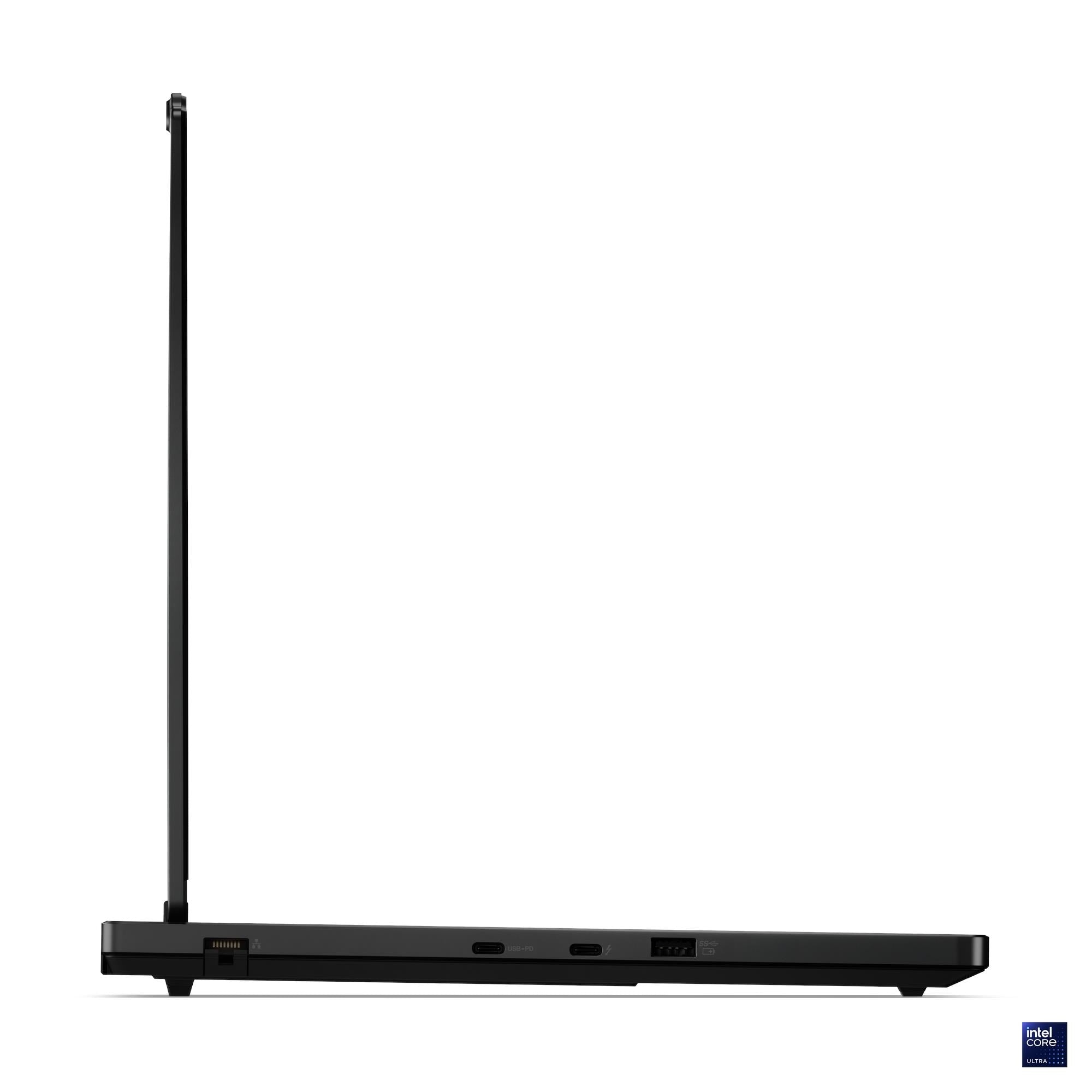

| Standard Ports |
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15IAX10
|
| SECURITY & PRIVACY | |
| Security Chip |
Firmware TPM 2.0 Enabled
|
| Fingerprint Reader |
No Fingerprint Reader
|
| Other Security |
E-shutter
|
| ACCESSORIES | |
| Bundled Accessories |
None
|
| CERTIFICATIONS | |
| Green Certifications |
|
| Other Certifications |
|
