Description
SPECIFICATION
- PROCESSOR: Intel Core i7-11800H (8C / 16T, 2.3 / 4.6GHz, 24MB)
- DISPLAY: 15.6" WQHD (2560x1440) IPS 300nits Anti-glare
- MEMORY: 2x 8GB SO-DIMM DDR4-3200
- STORAGE: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
- GPU: NVIDIA GeForce RTX 3060 6GB GDDR6
- OS: Windows 11 Home
Offering a wide range of performance options for any level of gamer, the Legion 5 pairs flexibility with incredible power, as well as a clean and minimalist design. Powered by Intel Core i7-11800H processor, NVIDIA® GeForce RTX™ graphics, and plenty of memory, not only will you be able to play your favorite AAA titles, they will come to life on your screen.
GeForce RTX™ Gaming. RTX. It’s On. - Incredibly fast, quiet performance. Real-time ray tracing and AI-enhanced graphics. And the mobility of the world’s thinnest and lightest designs. All powered by the NVIDIA Turing™ GPU architecture and the groundbreaking RTX platform. It’s everything you want to game your best. And it’s only in GeForce RTX gaming laptops.
A display of excellence - Whether you’re looking for the fastest possible refresh rate to keep an edge in multiplayer gaming, or you simply enjoy eye-popping visuals brought to your screen, the Legion 5i has you covered with options that satisfy both needs on a 15.6″ WQHD IPS (2560x1440) display.
TECH SPECIFICATIONS:
| PERFORMANCE | |
| Processor | Intel Core i7-11800H (8C / 16T, 2.3 / 4.6GHz, 24MB) |
| Graphics | NVIDIA GeForce RTX 3060 6GB GDDR6, Boost Clock 1425 / 1702MHz, TGP 130W |
| Chipset | Intel HM570 |
| Memory | 2x 8GB SO-DIMM DDR4-3200 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 32GB DDR4-3200 offering |
| Storage | 1TB SSD M.2 2280 PCIe 4.0x4 NVMe |
| Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC3306 codec |
| Speakers | Stereo speakers, 2W x2, Nahimic Audio |
| Camera | 720p with E-camera Shutter |
| Microphone | 2x, Array |
| Battery | Integrated 80Wh |
| Max Battery Life | MobileMark 2018: 7.5 hr |
| Power Adapter | 300W Slim Tip (3-pin) |
| DESIGN | |
| Display | 15.6" WQHD (2560x1440) IPS 300nits Anti-glare, 165Hz, 100% sRGB, Dolby Vision, G-Sync, DC dimmer |
| Touchscreen | None |

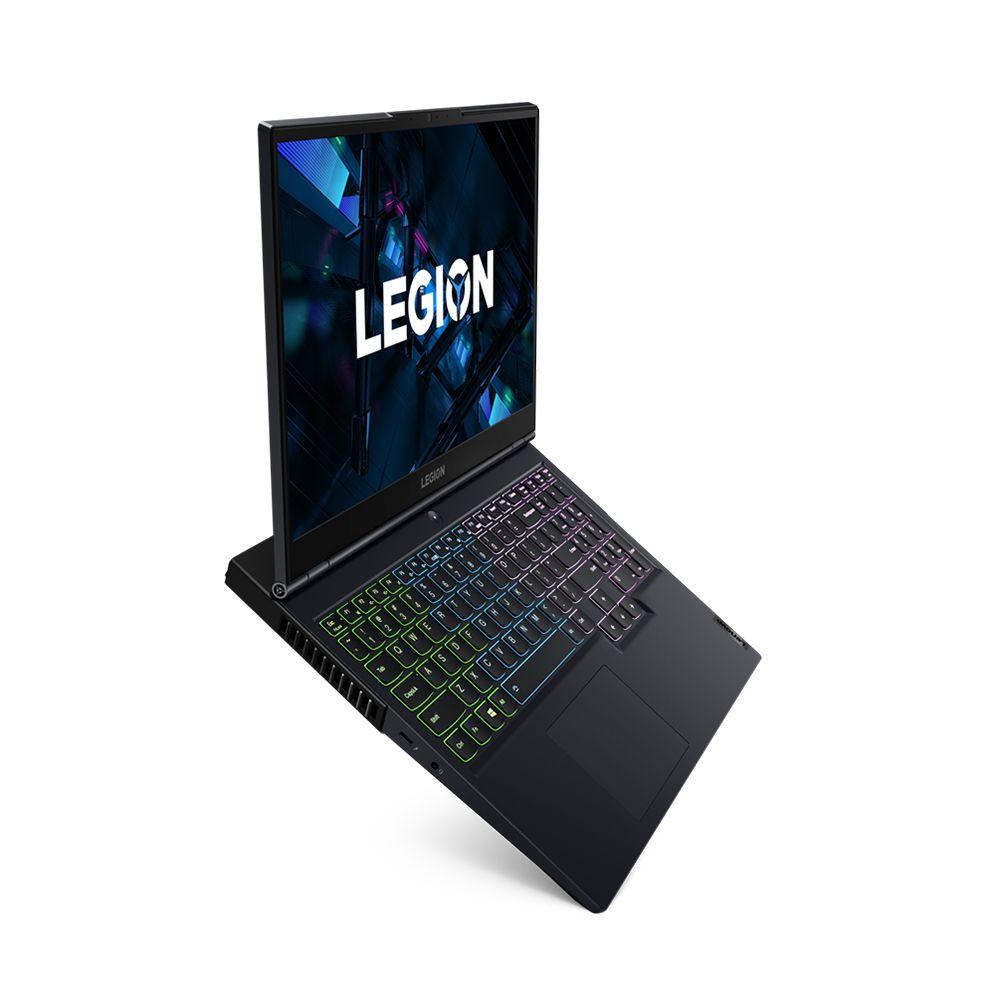

| Keyboard | 4-Zone RGB Backlit, English |
| Case Color | Phantom Blue (Top), Shadow Black (Bottom) |
| Surface Treatment | Painting |
| Case Material | PC + ABS (Top), PC + ABS (Bottom) |
| Dimensions (WxDxH) | 362.56 x 260.61 x 22.5-25.75 mm (14.27 x 10.26 x 0.89-1.01 inches) |
| Weight | 2.4 kg (5.3 lbs) |
| SOFTWARE | |
| Operating System | Windows 11 Home 64, English |
| Bundled Software | Office Trial |
| CONNECTIVITY | |
| Ethernet | 100/1000M |
| WLAN + Bluetooth | Wi-Fi 6 11ax, 2x2 + BT5.1 |

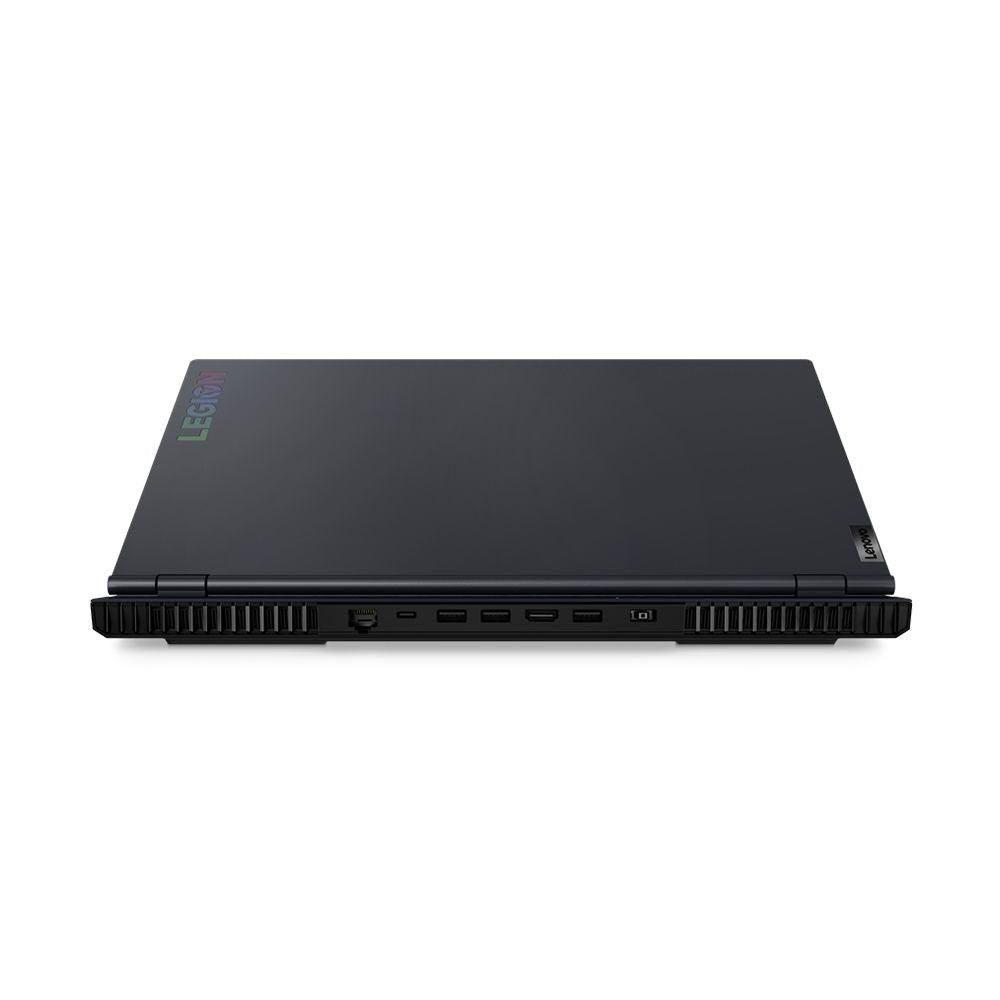

| Standard Ports | 3x USB 3.2 Gen 1 1x USB 3.2 Gen 1 (Always On) 1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4) 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery and DisplayPort 1.4) 1x HDMI 2.1 1x Ethernet (RJ-45) 1x Headphone / microphone combo jack (3.5mm) 1x Power connector |
