Description
TIO22Gen4 with Touch to support Touch screen feature, and also compatible with ThinkCentre TINY and ThinkStation TINY
Modular convenience
- The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all in one (AIO)—simply plug a compatible ThinkCentre Tiny, Thin Client or Nano (sold separately) into the back of the monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs*, so you can have the right all in one for your business now.
Purposeful design

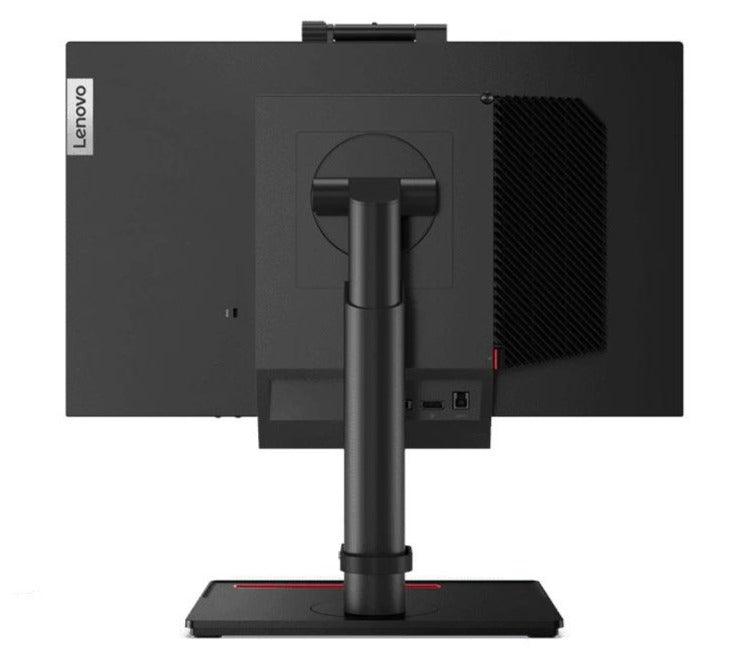

- This TIO’s 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort.
Connect and collaborate
- Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you’re not videoconferencing. Additionally, the TIO22 Gen 4 monitor has plenty of ports, all conveniently situated for you to recharge and connect your other devices.
Ease & comfort of use

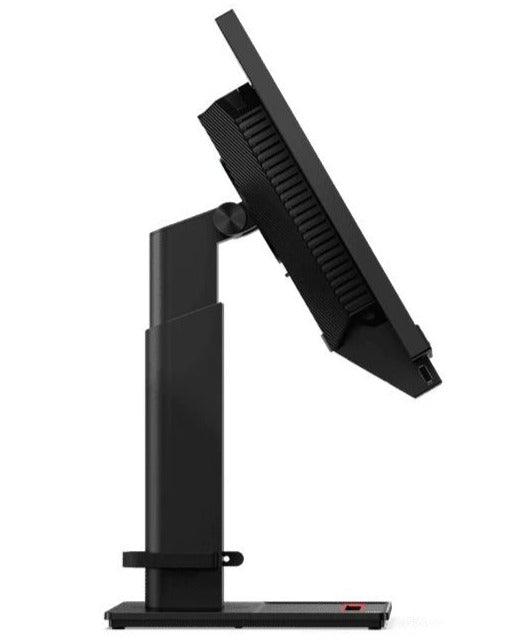

- The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from -5 to 30 degrees and even rotates up to 90 degrees clockwise.
TECH SPECIFICATION:
| Brightness | 250 cd/㎡ |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Connection Type | 3-in-1 Connecting (DC-in / DP / USB3.1Gen1 TypeA) |
| Weight | 6.58 Kg |
| Backlight | WLED |
| Response Time | 4 ms (Extreme mode) / 6 ms (Typical mode) / 14 ms (Off mode) |
| Panel Type | In-Plane Switching |
| Viewing Angle | 178 degrees |
| Stand | Tilt Angle (-5° / 30°), Swivel Angle (+45° / -45°), Lift Range (150 mm), Pivot (-90° / 90°) |
| EU Energy Rating | E |
| Power Requirement | 100 - 240 VAC, 40 - 60 Hz |
| Energy Star | 8 |
| Brand | ThinkCentre |
| USB Ports | USB 3.1 Gen 1 Type-A |
| Ethernet | None |
| Length | 220.4 mm |
| Included Accessory | DP |
| Built-in Camera | Yes (720p) |
| Color Coverage | 72% NTSC (CIE1931) |
| Color Depth | 8 bit |
| Color Support | 16.7 Million |
| Eye Caring | Yes |
| Head only Dimentions | 65.3*339.00*489.3mm |
| Height-Adjustable | Yes |
| Integrated Speaker | Yes (2 x 2W) |
| Kensington Lock | Yes |
| Near Edgeless | 3-side |
| Power Consumption | 90W adapter |
| TCO Edge | 2 |
| Thin Client Support (Tiny) | Yes |
| Weight Head Only | 3.41 Kg |
| Weight with Package | 7.6 Kg |
| Weight without Package | 6.58 Kg |
| Maximum Resolution | 1920 x 1080 |
| Height | 489.0 mm |
| EPEAT | Silver |
