Description
| System Specifications | |
|---|---|
| Model | 83JX00CPPH |
| Machine Type | 83JX |
| Performance | |
| Processor | Intel Core™ Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel® Smart Cache |
| AI PC Category | Copilot+ PC |
| NPU | Integrated Intel® AI Boost, up to 40 TOPS |
| Graphics | Integrated Intel® Arc™ Graphics 130V |
| Chipset | Intel® SoC Platform |
| Memory | 16GB Soldered LPDDR5X-8533, MoP Memory |
| Memory Slots | Memory soldered to systemboard, no slots, dual-channel |
| Max Memory | 16GB soldered memory, not upgradable |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Slot | One M.2 2242 PCIe® 4.0 x4 slot |
| Max Storage Support | One drive, up to 1TB M.2 2242 SSD |
| Card Reader | microSD Card Reader |
| Audio Chip | SoundWire®, Cirrus Logic® CS42L43 codec |
| Speakers | 4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Dolby Atmos®, Smart Amplifier (AMP) |
| Microphone | 4x, Array |
| Camera | 5.0MP + IR with E-shutter |
| Battery | 70Wh |
| Power Adapter | 65W USB-C® Slim (2-pin, Wall-mount) |
| Design | |
| Display | 14" WUXGA (1920x1200) OLED 600nits (peak) / 400nits (typical) Glossy, 100% DCI-P3, 60Hz, Eyesafe®, Dolby Vision®, Flicker Free, DisplayHDR™ True Black 500, X-Rite® |
| Touchscreen | None |
| Screen-to-Body Ratio | 90% AAR (active area ratio) |
| Color Calibration | X-Rite® Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | Backlit, English |
| Touchpad | Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches) |
| Dimensions (WxDxH) | 312 x 219.3 x 13.9 mm (12.28 x 8.63 x 0.55 inches) |
| Weight | Starting at 1.19 kg (2.62 lbs) |
| Case Color | Luna Grey |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| Surface Treatment | Aluminium Stamping (Anodized with Sandblasting) |
| Software | |
| Operating System | Windows® 11 Home, English |
| Bundled Software | Microsoft® 365 Basic + Office Home 2024 |
| Connectivity | |
| WLAN + Bluetooth | Wi-Fi® 7, 802.11be 2x2 + BT5.4 |
| WWAN | WWAN Not Supported |
| Ethernet | No Onboard Ethernet |

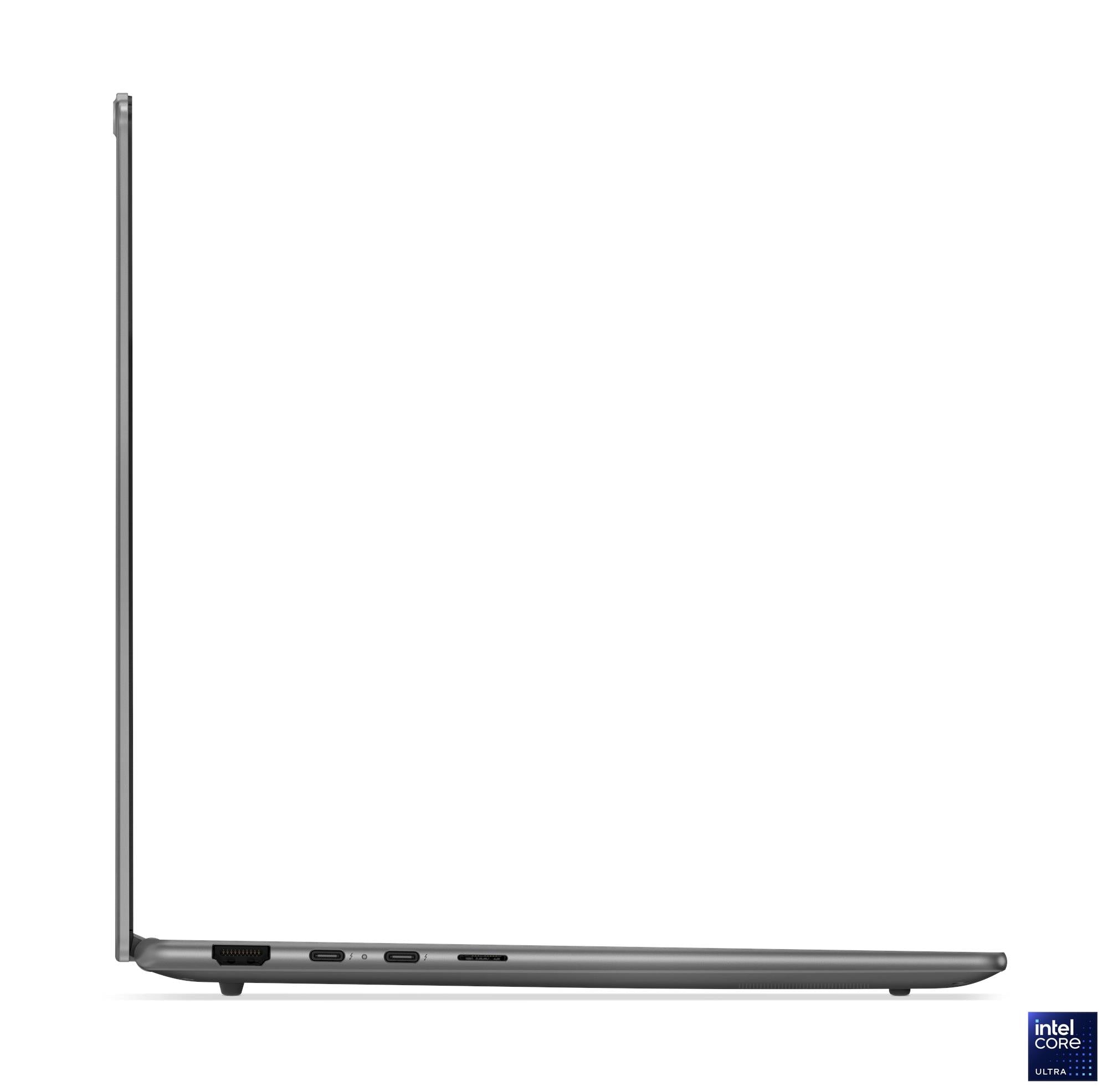

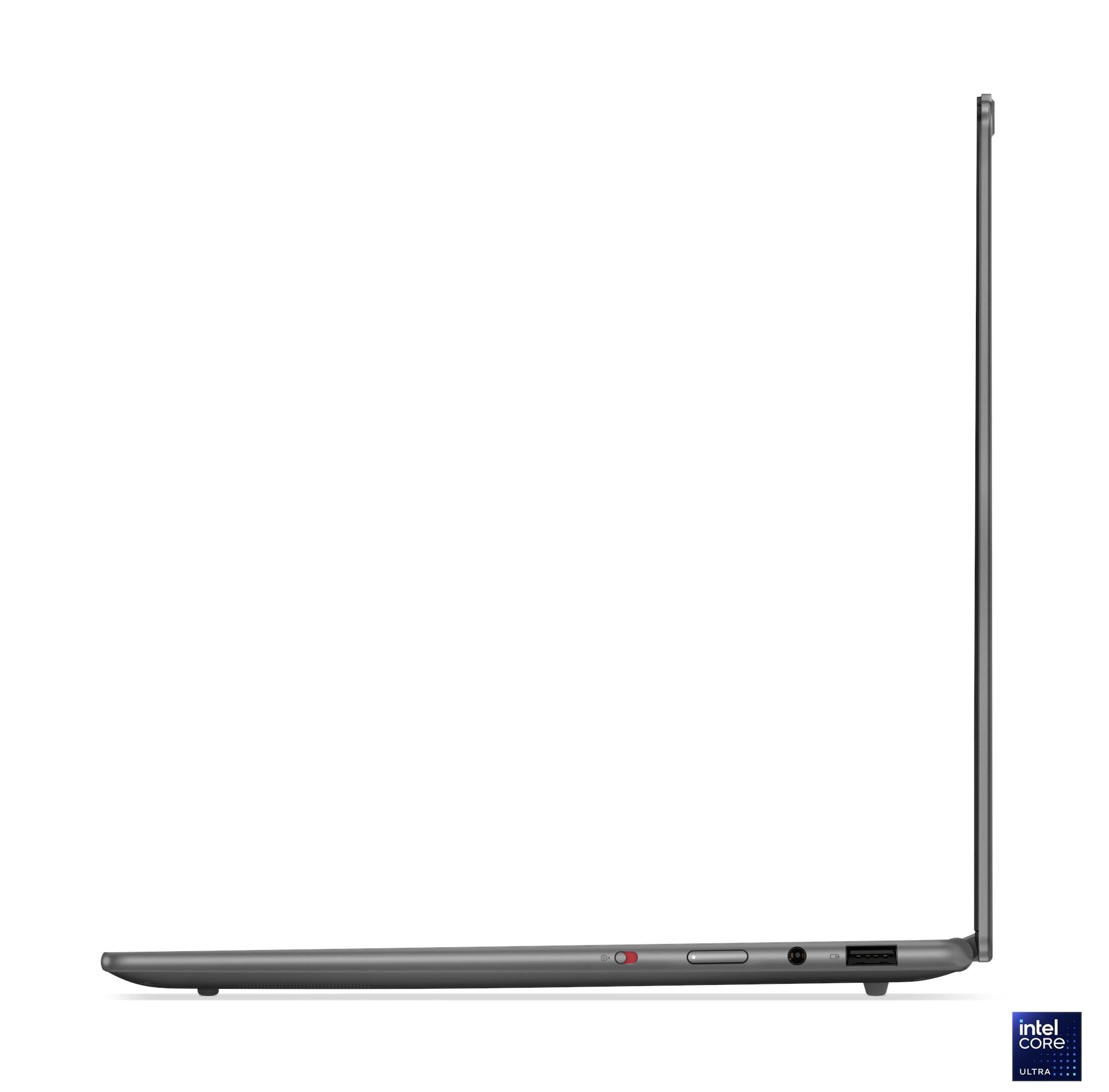

| Standard Ports | 1x USB-A (USB 5Gbps), Always On 2x Thunderbolt™ 4, with USB PD 45-65W and DisplayPort™ 2.1 1x HDMI® 2.1, up to 4K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x microSD card reader |
| Docking | Various docking solutions are supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for Yoga® Slim 7 14ILL10 |
| Security & Privacy | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | No Fingerprint Reader |
| Other Security | Ultrasonic Human Presence Detection E-shutter IR camera for Windows® Hello (facial recognition) |
| Certifications | |
| Green Certifications | Carbon Neutral Certified ENERGY STAR® 8.0 EPEAT™ Gold Registered ErP Lot 6/26 RoHS compliant |
| Mil-Spec Test | MIL-STD-810H military test passed (21 test items) |
| Other Certifications | Intel Evo™ Platform Eyesafe® Certified 2.0 TÜV Rheinland® Flicker Free TÜV Rheinland® Low Blue Light (Hardware Solution) |
