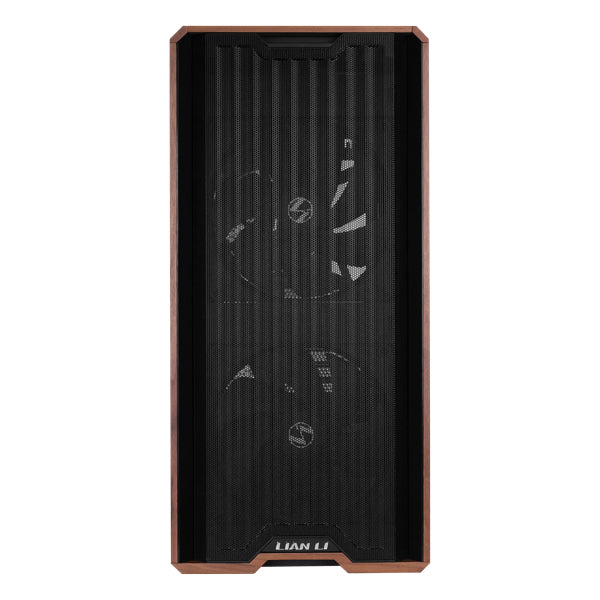

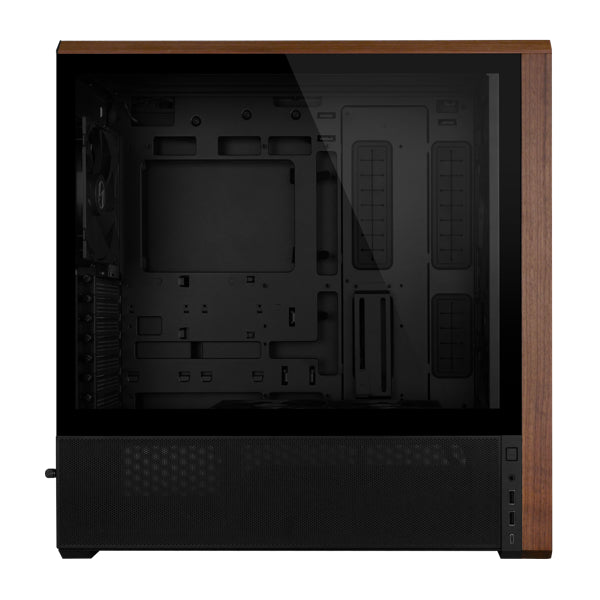

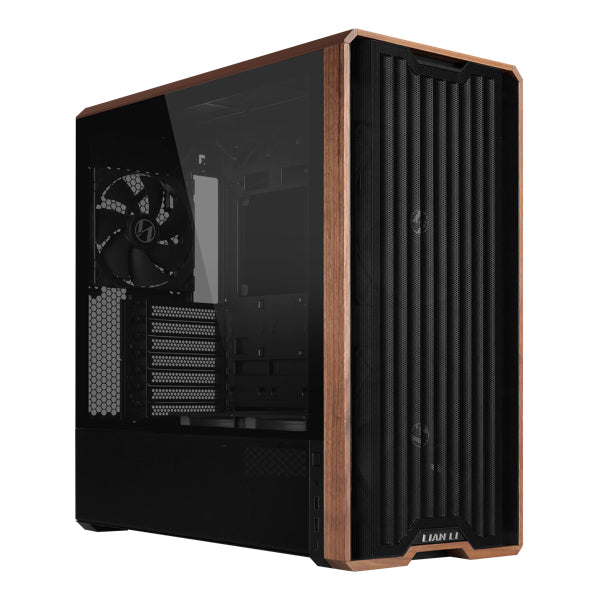

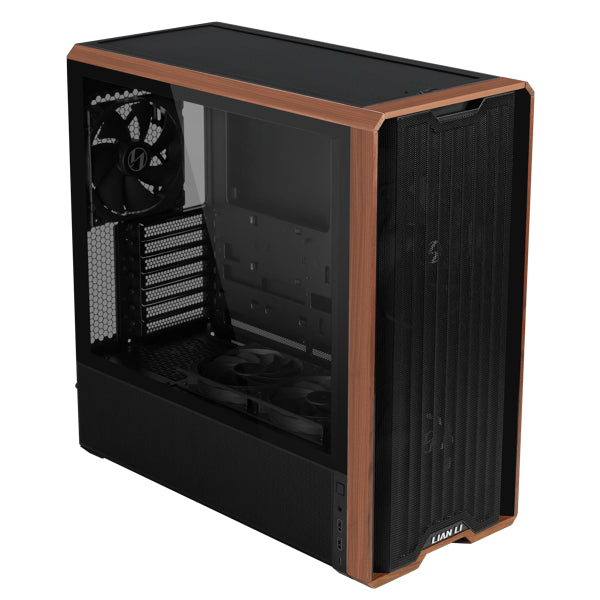

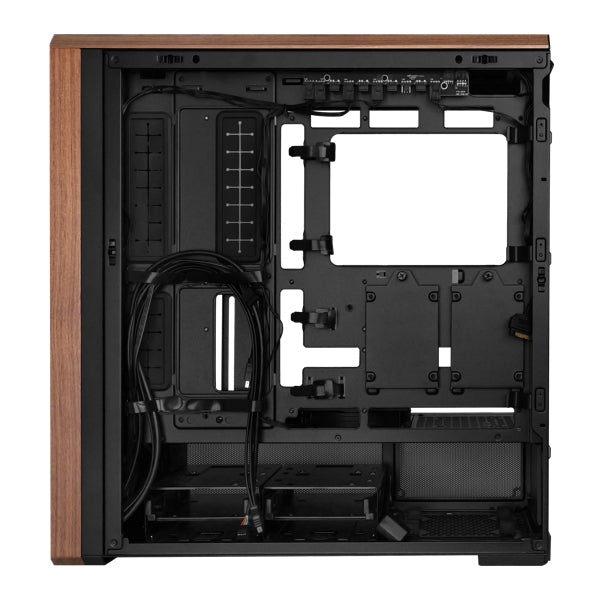

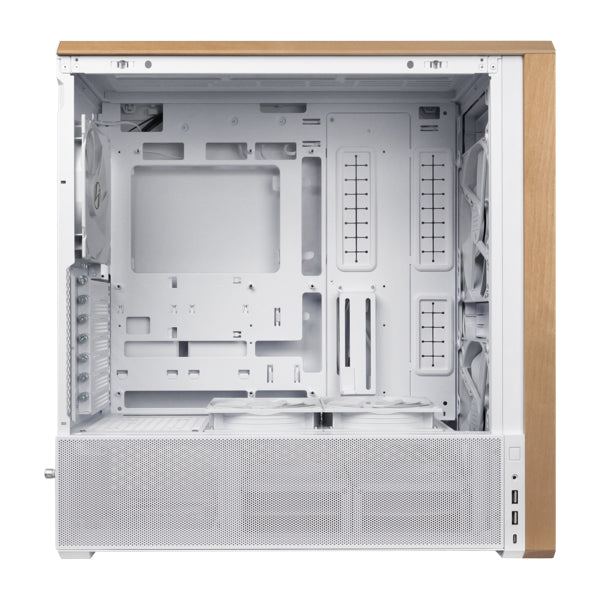

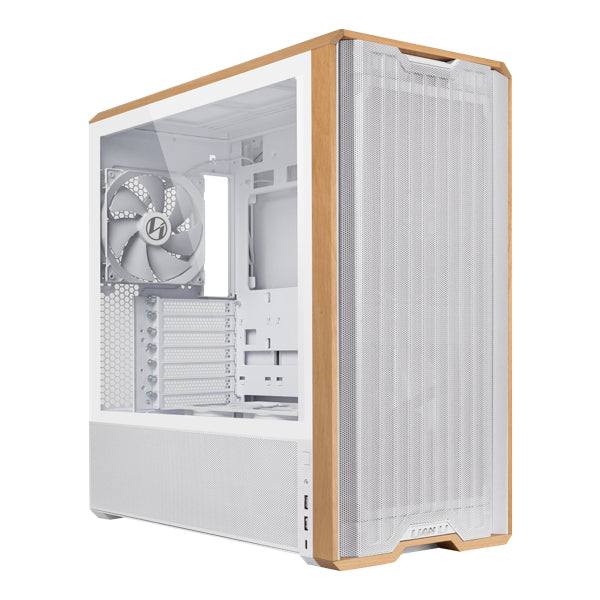

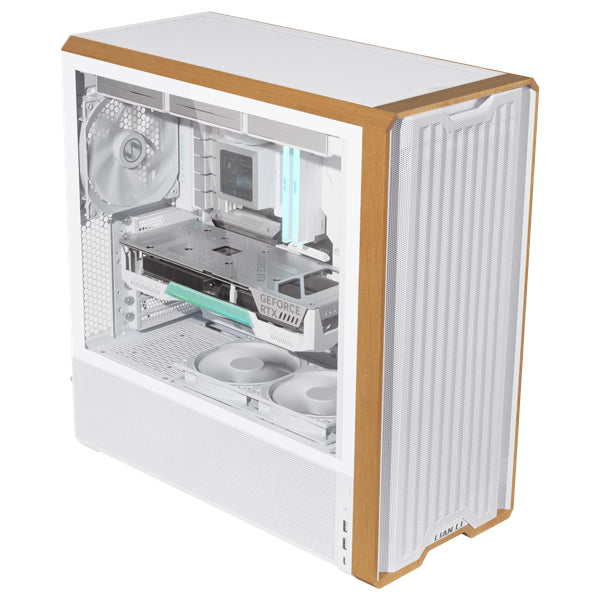

Lian Li Lancool 217 Mid-Tower PC Case
- Mid-tower chassis designed for advanced workstations and high-performance setups

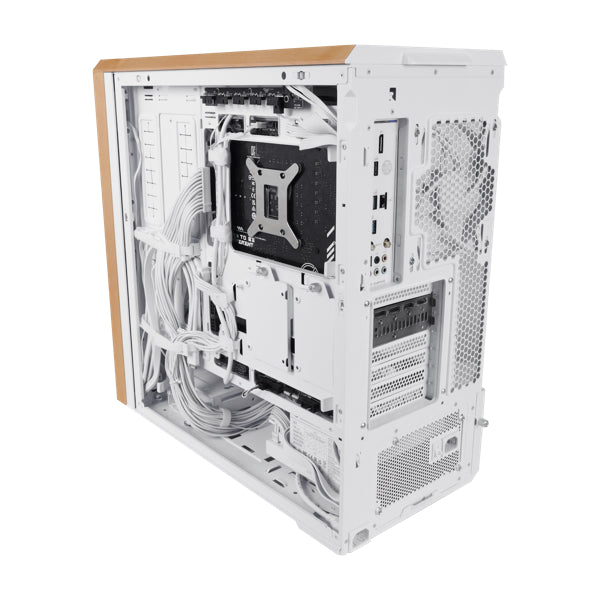

- Compatible with back-connect motherboards for ultra-clean cable routing
- Supports up to E-ATX / EEB motherboards and dual PSU mounting orientations
- Comes pre-installed with 5 high-performance fans for optimal out-of-box airflow
- Tool-less front fan mounting system for effortless installation and maintenance
- Certified with PPLP for enhanced professional use compliance
| Model Name | LAN217X | LAN217W |

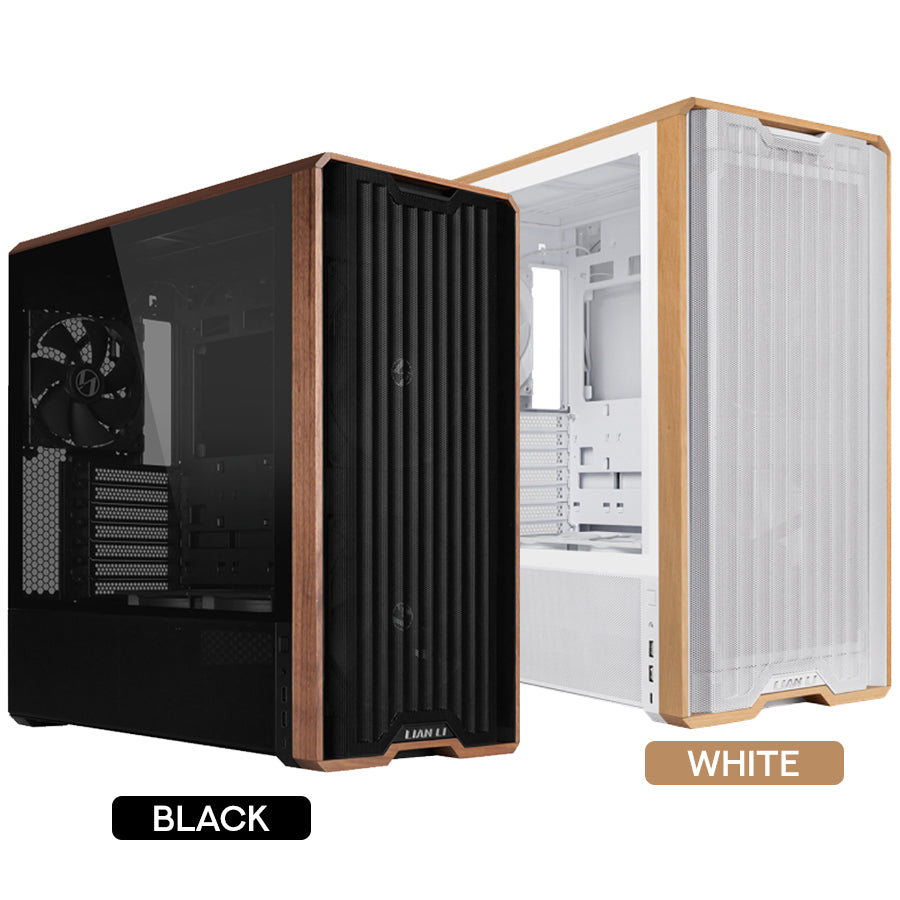

| Color | Black | White |
| Dimension (D × W × H) | 482mm × 238mm × 503mm | |
| Material | Steel / 4.0mm Tempered Glass / Wood | |
| Motherboard Support | SSI-EEB (Width Max 330mm) / E-ATX (Width Max 280mm) / ATX / Micro-ATX / Mini-ITX | |
| Back Connect Motherboard Support | ATX / Micro-ATX | |
| PSU Support Length | Standard Mode: ATX (Under 220mm) Rotated Mode: ATX (Under 180mm) |
|

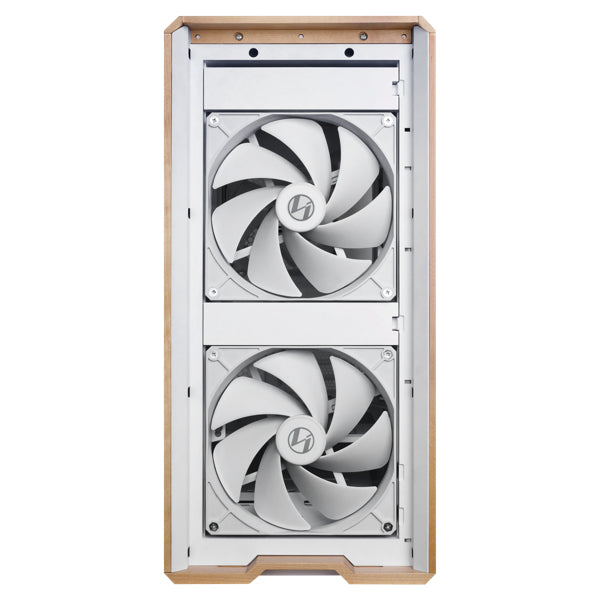

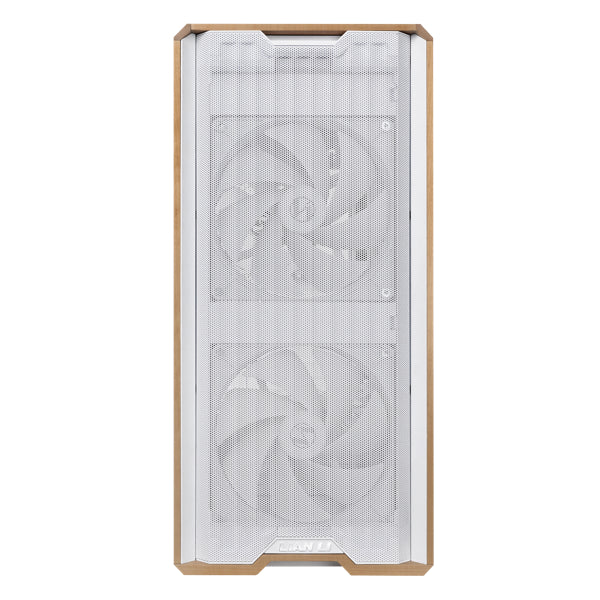

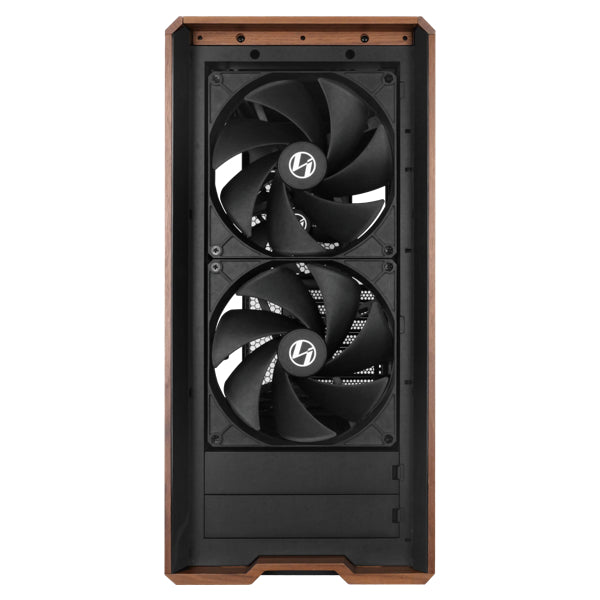

| Fan Support | Front: 170mm × 2 (Included) / 140mm × 3 / 120mm × 3 Top: 3 × 120mm / 2 × 140mm Above PSU Shroud: 3 × 120mm (2 Included) Under PSU Shroud: 2 × 120mm Rear: 1 × 140mm (Included) / 1 × 120mm |
|
| Radiator Support | Top: 360 / 280 / 240mm | |
| Drive Support | Back Connect Motherboard: 2 × 2.5″ SSD / 1 × 2.5″ SSD (behind MB) 2 × Drive Cage: 1 × 3.5″ HDD + 1 × 2.5″ SSD + (1 × 3.5″ HDD or 1 × 2.5″ SSD) PSU Shroud: 1 × 2.5″ SSD |
|
| GPU Length Clearance | 380mm (Max.) | |
| CPU Height Clearance | 180mm (Max.) | |
| Expansion Slot | 7 | |
| I/O Ports | 2 × Power Button 2 × USB 3.0 1 × USB Type-C 1 × Audio |
|
| Dust Filter | 1 × Bottom, 1 × Front | |
| Hub | ARGB / FAN Hub: 6 × PWM FAN port, 4 × 5V ARGB port | |
| Warranty | 1 year (Fan: 3 years) | |
