Description
O11 DYNAMIC MINI
Think Big. Build Small.
O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.
MODEL NAME | O11 DYNAMIC MINI | |

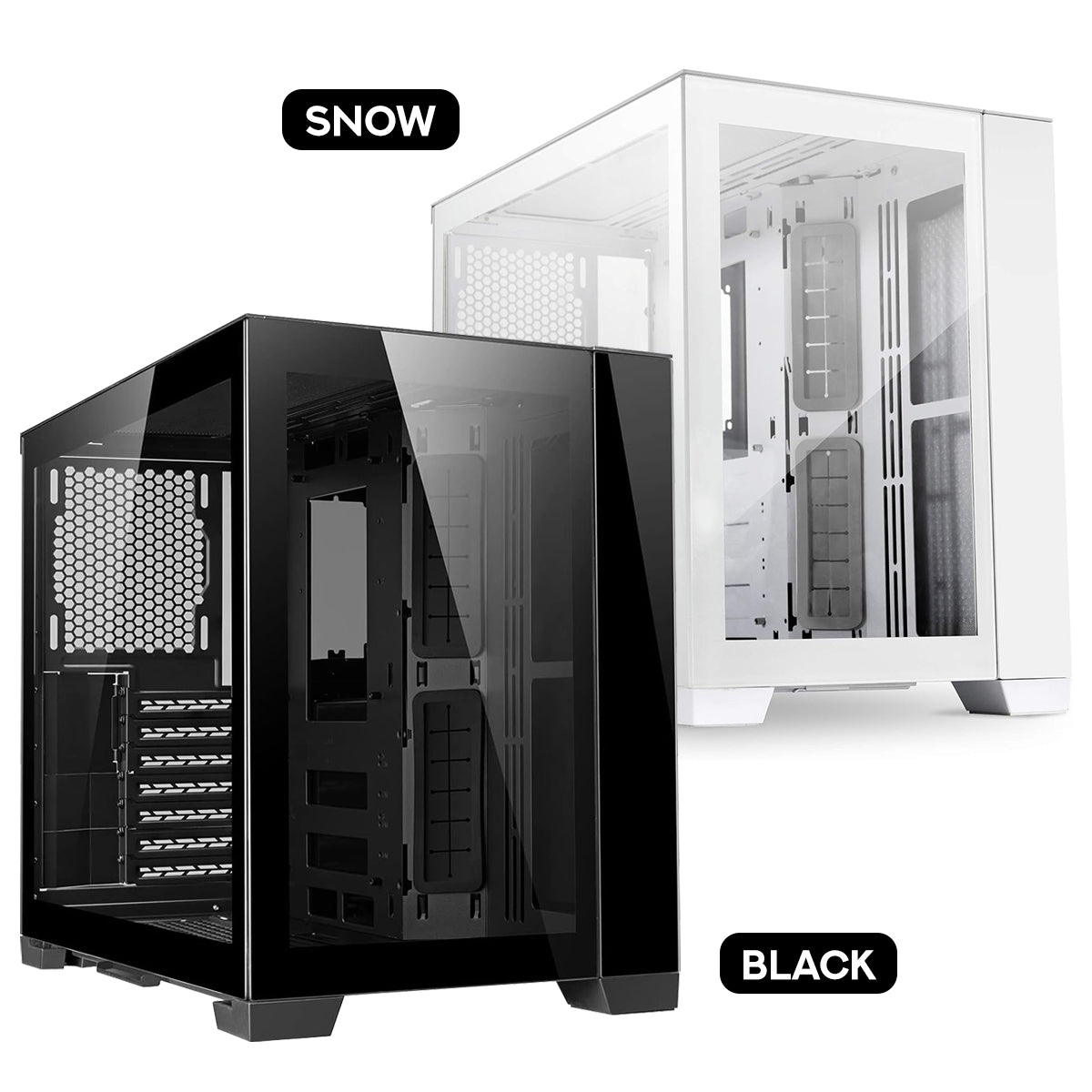

MODEL NO. | O11DMINI-X BLACK | O11DMINI-S SNOW EDITION |

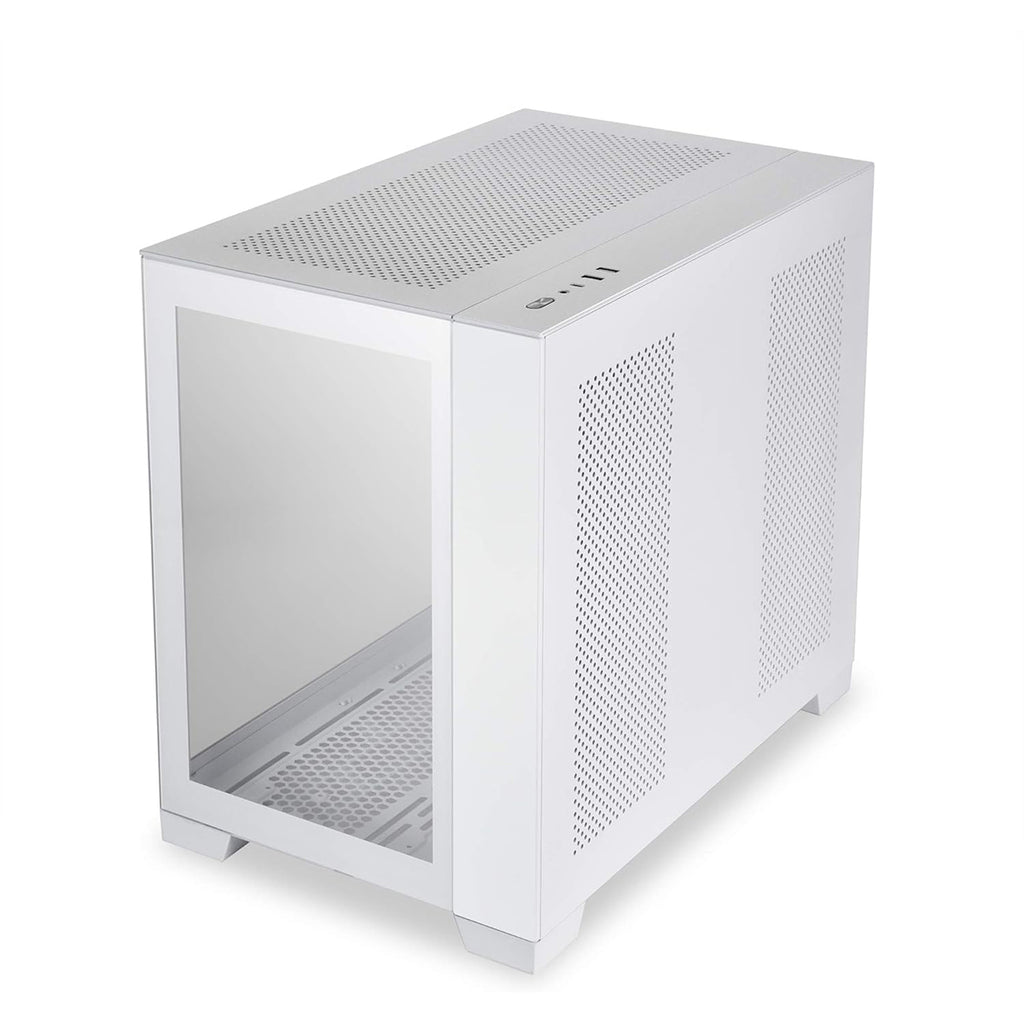

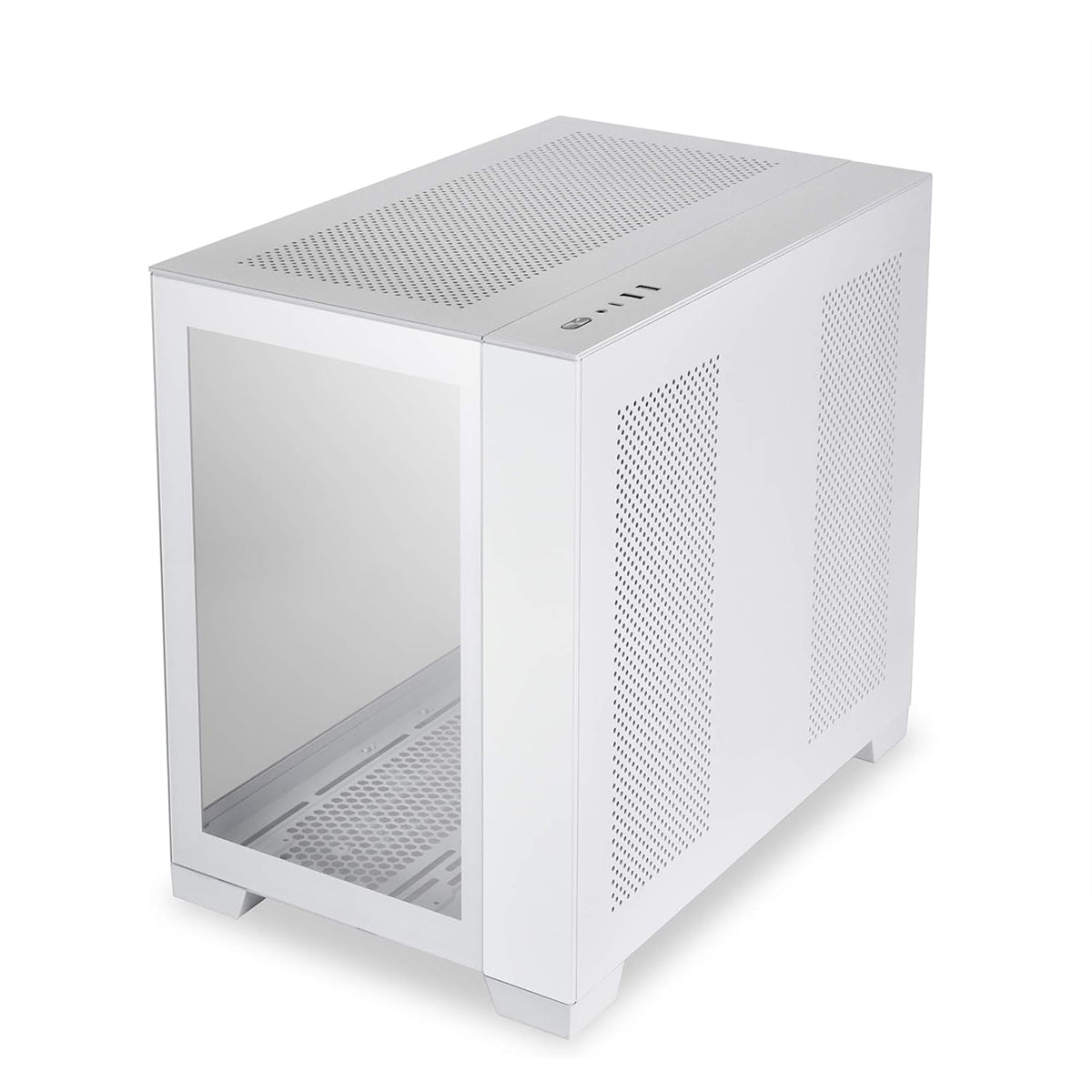

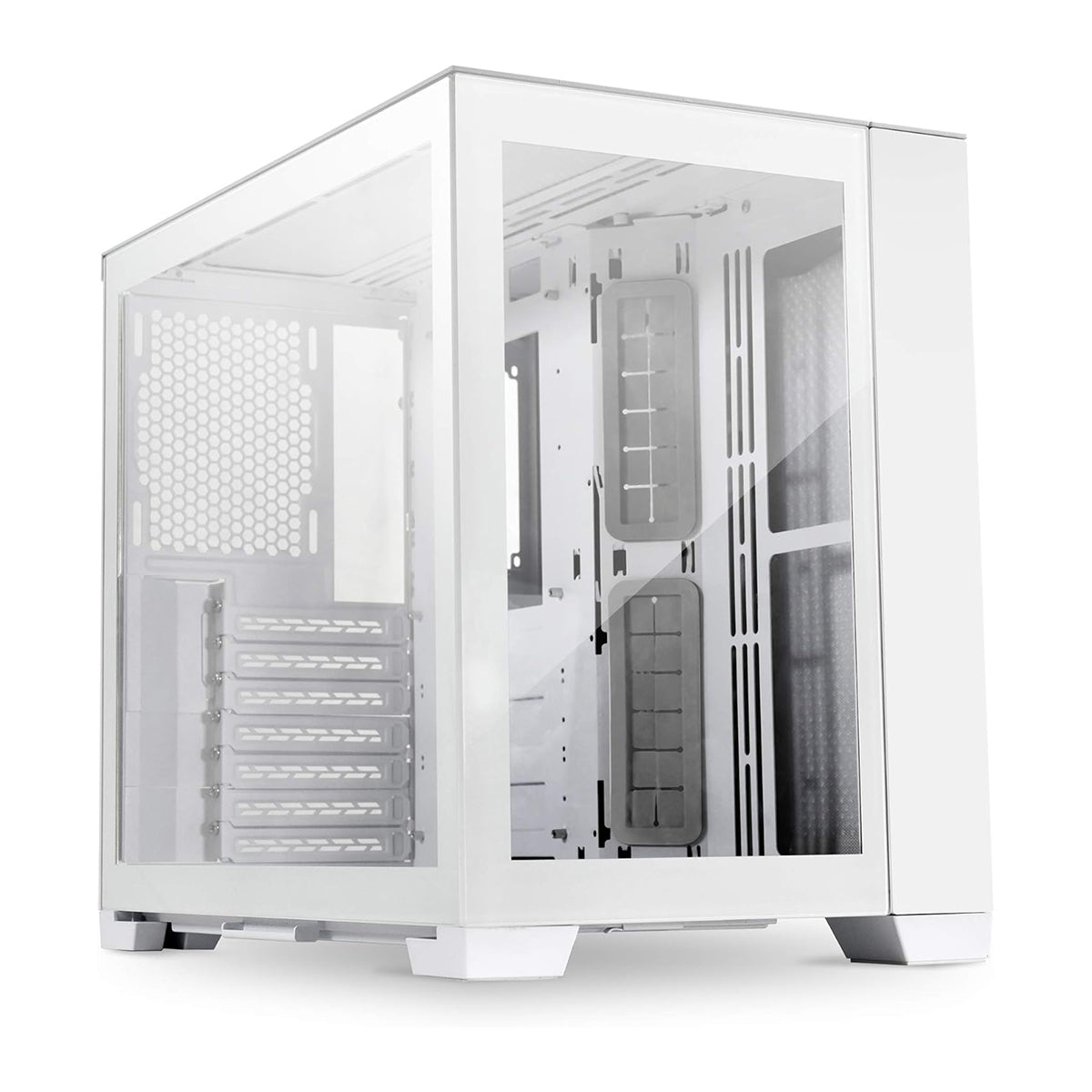

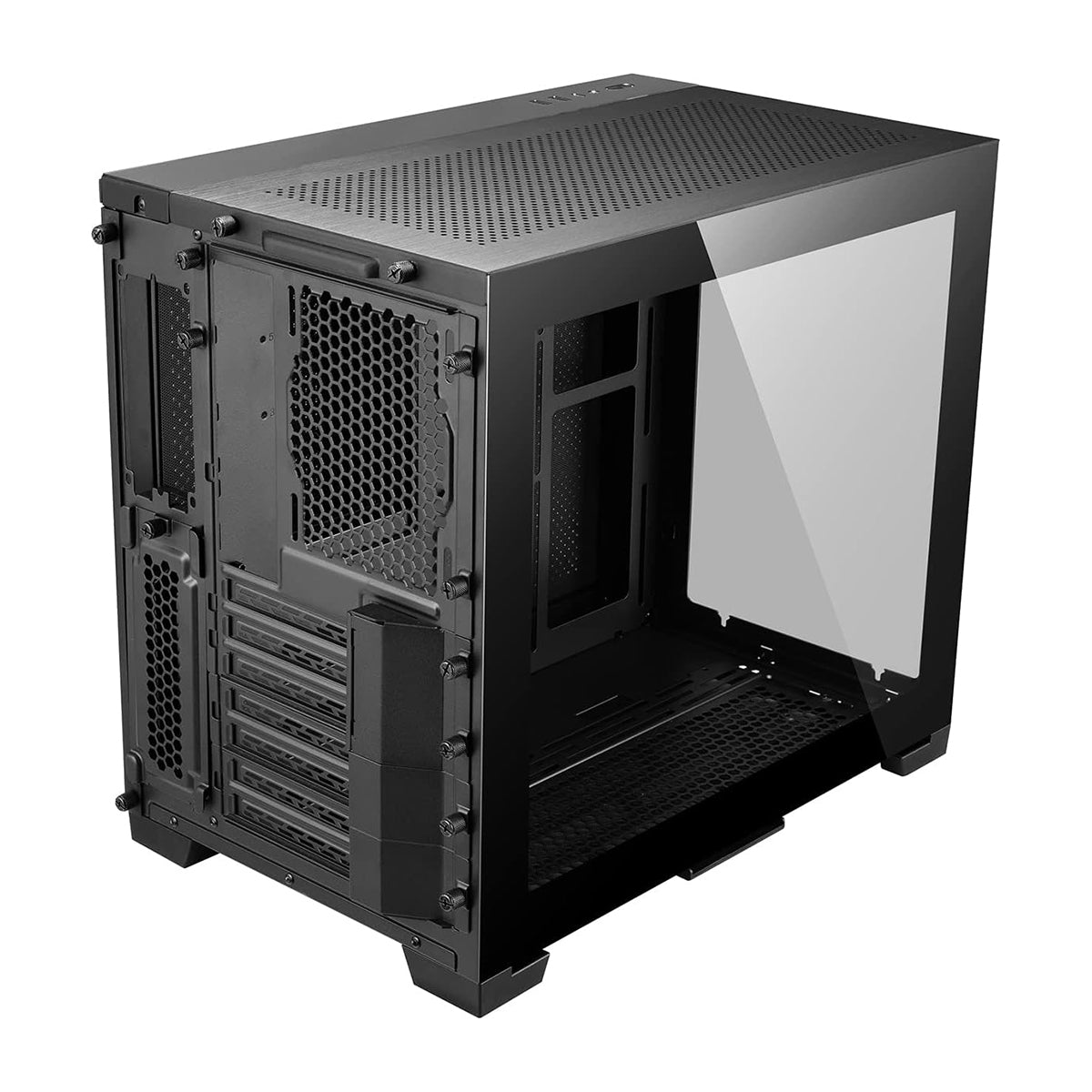

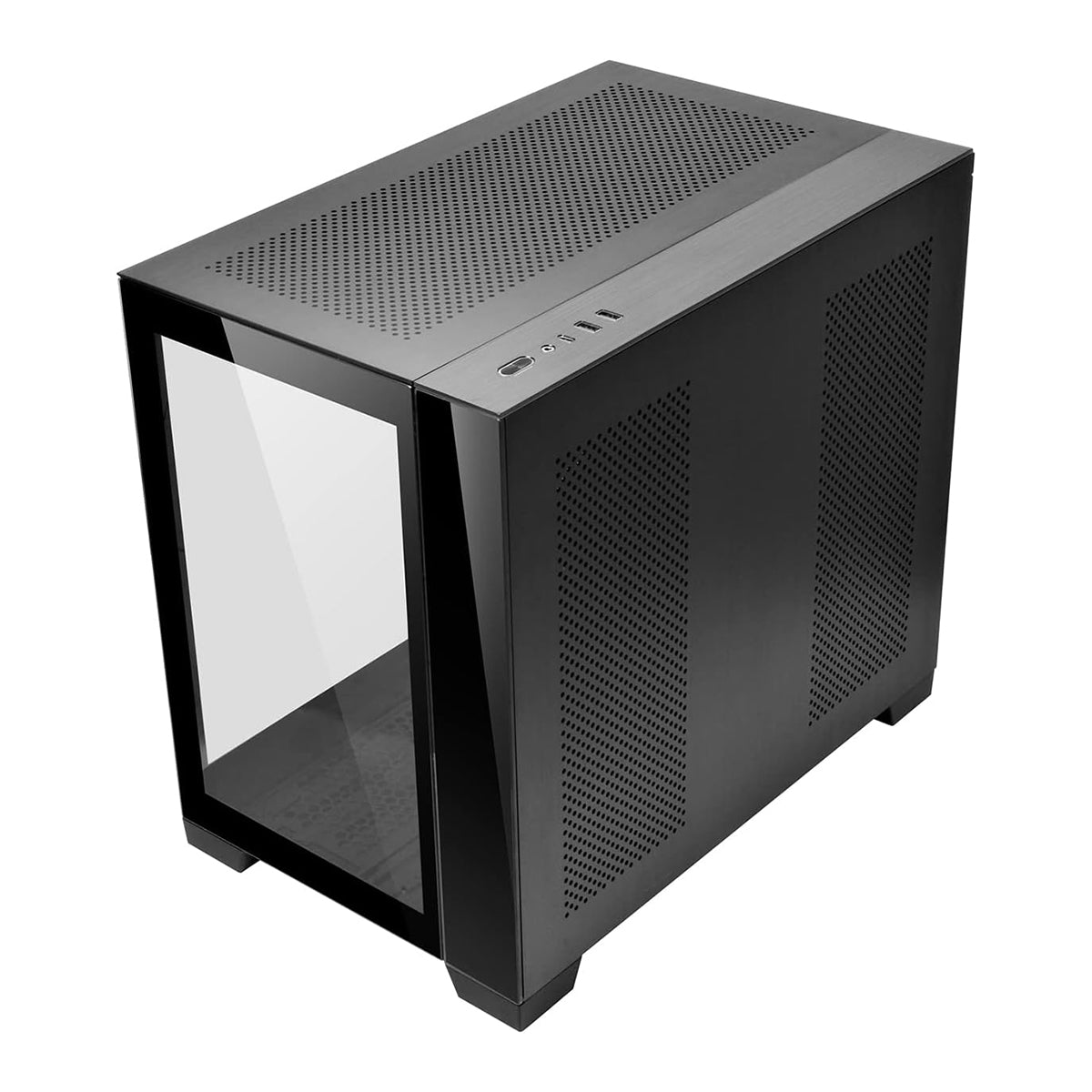

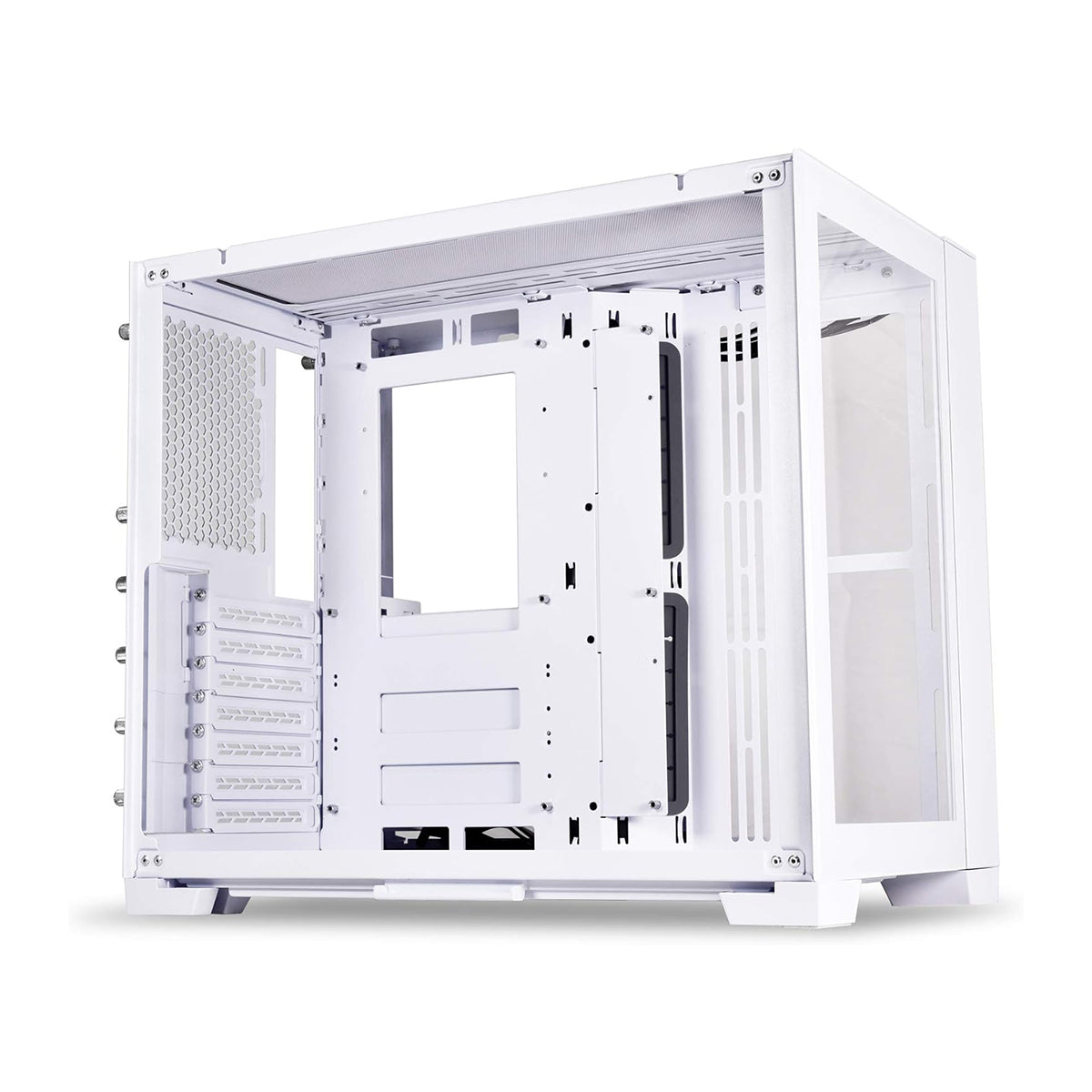

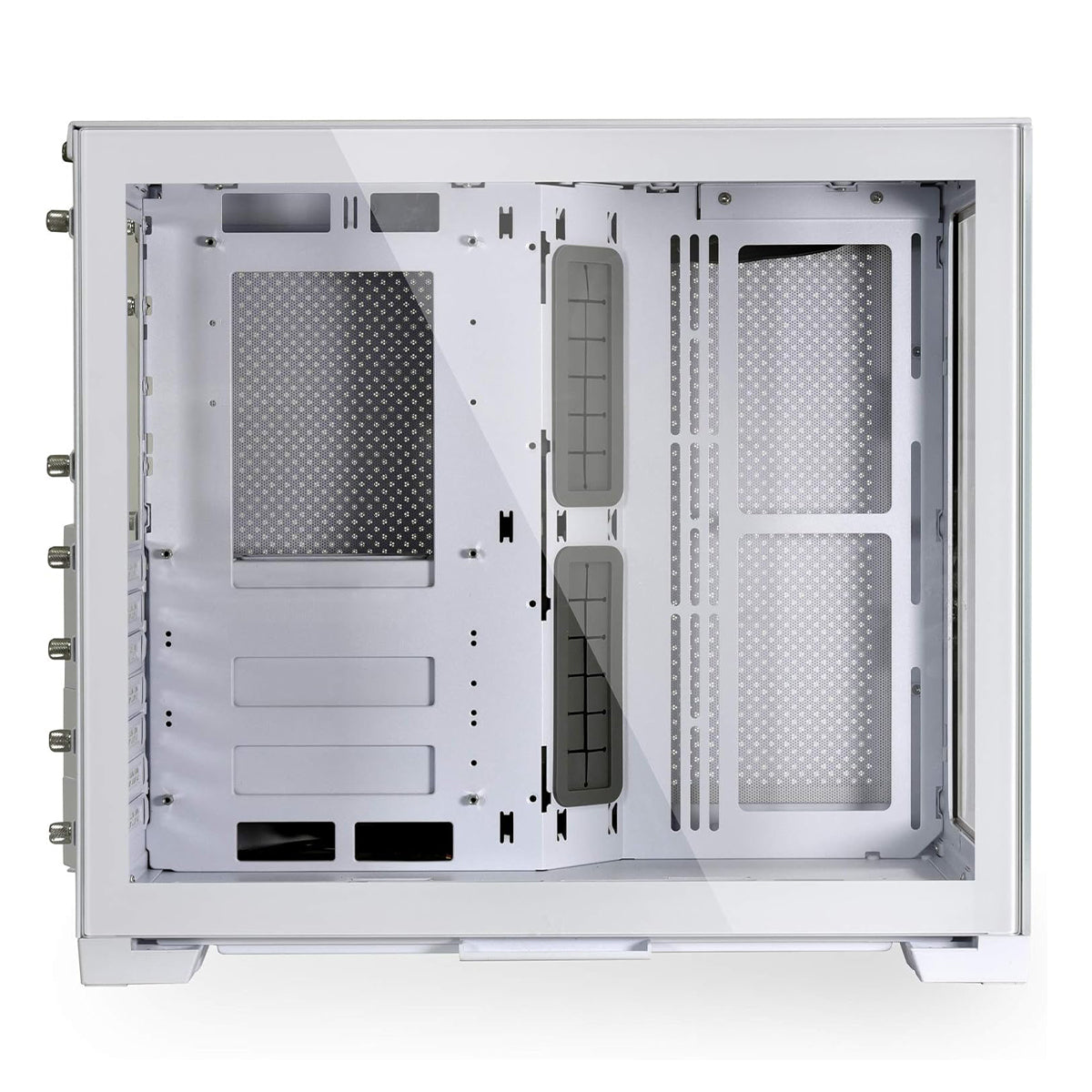

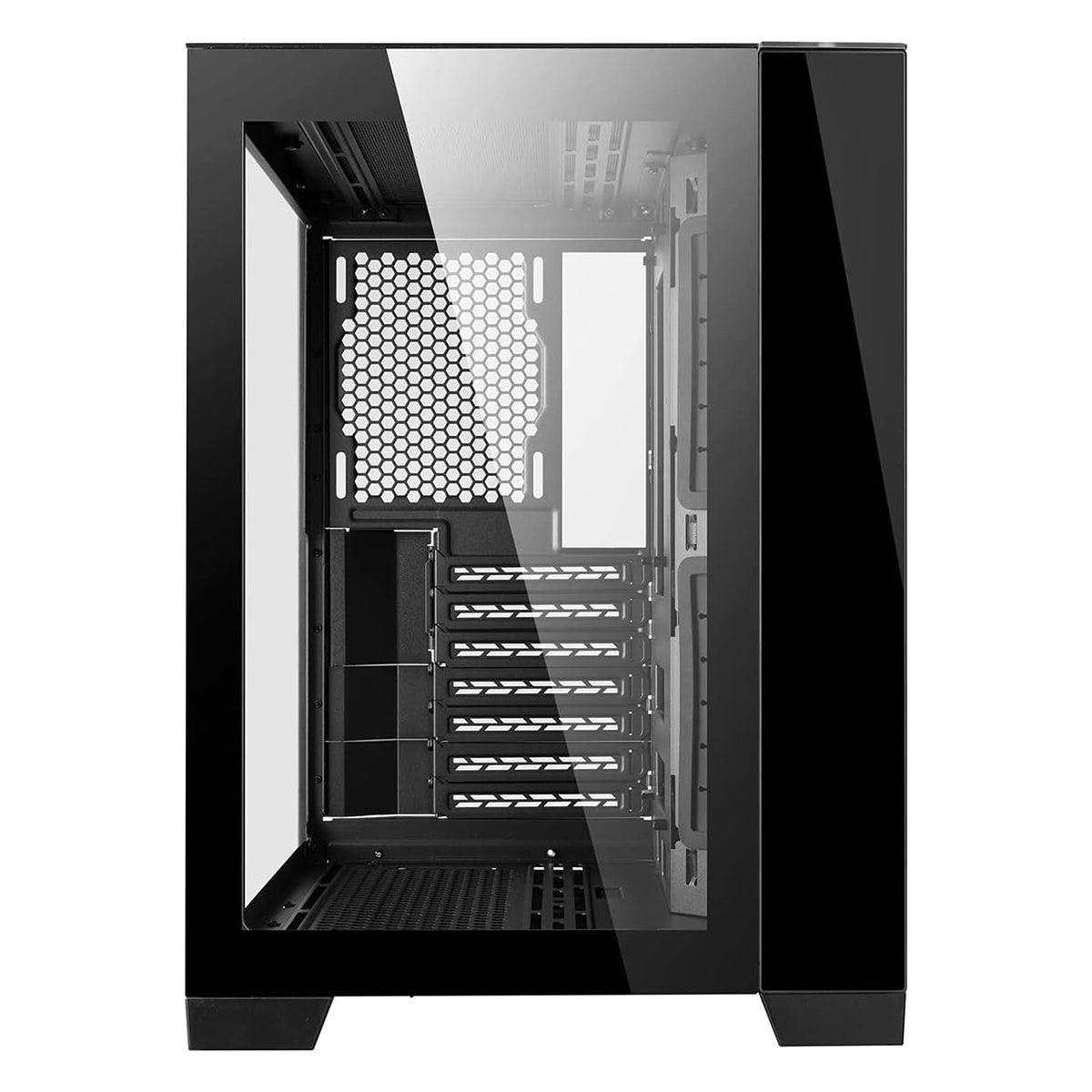

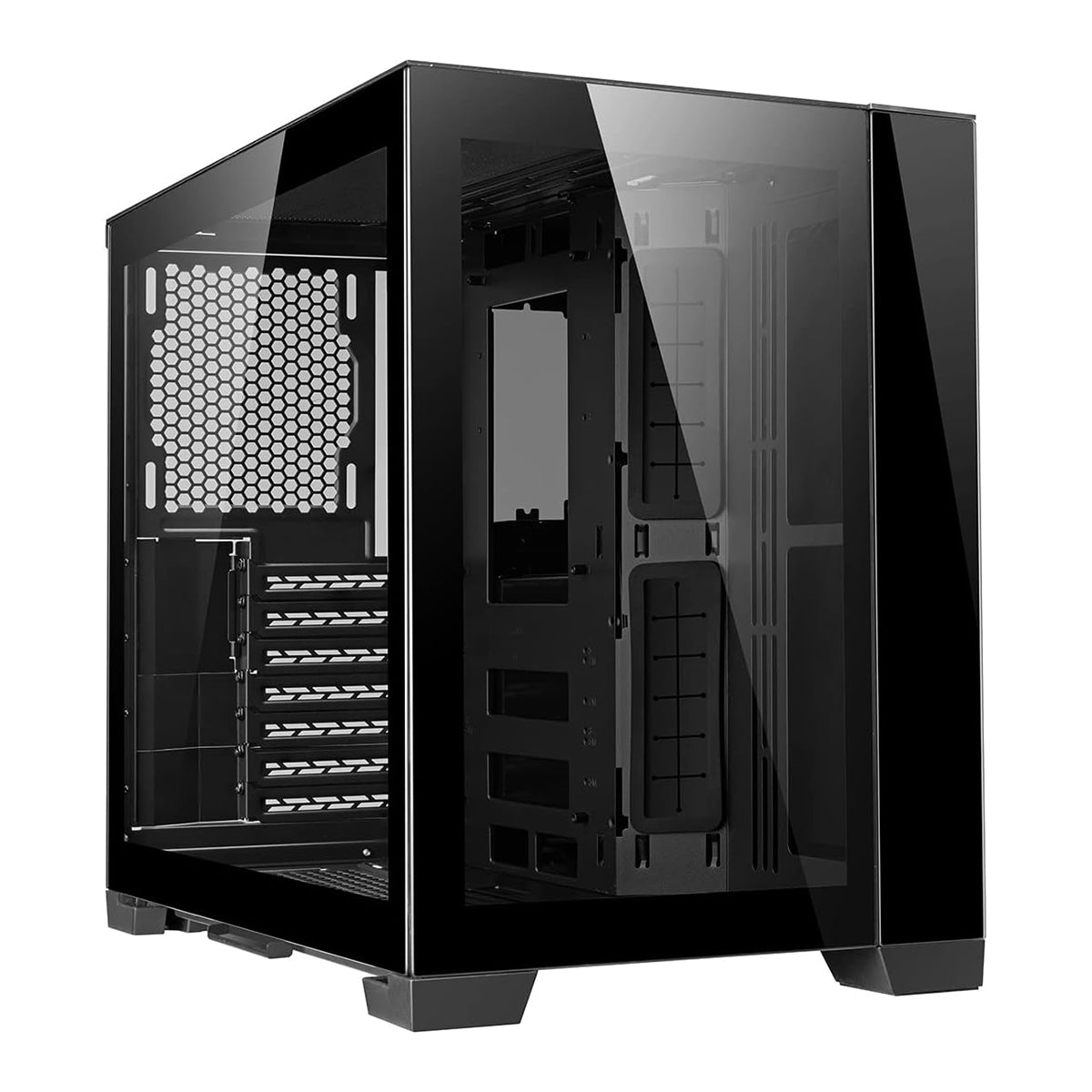

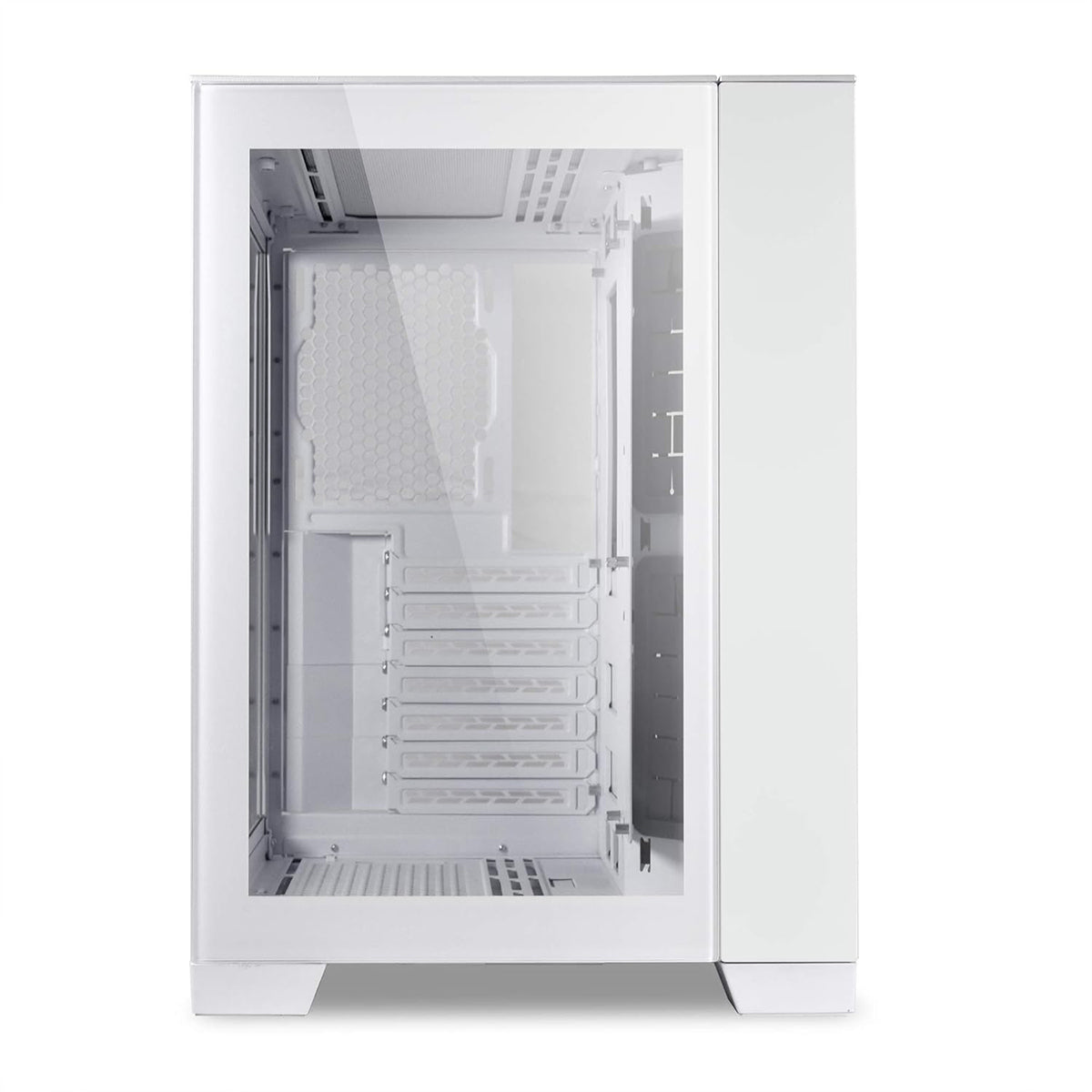

COLOR | Black | Snow white |

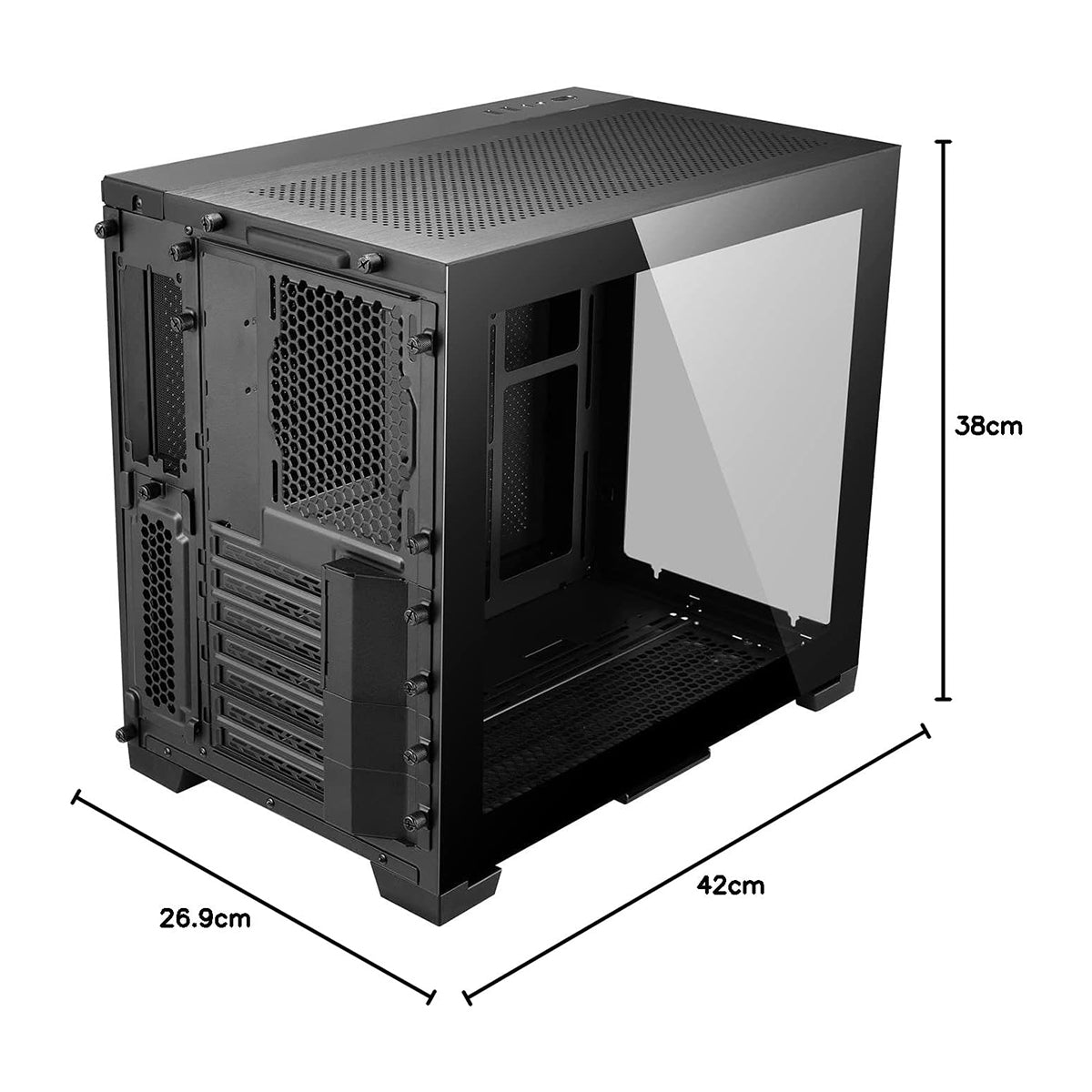

DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm | |
MOTHERBOARD | E-ATX (Max 280 mm wide)/ATX/ Micro-ATX/ Mini-ITX | |
PSU | SFX/ SFX-L | |
MATERIAL | Steel 4 mm Tempered Glass 2mm Aluminum (top and left panel) |
|
FAN SUPPORT | Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm |
|
RADIATOR SUPPORT | Top: 360mm or 280mm or 240mm or can’t mount Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator |
|
GPU LENGTH CLEARANCE | 395mm | |
CPU COOLER HEIGHT CLEARANCE | 170mm | |
VGA Length | 370mm | |

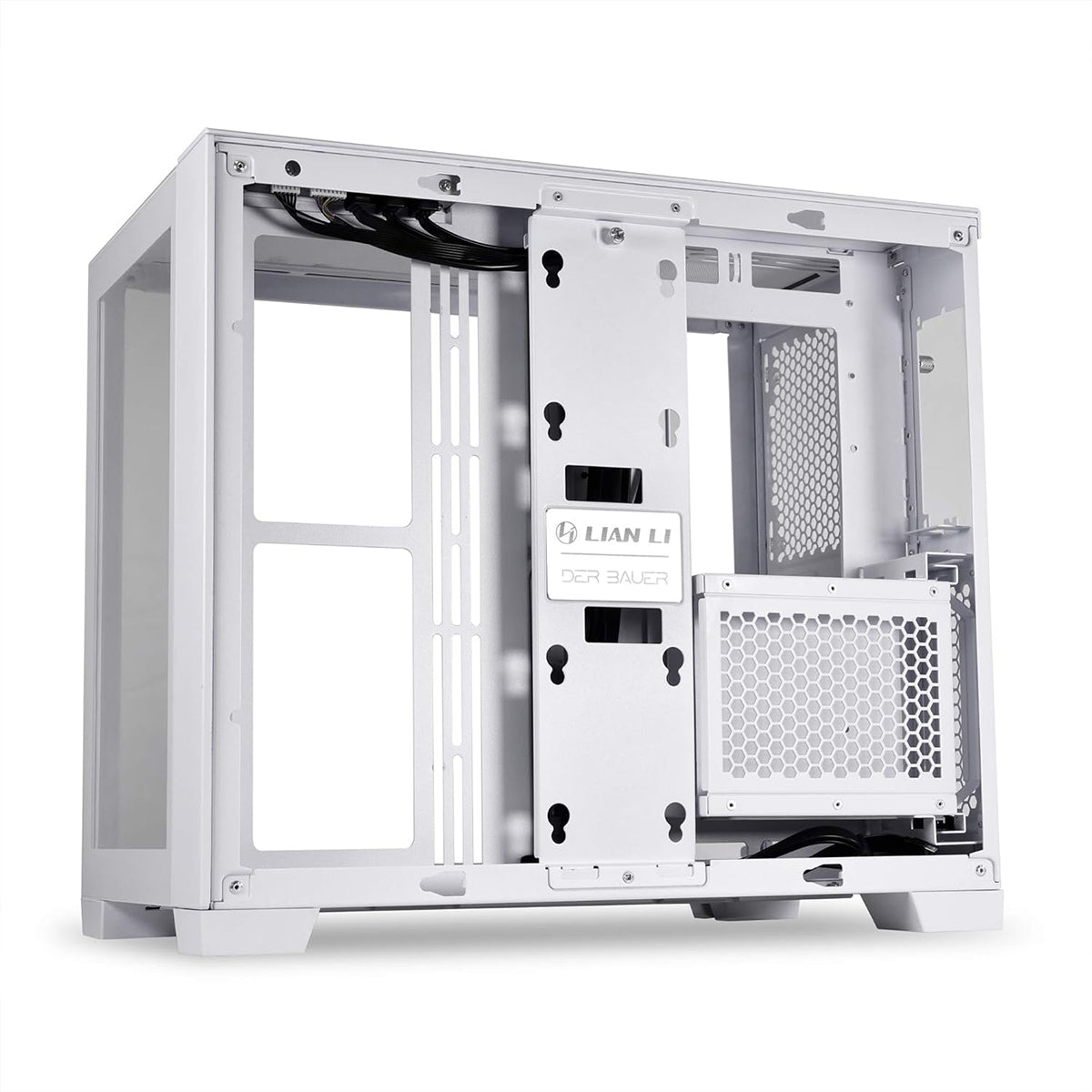

DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) | |

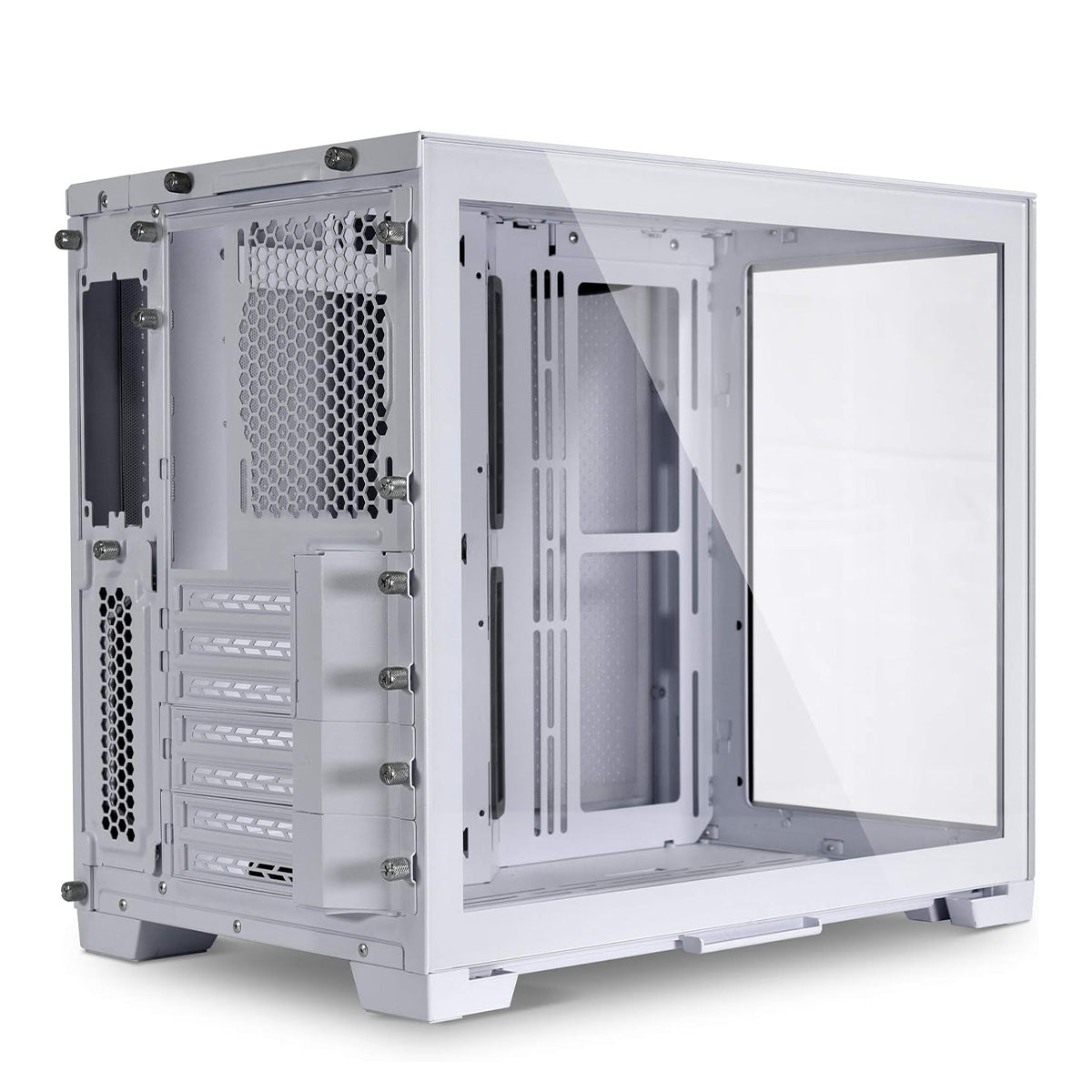

EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) | |
IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button | |
DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side |
