Description
Features

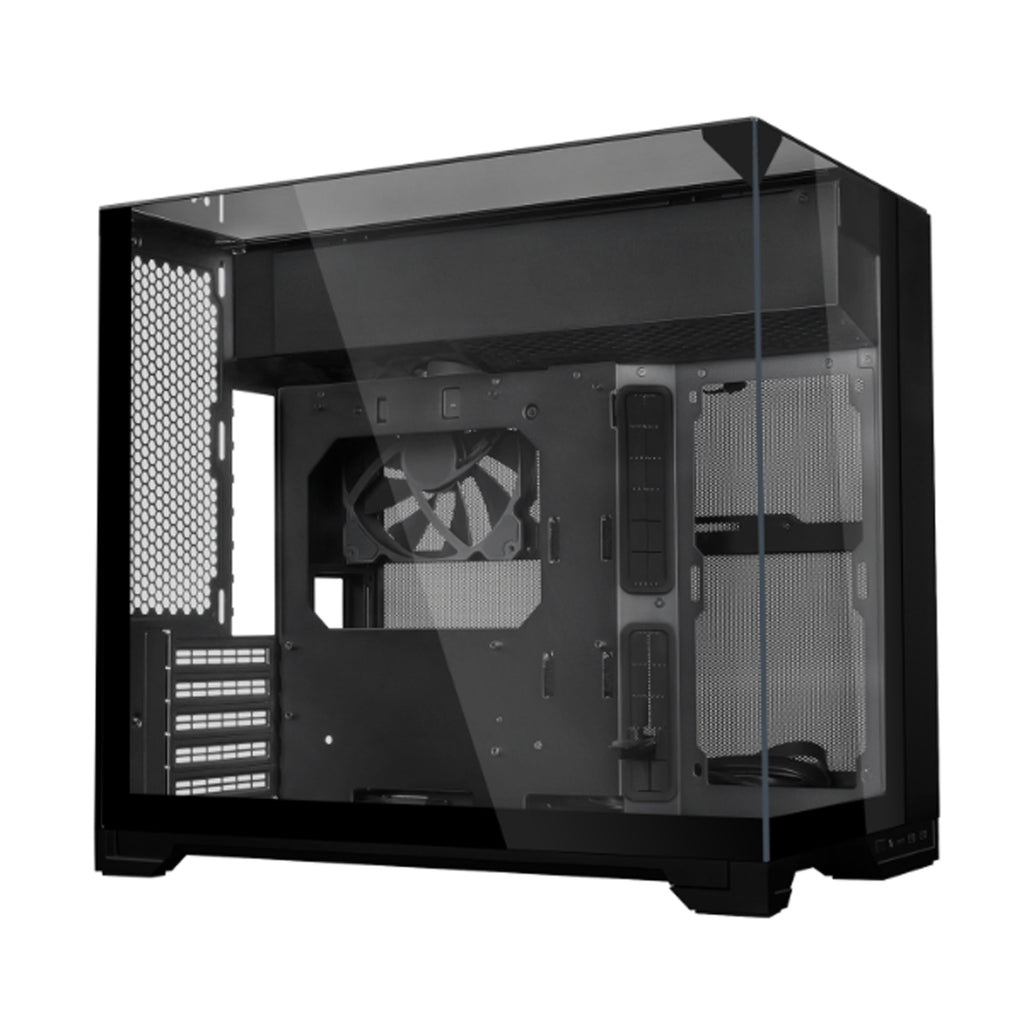

- Compact dual-chamber design with three-sided glass showcase
- Front, side, and top tempered glass panels for panoramic viewing
- Supports M-ATX and Mini-ITX motherboards
- Supports graphics cards up to 410 mm
- Supports up to 360 mm top-mounted radiator

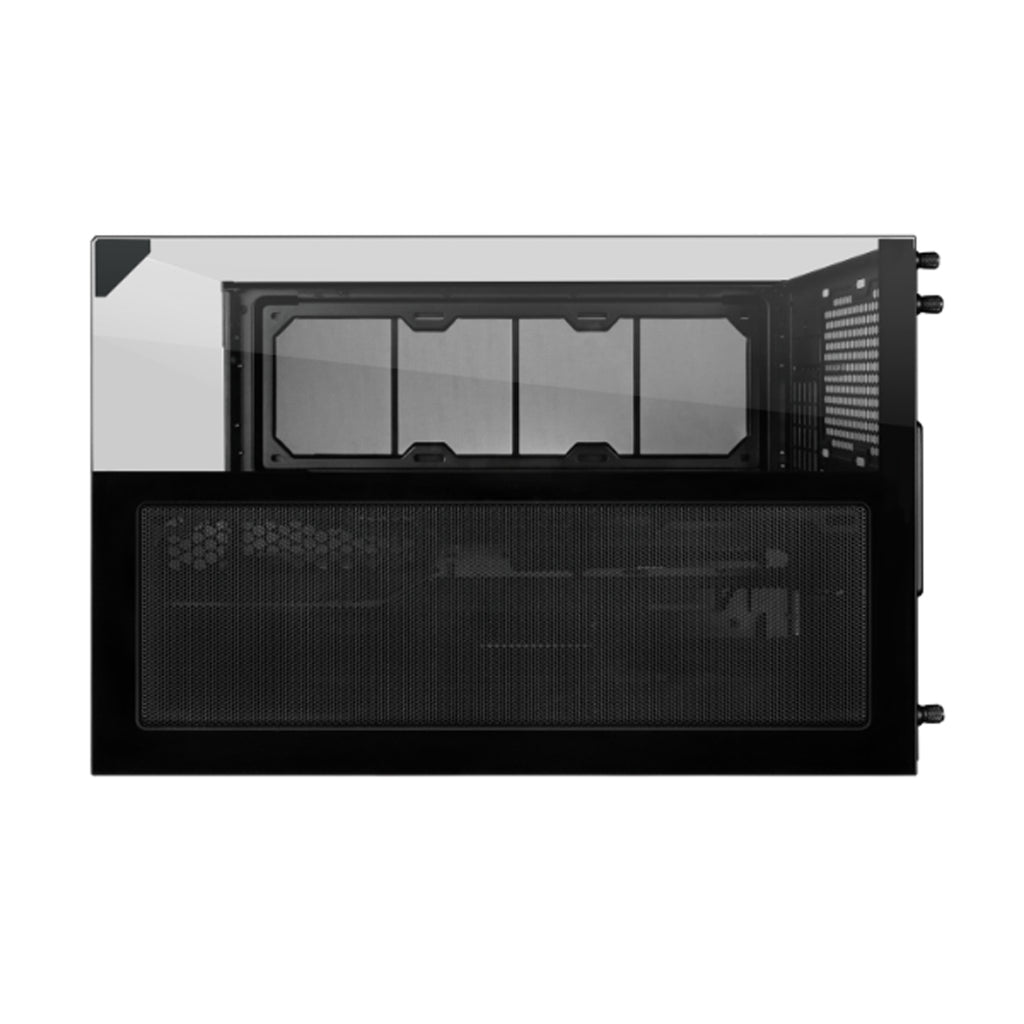

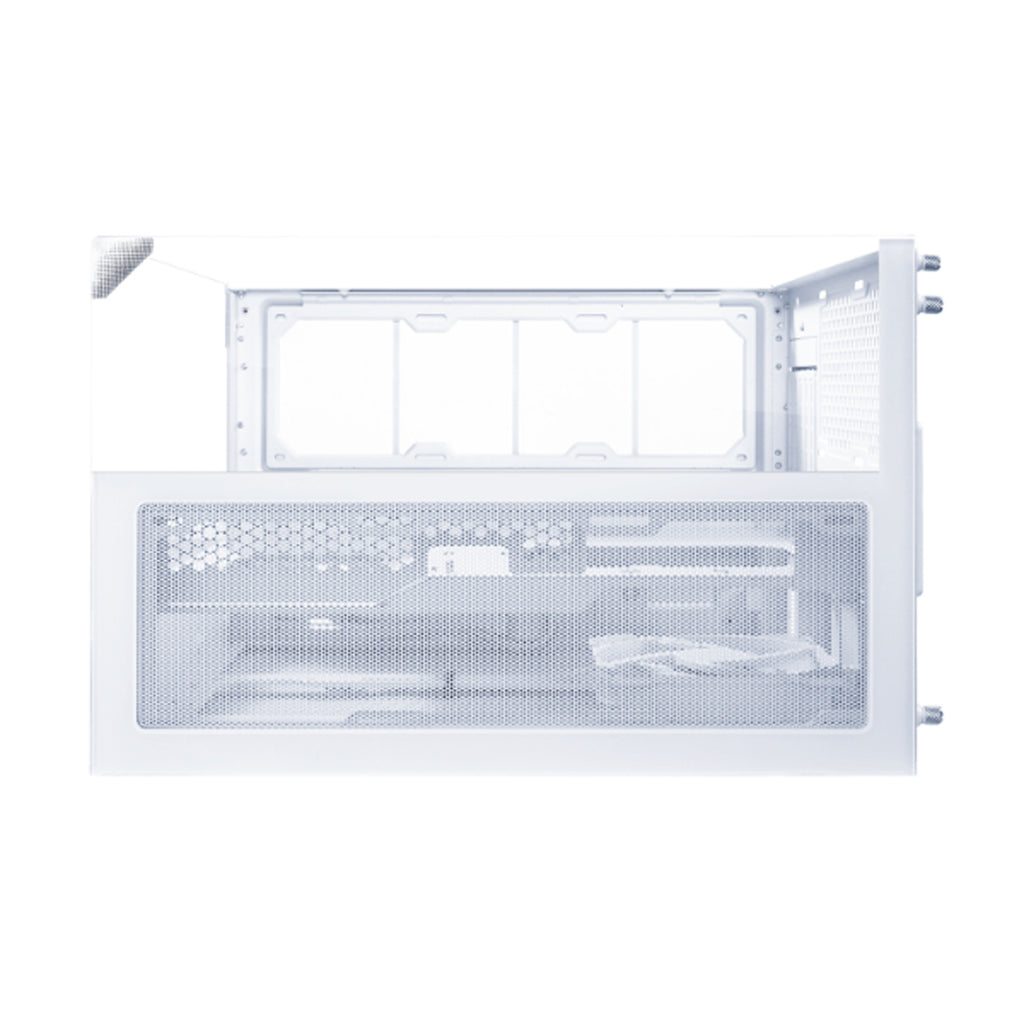

- Glass panel mesh cutout improves top airflow
- Pre-installed 140 mm fan enhances radiator cooling

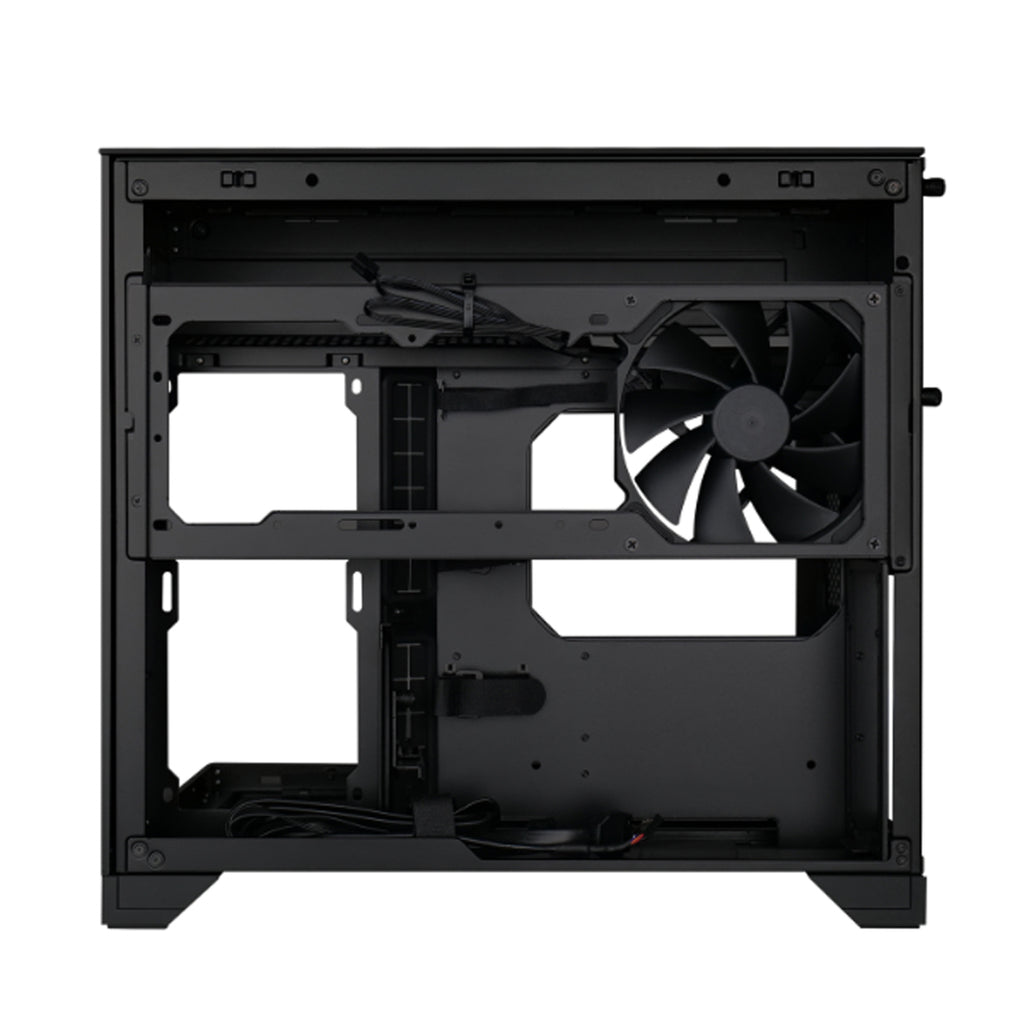

- Hidden second-chamber routing for tubes and cables
- Removable modular divider for flexible interior presentation
- Adjustable anti-sag bracket for horizontal GPUs
- Supports ATX PSU up to 182 mm
| Product Name | O11 VISION-M |

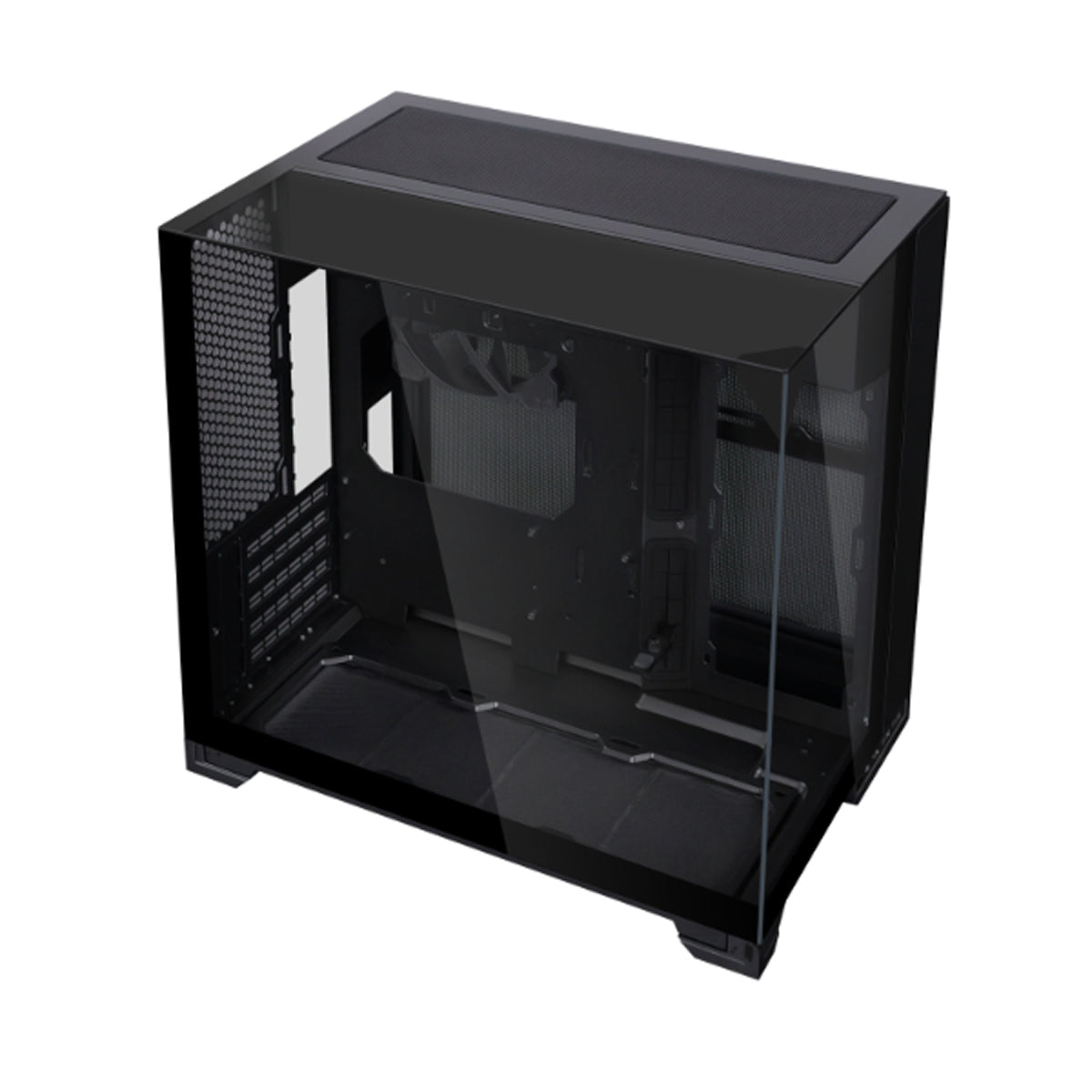

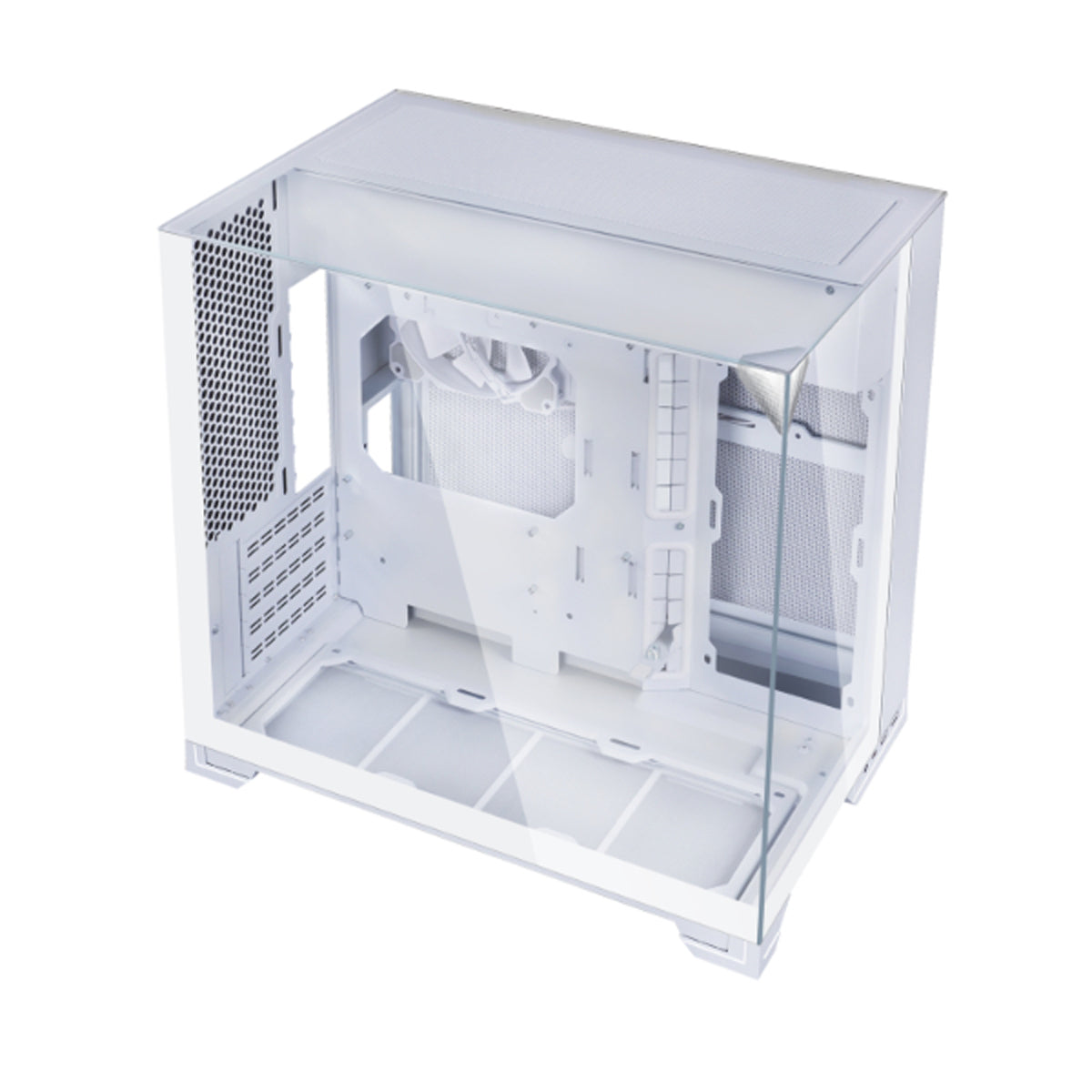

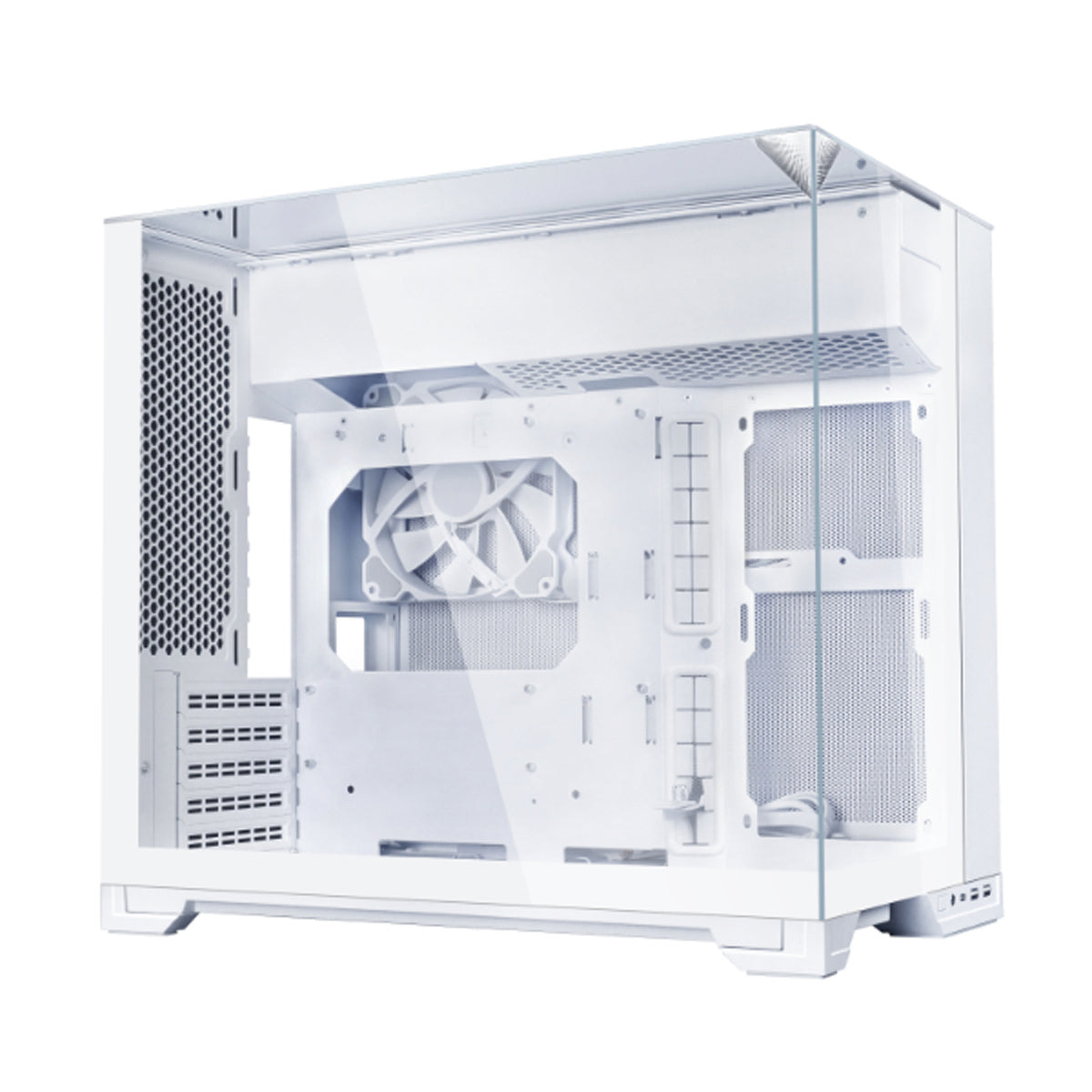

| Model No. | O11VMX (Black) / O11VMW (White) |

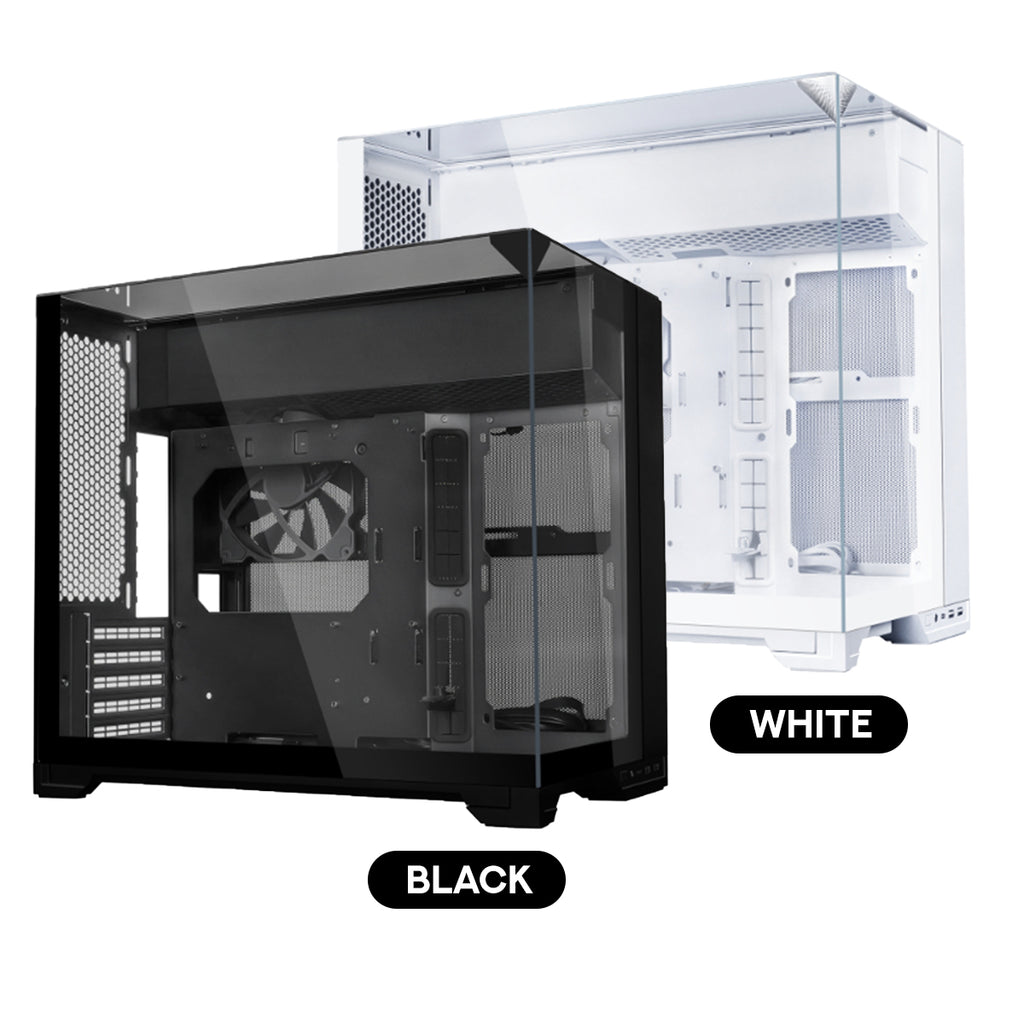

| Color | Black / White |
| Digital Screen | No |
| Dimensions | 419.6 × 275.1 × 395.2 mm (D × W × H) |
| Materials | Steel / 4.0 mm Tempered Glass / 3.0 mm Tempered Glass / Aluminum |
| Motherboard Support | Micro-ATX (M-ATX), Mini-ITX Back-Connect: No |
| Expansion Slots | 5 |
| Storage | 1 × 3.5" HDD + 2 × 2.5" SSD or 3 × 2.5" SSD |
| GPU Length Clearance | 410 mm |
| CPU Cooler Height Clearance | 162 mm |
| PSU Support | ATX (Under 182 mm) |
| Radiator Support |
Top: 360 mm / 240 mm Side: 240 mm |
| Fan Support |
Top: 3 × 120 mm Side: 2 × 120 mm Second Chamber: 1 × 140 mm (Pre-installed) + 2 × 120 mm Bottom: 3 × 120 mm Rear: 2 × 120 mm |
| Included Fans | Second Chamber (Side): 1 × 140 mm |
| Fan Connector | 4-Pin PWM |
| Dust Filter | Removable Bottom Dust Tray ×1 |
| I/O Ports |
Power Button ×1 USB 3.0 Type-A ×2 USB 3.2 Type-C ×1 Audio ×1 |
