Description

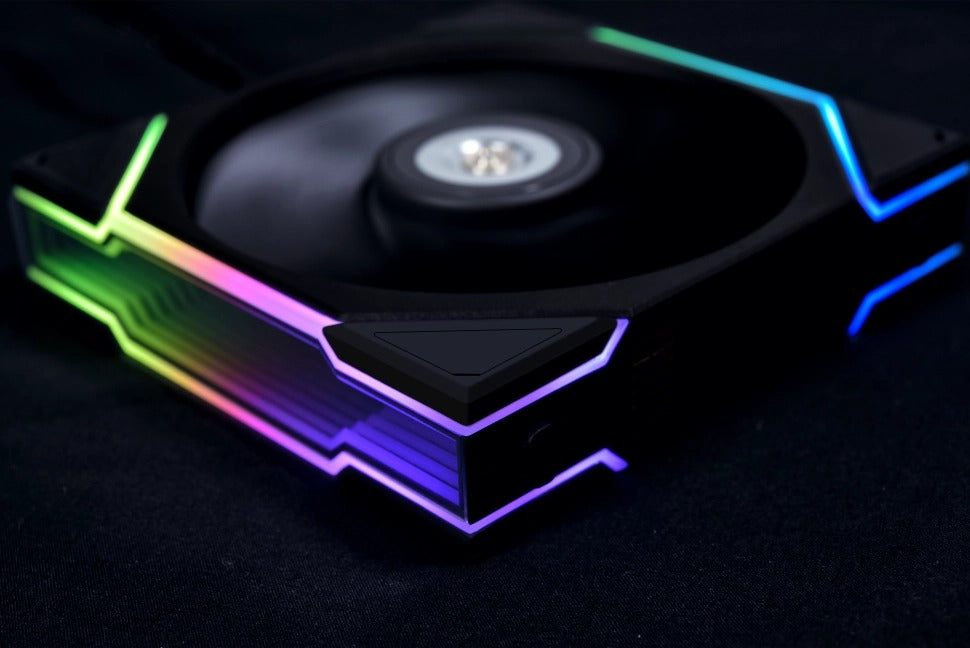

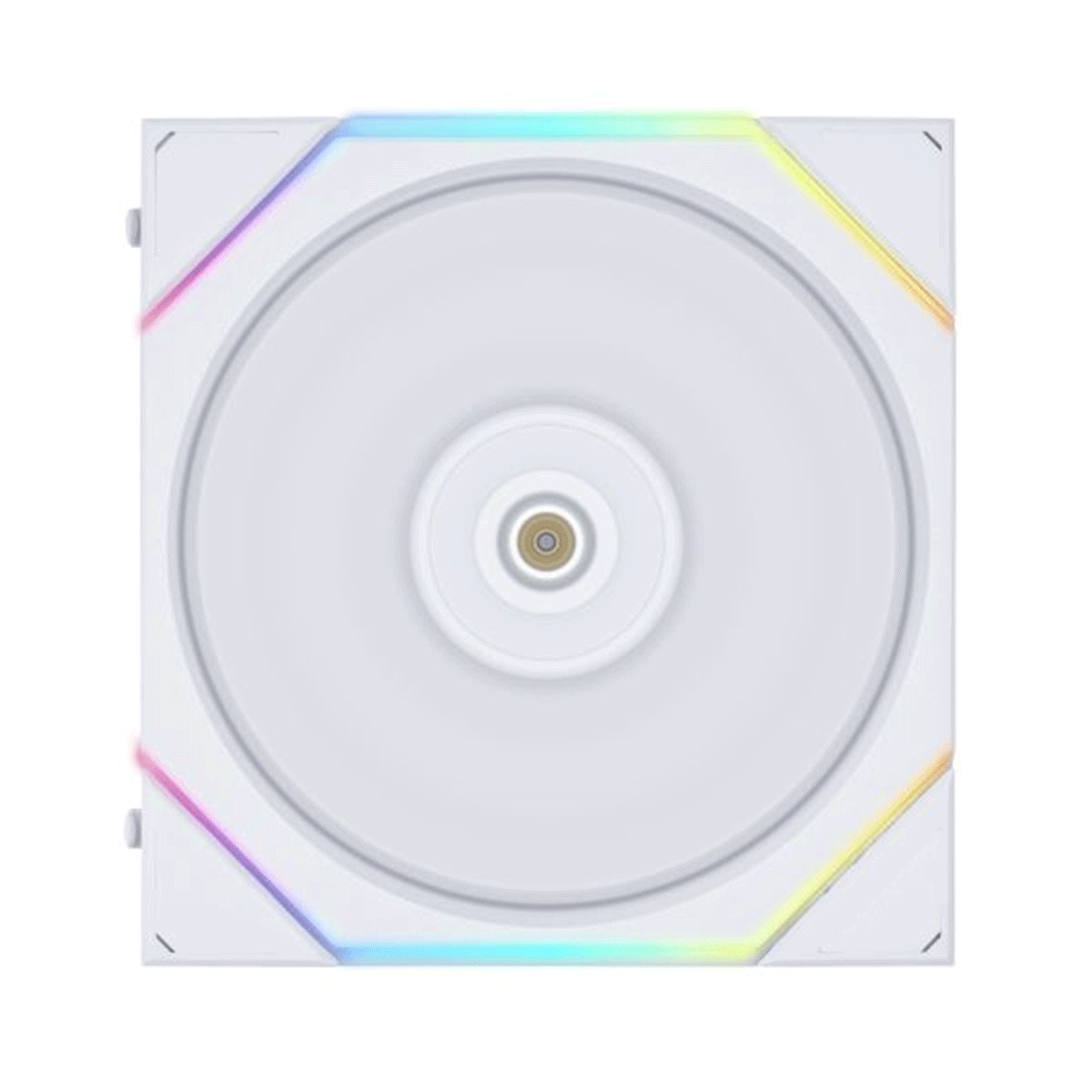

UNI FAN TL
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
- FDB bearing with copper shielding to ensure stable rotation of the impeller.

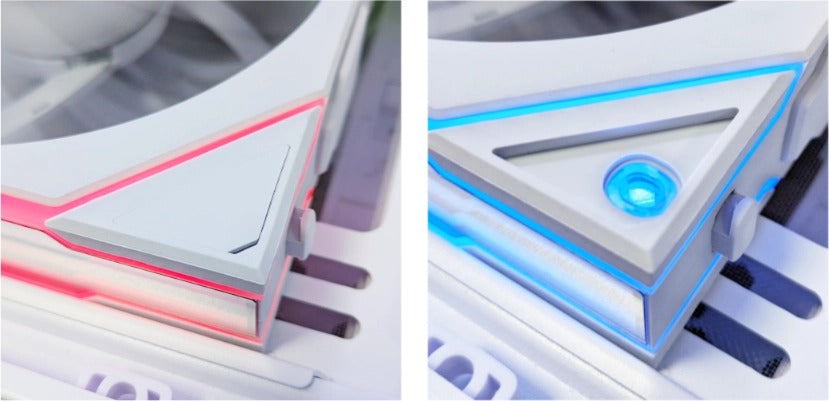

- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- Cable connection is supported on both sides of the fan.
- Support up to 10 fans per controller port via a daisy-chain POGO cable.
- LED lighting and fan speed controller shared with UNIFAN TL LCD.
- Complete software control with L-Connect 3.
SPECIFICATION
| PRODUCT NAME | UNI FAN TL 140 |
| MODEL | 14TL1B / 14TL1W |
| COLOR | Black / White |
| NUMBER OF FANS | 1 |
| CONTROLLER | NO |
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) |
| Extension Cable x 1 (P-P) | |
| FAN DIMENSION | 144 X 140 X 28 (mm) |
| FAN SPEED | 0, 200~1800 RPM |
| MAX. AIR PRESSURE | 2.34 mmH2O (Maximum) |
| MAX. AIRFLOW | 103.9 CFM (Maximum) |
| ACOUSTIC NOISE | 29 dB(A) Max |
| INPUT POWER | 4.6W |
