Description
UNI FAN TL FLEX

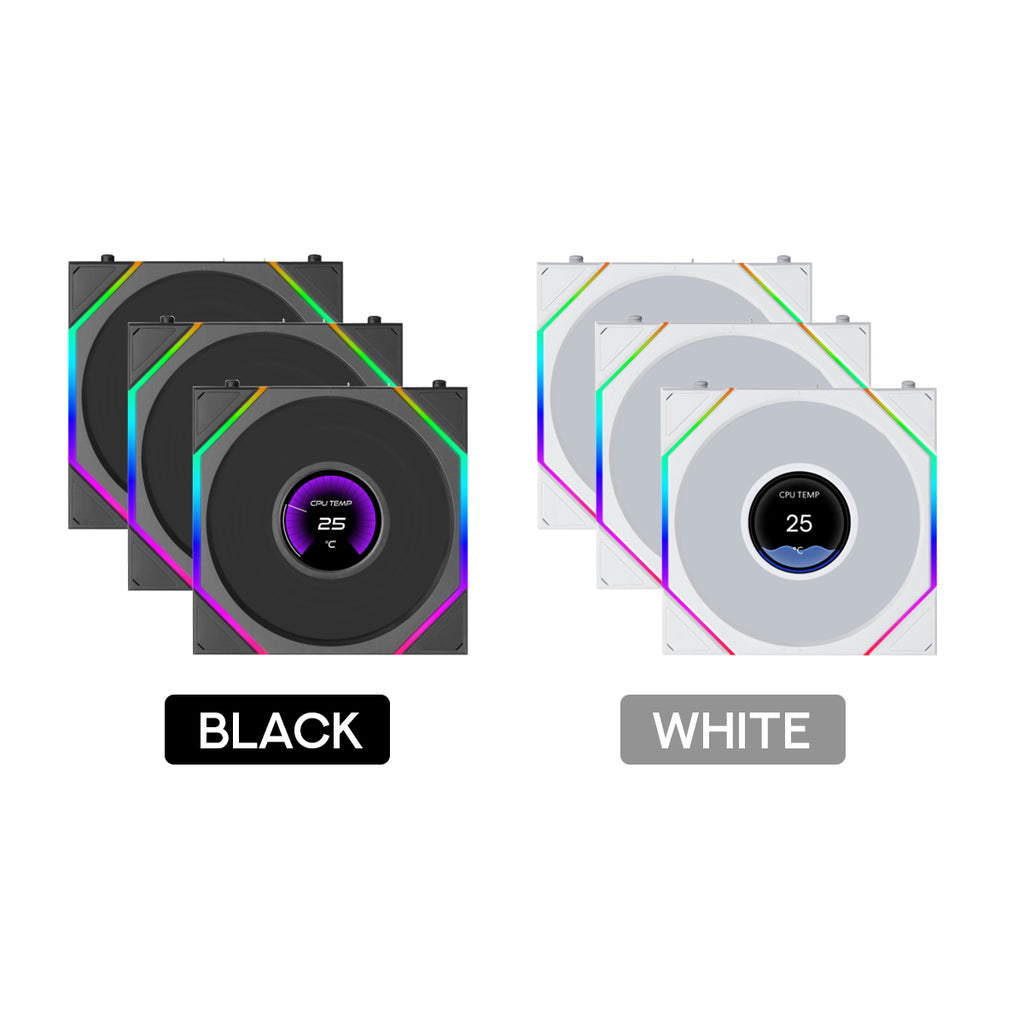

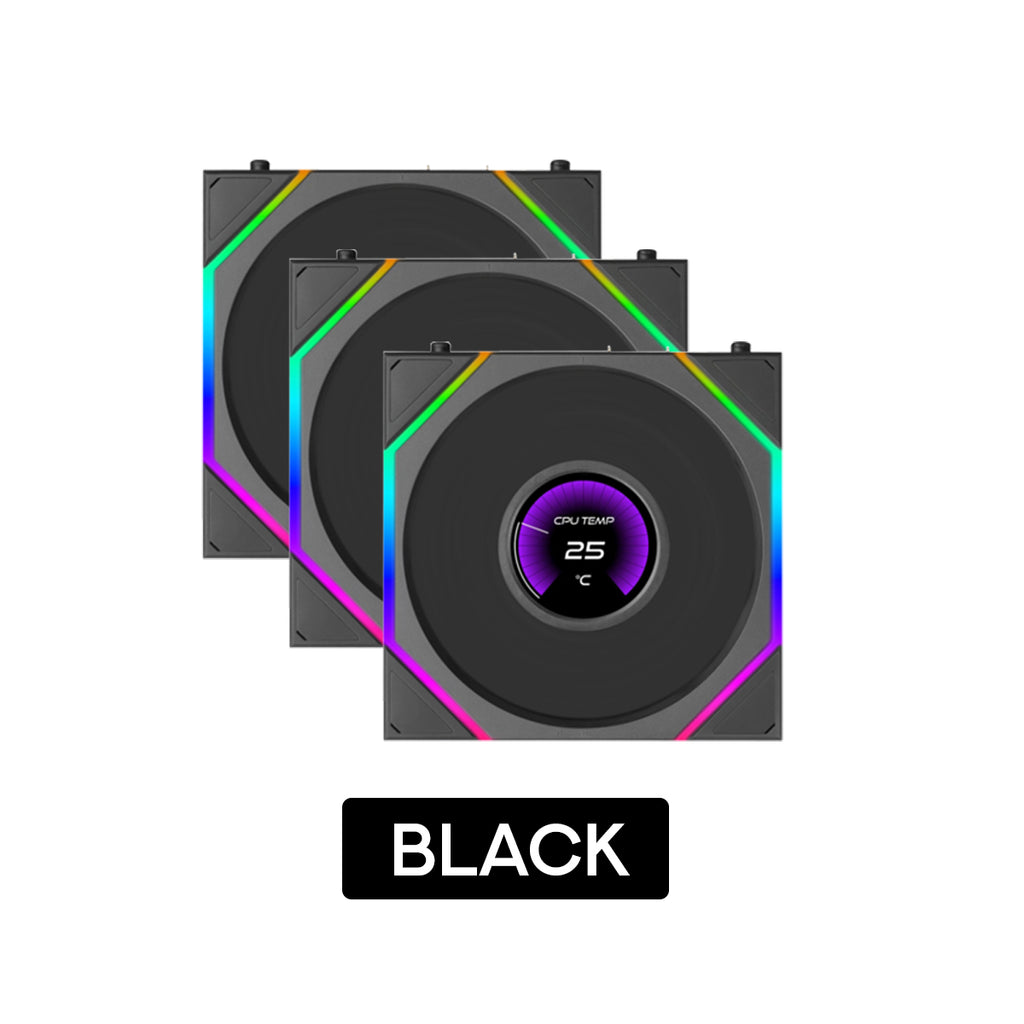

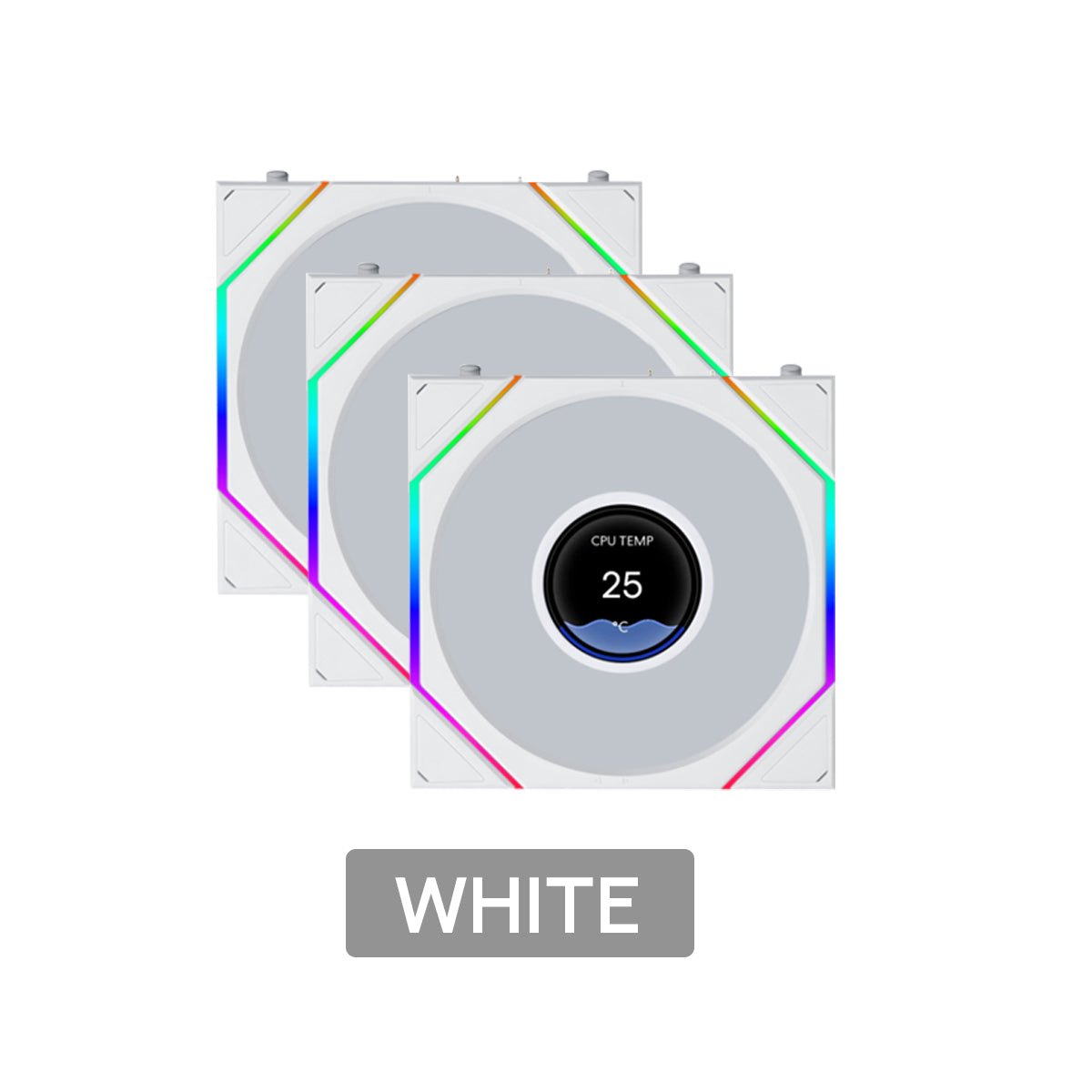

- 120 mm modular fan series available in LCD / LED, black / white, and standard / reverse-blade options.
- 1.8” LCD display with 400 × 400 resolution, 60Hz refresh rate, and MP4 / GIF / JPG / PNG support.
- Infinity-mirror ARGB lighting with a cleaner, unified visual design.
- Supports L-Connect 3, motherboard ARGB sync, and PWM fan control.
- Multiple control modes for wireless themes, USB LCD customization, or motherboard control.
- Daisy-chain design and FLEX receivers simplify cable routing and expansion.
- FDB bearing and 0.6 mm blade clearance deliver strong, stable cooling performance.
Note: Other models are for illustration purposes only.
Specification:
| PRODUCT NAME | UNI FAN TL LCD FLEX 3 PACK | |
|---|---|---|
| MODEL | 12TLLCD1F3B | 12TLLCD1F3W |
| COLOR | Black / White | |
| FAN QUANTITY | 1 | |
| L-WIRELESS CONTROLLER | No | |
| INCLUDED ACCESSORIES | LCD FLEX Receiver ×1, 9-Pin USB Cable ×1, 5V 3-Pin ARGB Cable ×1, 1 to 3 PWM to SATA Cable ×1 | |
| BLADE TYPE | Standard Blade | |
| FAN DIMENSIONS | 120mm × 124mm × 28mm | |
| MATERIAL | PBT/PA66 | |
| RATED VOLTAGE | 12V DC | |
| FAN SPEED | 0,350 ~ 1900 RPM | |
| STATIC PRESSURE | 2.7 mmH2O | |
| AIRFLOW | 66 CFM | |
| ACOUSTIC NOISE | 26 dBA | |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |
| OPERATING VOLTAGE | DC 12V | |
| INPUT POWER | 5.4W | |
| LED COUNT | 26 LEDs | |
