Description

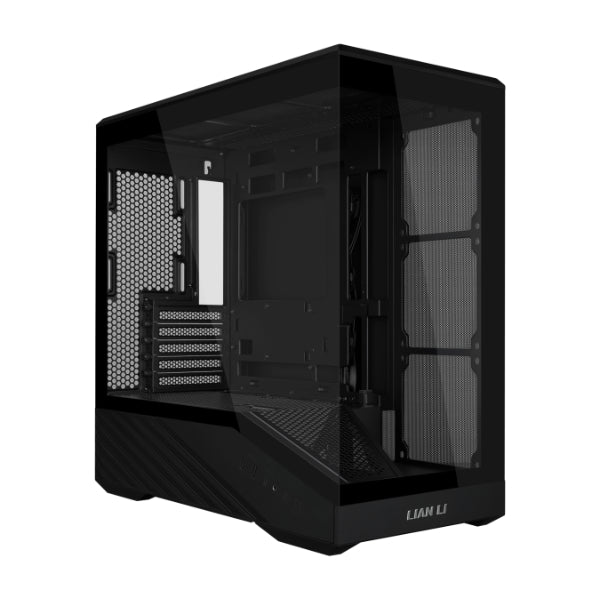

- Mid-tower chassis built for performance visualization and immersive aesthetics
- Supports back-connect motherboards for optimized space and cleaner cable management
- Compatible with ITX, M-ATX, ATX, and E-ATX (width < 246mm) motherboard formats

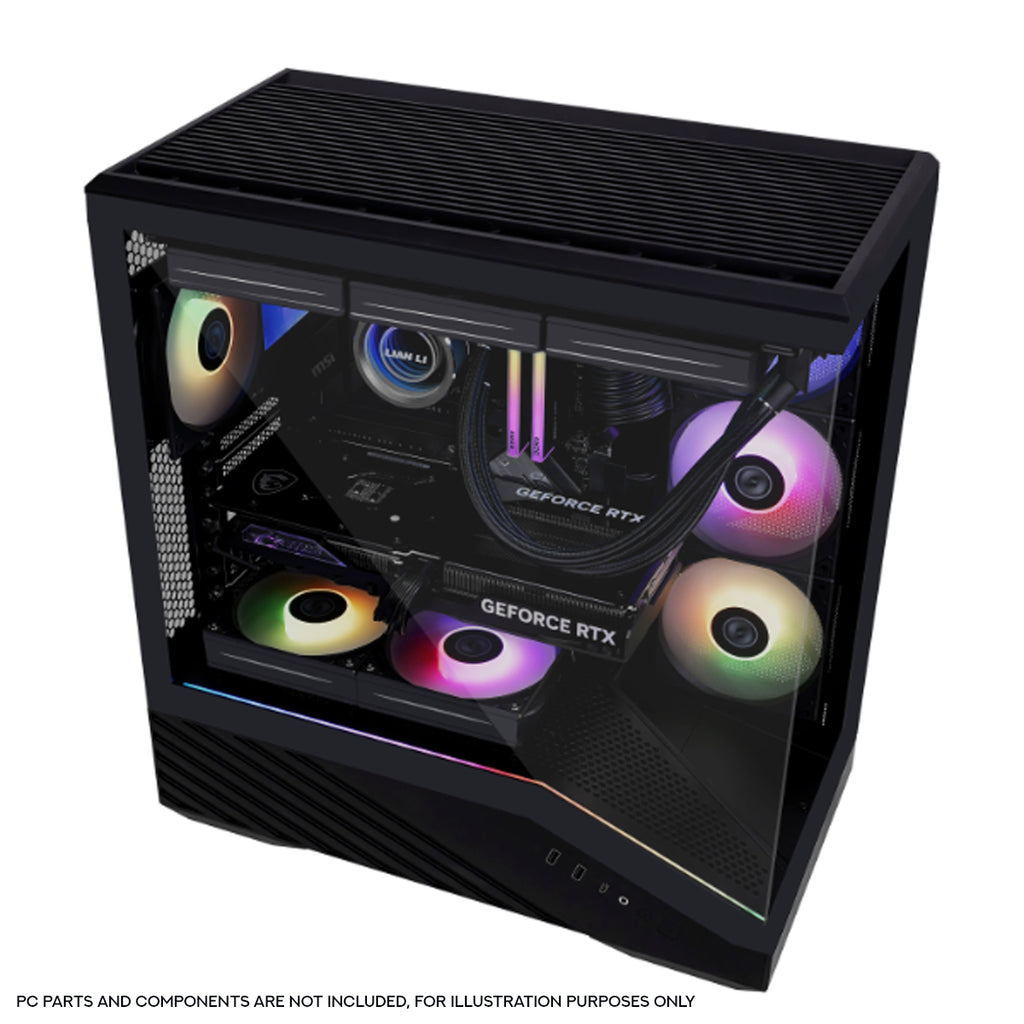

- Accommodates up to 9 fans and supports up to 360mm radiators for exceptional cooling
- Features dual 4mm tempered glass panels for 270° unobstructed visibility
| GENERAL SPECIFICATIONS | |
|---|---|
| Product Name | Vector V100 |
| Type | Mid-Tower Case |
| Dimensions | 446mm (L) × 235.5mm (W) × 484.65mm (H) |
| Materials | Steel, Tempered Glass, Plastic |
| Motherboard Support | E-ATX (Width < 246mm), ATX, M-ATX, Mini-ITX |
| Back-Connect Support | ATX, M-ATX |
| COOLING & RADIATOR SUPPORT | |
| Fan Support (Top) | 3 × 120mm or 2 × 140mm |
| Fan Support (Side) | 3 × 120mm |
| Fan Support (Rear) | 1 × 120mm or 1 × 140mm |
| Radiator Support | Top: Up to 360mm |
| CLEARANCE & EXPANSION | |
| Max GPU Length | 420mm |
| Max CPU Cooler Height | 178mm |
| Max PSU Length | ATX (Length < 220mm) |
| PCIe Expansion Slots | 7 |
| Drive Support | 1 × 2.5″ SSD (Behind Tray), 1 × 3.5″ HDD (Bottom) |
| I/O & MISC | |
| I/O Ports | 1 × USB 3.1 Type-C, 2 × USB 3.0, 1 × Audio |
| Buttons | Power, Reset |
| Dust Filter | 1 × Bottom |
