Description

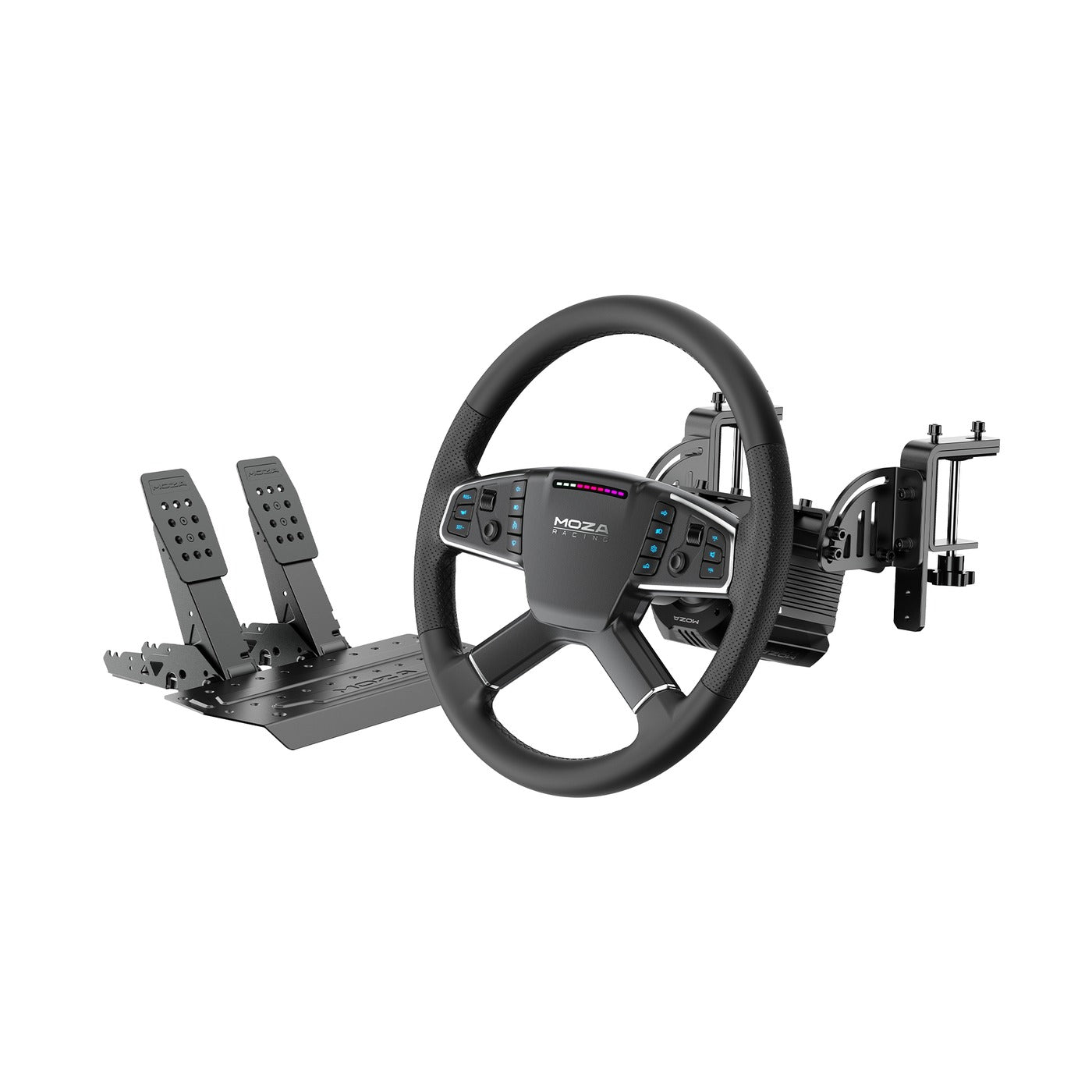

MOZA R5 Pro Truck Driving Simulator
Designed for truck simulation, the MOZA R5 Pro Truck Bundle pairs a 6 Nm R5 Pro direct-drive wheelbase with a large 400 mm TSW Truck Wheel and SR-P Lite2 pedals. Its 21-bit encoder and NexGen Force Feedback 5.0 deliver detailed, consistent steering feedback for truck, farming, and utility-vehicle simulation.
Specification:

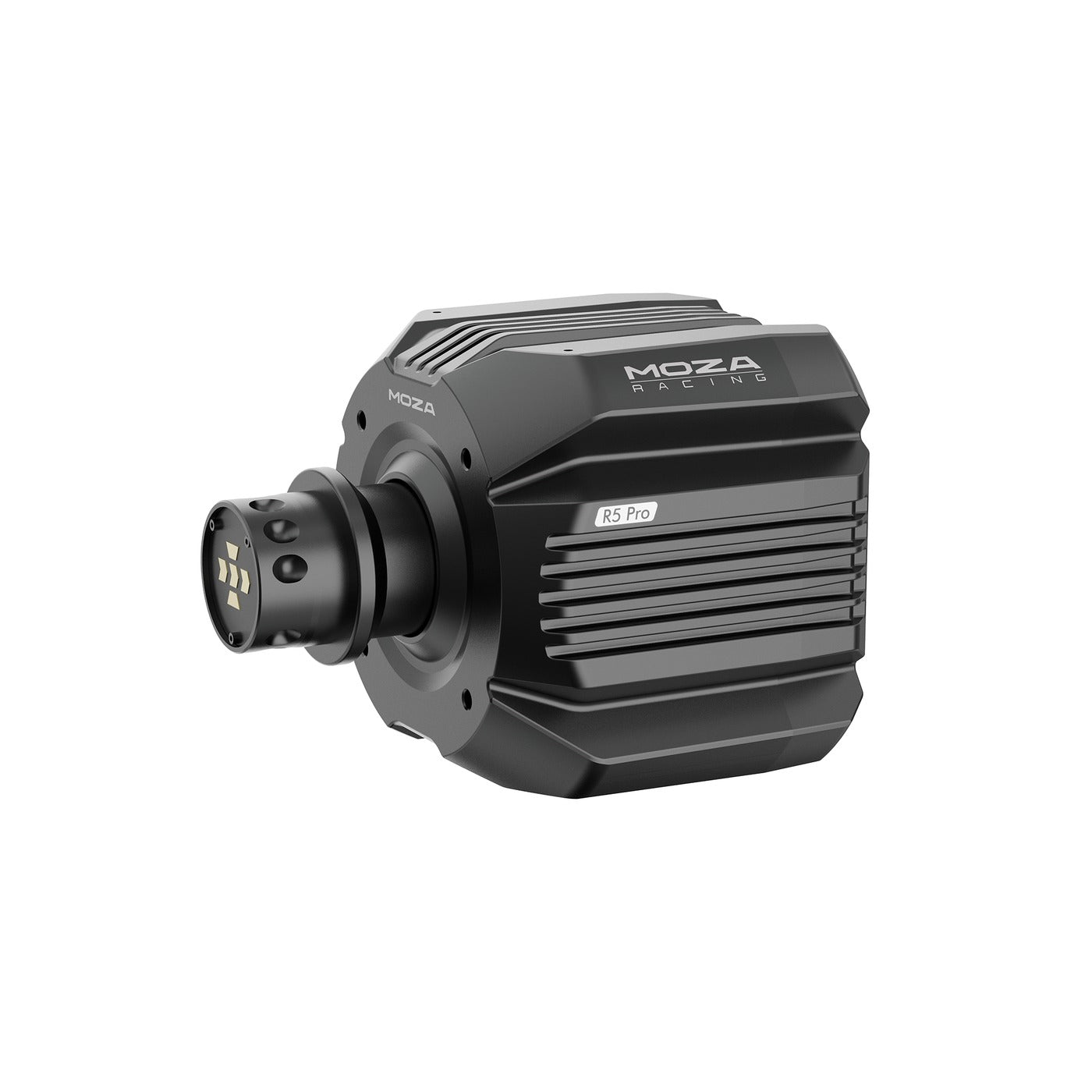

| R5 Pro Wheelbase Specs |
| FFB Drive System | Direct Drive |
| Max Steering Angle | 90~2700° |
| Housing Material | Aluminum alloy |
| Color | Black |
| Peak Torque | 6Nm |
| Peak Power | 100W |
| Input Voltage | 110V~220V AC → 12V DC |
| Weight | 2.9kg |
| Encoder Resolution | 21bit |
| USB Refresh Rate | 1000Hz |
| App Functions | Supported |
| Quick Release | Supported |
| Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
| Accessories | User manual, power adapter, cable, tool kit |
| Mounting Options | Bottom, front, and desktop mounting |
| Desk Clamp | Included |
| Online Firmware Update | Supported |
|

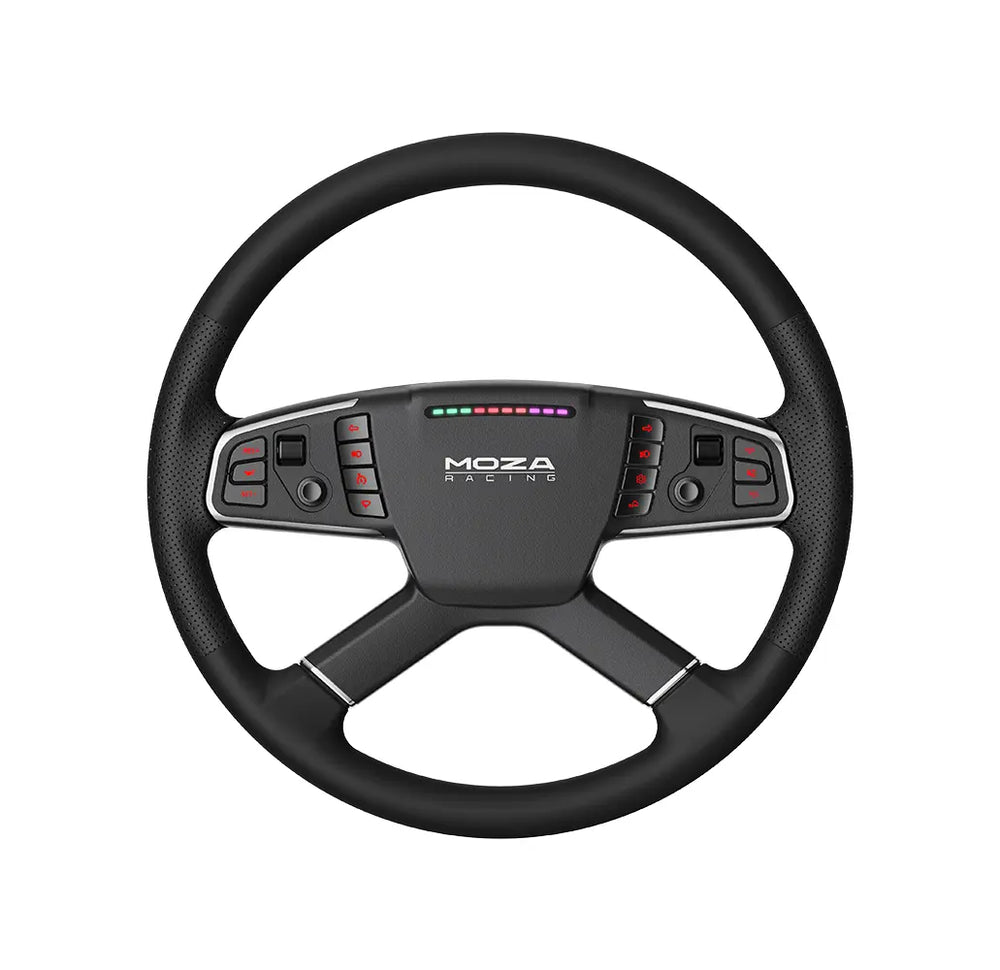

TSW Truck Wheel Specs |
| Grip Material | Microfiber leather |
| Wheel Rim Material | Aerospace-grade aluminum |
| Shift Paddles Material | Aluminum alloy |
| Size | 400mm |
| Buttons | 14 |
| Rev Lights | 10 bright RGB LEDs |
| Intelligent Telemetry | Supported |
| Fully Adjustable RPM LEDs through MOZA Pit House | Supported |
| Release Method | All-aluminum quick release |
|

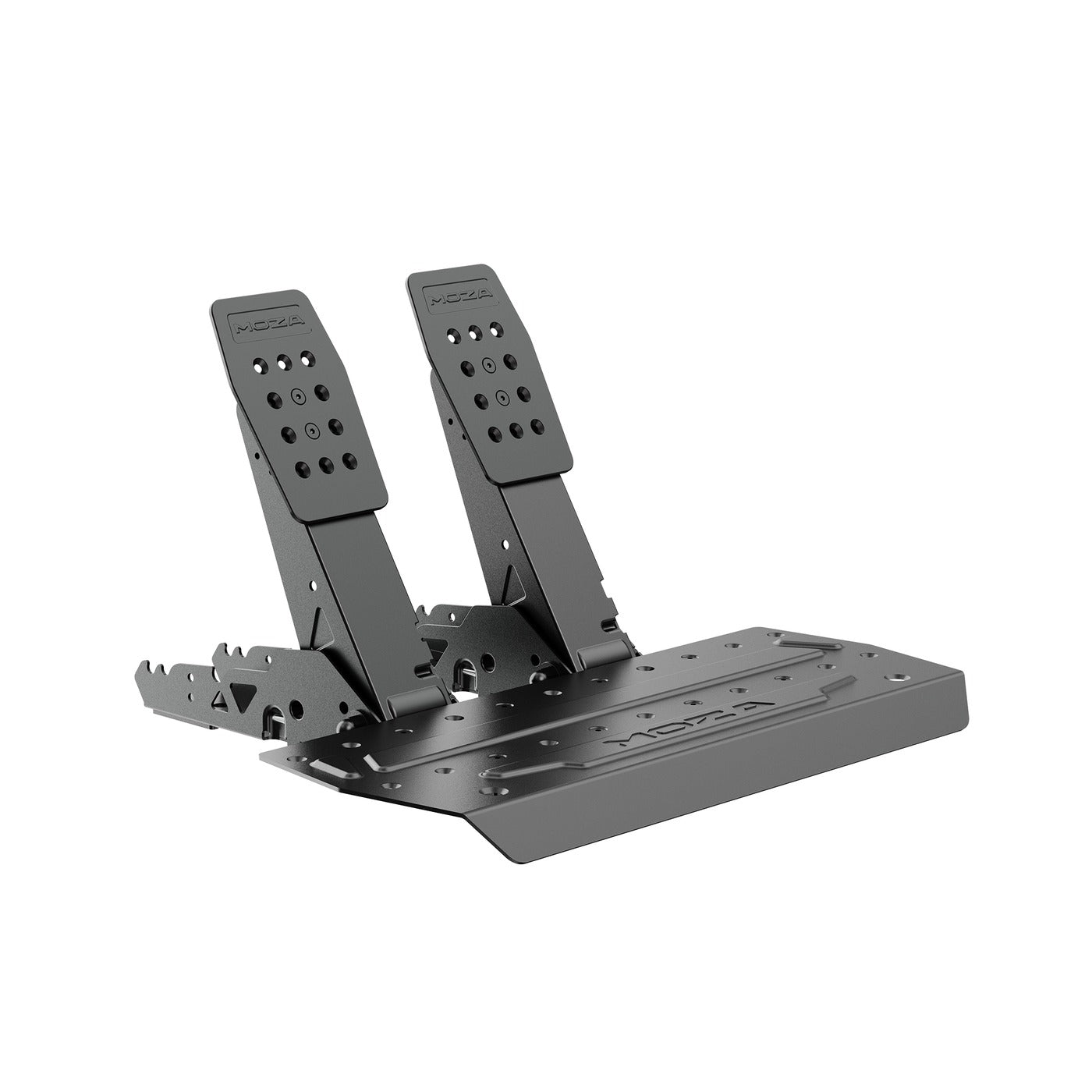

MOZA SRP Lite2 Pedals Specs |
| Pedal Face Material | High-strength Steel |
| Pedal Base Material | High-strength Steel |
| Sensor | Contactless Hall Sensor |
| Pedal Left/Right Adjustment Range | 15mm |
| Pedal Height Adjustment Range | 36mm |
| Pedal Curve Adjustment | Supported |
| Real-time Pedal Output Display | Supported |
Note: The bundle includes throttle and brake pedals. A clutch pedal can be purchased separately.
