Description

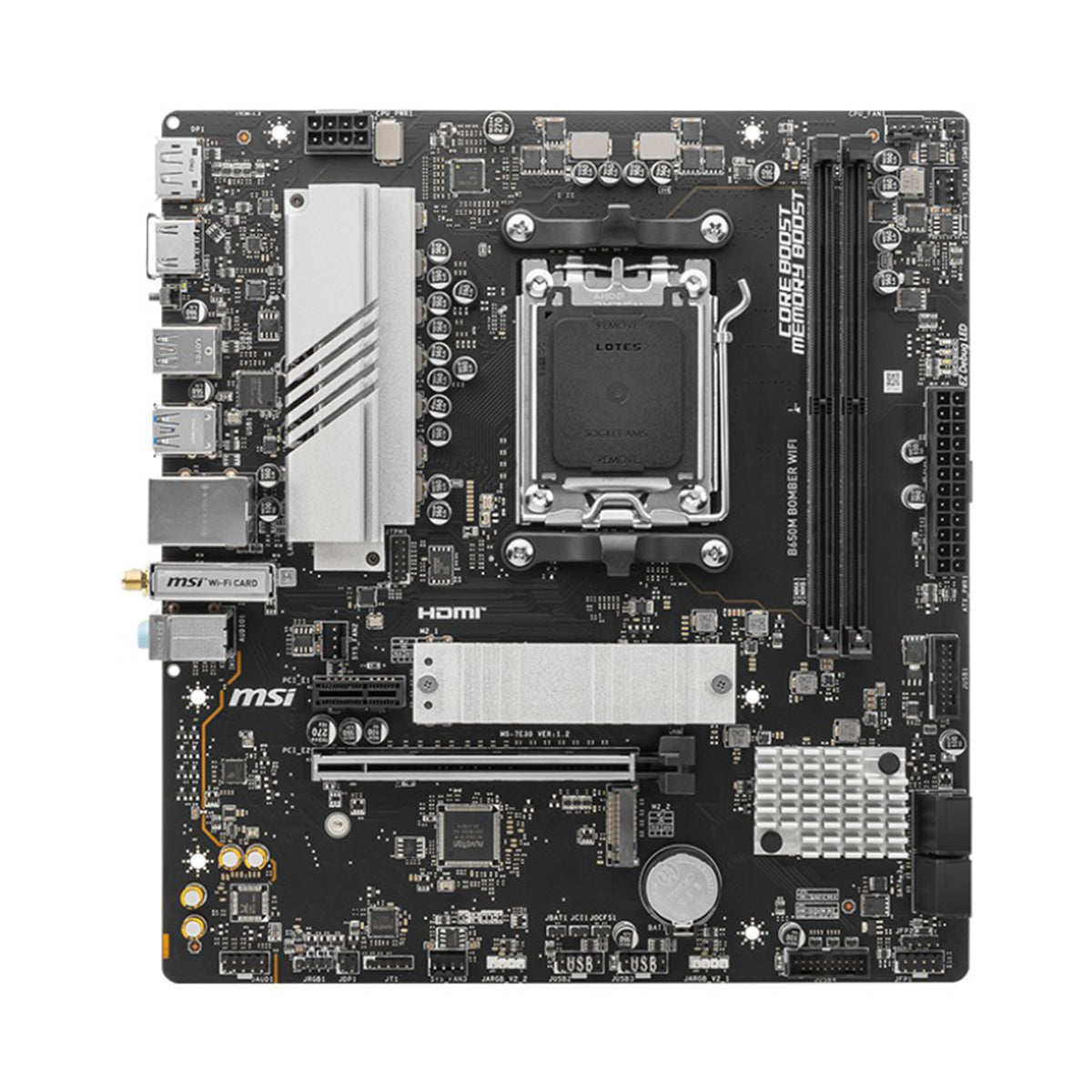

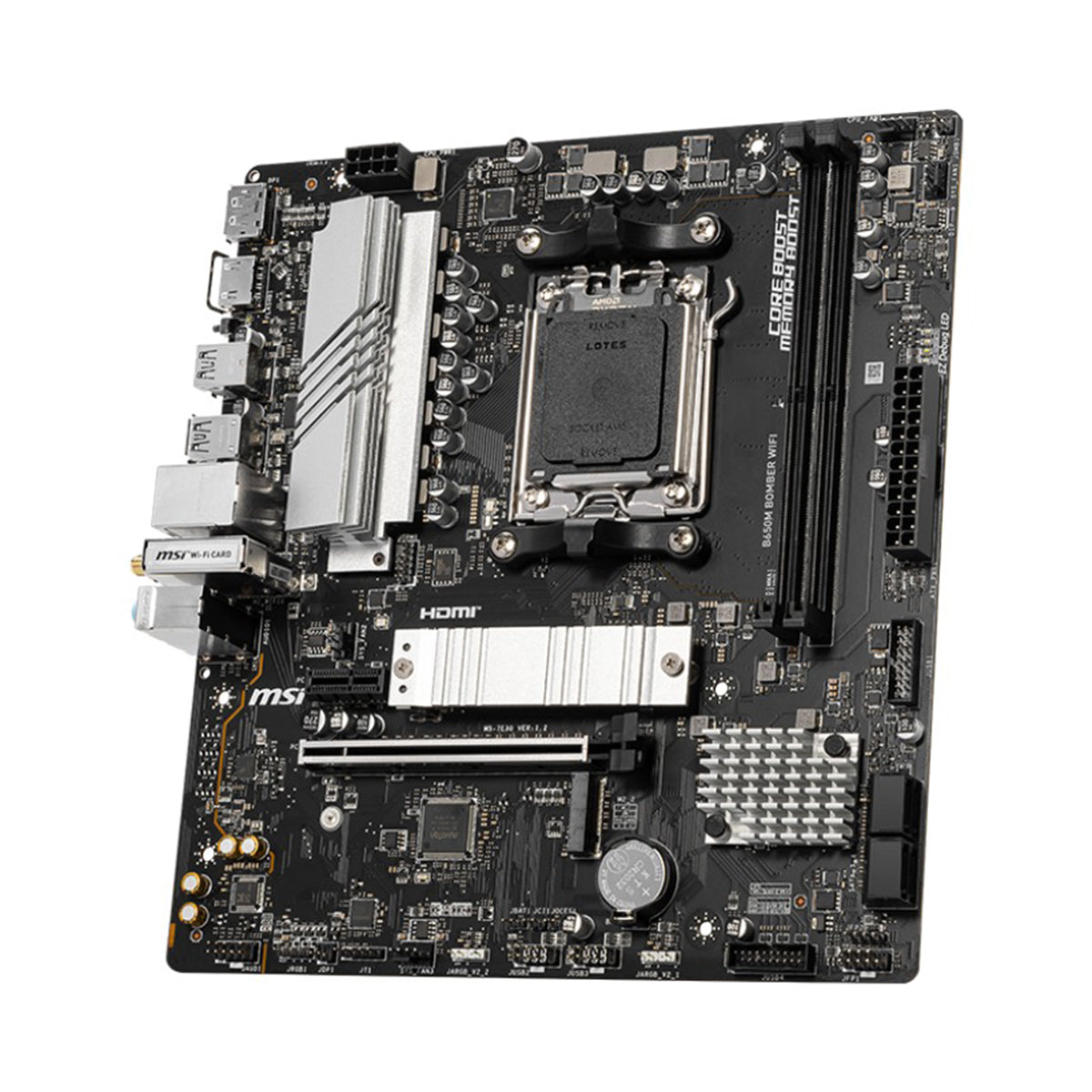

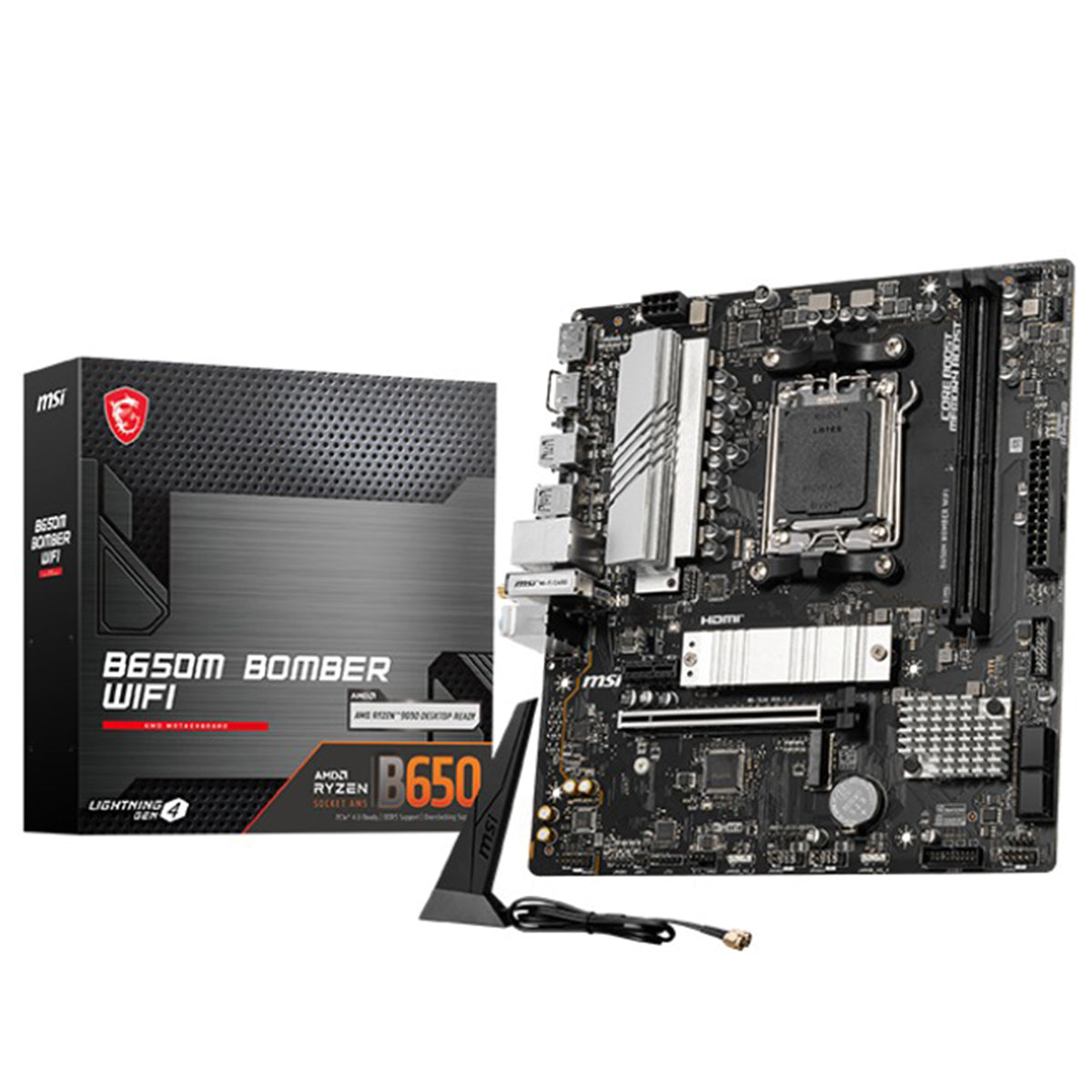

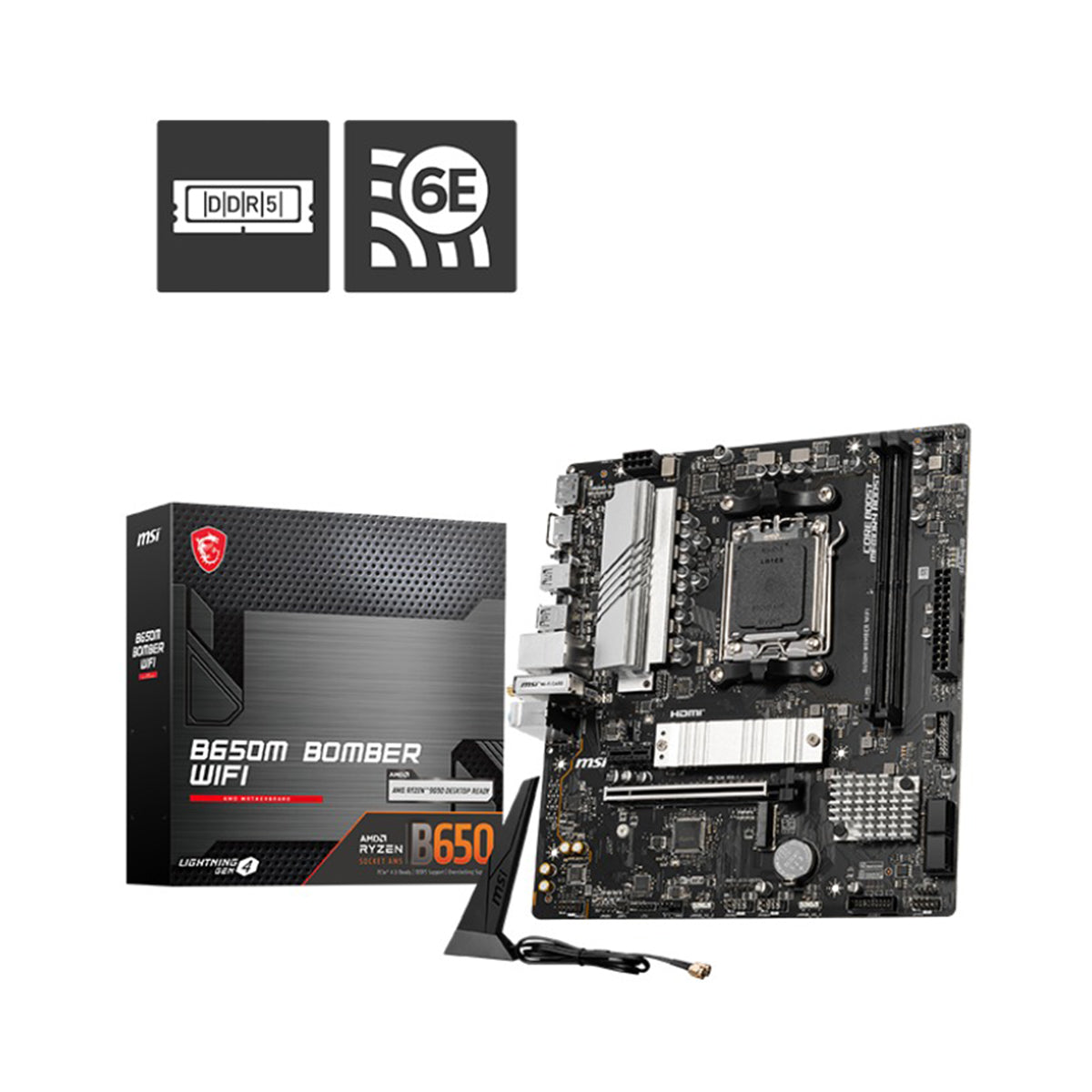

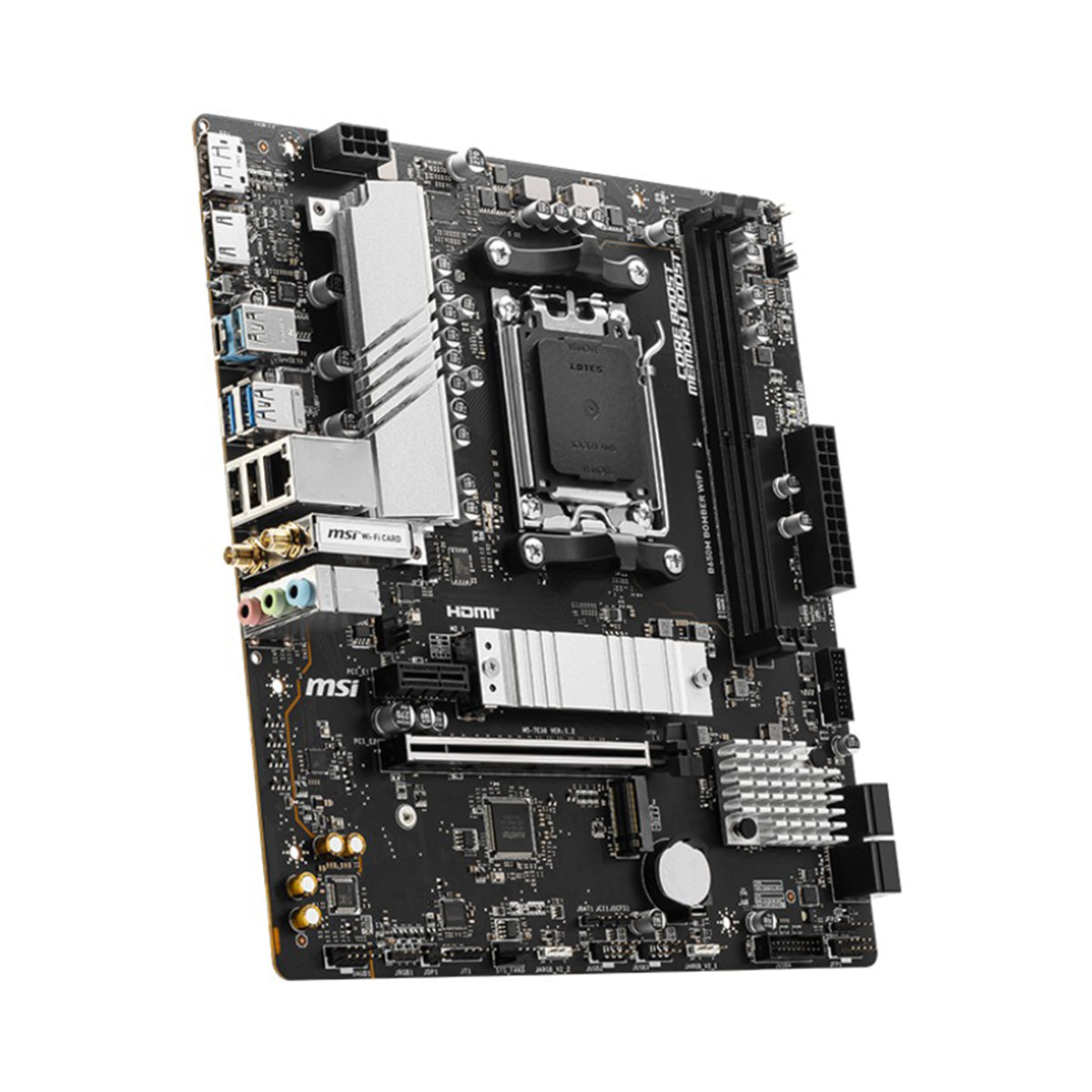

B650M BOMBER WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications:
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support | DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s. Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s. Supports Dual-Channel mode. Supports non-ECC, un-buffered memory. Supports AMD EXPO™ |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* (*Available only on processors featuring integrated graphics) |
| Slot | 1x PCI-E x16 slot (Supports x16 for Ryzen™ 9000/ 7000, x8 for Ryzen™ 8700/ 8600/ 8400, x4 for Ryzen™ 8500/ 8300); 1x PCI-E x1 slot. PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1 CPU up to PCIe 4.0 x4, 2280; M.2_2 CPU up to PCIe 4.0 x4, 2280); 4x SATA 6G. *M2_2 unavailable with Ryzen™ 8500/ 8300 |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA and M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 3x USB 5Gbps Type A (Rear), 1x USB 5Gbps Type C (Rear), 4x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E, M.2 (Key-E), MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz, 802.11 a/ b/ g/ n/ ac/ ax, Bluetooth® 5.3 |
| LED FEATURE | 4x EZ Debug LED |

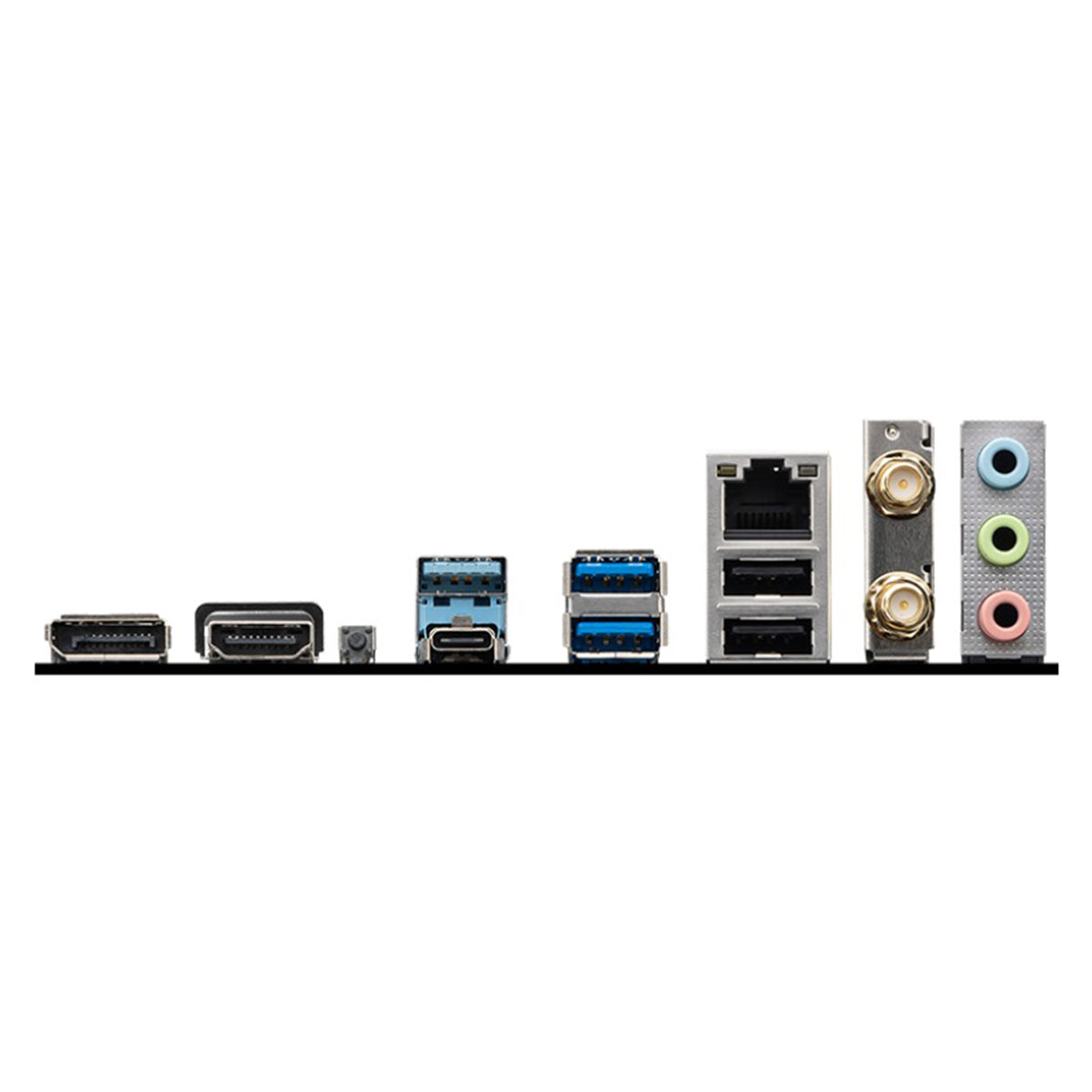

| BACK PANEL PORTS | DisplayPort, HDMI™, Flash BIOS Button, USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, Audio connectors, USB 5Gbps Type-C, USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX 226mmx243.84mm |
