Description

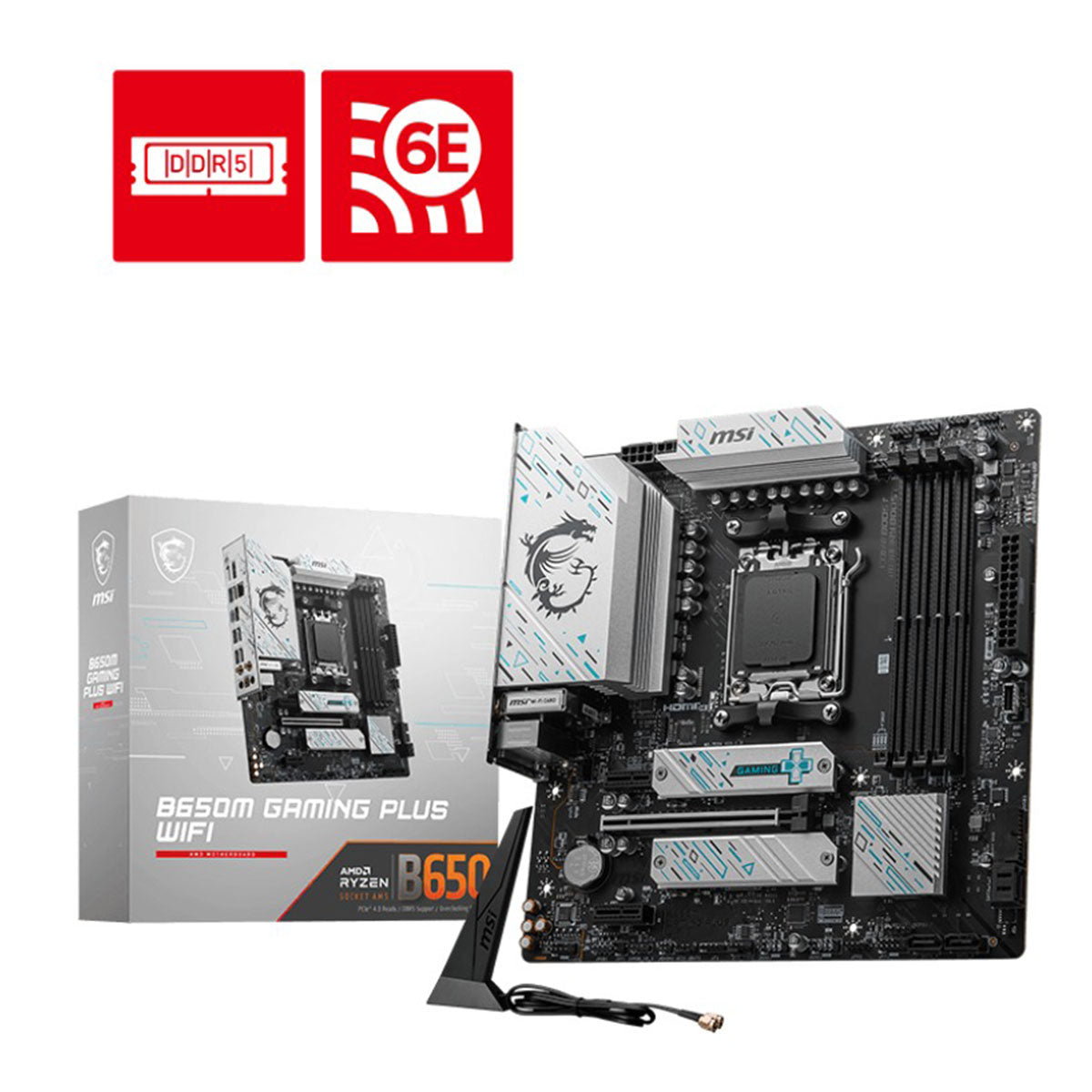

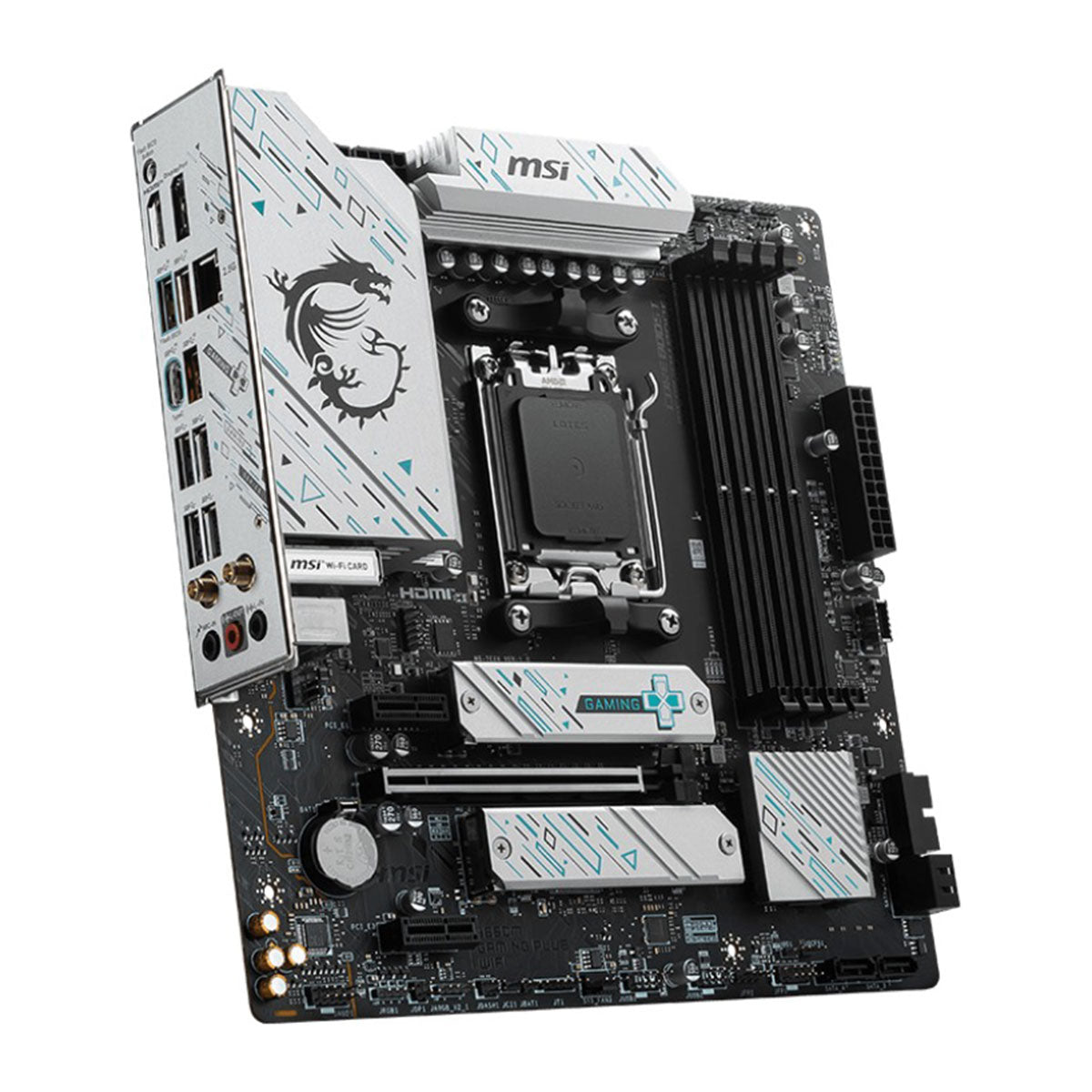

B650M GAMING PLUS WIFI
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
SPECIFICATION
| CHIPSET | AMD B650 |
| CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO™ | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7200+ MHz | |
| • 1DPC 2R Max speed up to 6000+ MHz | |
| • 2DPC 1R Max speed up to 6000+ MHz | |
| • 2DPC 2R Max speed up to 5400+ MHz | |
| ONBOARD GRAPHICS | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| SLOT | 1x PCI-E x16 slot |
| • Supports x16 (For Ryzen™ 7000 Series processors) | |
| • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) | |
| • Supports x4 (For Ryzen™ 5 8500G processor) | |
| 2x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| STORAGE | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 for M.2 NVMe storage devices | |

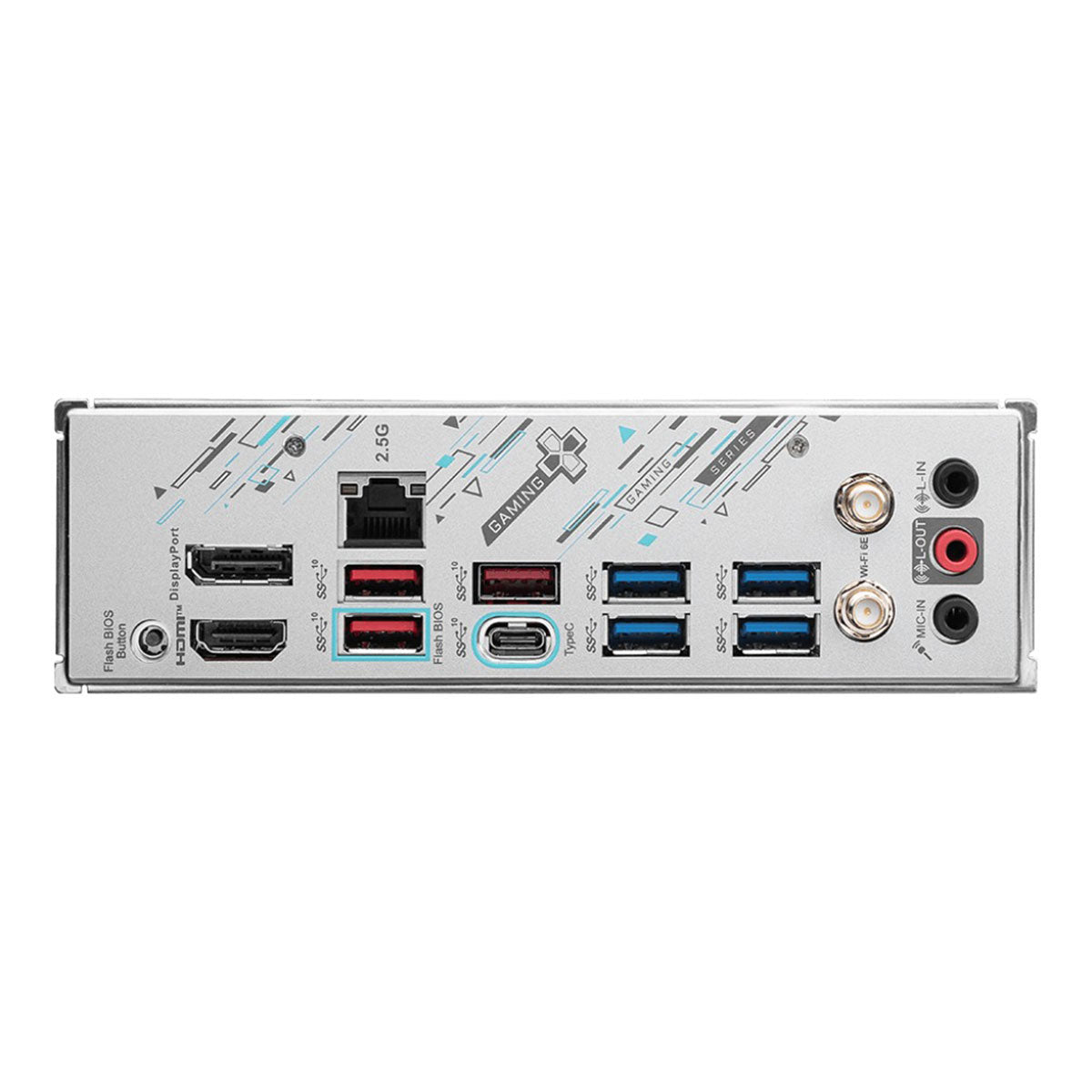

| USB | 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 3x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3** | |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| AUDIO | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| INTERNAL IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB INFO | mATX |
| 243.84mmx243.84mm |
