Description

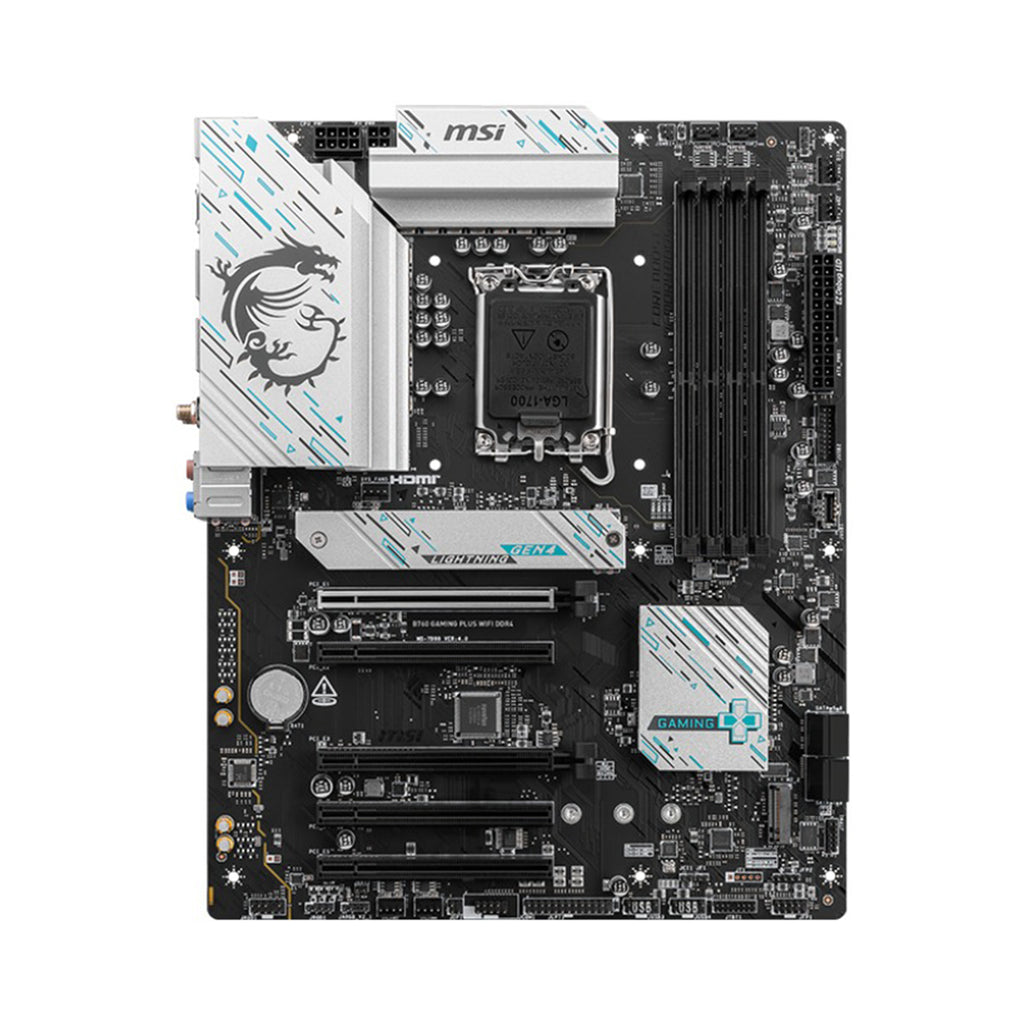

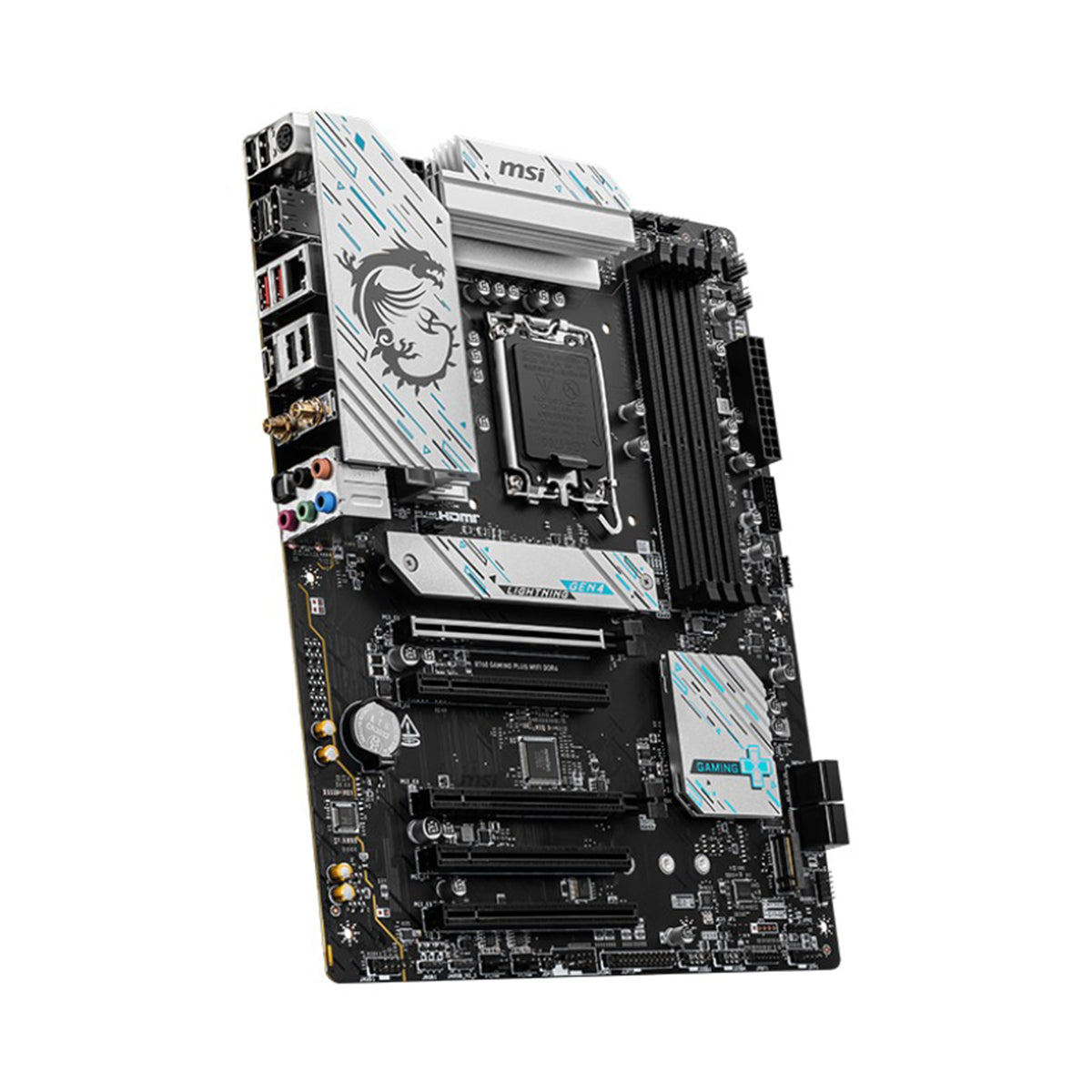

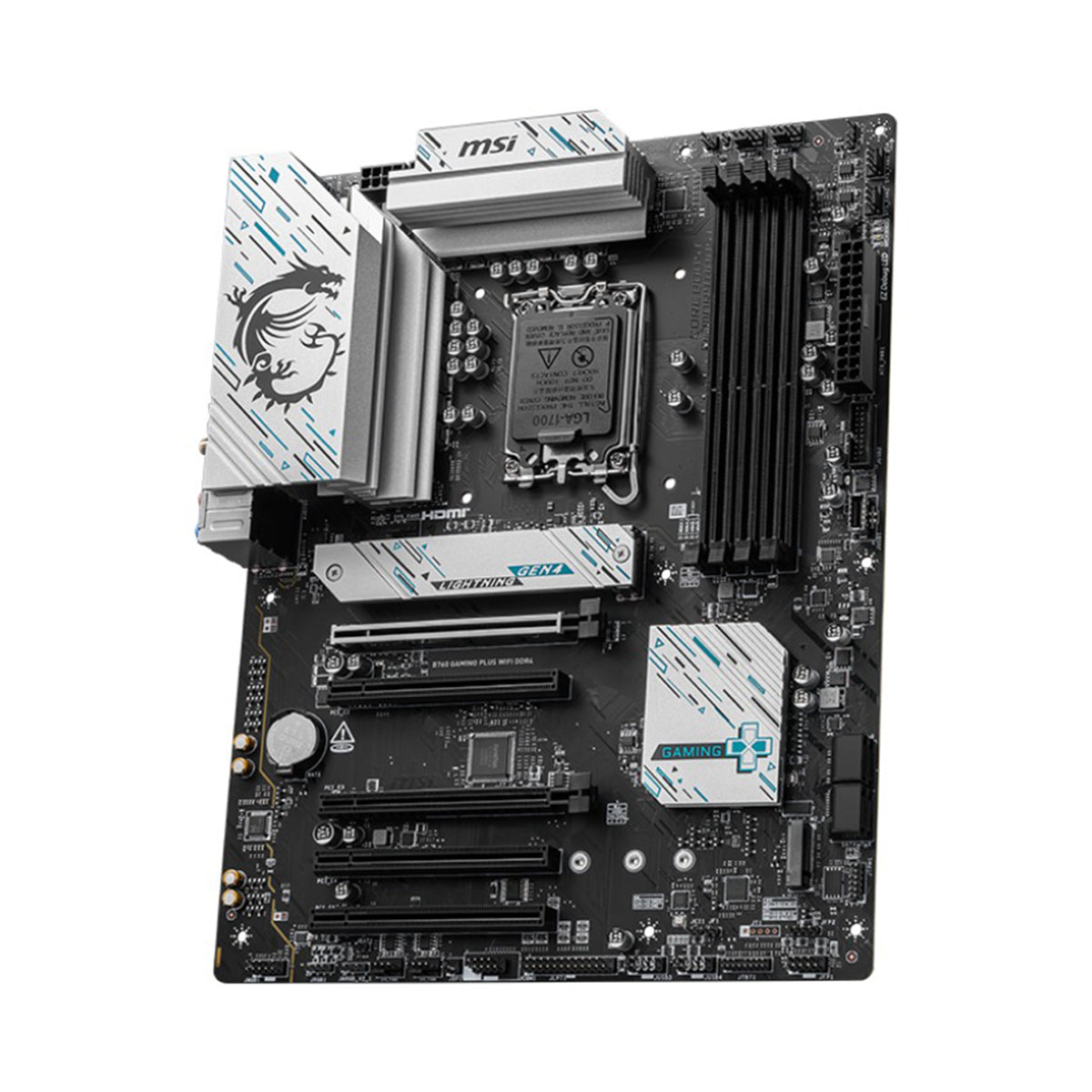

B760 GAMING PLUS WIFI DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G

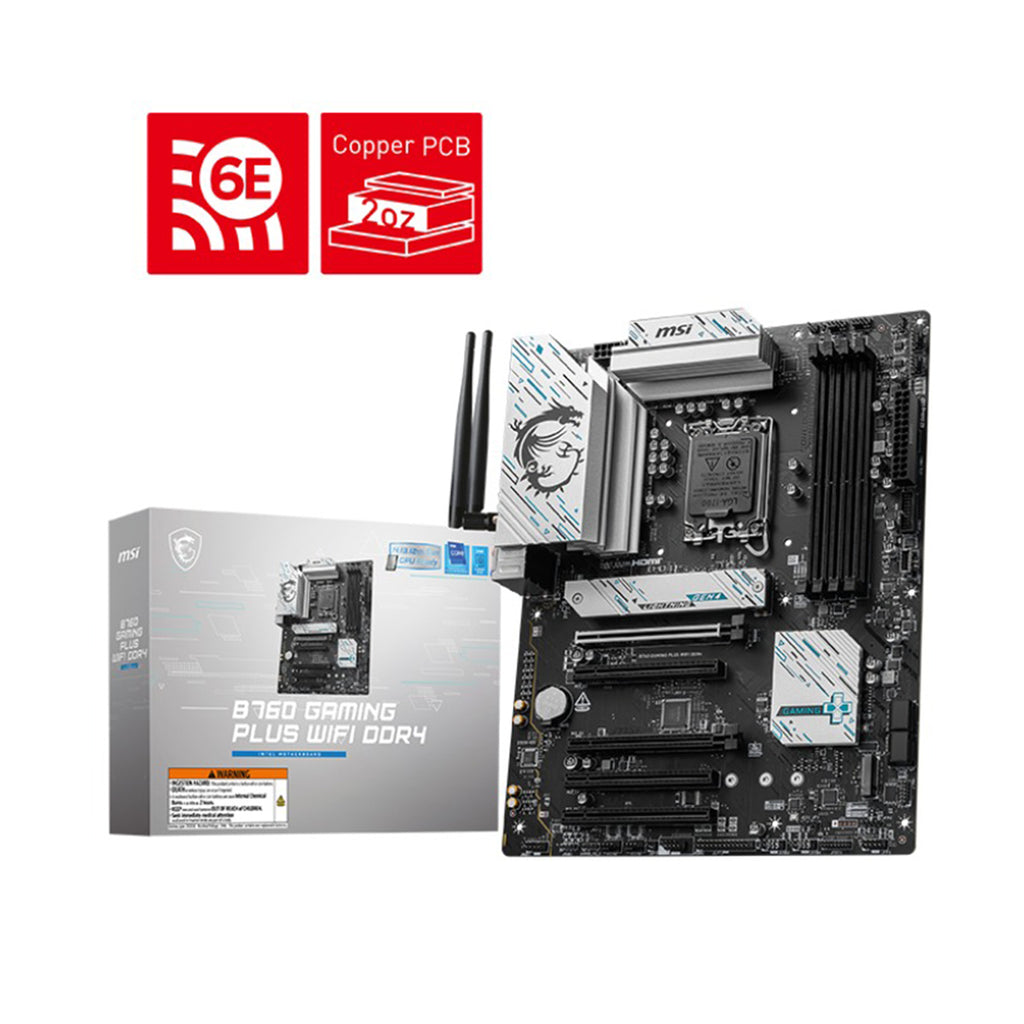

- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
| Chipset | Intel B760 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (LGA 1700) |
| Memory | 4x DDR4 up to 128GB Supports DDR4 5333+(OC) to 2133 (JEDEC) MHz Max Overclocking: • 1DPC 1R: 5333+ MHz • 1DPC 2R: 4800+ MHz • 2DPC 1R: 4400+ MHz • 2DPC 2R: 4000+ MHz Dual-Controller Dual-Channel Intel® XMP 3.0 OC, Non-ECC, Unbuffered |
| Onboard Graphics | 1x HDMI™ 2.1 (4K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) *Only with supported CPUs |
| Expansion Slots | 5x PCIe x16 Slots: • PCI_E1: Gen 4.0 x16 (CPU) • PCI_E2: Gen 3.0 x1 (Chipset) • PCI_E3: Gen 4.0 x4 (Chipset) • PCI_E4: Gen 3.0 x1 (Chipset) • PCI_E5: Gen 3.0 x1 (Chipset) |
| Audio | Realtek® ALC897 7.1-Channel HD Audio Supports S/PDIF output |
| Storage | 2x M.2: • M.2_1 (CPU): PCIe 4.0 x4, 22110/2280/2260/2242 • M.2_2 (Chipset): PCIe 4.0 x4 / SATA, 2280/2260/2242 4x SATA 6Gb/s *SATA8 unavailable if M.2_2 SATA SSD used |
| RAID Support | RAID 0, 1, 5, 10 for SATA |
| USB Ports | • Rear: 4x USB 2.0, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C • Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Wireless & Bluetooth | Intel® Wi-Fi 6E, MU-MIMO TX/RX 2.4/5/6GHz (160MHz) up to 2.4Gbps 802.11 a/b/g/n/ac/ax Bluetooth® 5.3, FIPS, FISMA *Wi-Fi 6E requires Windows 11 **BT 5.3 needs Win10 21H1 or Win11 |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR 1x CPU Fan, 1x Pump Fan, 5x System Fan 2x JFP, 1x JCI, 1x JAUD 1x JLPT (Printer), 1x JCOM (COM Port) 2x JARGB_V2, 1x JRGB, 1x TPM (2.0) USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LED Features | 4x EZ Debug LED |

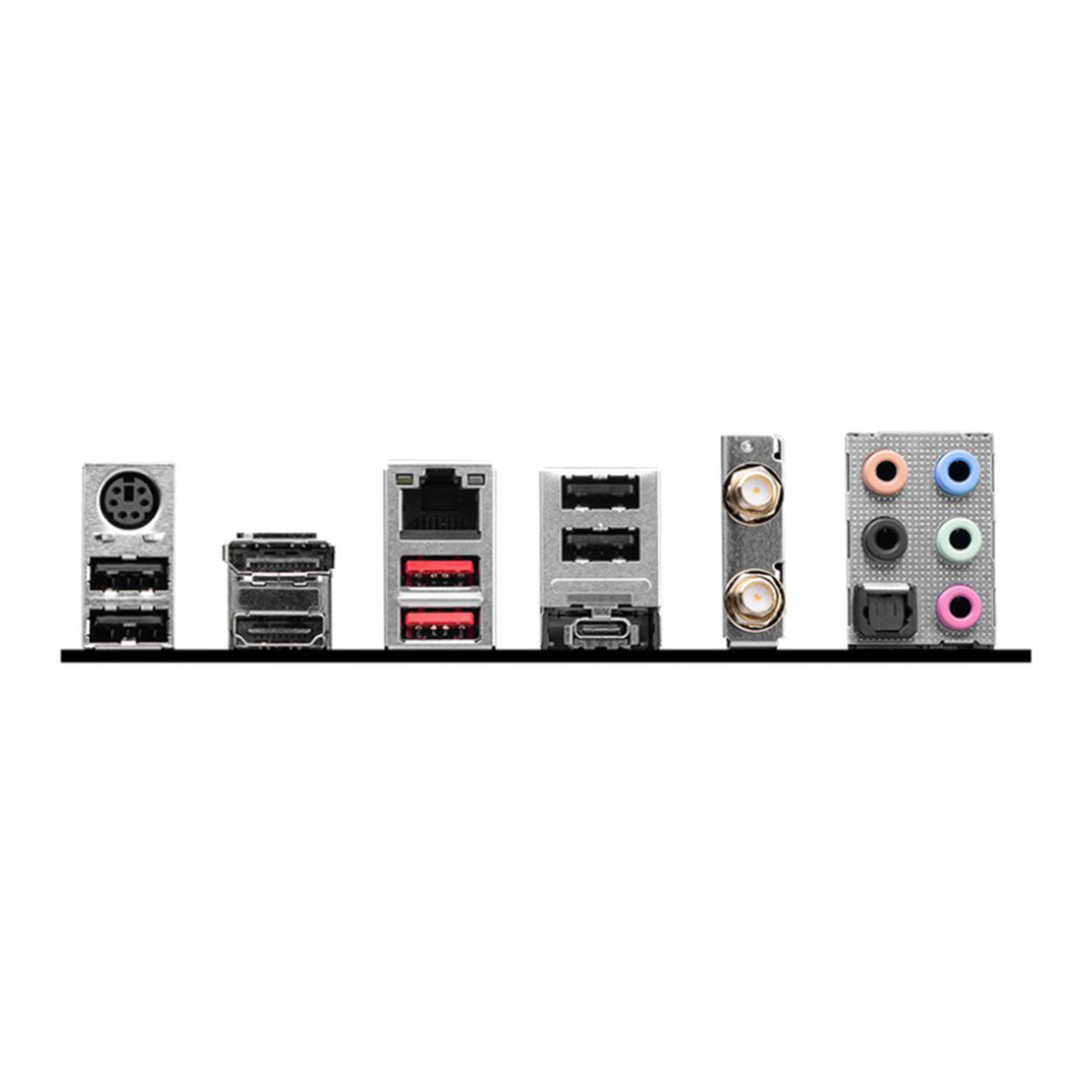

| Back Panel Ports | Keyboard / Mouse DisplayPort HDMI™ 2x USB 2.0 2x USB 10Gbps Type-A 1x USB 10Gbps Type-C 2.5G LAN Wi-Fi / Bluetooth Antenna Audio Connectors S/PDIF-OUT |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
