Description
PREMIUM DESIGN
A fresh new dual fan design, VENTUS proudly displays its industrial shapes in neutral colors to fit any build.
TORX FAN 2.0
Using two of the award-winning TORX Fans 2.0, MSI VENTUS graphics cards provide years of top-notch cooling performance.
DIRECT CONTACT HEAT PIPES
Up to 6mm thick copper heat pipes at the bottom maximize heat transfer.
PREMIUM THERMAL COMPOUND
Every detail counts when it comes to creating the ultimate thermal design, which is why VENTUS uses a premium thermal compound to make sure it outlives the competition.
AMPLIFIED PCB
Using thicker layers of copper enables faster and cleaner signal transmission for sustained performance.
WE'VE GOT YOUR BACK

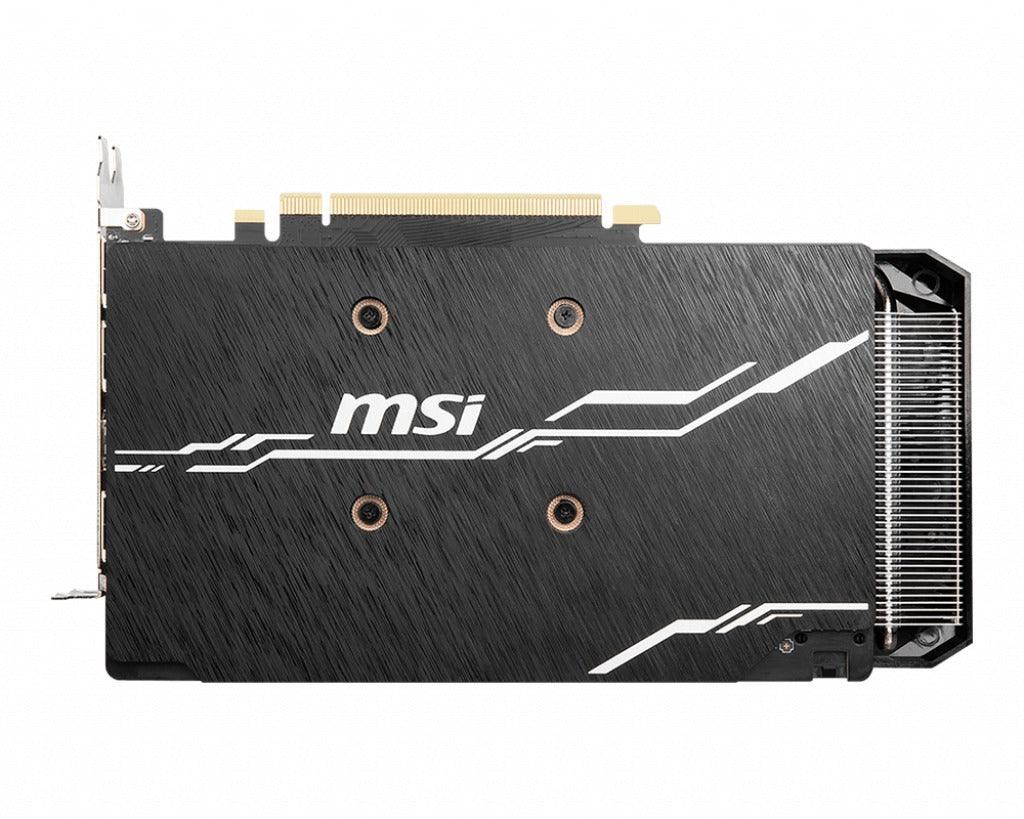

A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
THERMAL PADDING
Ample amounts of thermal pads are used to allow various components to transfer heat to the heatsink for better cooling.
Specifications :
| MODEL NAME | GeForce RTX™ 2060 VENTUS 12G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 2060 |
| INTERFACE | PCI Express x16 3.0 |
| CORE CLOCKS | Boost: 1680 MHz |
| CUDA® CORES | 2176 Units |
| MEMORY SPEED | 14 Gbps |
| MEMORY | 12GB GDDR6 |
| MEMORY BUS | 192-bit |

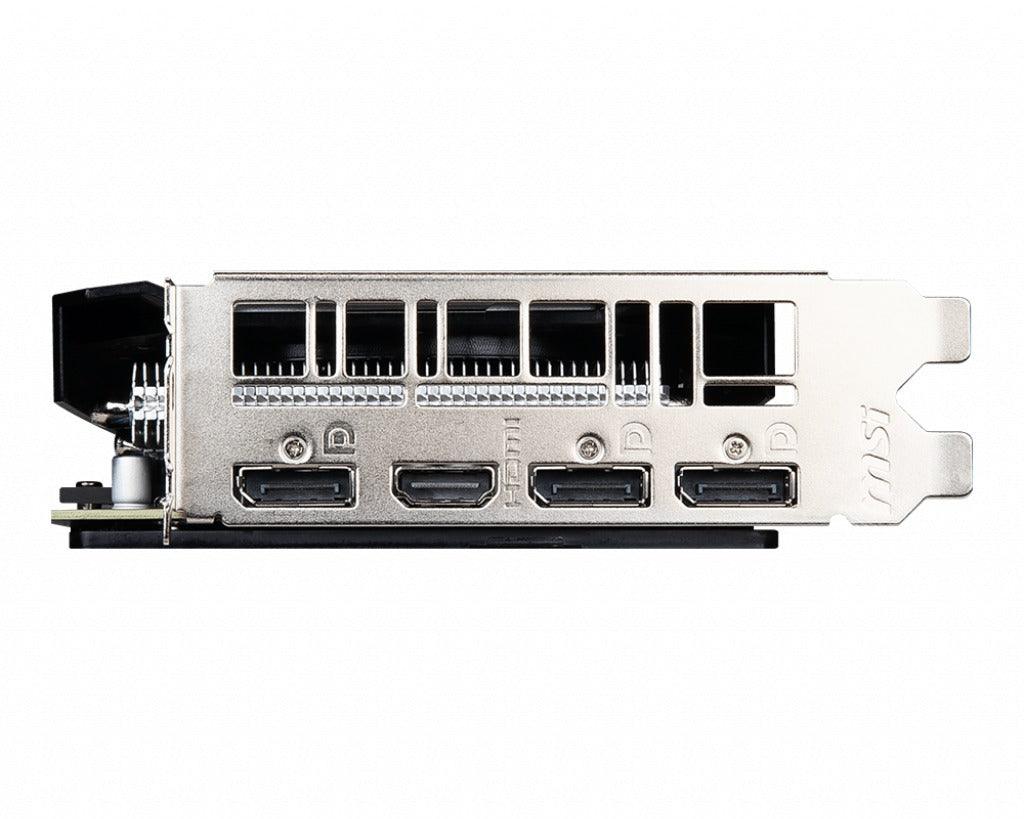

| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 184 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 500 W |
| CARD DIMENSION (MM) | 231 x 128 x 42 mm |
| WEIGHT (CARD / PACKAGE) | 706g / 1156g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
