Description
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
- This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
Boost Clock / Memory Speed
- 1695 MHz / 14 Gbps
- 8GB GDDR6

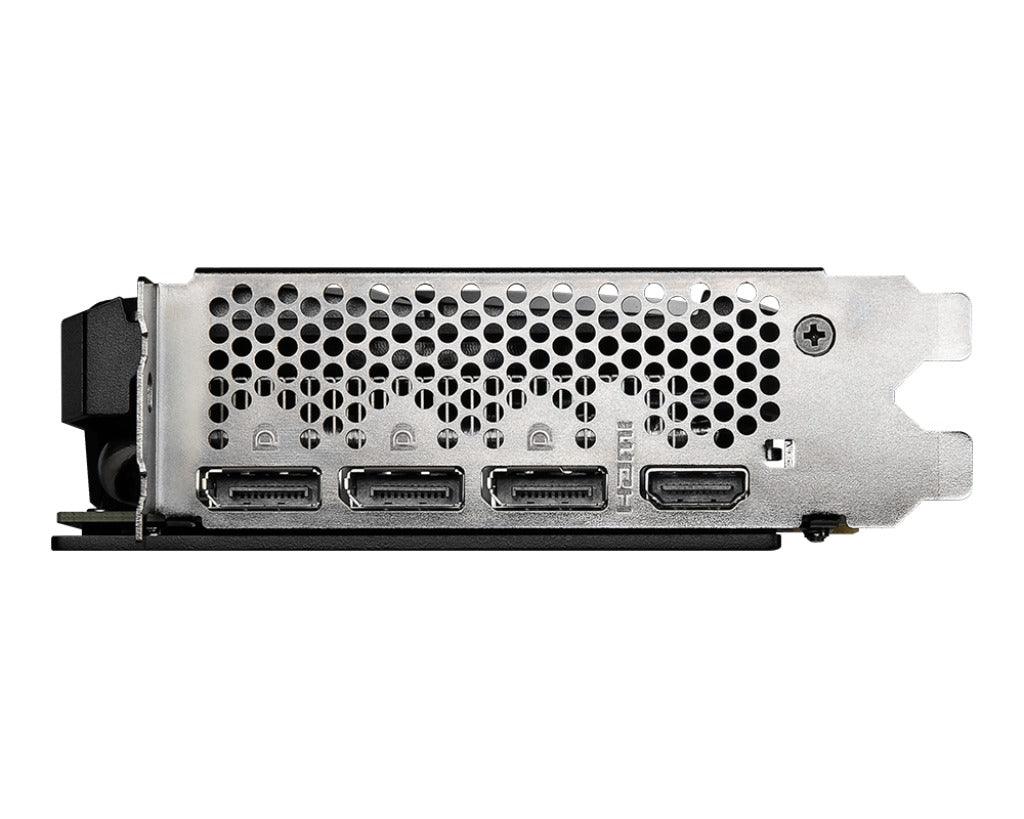

- DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system's performance.
- Predator: In-game video recording.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
SPECIFICATIONS:
| MODEL NAME | GeForce RTX™ 3060 Ti VENTUS 2X 8G OCV1 LHR |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3060 Ti |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Boost: 1695 MHz |
| CUDA® CORES | 4864 Units |
| MEMORY SPEED | 14 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 200 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 600 W |
| CARD DIMENSION (MM) | 235 x 124 x 42 mm |
| WEIGHT (CARD / PACKAGE) | 685 g / 1041 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
