Description

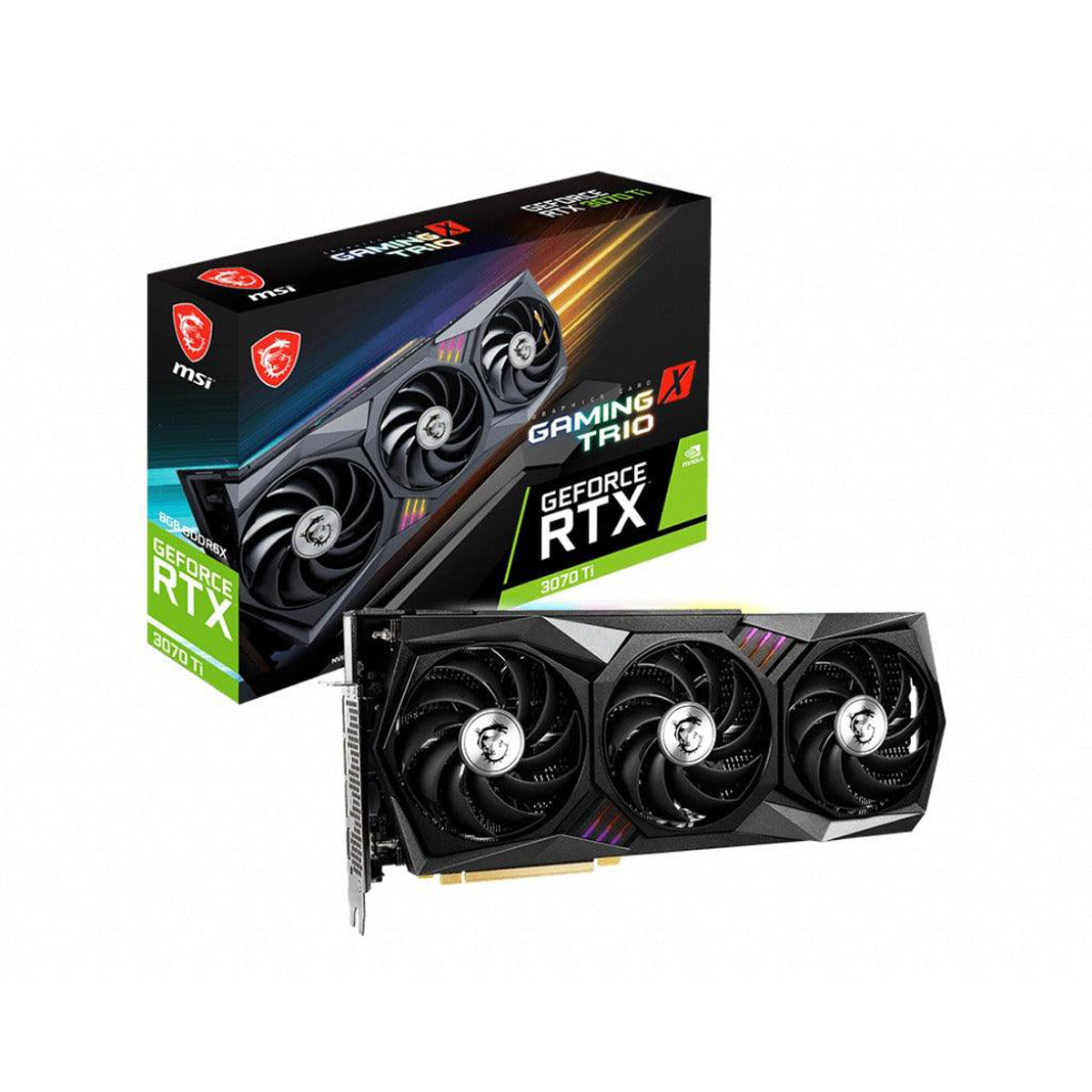

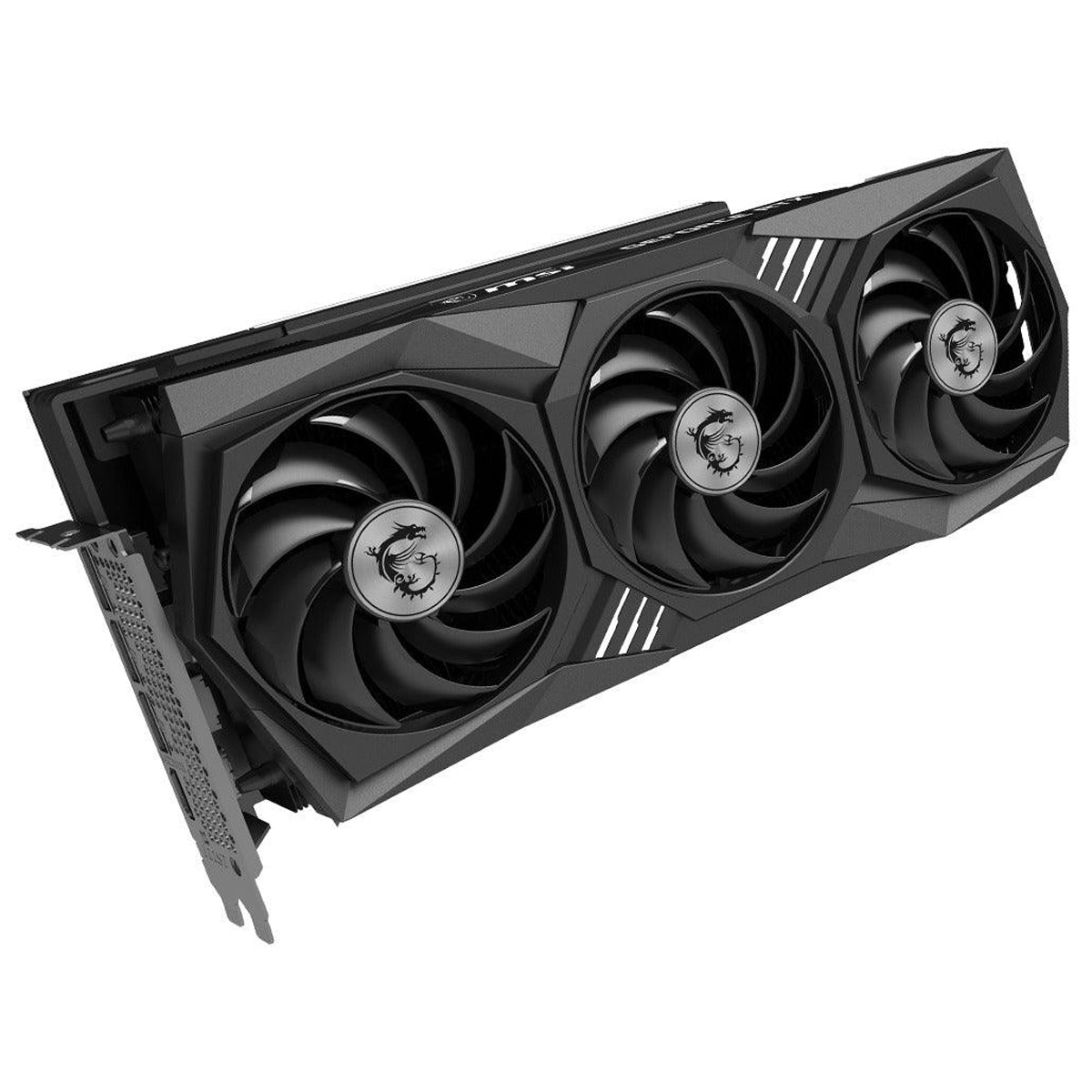

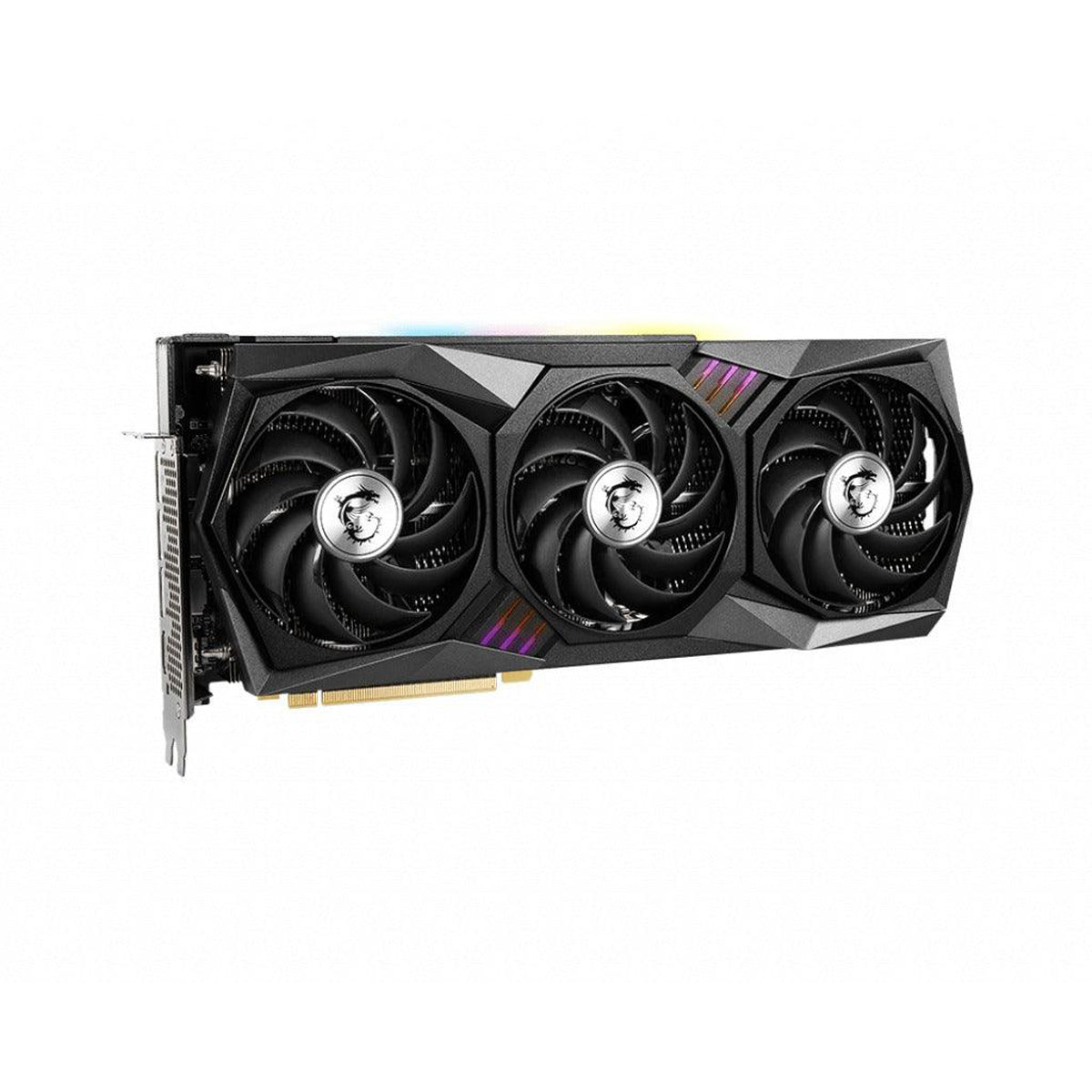

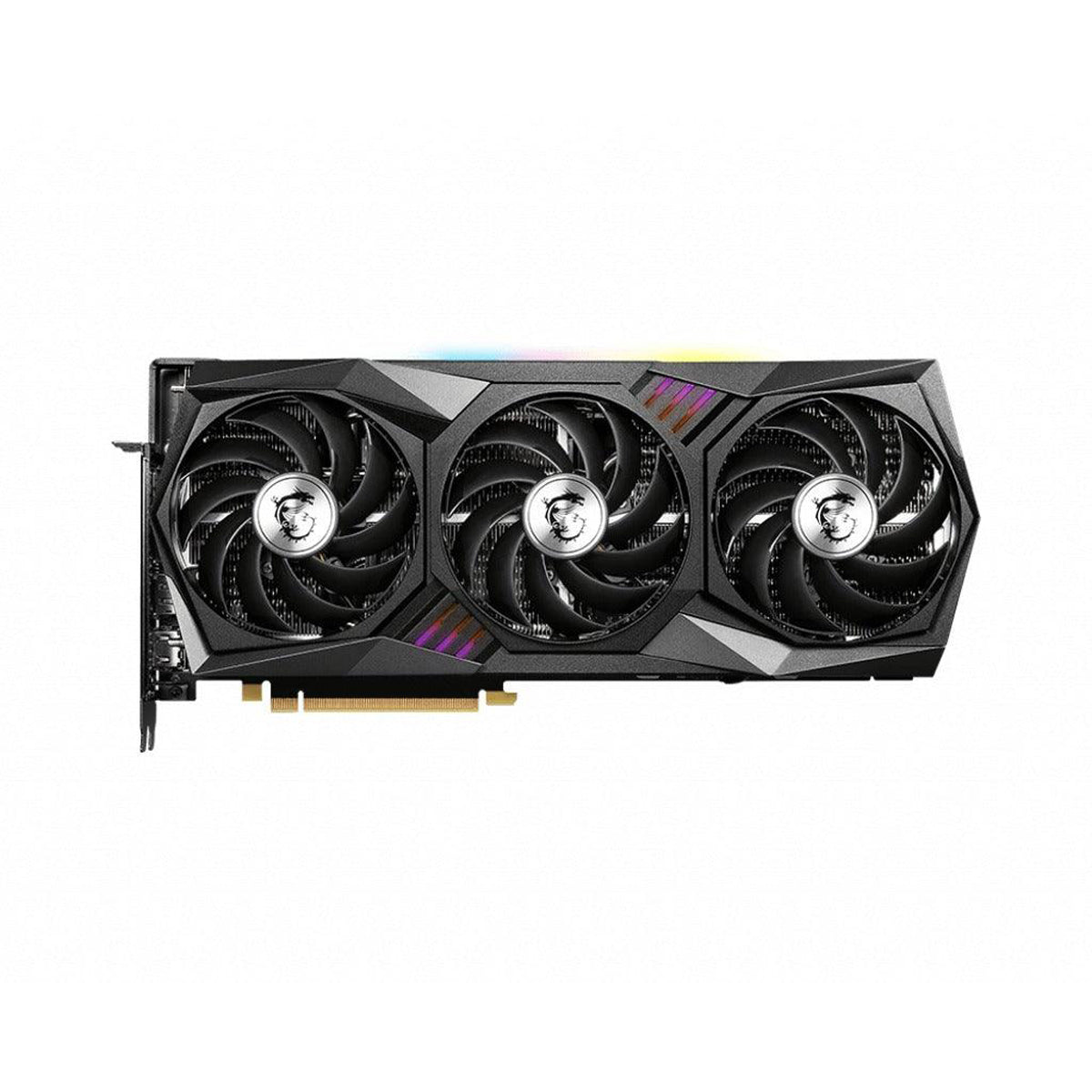

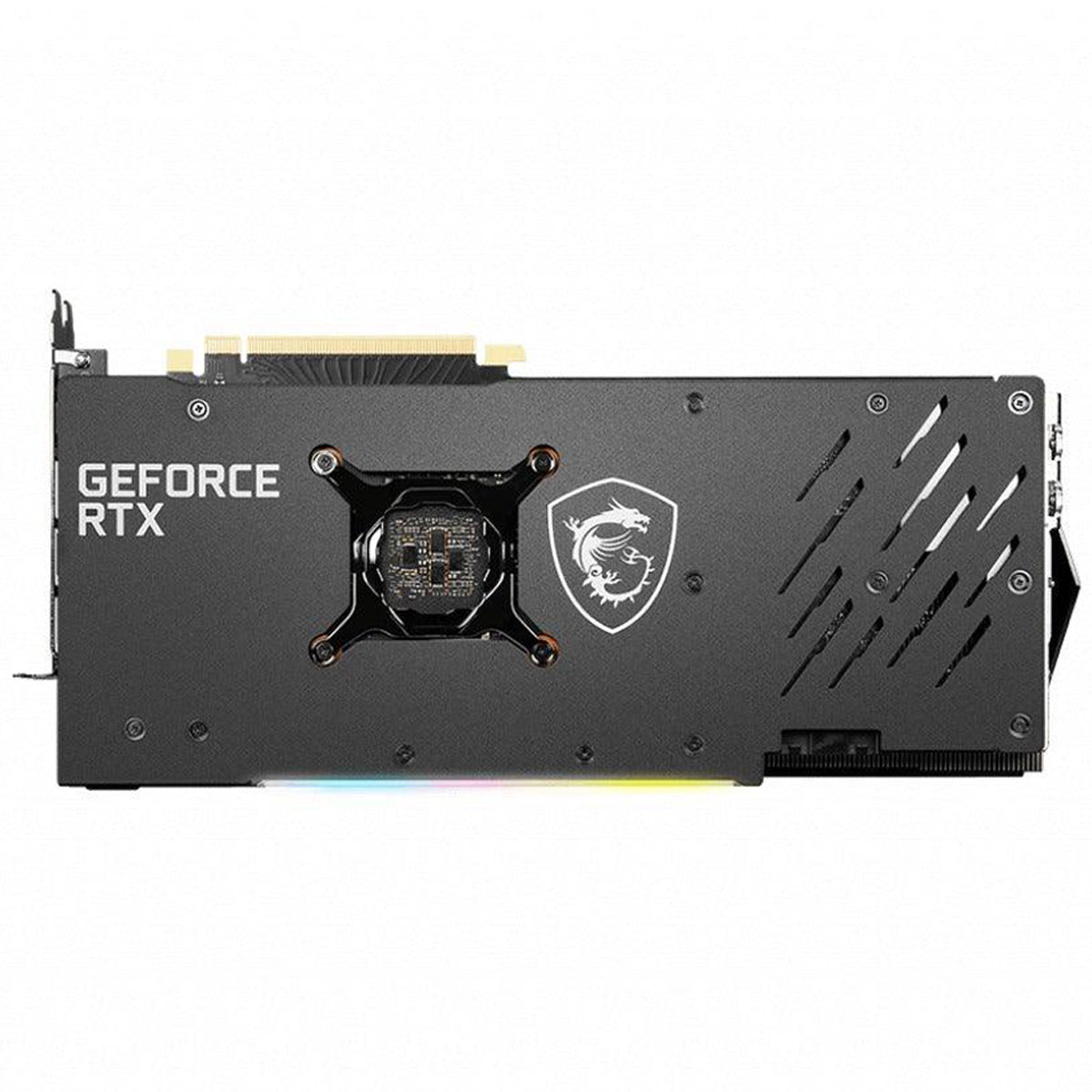

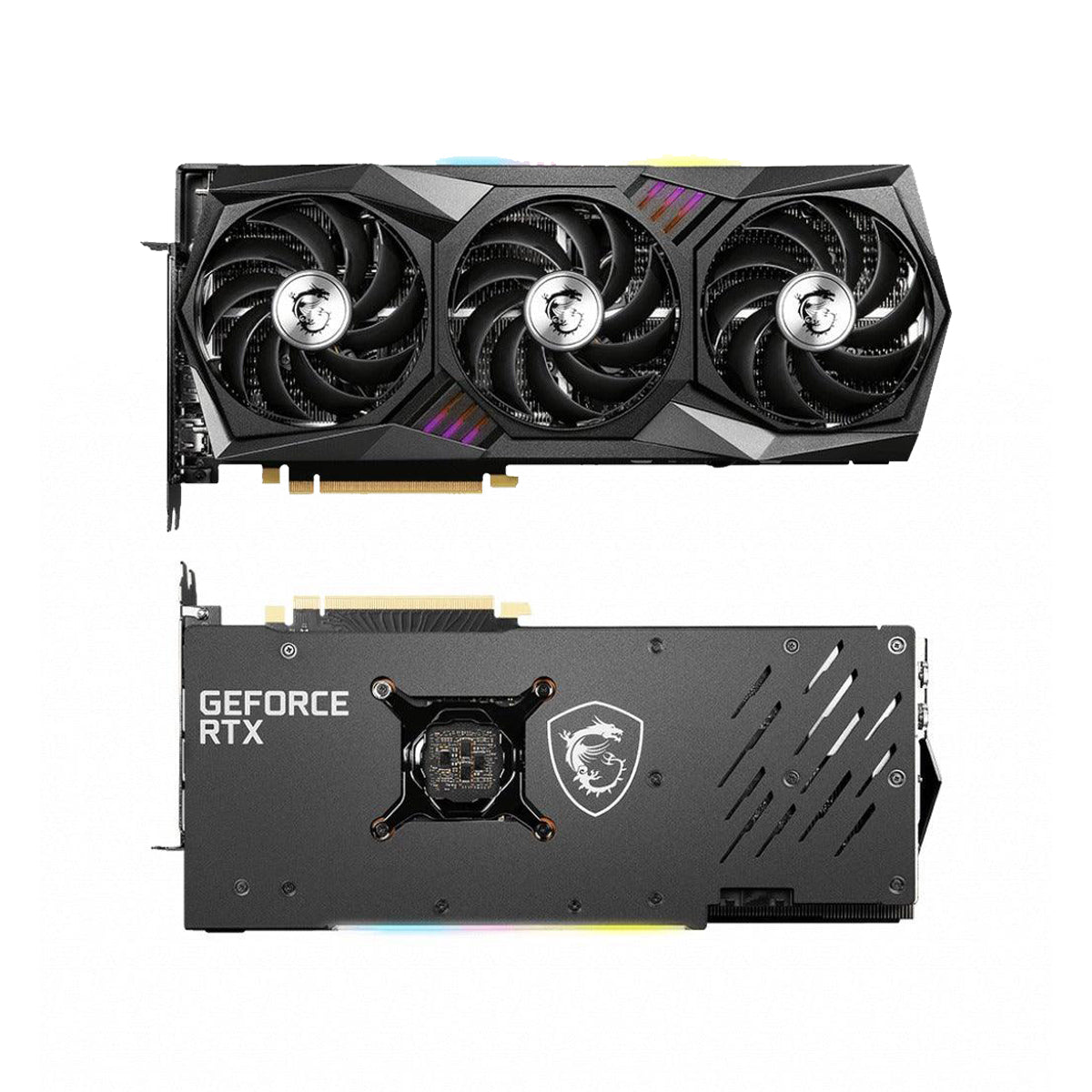

GeForce RTX™ 3070 Ti GAMING X TRIO 8G
The GeForce RTX™ 3070 Ti graphics card is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.
Boost Clock / Memory Speed
- 1830 MHz / 19 Gbps
- 8GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
| MODEL NAME | GeForce RTX™ 3070 Ti GAMING X TRIO 8G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3070 Ti |
| INTERFACE | PCI Express Gen 4 |
| CORE CLOCKS | Boost: 1830 MHz |
| CUDA CORES | 6144 Units |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 8GB GDDR6X |
| MEMORY BUS | 256-bit |

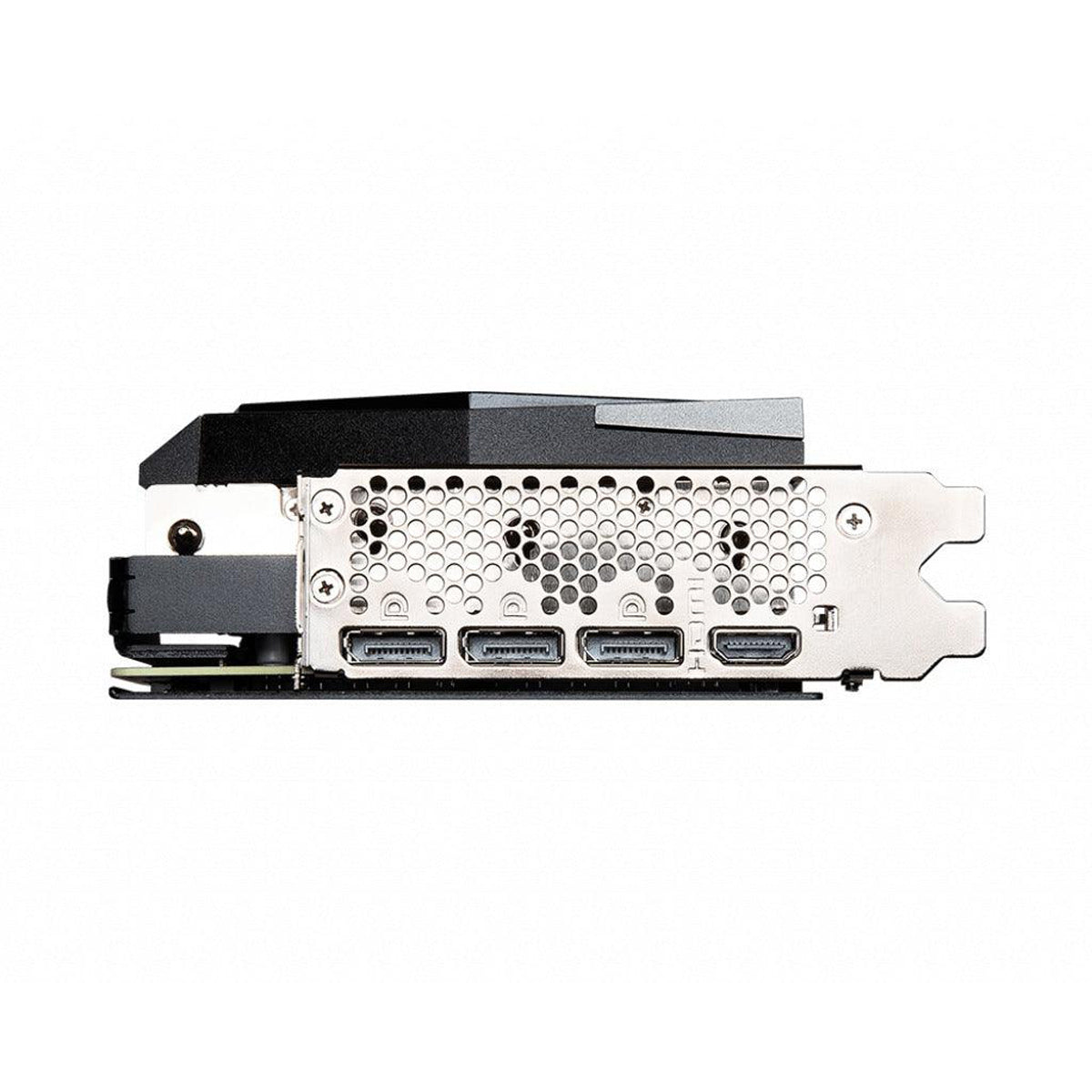

| OUTPUT | DisplayPort x 3 (v1.4a), HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 310 W |
| POWER CONNECTORS | 8-pin x2 |
| RECOMMENDED PSU | 750 W |
| CARD DIMENSION (MM) | 323 x 140 x 56 mm |
| WEIGHT (CARD / PACKAGE) | 1515 g / 2343 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
