Description
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

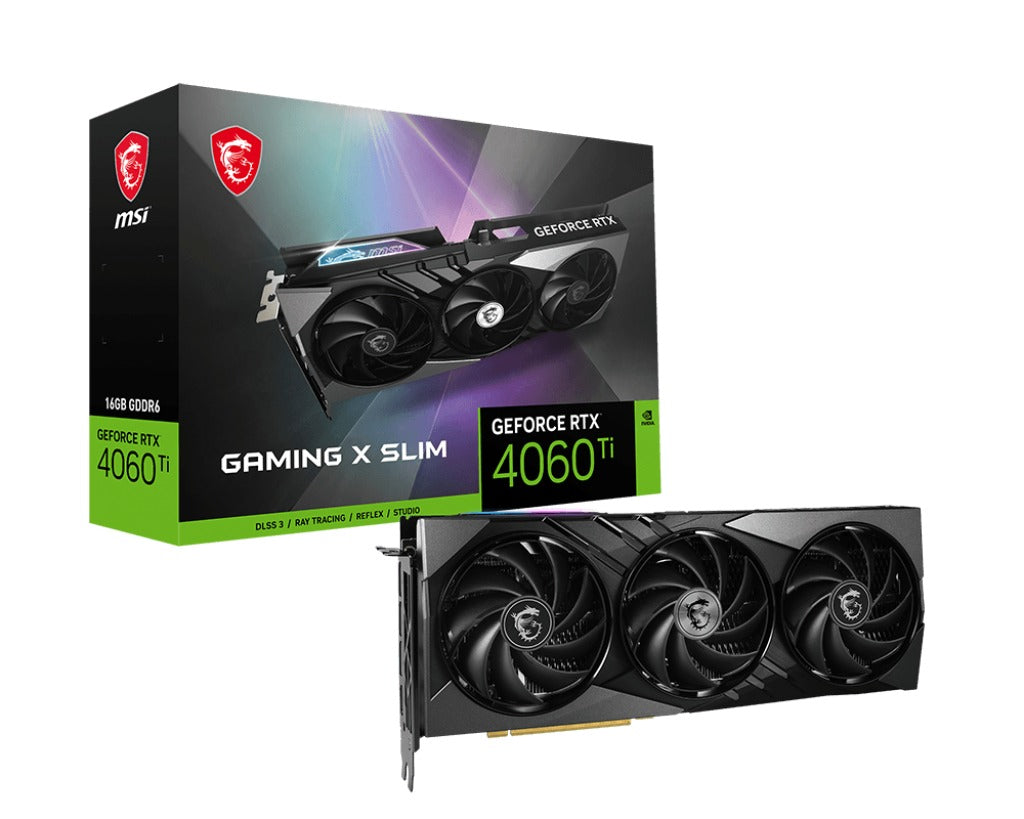

GeForce RTX™ 4060 Ti GAMING X SLIM 16G
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2670 MHz / 18 Gbps
- 16GB GDDR6

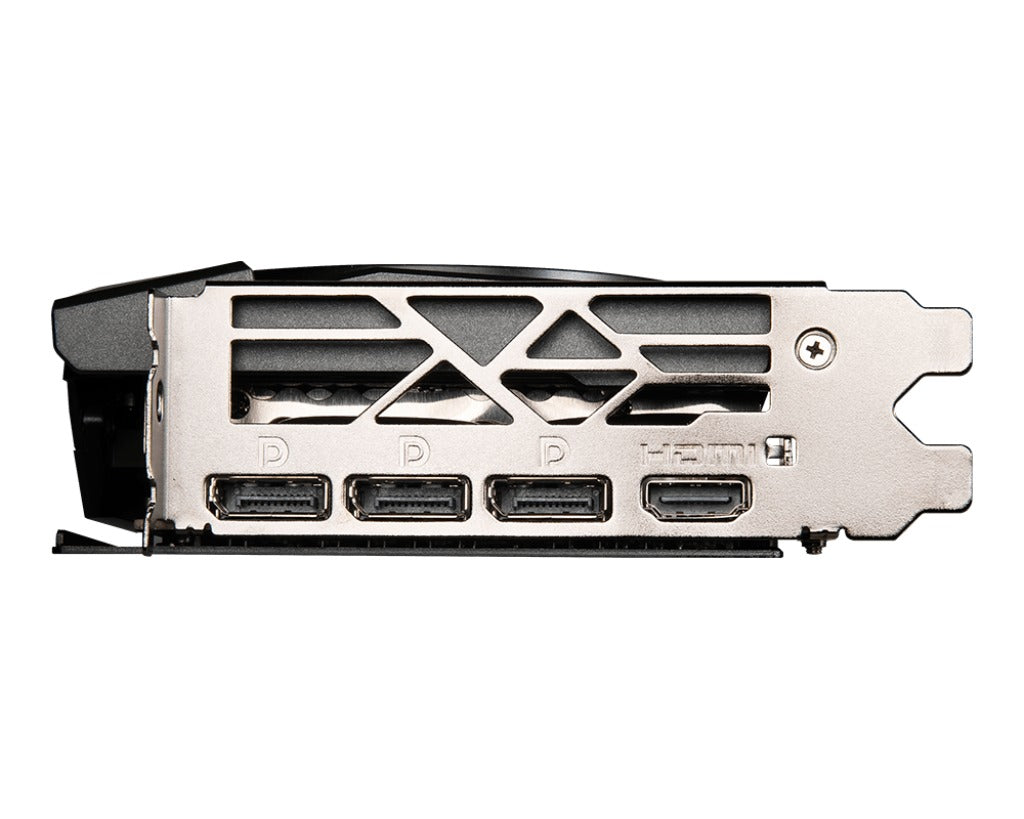

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
SPECIFICATIONS:
| MODEL NAME | GeForce RTX™ 4060 Ti GAMING X SLIM 16G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4060 Ti |
| INTERFACE | PCI Express® Gen 4 x 8 |
| CORE CLOCKS | Extreme Performance: 2685 MHz (MSI Center) Boost: 2670 MHz |
| CUDA® CORES | 4352 Units |
| MEMORY SPEED | 18 Gbps |
| MEMORY | 16GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 165W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550W |
| CARD DIMENSION (MM) | 307 x 125 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 919 g / 1636 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
