Description
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
REVOLUTIONARY
DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.
EMPHASIZING ENDURANCE
GeForce RTX™ 4060 VENTUS 2X WHITE 8G OC
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2505 MHz / 17 Gbps
- 8GB GDDR6

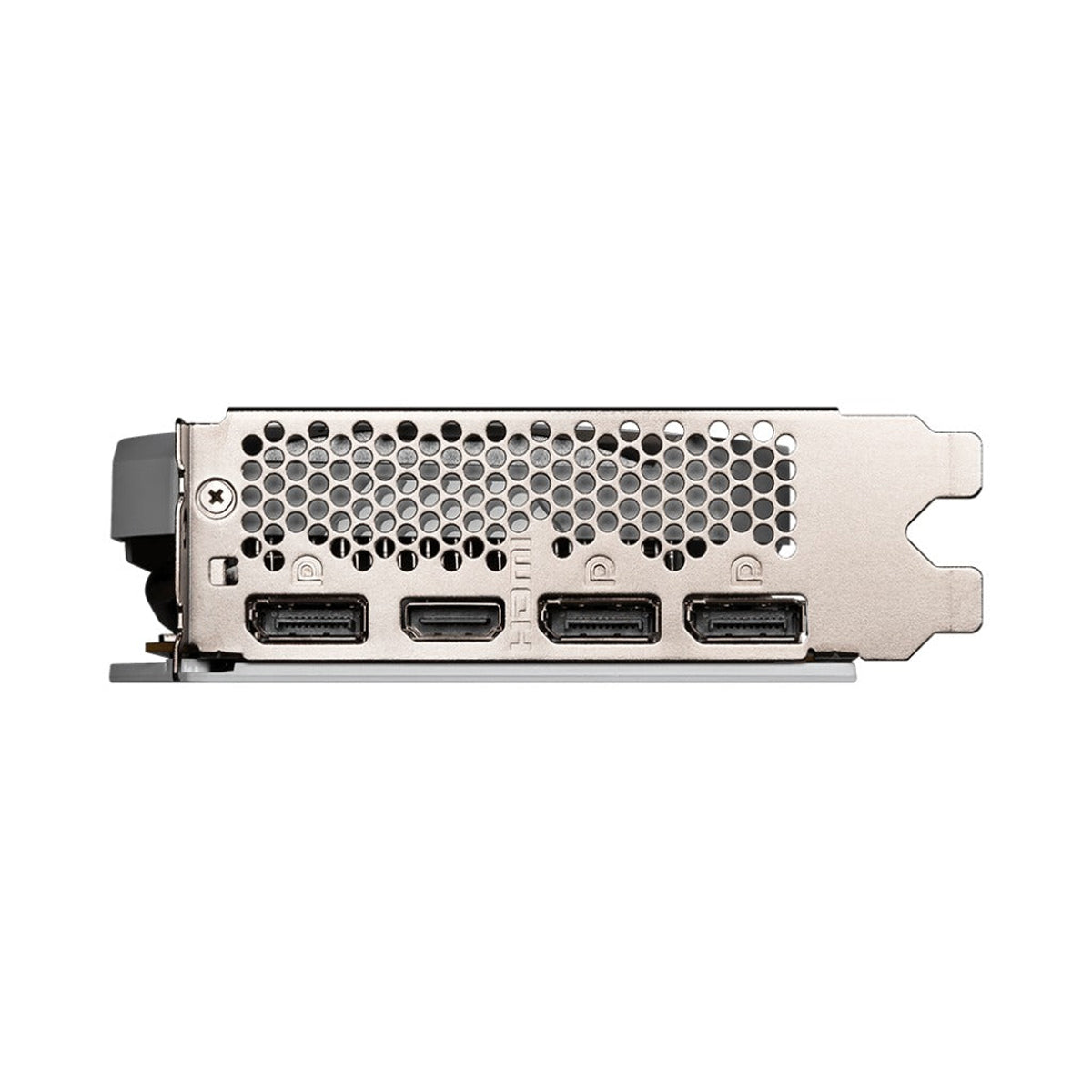

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

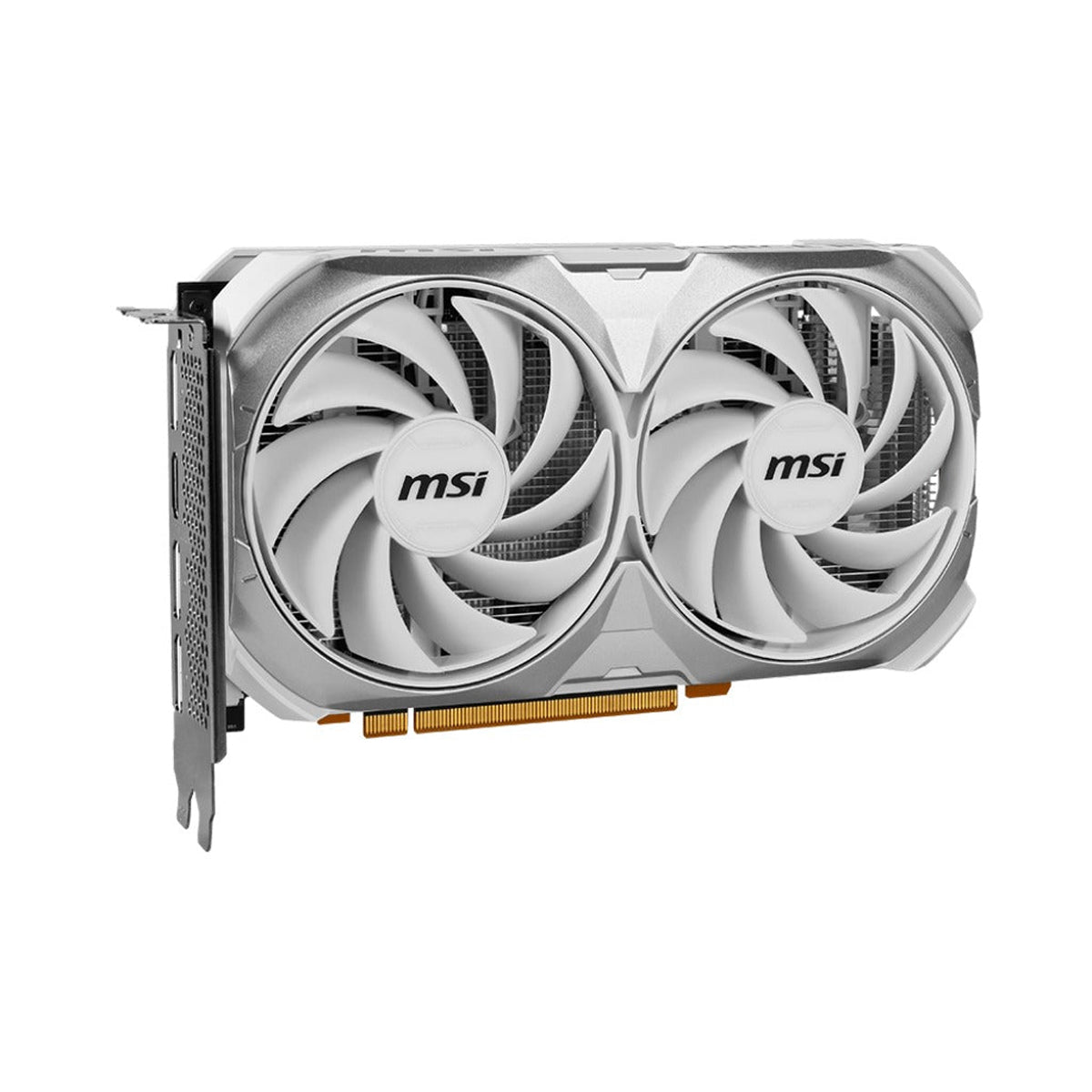

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

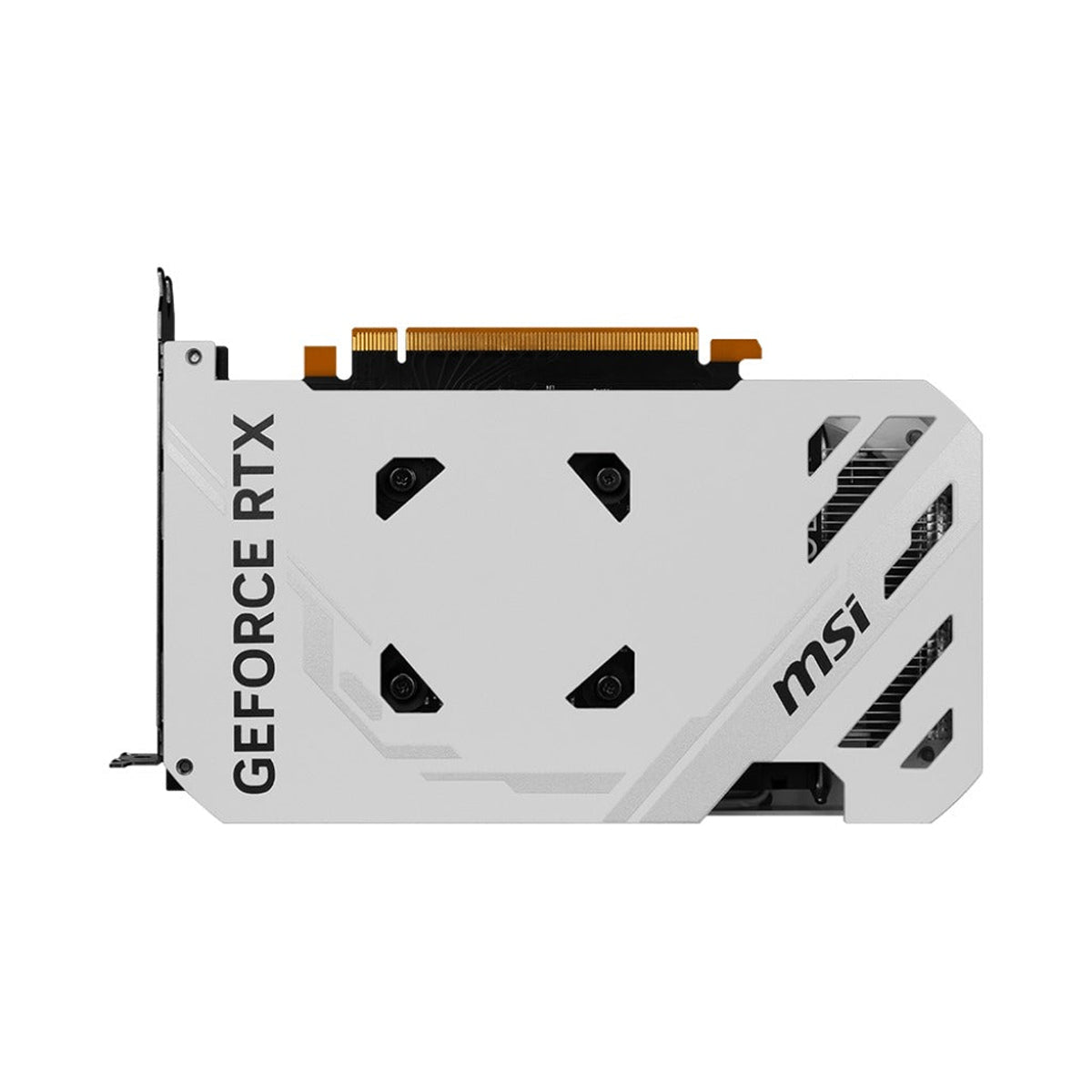

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
SPECIFICATIONS:
| MODEL NAME | GeForce RTX™ 4060 VENTUS 2X WHITE 8G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4060 |
| INTERFACE | PCI Express® Gen 4 x8 |
| CORE CLOCKS | Extreme Performance: 2505 MHz (MSI Center) Boost: 2490 MHz |
| CUDA® CORES | 3072 Units |
| MEMORY SPEED | 17 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 115 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 199 x 120 x 41 mm |
| WEIGHT (CARD / PACKAGE) | 546 g / 783 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
