Description
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2505 MHz / 21 Gbps
- 12GB GDDR6X

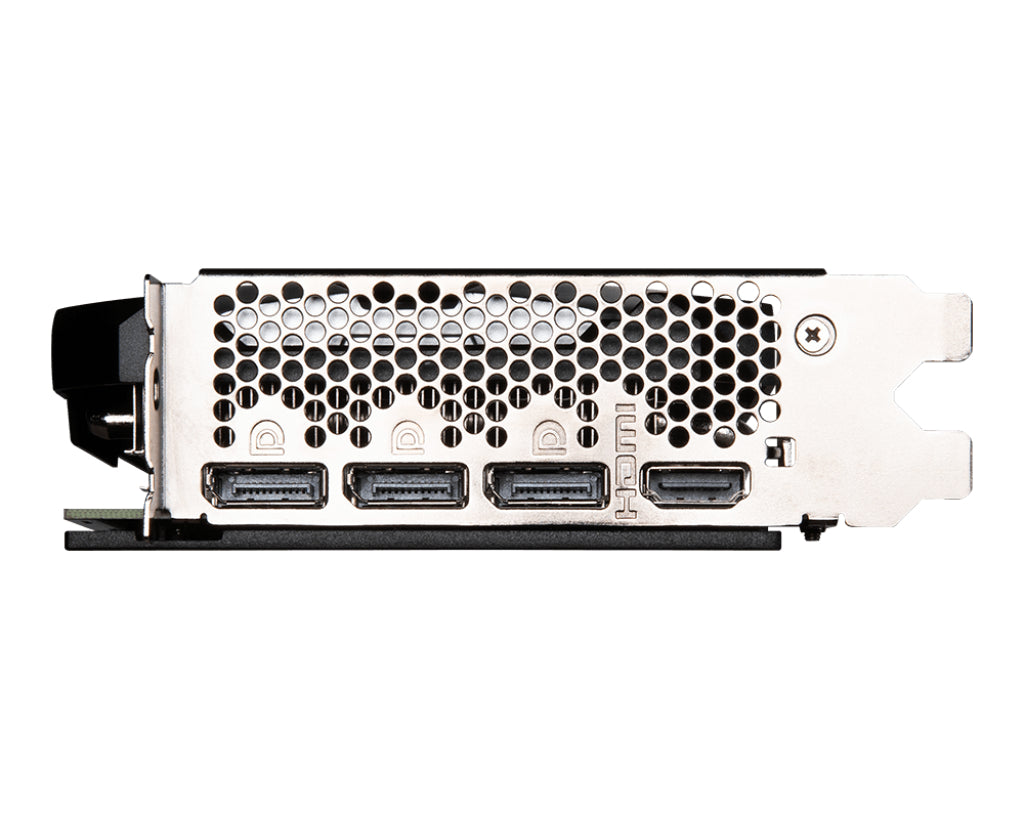

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

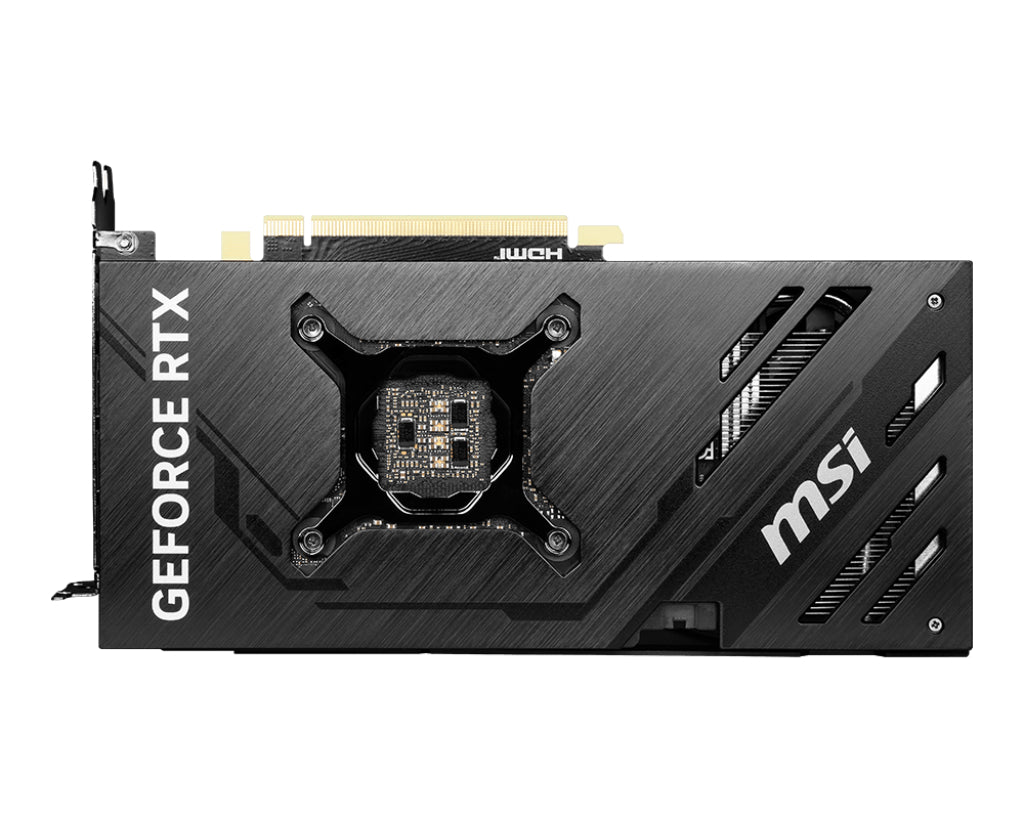

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications:
| MODEL NAME |
GeForce RTX™ 4070 VENTUS 2X 12G OC
|
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 4070
|
| INTERFACE |
PCI Express® Gen 4
|
| CORE CLOCKS |
Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz |
| CUDA® CORES |
5888 Units
|
| MEMORY SPEED |
21 Gbps
|
| MEMORY |
12GB GDDR6X
|
| MEMORY BUS |
192-bit
|
| OUTPUT |
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
| HDCP SUPPORT |
Y
|
| POWER CONSUMPTION |
200 W
|
| POWER CONNECTORS |
8-pin x 1
|
| RECOMMENDED PSU |
650 W
|
| CARD DIMENSION (MM) |
242 x 125 x 43 mm
|
| WEIGHT (CARD / PACKAGE) |
651 g / 947 g
|
| DIRECTX VERSION SUPPORT |
12 Ultimate
|
| OPENGL VERSION SUPPORT |
4.6
|
| MAXIMUM DISPLAYS |
4
|
| G-SYNC® TECHNOLOGY |
Y
|
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320
|
