Description

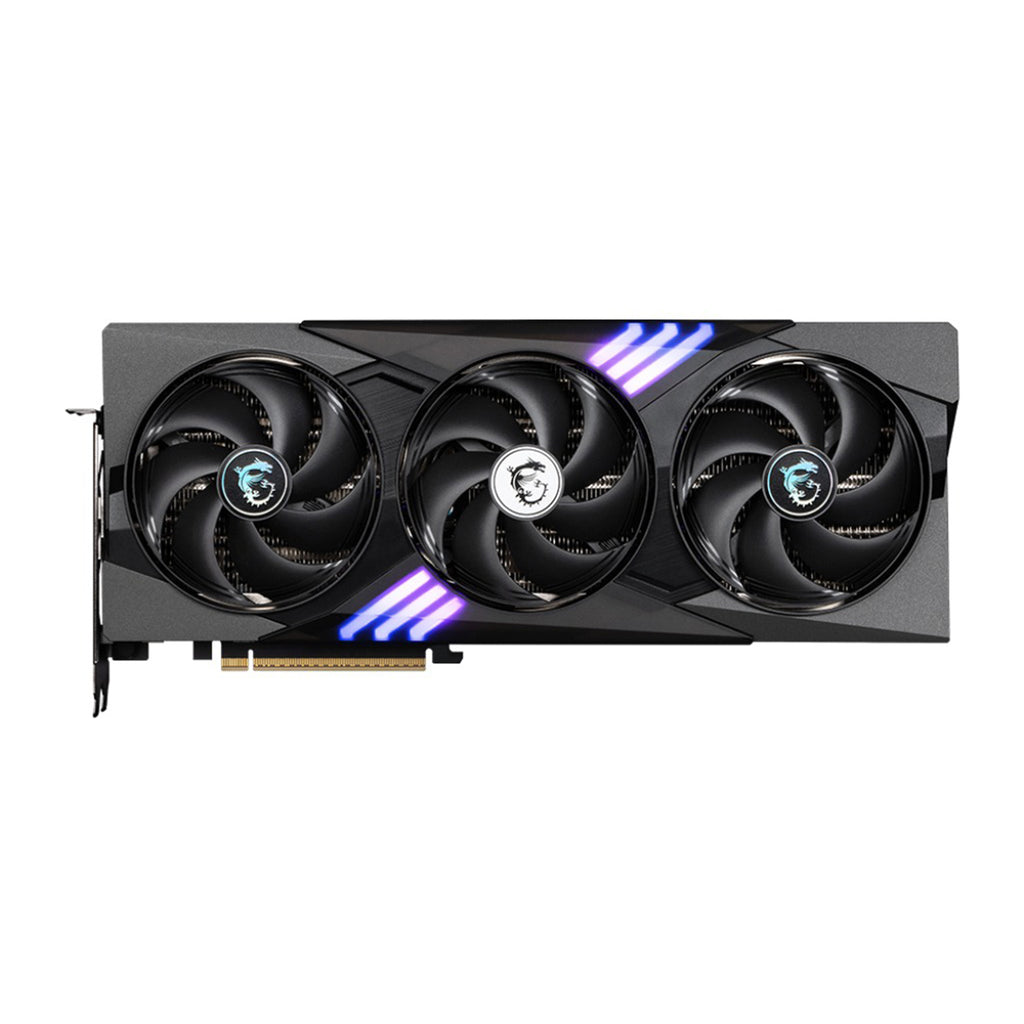

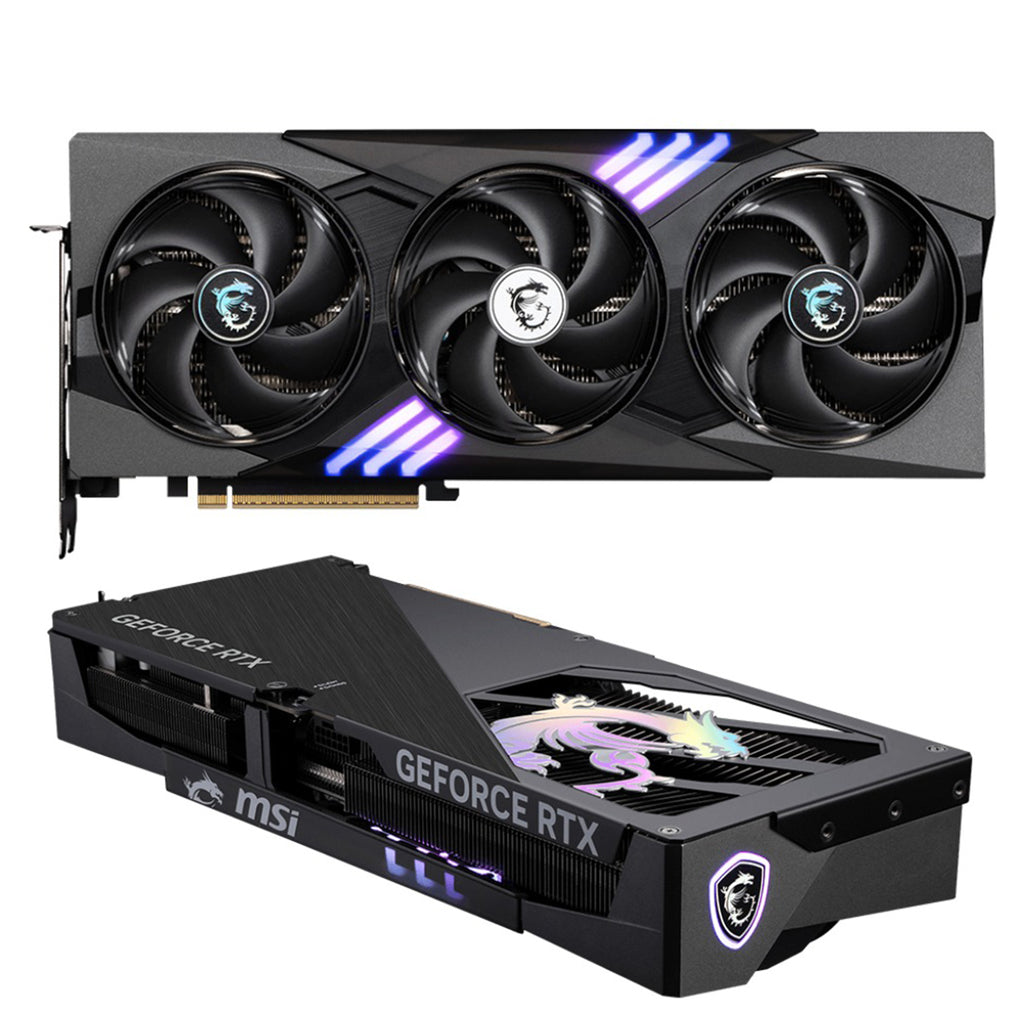

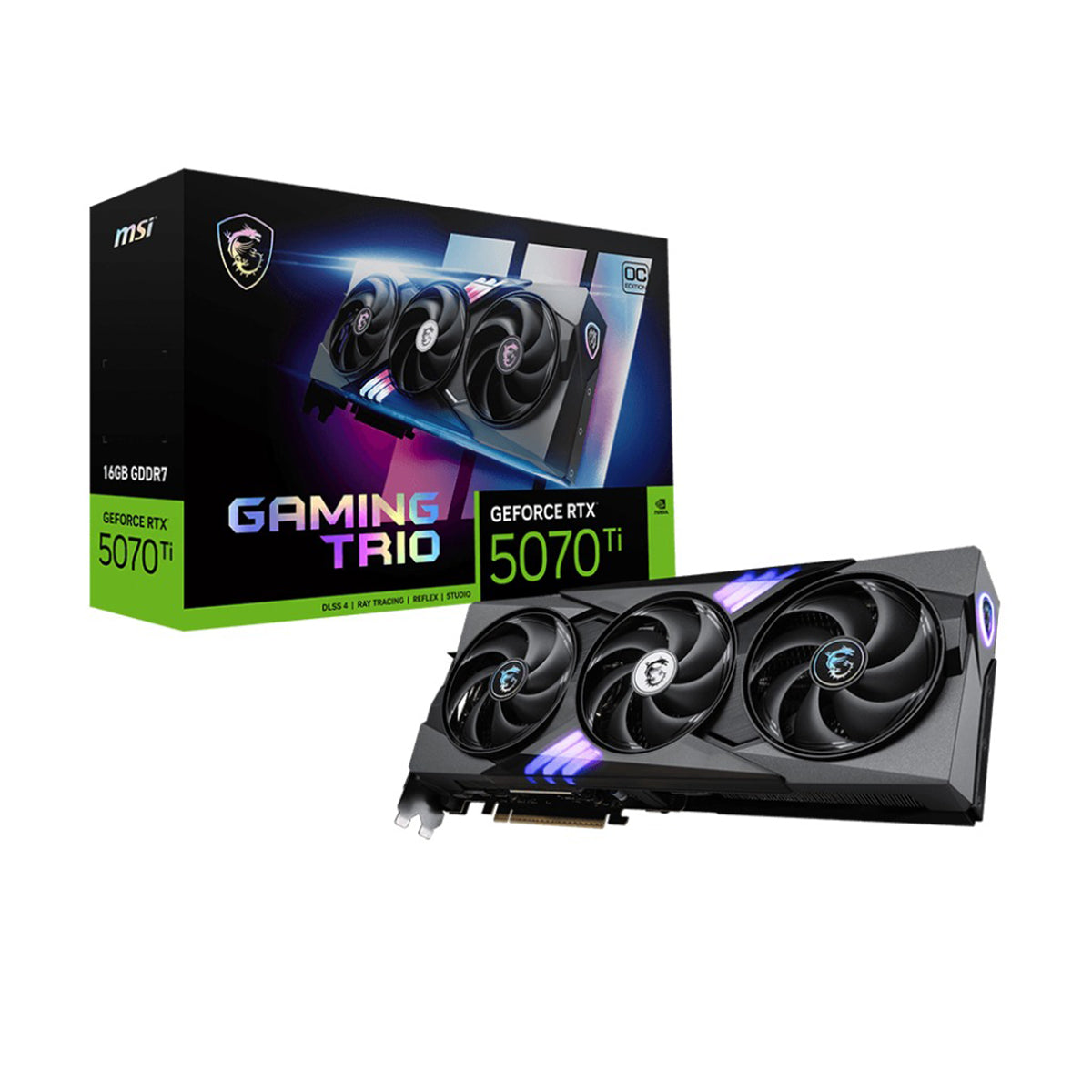

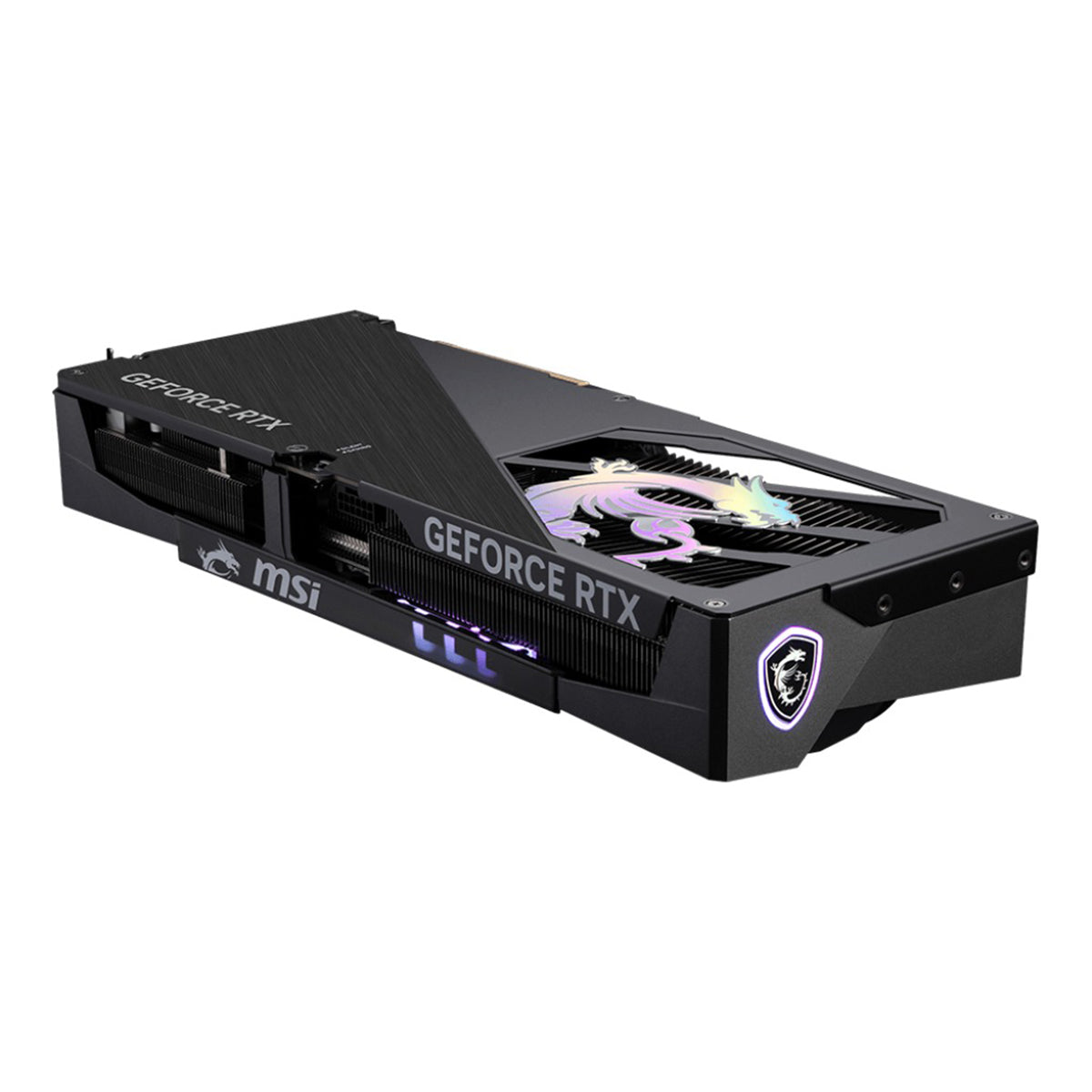

GeForce RTX™ 5070 Ti 16G GAMING TRIO OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2580 MHz (MSI Center)
Boost: 2572 MHz (GAMING & SILENT Mode) - TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

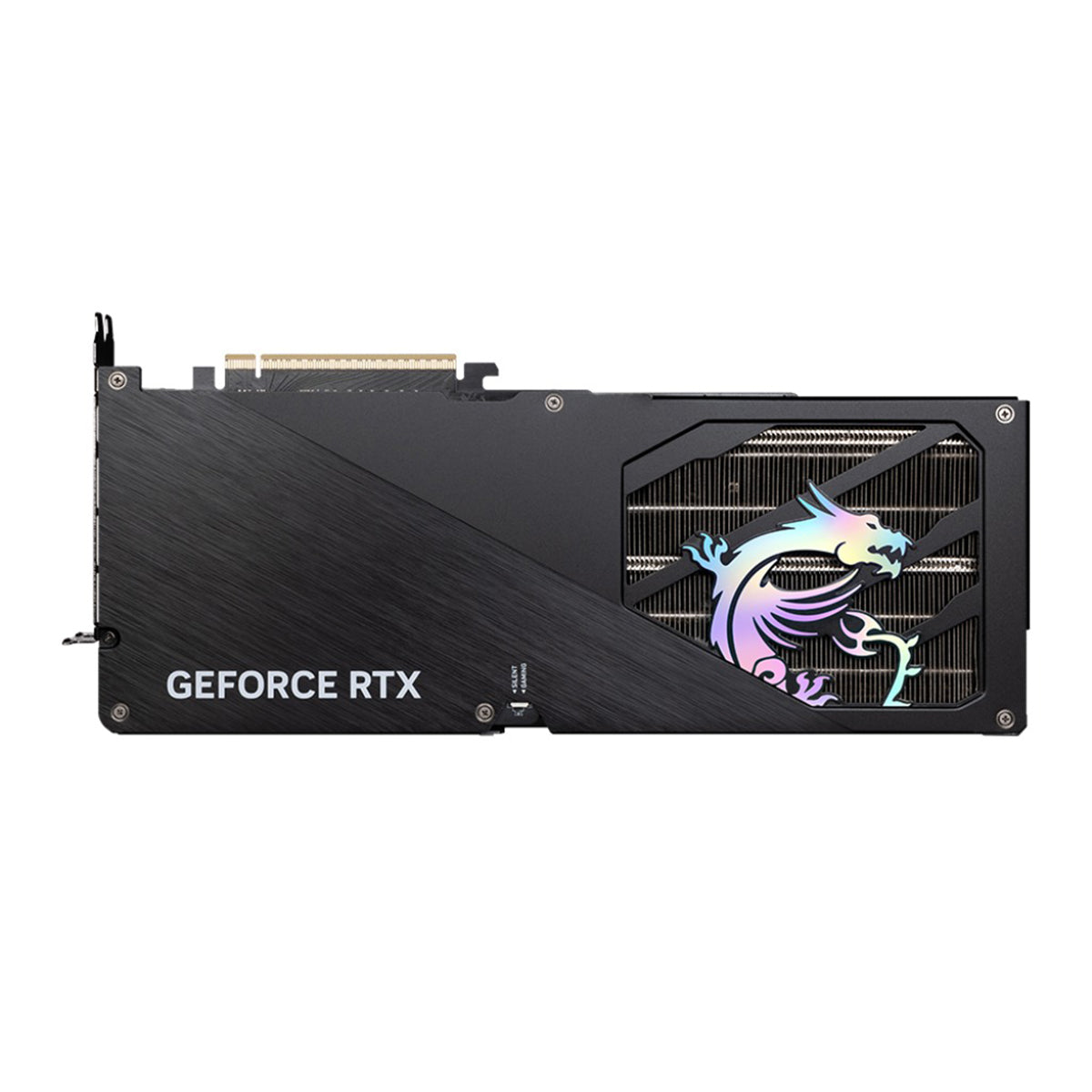

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification:
| Marketing Name | GeForce RTX™ 5070 Ti 16G GAMING TRIO OC |
|---|---|
| Model Name | G507T-16GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2580 MHz (MSI Center) Boost: 2572 MHz (GAMING & SILENT Mode) |
| CUDA® CORES | 8960 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |

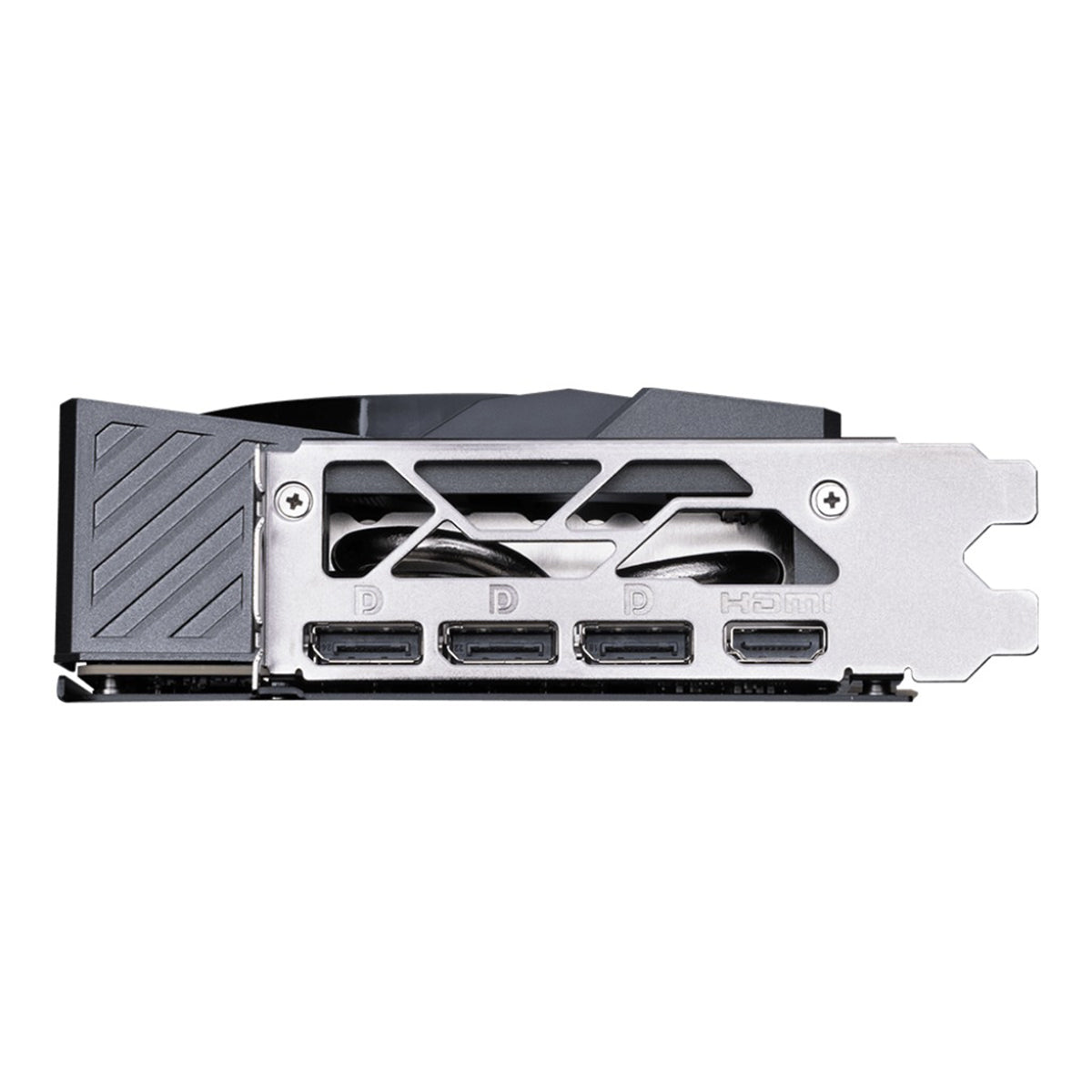

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 300 W |

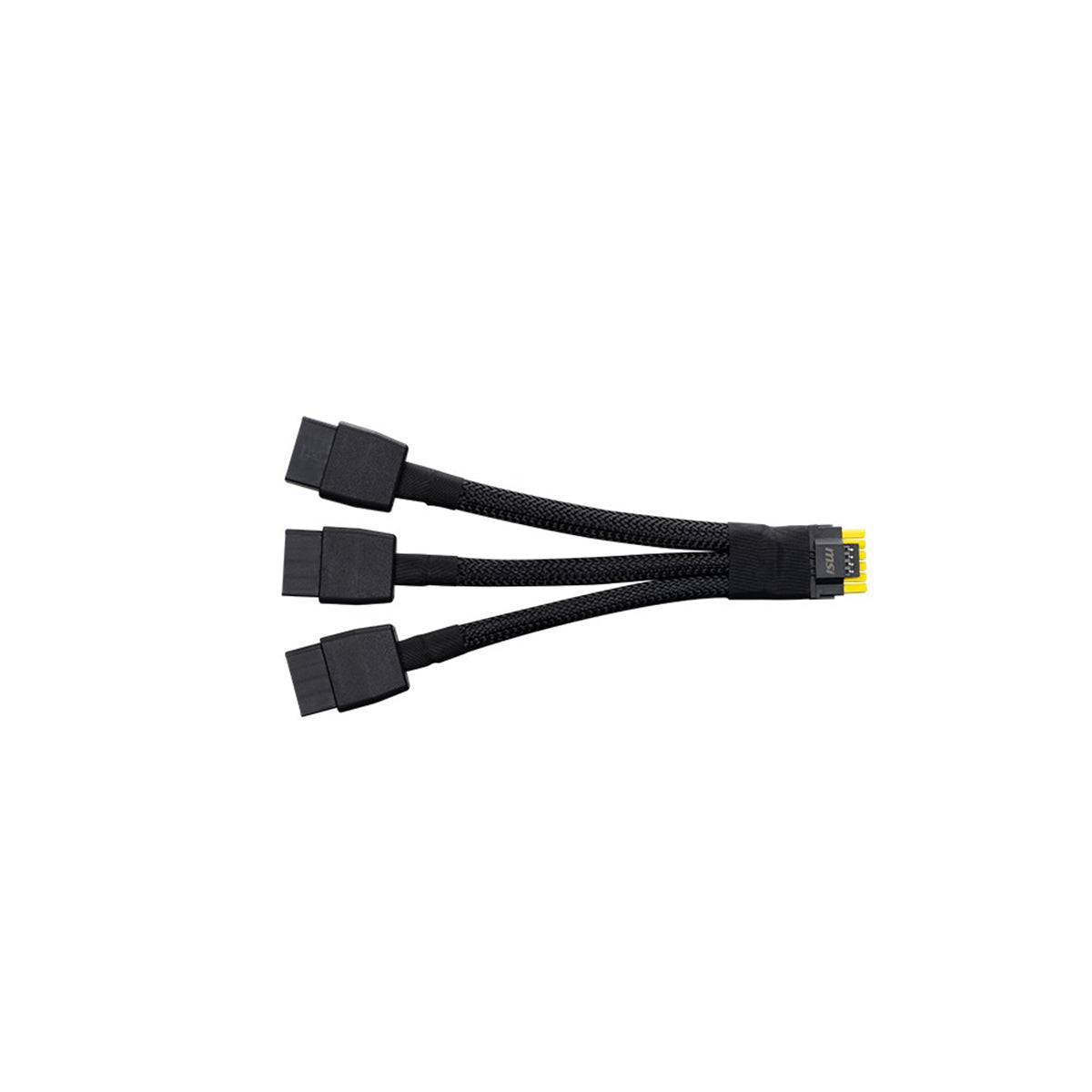

| Power connectors | 16-pin x 1 (ATX 3.1 PSU recommended) |
| Recommended PSU | 750 W |
| Card Dimension (mm) | 338 x 140 x 50 mm |
| Weight (Card / Package) | 1296 g / 1819 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
