Description

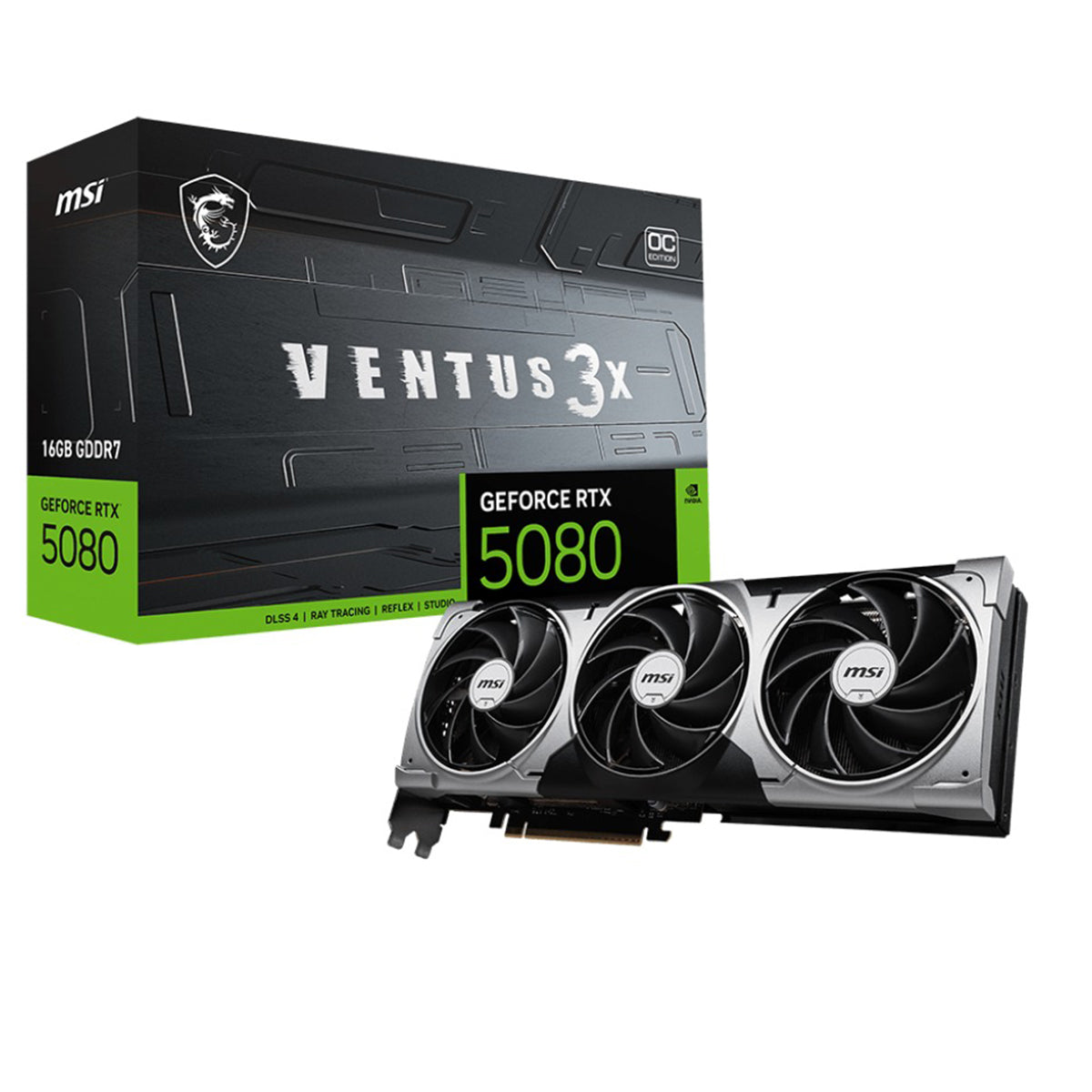

GeForce RTX™ 5080 16G VENTUS 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

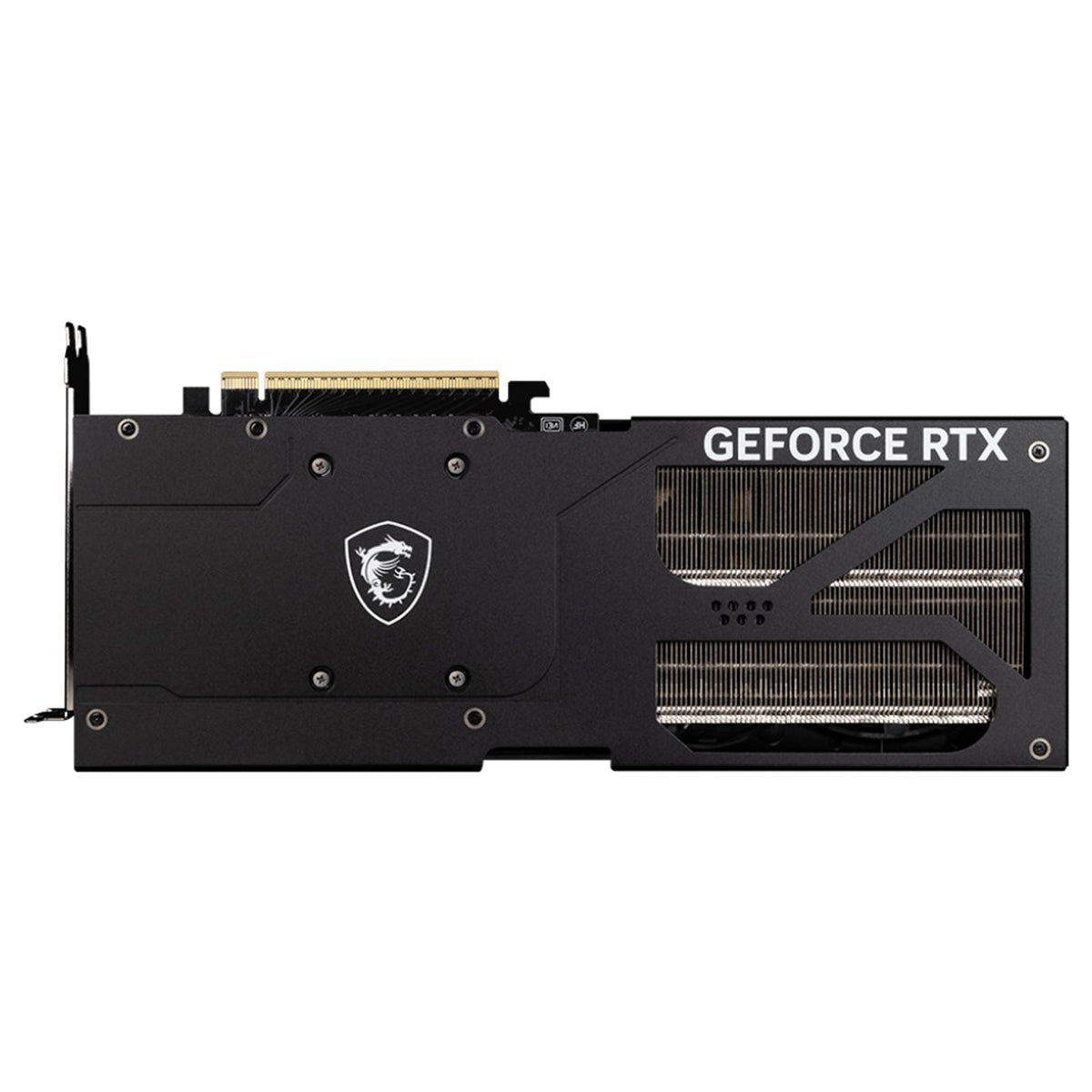

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications:
| Model Name | G5080-16V3C |
|---|---|
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As per HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power consumption | 360W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 850W |
| Card Dimension (mm) | 303 x 121 x 49 mm |
| Weight (Card / Package) | 1084 g / 1576 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
