Description

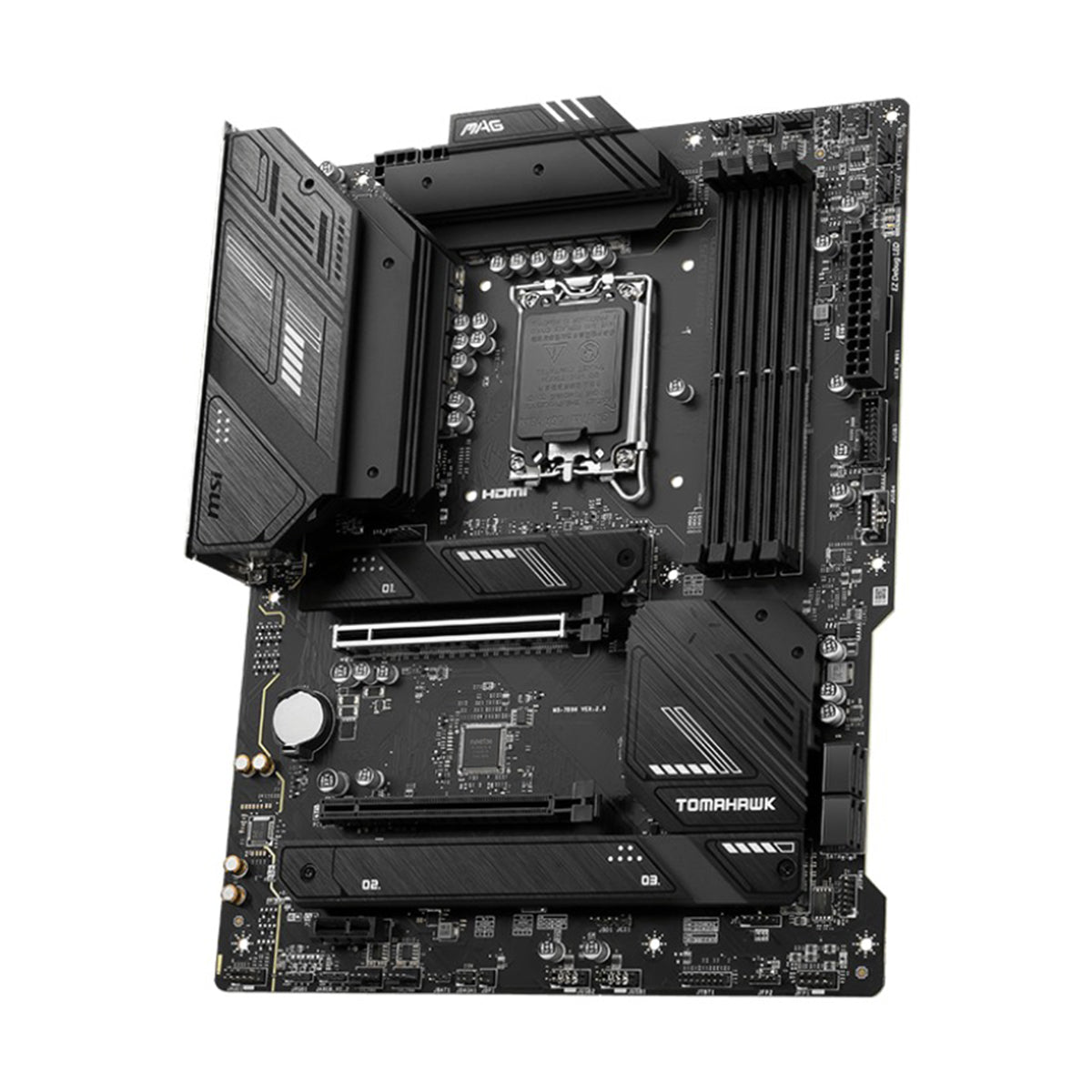

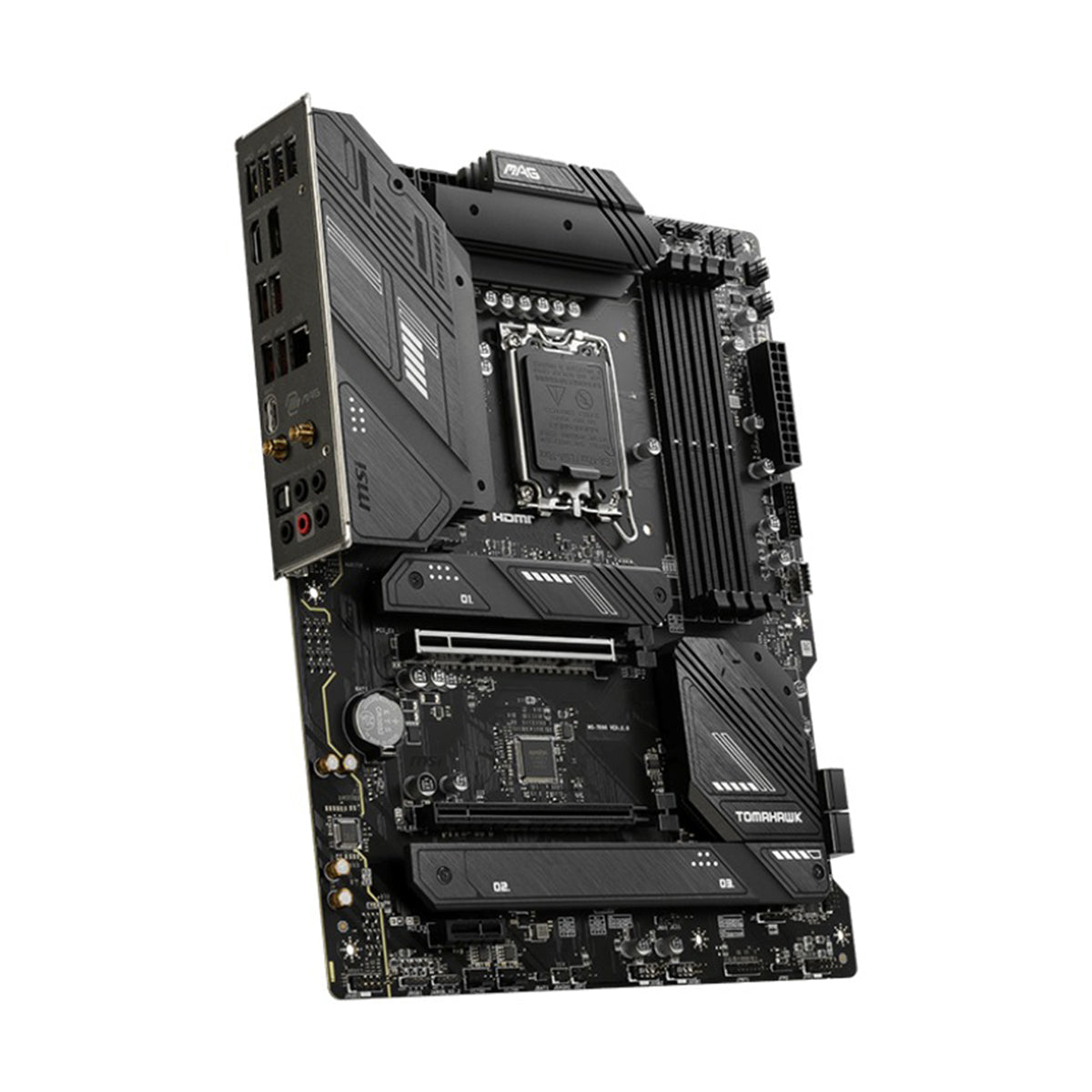

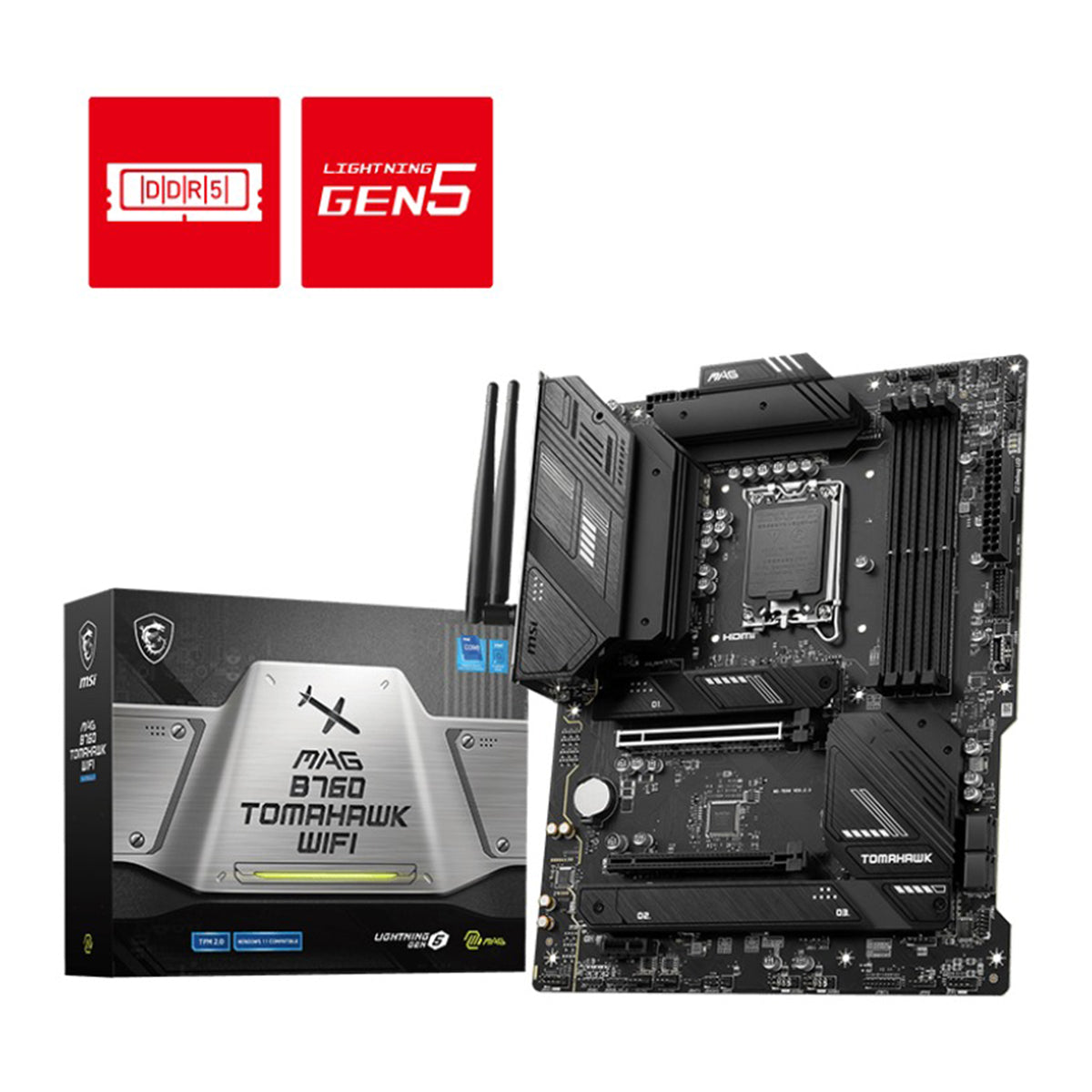

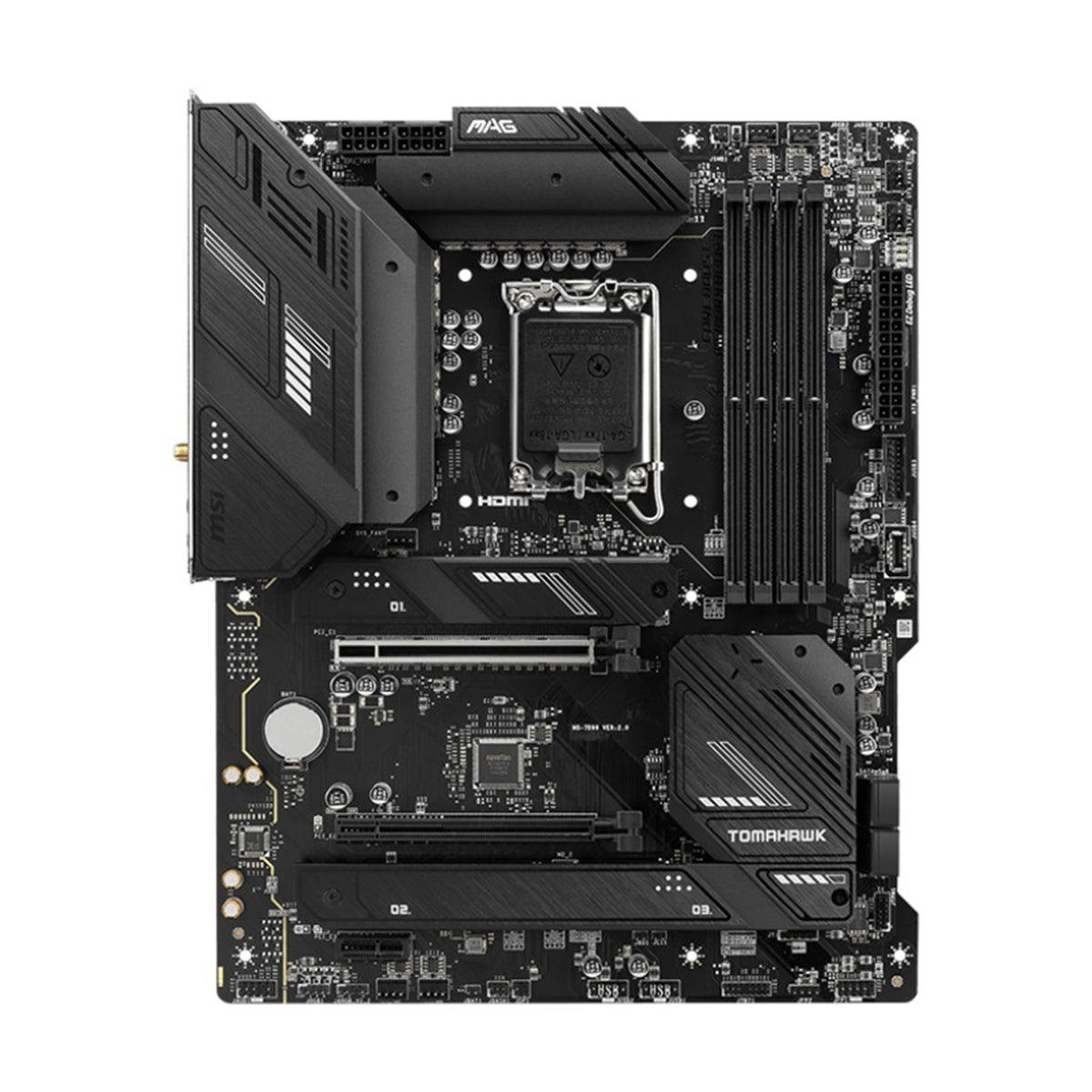

MAG B760 TOMAHAWK WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications:
| Category | Specification |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold, and Celeron® Processors (LGA1700) |
| Memory | 4x DDR5, up to 256GB Support for 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Dual Channel, non-ECC unbuffered, Intel® XMP support Max overclocking: • 1DPC 1R: up to 7000+ MHz • 1DPC 2R: up to 6600+ MHz • 2DPC 1R: up to 6400+ MHz • 2DPC 2R: up to 5600+ MHz |
| Onboard Graphics | 1x HDMI™ 2.1 (4K @ 60Hz) 1x DisplayPort 1.4 (8K @ 60Hz) *Only available with processors with integrated graphics |
| Expansion Slots | 2x PCIe x16 (x16 / x4) 1x PCIe x1 • PCI_E1: Gen 5.0 x16 (CPU) • PCI_E2: Gen 3.0 x4 (Chipset) • PCI_E3: Gen 4.0 x1 (Chipset) |
| Audio | Realtek® ALC897 7.1-Channel HD Audio Supports S/PDIF Out |
| Storage | 3x M.2: • M.2_1 (CPU): PCIe 4.0 x4, 22110/2280/2260/2242 • M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260/2242 • M.2_3 (Chipset): PCIe 4.0 x4 or SATA, 2280/2260/2242 4x SATA 6Gb/s RAID 0, 1, 5, 10 supported for SATA |
| USB Ports | • Rear: 4x USB 2.0, 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C • Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 2.5Gbps LAN |
| Wireless & Bluetooth | Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) MU-MIMO TX/RX Up to 2.4Gbps Bluetooth® 5.3, FIPS, FISMA *Wi-Fi 6E requires Windows 11 **BT 5.3 needs Windows 10 (21H1) or Windows 11 |
| Internal I/O | 1x 24-pin ATX_PWR 2x 8-pin CPU_PWR 1x CPU Fan, 1x Pump Fan, 5x System Fan 2x JFP (Front Panel) 1x Chassis Intrusion (JCI), 1x JAUD (Front Audio) 1x JDASH (Tuning Controller) 2x JARGB_V2 (ARGB), 2x JRGB (RGB LED) 1x TPM Header (TPM 2.0) USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Feature | 4x EZ Debug LEDs |

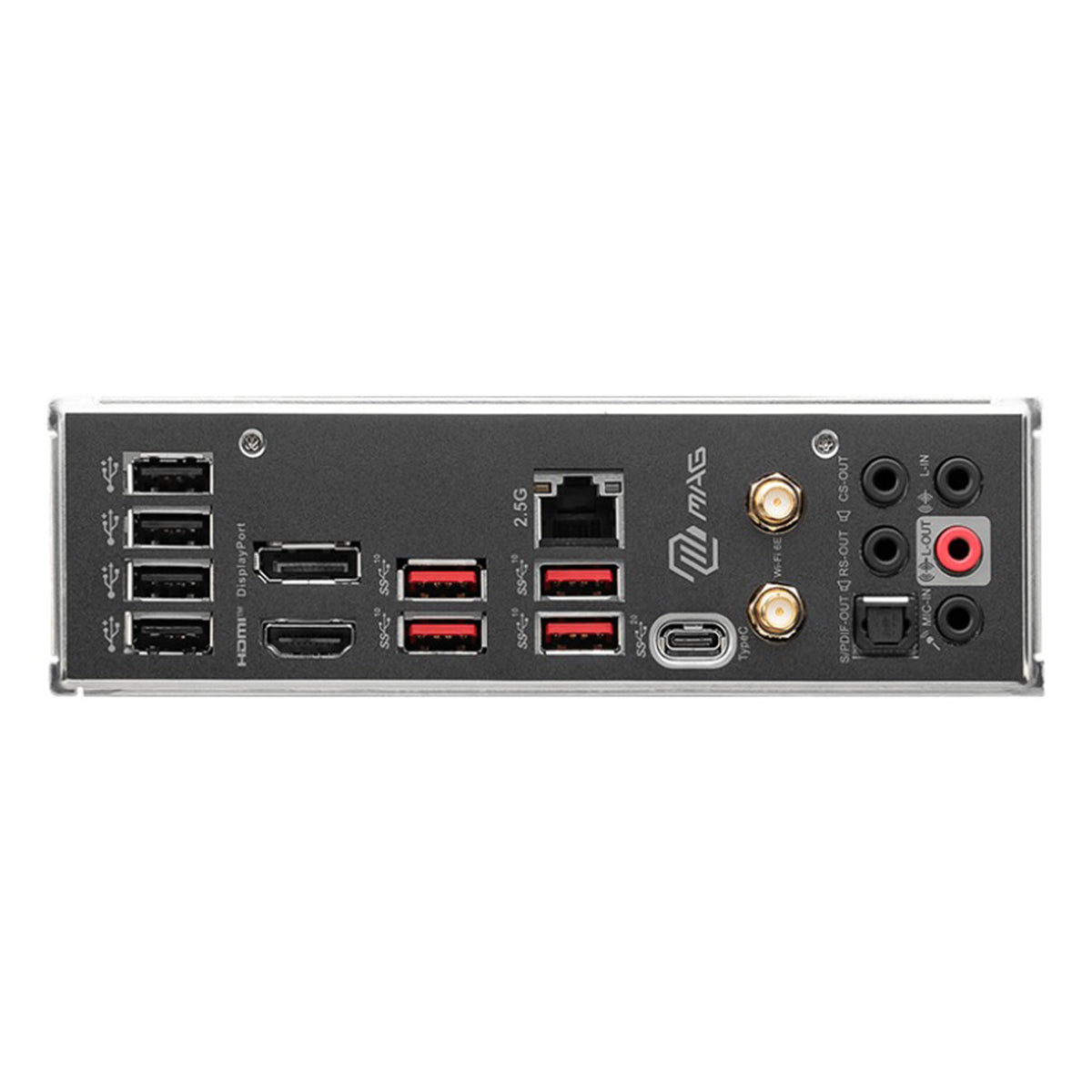

| Back Panel Ports | • 4x USB 2.0 • 4x USB 3.2 Gen 2 10Gbps Type-A • 1x USB 3.2 Gen 2x2 20Gbps Type-C • DisplayPort 1.4 • HDMI™ 2.1 • 2.5G LAN • Wi-Fi / Bluetooth Antenna • HD Audio Connectors • Optical S/PDIF Out |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
