Description
![](https://cdn.shopify.com/s/files/1/0355/8296/7943/files/MAG-CORELIQUID-240R-V2.jpg?v=1661585960)

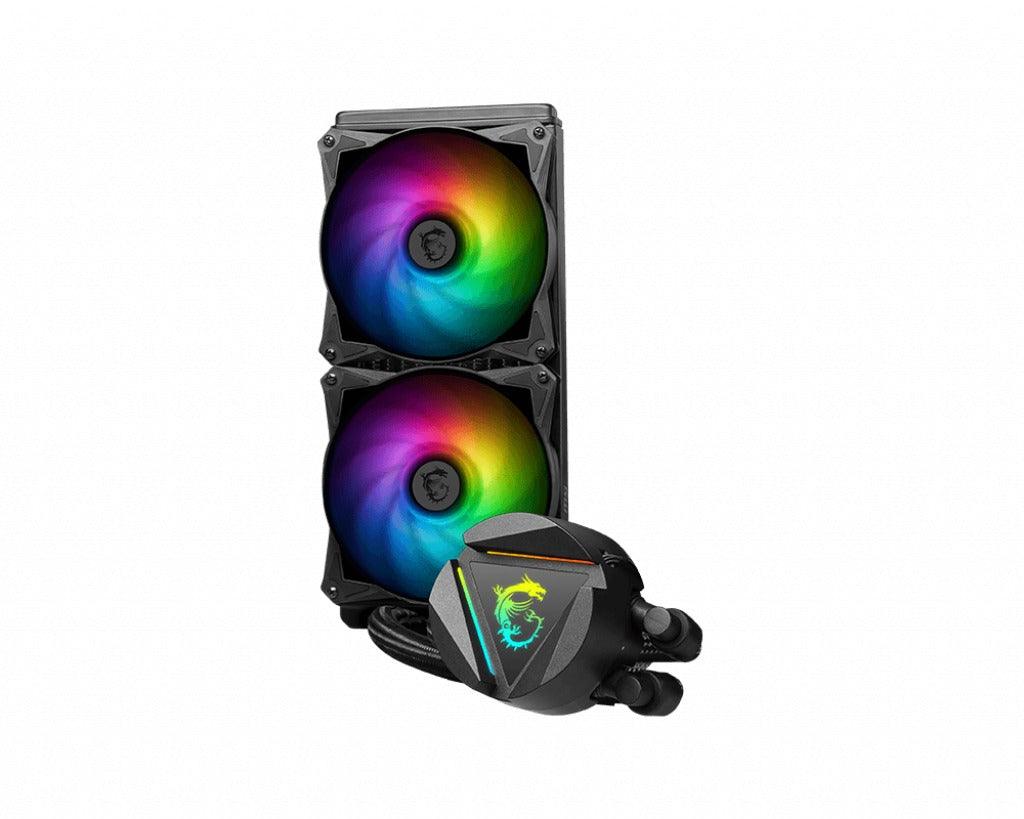

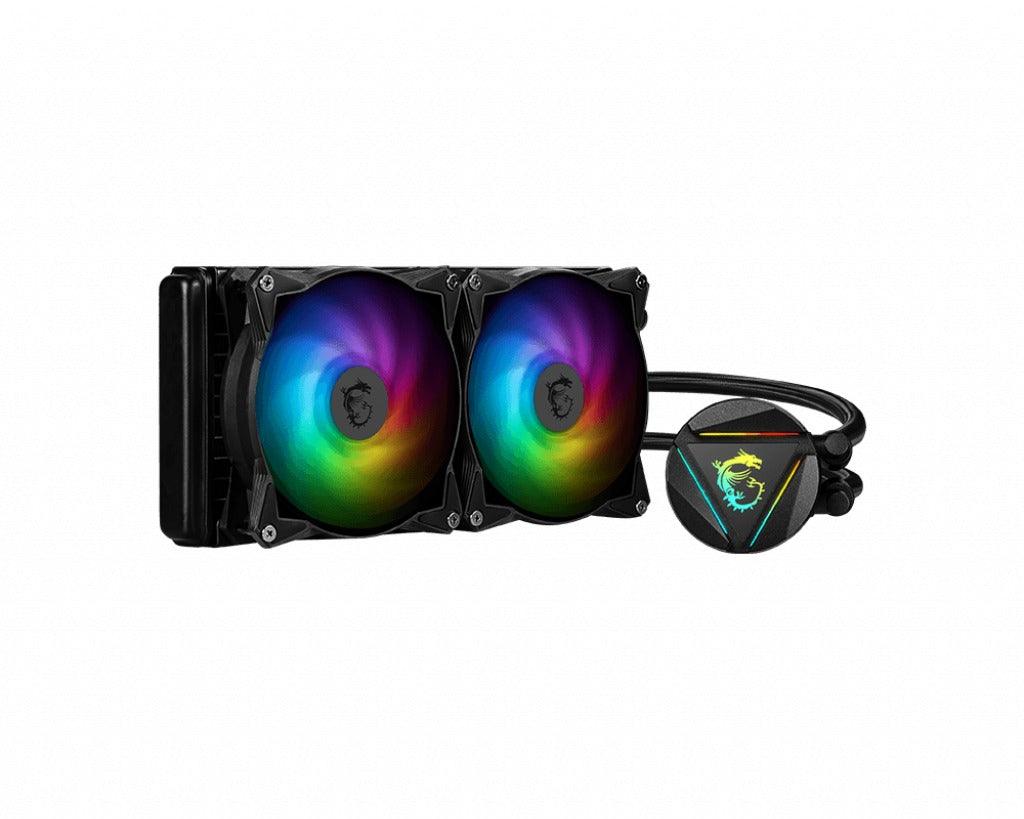

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
AMD AM5 COMPATIBLE
The MAG CORELIQUID Series liquid cooler provides out of the box support for AMD Ryzen 7000 Series processors.
LGA 1700 COMPATIBLE
The liquid cooler provides out of box support for LGA 1700.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Specifications :
RADIATOR DIMENSIONS (WXDXH) | 274 x 120 x 27mm / 10.79 x 4.7 x 1.06 inches |
RADIATOR MATERIAL | Aluminum |
NUMBER OF FANS | 2 |
FAN DIMENSIONS (WXDXH) | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
FAN SPEED | 500 ~ 2000 RPM |
FAN AIR FLOW | 21.63 ~ 78.73 CFM |
FAN NOISE LEVEL | 14.3 ~ 34.3 dBA |
FAN BEARING | Two Ball Bearing |
FAN RATED CURRENT | 0.15 A |
FAN POWER CONSUMPTION | 1.8 W |
PWM MODE | Yes |
CABLE LENGTH (PWM CABLE) | 550 / 350mm; 21.65 / 13.78 inches |
FAN LIGHTING | ARGB |
PUMP POWER CONSUMPTION | 4.08W |
PUMP SPEED | 4200 ±10%RPM |
BLOCK DIMENSIONS (WXDXH) | 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches |
INTEL SOCKET SUPPORT | LGA 1150/1151/1155/1156/1200/1700 LGA 1366/2011/2011-3/2066 |
AMD SOCKET SUPPORT | AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
