Description

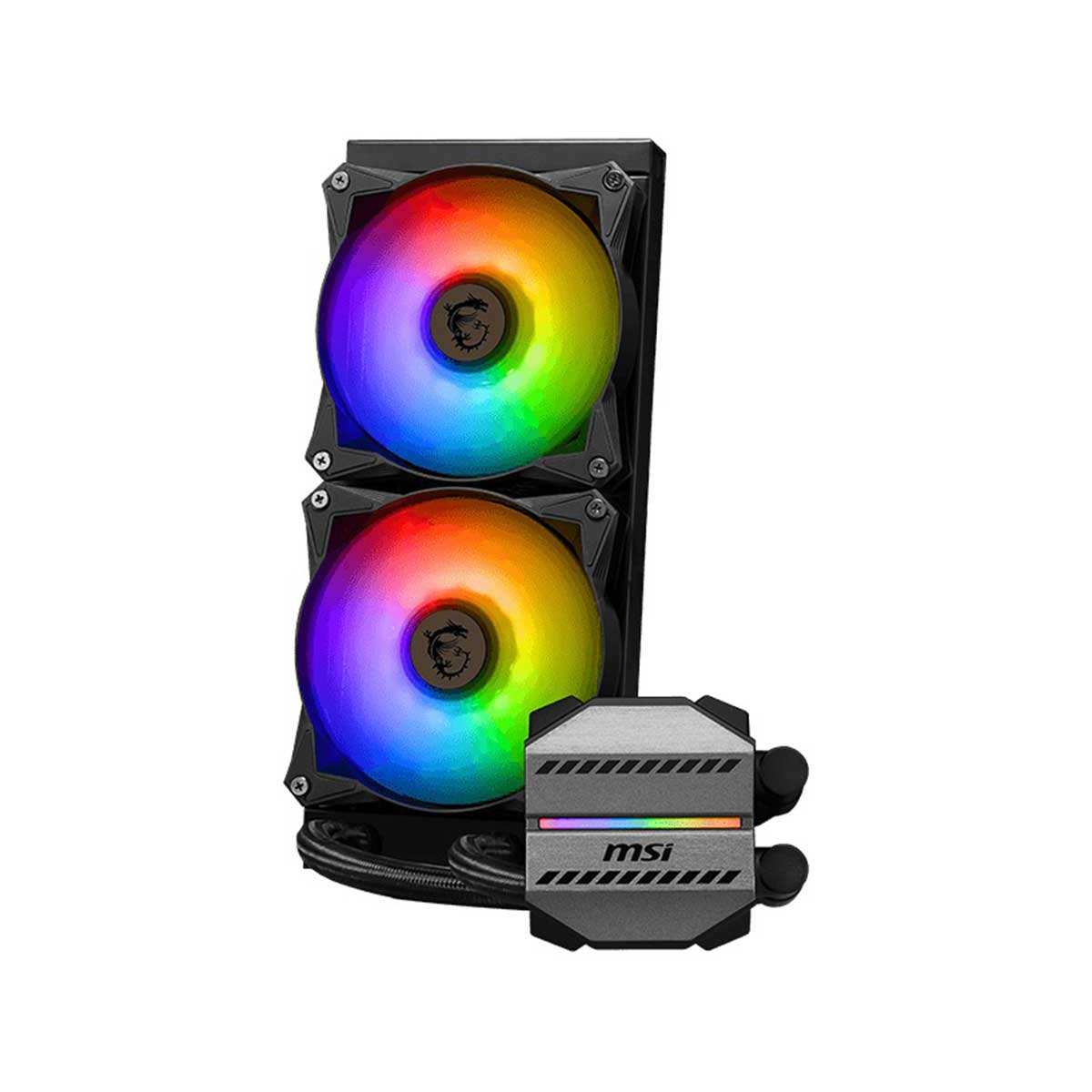

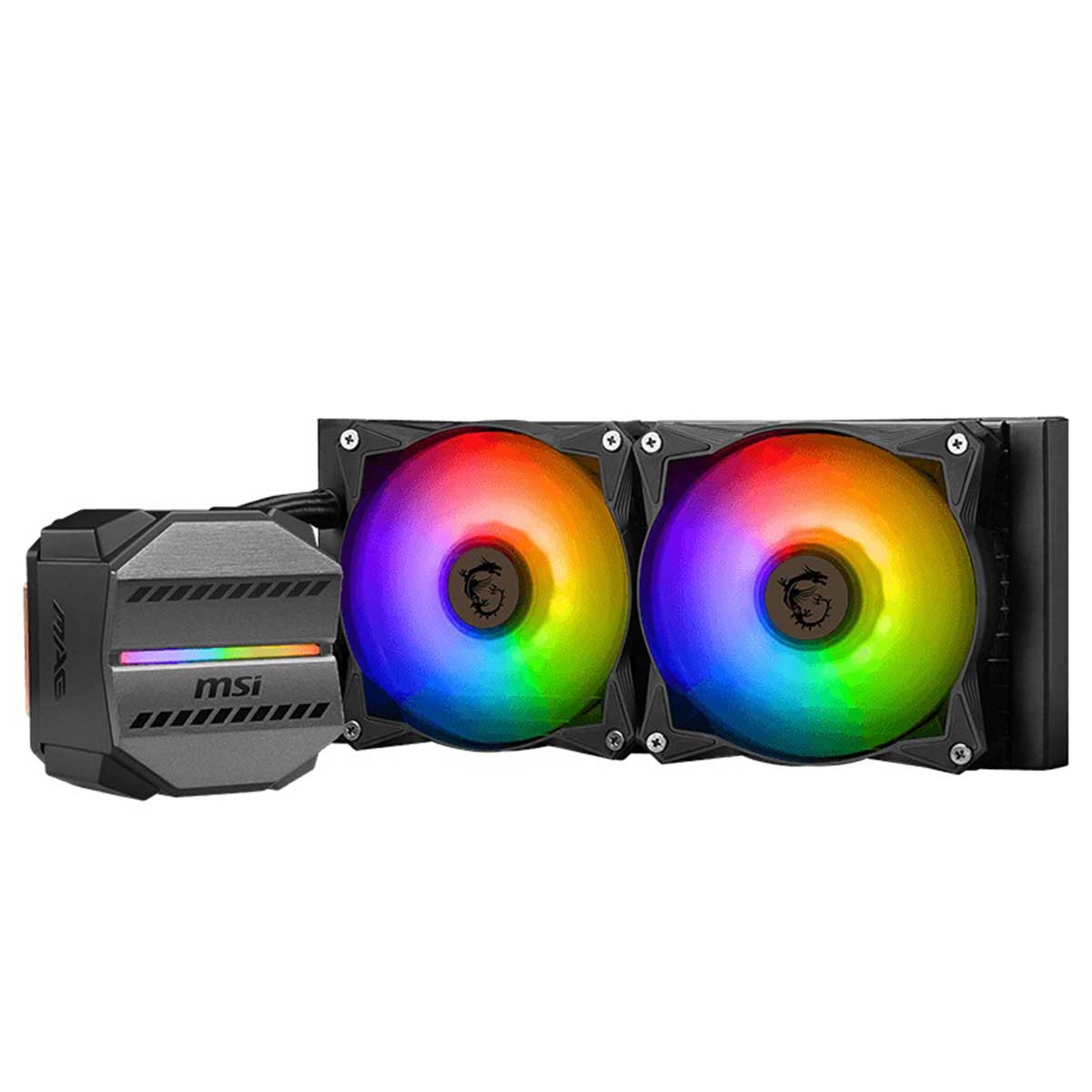

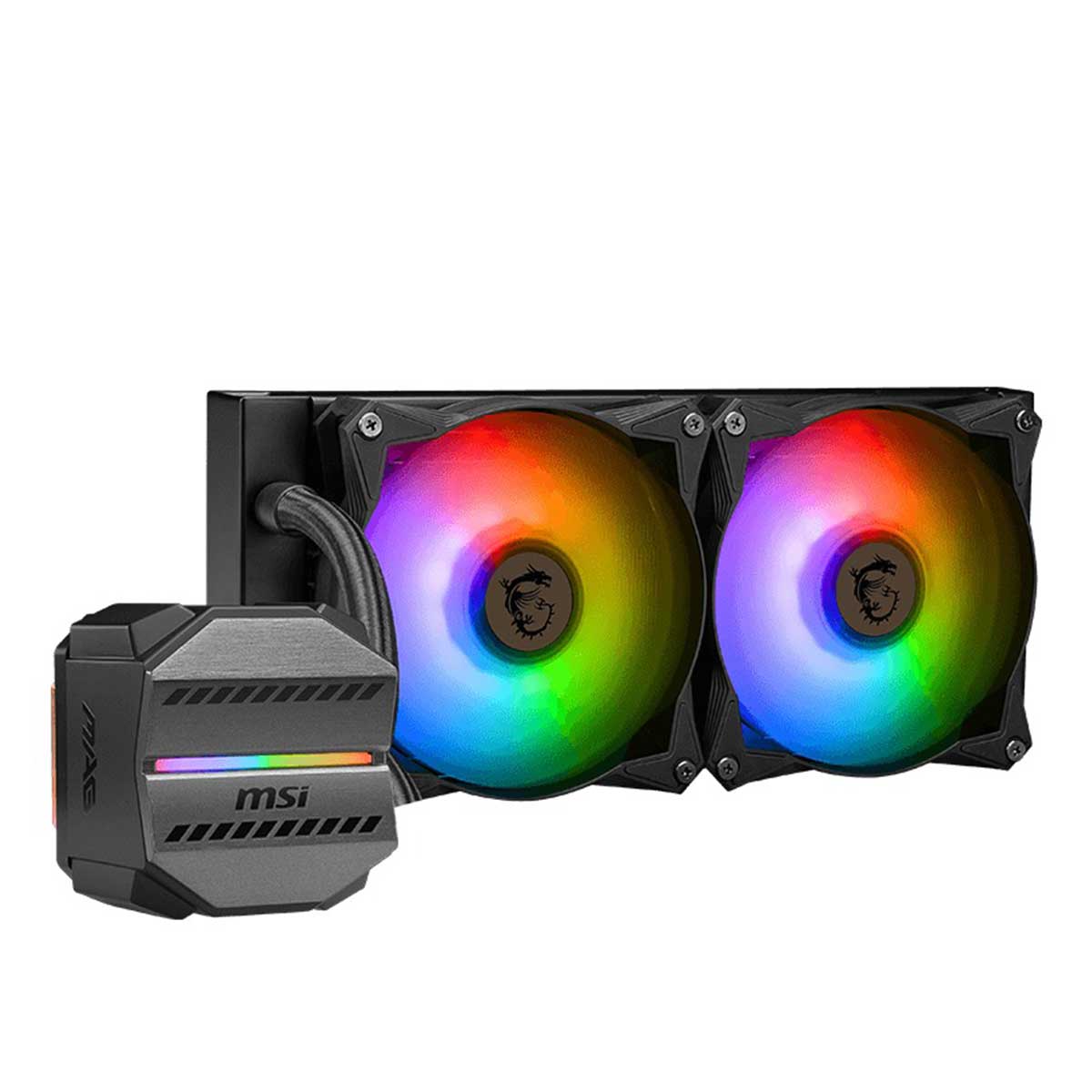

MAG CORELIQUID M240
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
- The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
- The radiator has a 12 pathway designed to help rapidly dissipate heat.
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM5, AM4
SPECIFICATION
| RADIATOR SIZE | 240 mm |
| RADIATOR DIMENSIONS (WXDXH) | 277 x 120 x 27mm / 10.9 x 4.7 x 1.06 inches |
| RADIATOR MATERIAL | Aluminum |
| WATER COOLING TUBE MATERIAL | Black Rubber + Mesh |
| NUMBER OF FANS | 2 |
| FAN DIMENSIONS (WXDXH) | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
| FAN AIR FLOW | 21.63 ~ 78.73 CFM |
| FAN BEARING | Two Ball Bearing |
| FAN LIFE EXPECTANCY | 70,000 Hours |
| FAN RATED CURRENT | 0.35A |
| FAN POWER CONSUMPTION | 4.2W |
| PWM MODE | YES |
| CABLE LENGTH (PWM CABLE) | 350mm / 13.78 inches |
| FAN CONNECTOR | 4-Pin |
| FAN LIGHTING | ARGB |
| PUMP LIFE EXPECTANCY | 100,000 Hours |
| PUMP NOISE LEVEL | 20 dBA |
| PUMP RATED CURRENT | 0.38A |
| PUMP POWER CONSUMPTION | 4.56W |
| PUMP SPEED | 3100 RPM 10% |
| PUMP CONNECTOR | 3 Pin |
| COLD PLATE MATERIAL | Copper + Plastic |
| BLOCK DIMENSIONS (WXDXH) | 67.26 x 59.95 x 55.9 mm |
| INTEL SOCKET SUPPORT | LGA 1150/1151/1155/1156/1200/1700 |
| LGA 2011/2011-3/2066 | |
| AMD SOCKET SUPPORT | AM5/AM4 |
