Description

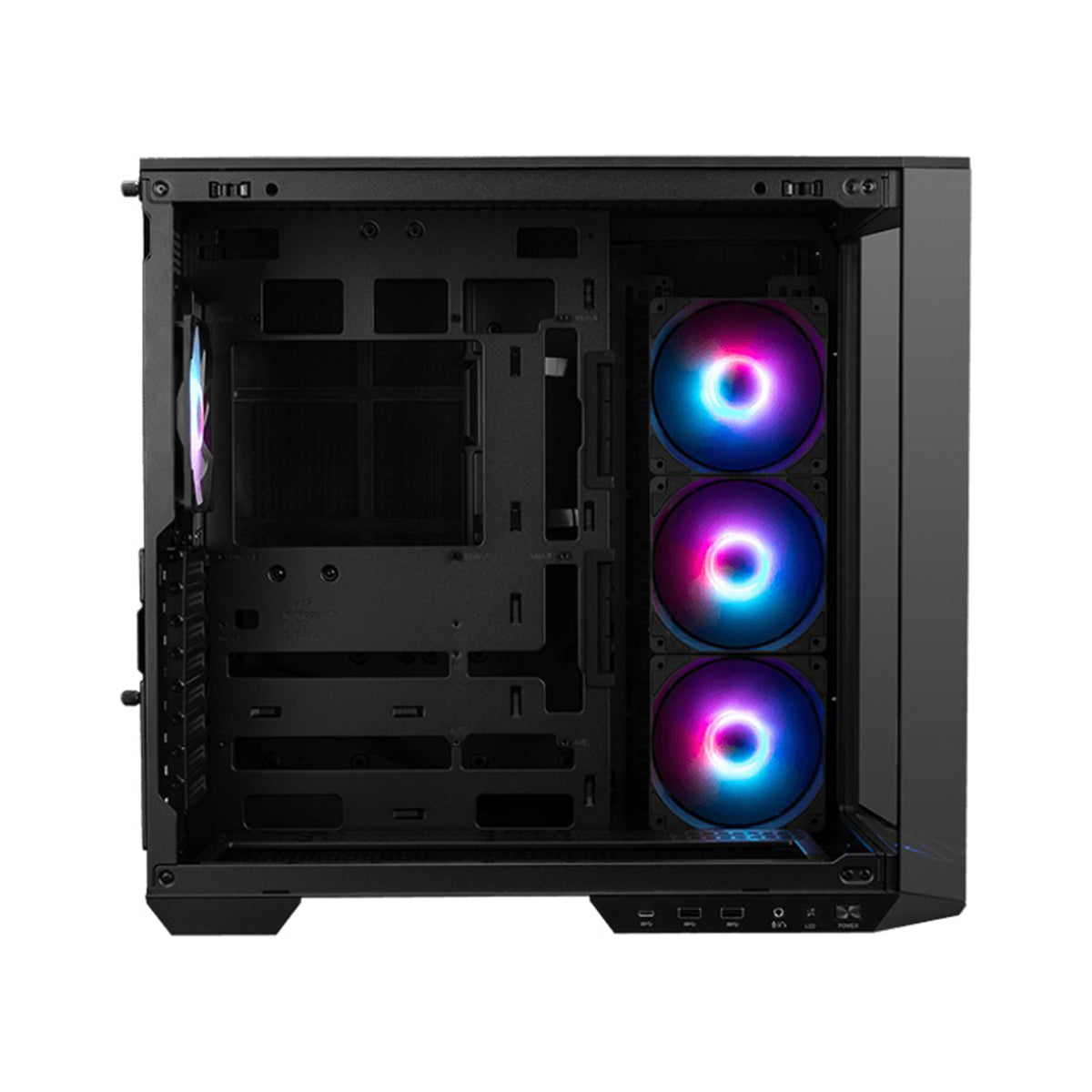

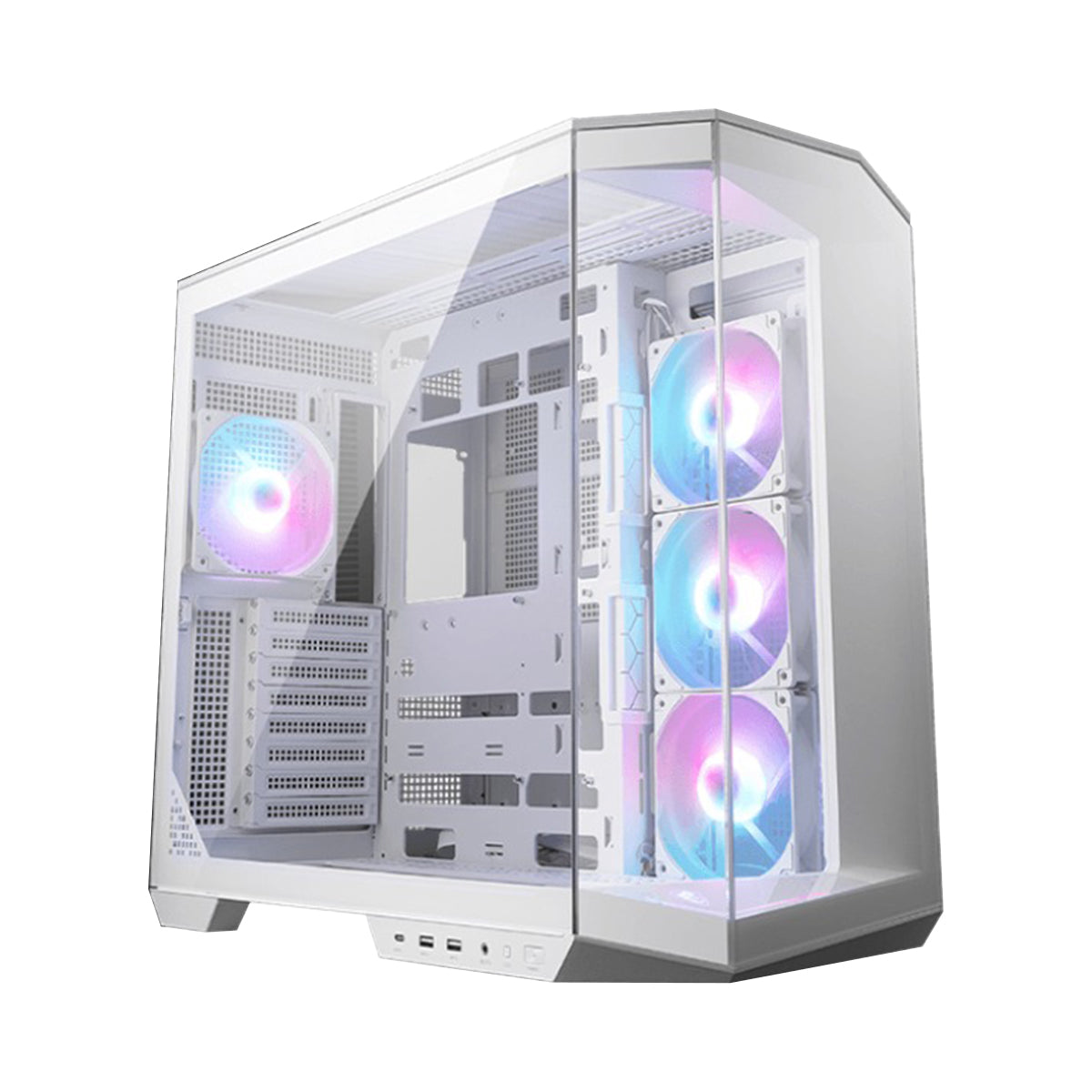

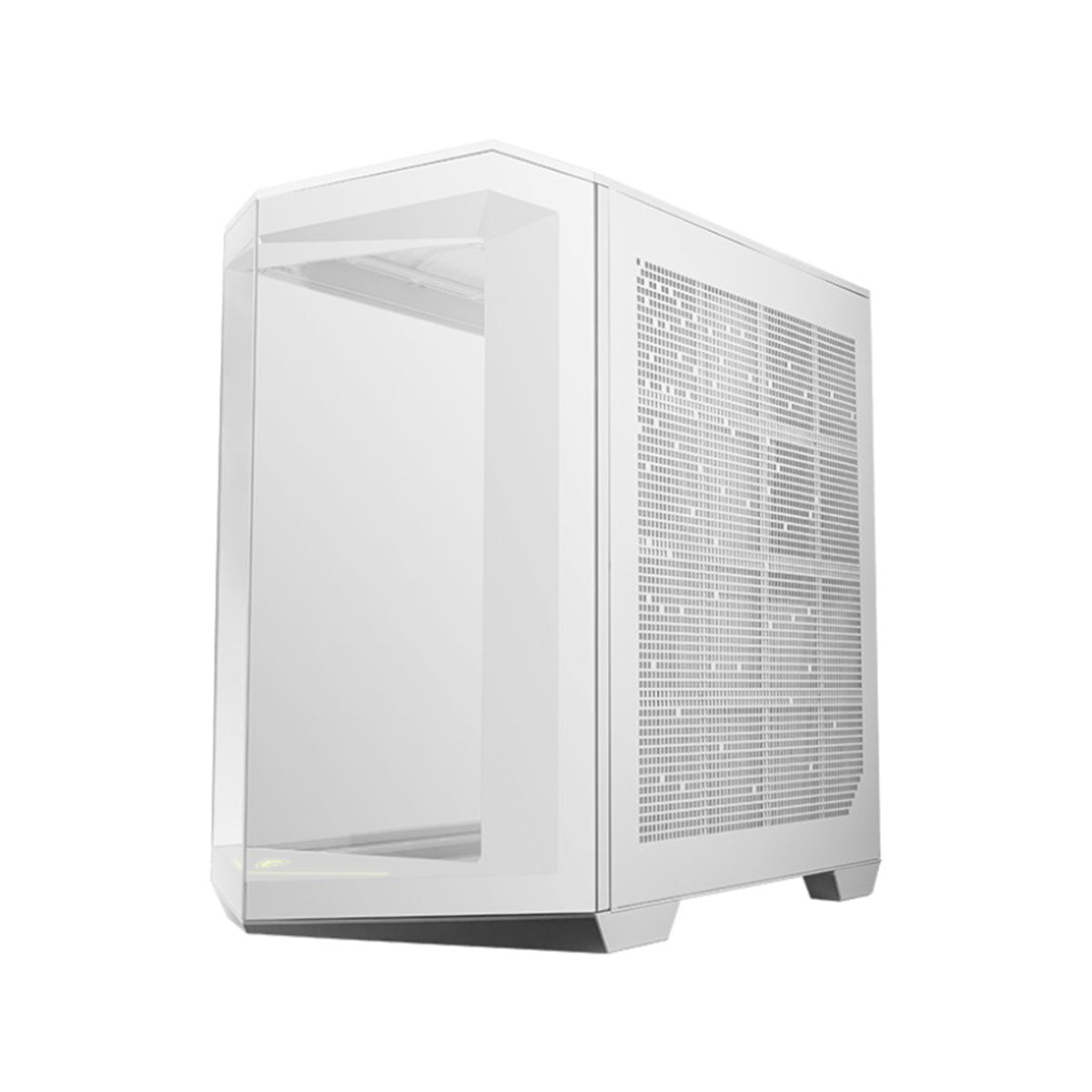

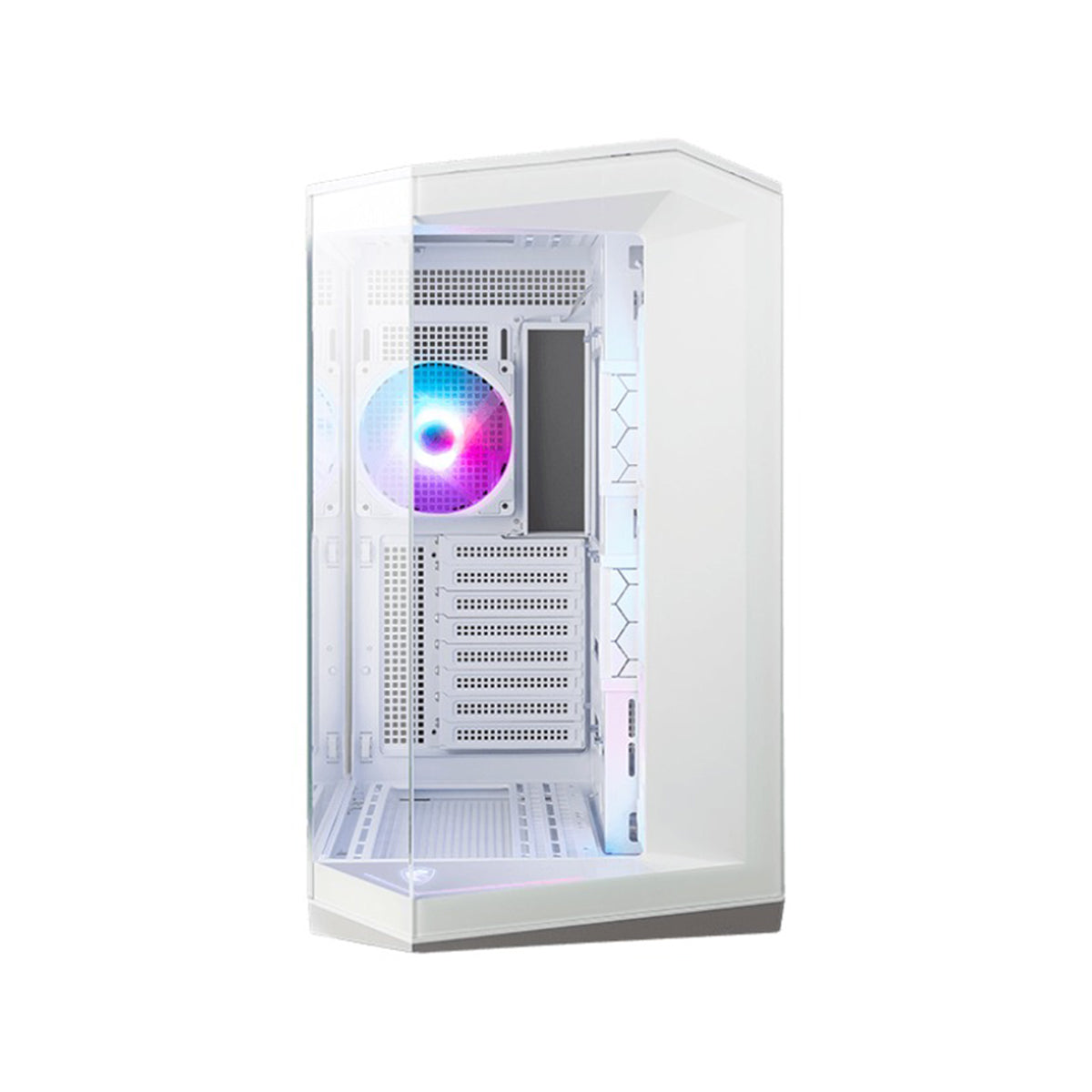

MAG PANO M100R PZ
- Micro-ATX Back-connect PROJECT ZERO motherboard supported.
- Supports up to 360 mm AIO liquid cooler on the top.
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
- The Magnetic Dust Filter at the bottom being easily removed for cleaning.
- DIY Friendly cables make your DIY process easier and create more possibilities to your system.
SPECIFICATION
| Product Name | MAG PANO M100R PZ |
| Case Form Factor | Micro- ATX Tower |
| Motherboard Form Factor Support | M-ATX(Back-connect supported) / ITX |
| I/O Ports | 1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| Drive Mount Support | 1 x 2.5” 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| Expansion Slots | 5 |
| Maximum GPU Length | 390 mm / 15.35 inches *Support horizontal installation only. |
| Maximum CPU Cooler Height | 175 mm / 6.9 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| Pre-installed Fan Size | Side: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type | Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
| Radiator Size Support | Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
