Description

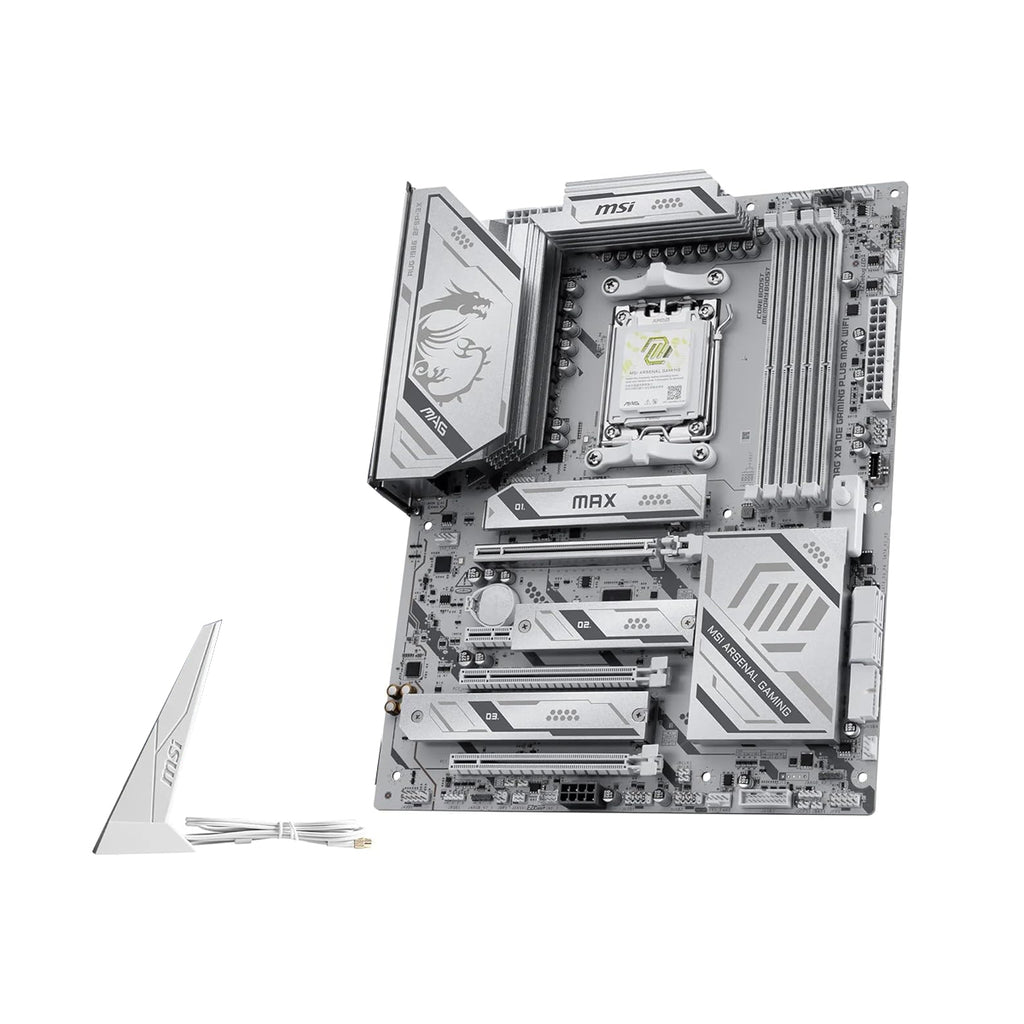

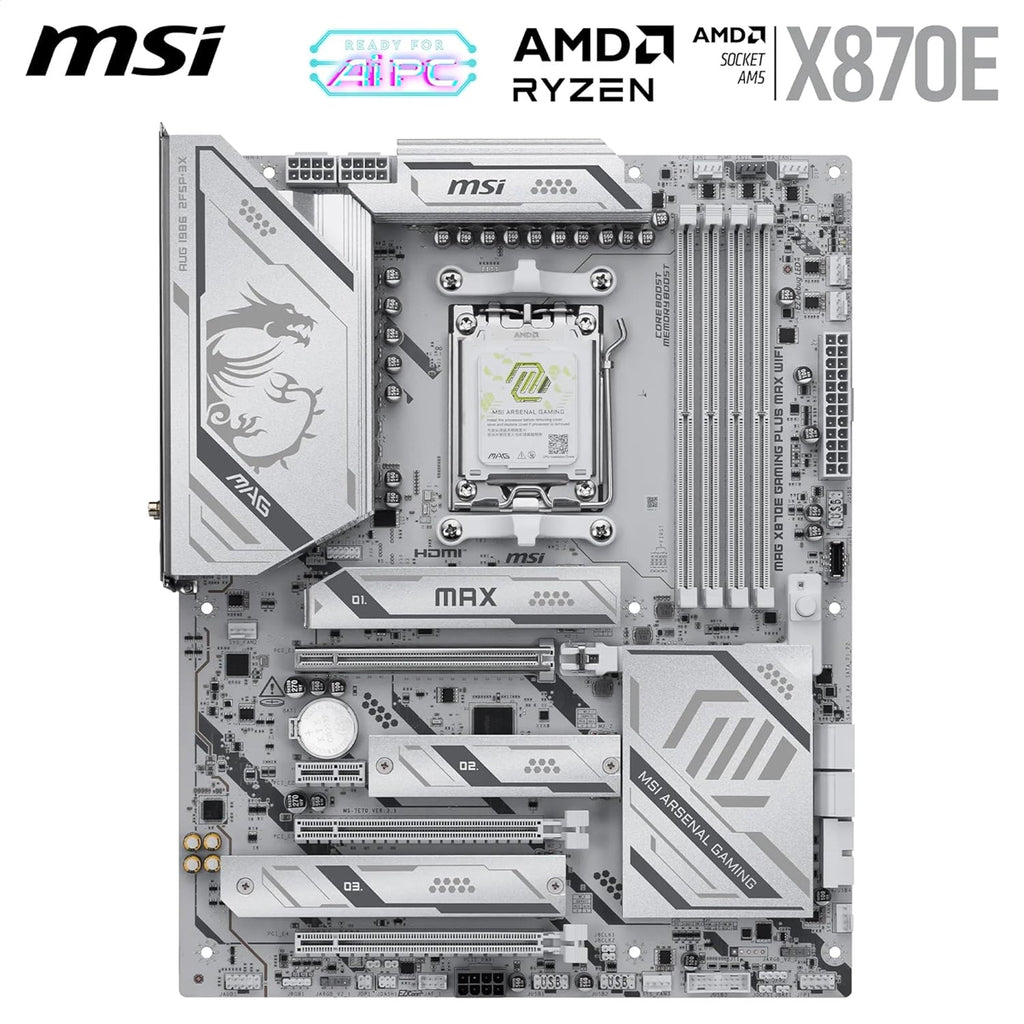

MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Specifications:
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4× DDR5 UDIMM, up to 256GB DDR5 8200–5600 MT/s (OC) / 5600–4800 MT/s (JEDEC) Supports AMD EXPO™, Memory Overclocking, Dual Channel, Non-ECC Unbuffered Memory, CUDIMM (Clock Driver Bypass Mode) |
| Ryzen™ 9000 Memory Support | 1DPC 1R: Up to 8200+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 6000+ MT/s |
| Onboard Graphics | 1× HDMI™ 2.1 TMDS (Up to 4K 60Hz) 1× USB4® Type-C with DisplayPort 1.4 (Up to 4K 120Hz) *Available only with processors featuring integrated graphics. |

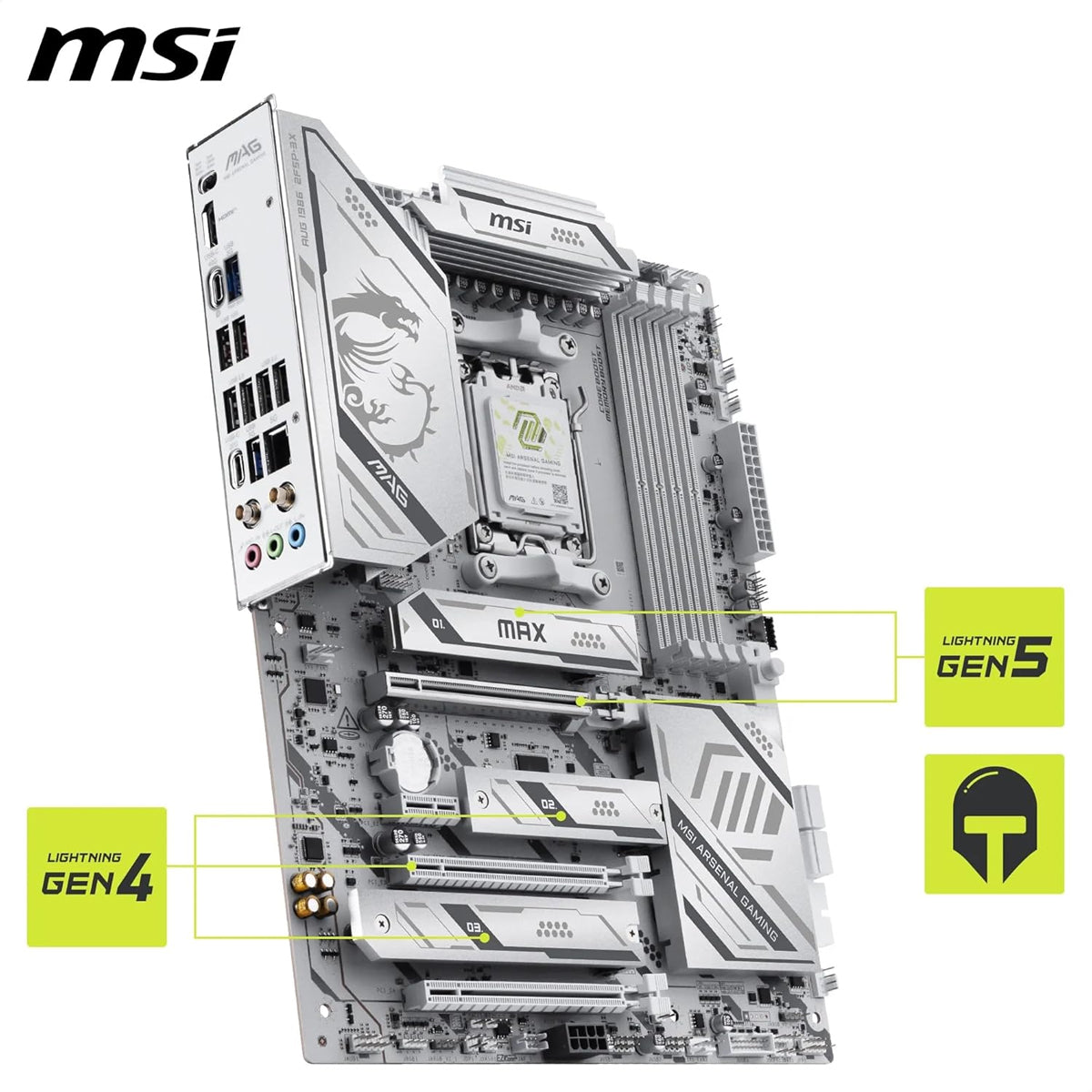

| Expansion Slots | 3× PCIe x16 Slots 1× PCIe x1 Slot PCI_E1: PCIe 5.0 x16 (CPU) PCI_E2: PCIe 3.0 x1 (Chipset) PCI_E3: PCIe 4.0 x4 (Chipset) PCI_E4: PCIe 3.0 x1 (Chipset) |
| PCI_E1 Support | Ryzen™ 9000 / 7000: PCIe 5.0 x16 Ryzen™ 8700 / 8600 / 8400: PCIe 4.0 x8 Ryzen™ 8500 / 8300: PCIe 4.0 x4 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3× M.2 Slots • M.2_1: PCIe 5.0 x4 (2280/2260) • M.2_2: PCIe 4.0 x4 (2280/2260) • M.2_3: PCIe 4.0 x4 (22110/2280) 4× SATA 6Gb/s |
| M.2 Compatibility | M.2_1: PCIe 5.0 x4 (Ryzen™ 9000/7000), PCIe 4.0 x4 (Ryzen™ 8000) M.2_2: PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) M.2_3: PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) |
| RAID | SATA: RAID 0 / 1 / 10 M.2 NVMe: RAID 0 / 1 / 5 *RAID 5 supported only on Ryzen™ 9000 Series. |

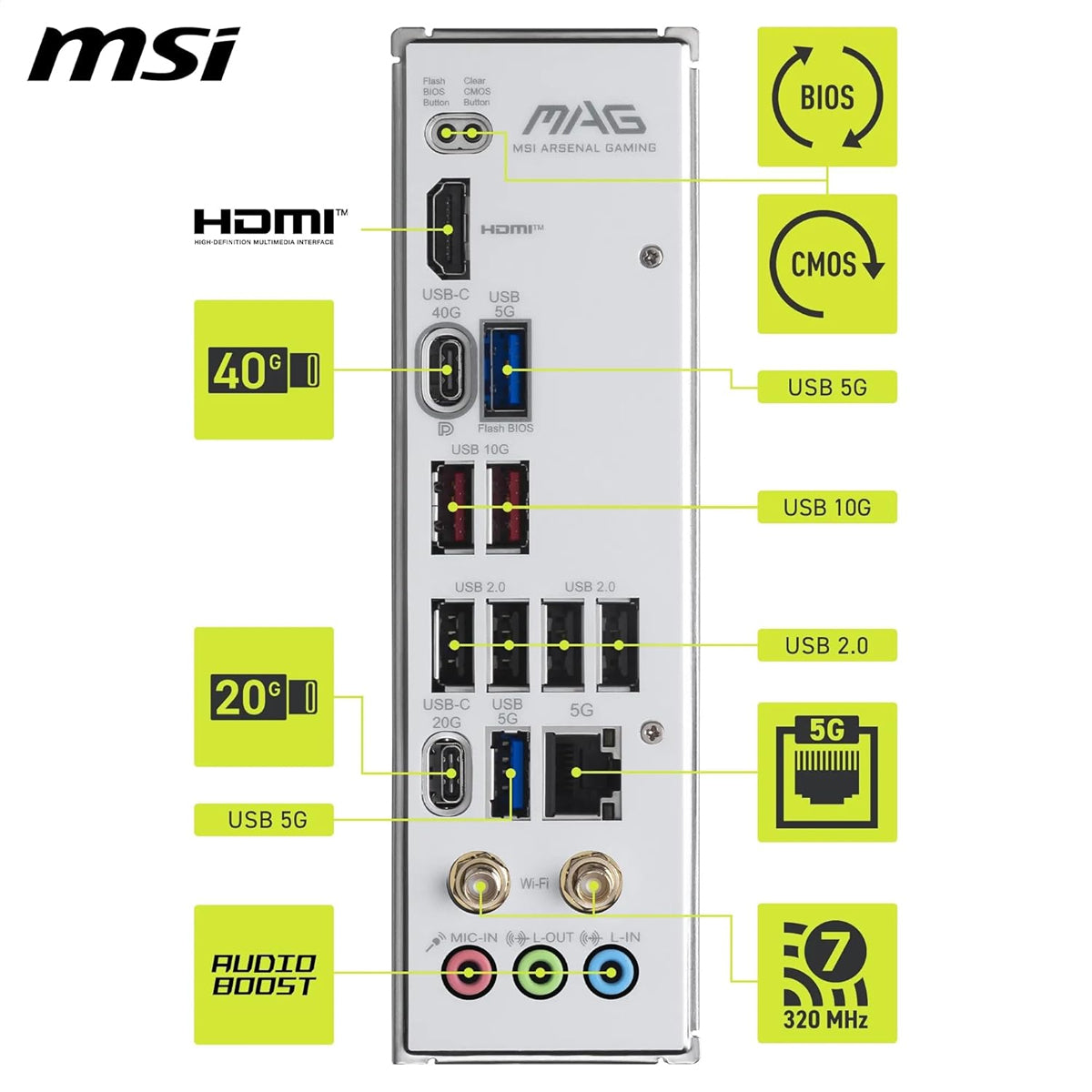

| USB | Rear: • 4× USB 2.0 • 2× USB 5Gbps Type-A • 2× USB 10Gbps Type-A • 1× USB 20Gbps Type-C • 1× USB4® 40Gbps Type-C Front: • 6× USB 2.0 • 4× USB 5Gbps Type-A • 1× USB 10Gbps Type-C |
| LAN | 1× Realtek® RTL8126 5GbE LAN |
| Wireless LAN & Bluetooth | Wi-Fi 7 (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz, MU-MIMO, MLO, 4KQAM, up to 5.8Gbps IEEE 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4 |
| Internal I/O | 1× ATX Power 2× CPU Power 1× PCIe 8-pin Power 1× CPU Fan 1× Pump/System Fan 6× System Fan 1× EZ Conn Header 2× Front Panel Headers 1× Chassis Intrusion 1× Front Audio 1× Tuning Controller Connector 3× ARGB Gen2 Headers 1× RGB Header 1× TPM Header 2× Direct OC Jumper 6× USB 2.0 Ports 4× USB 5Gbps Type-A Ports 1× USB 10Gbps Type-C Port |

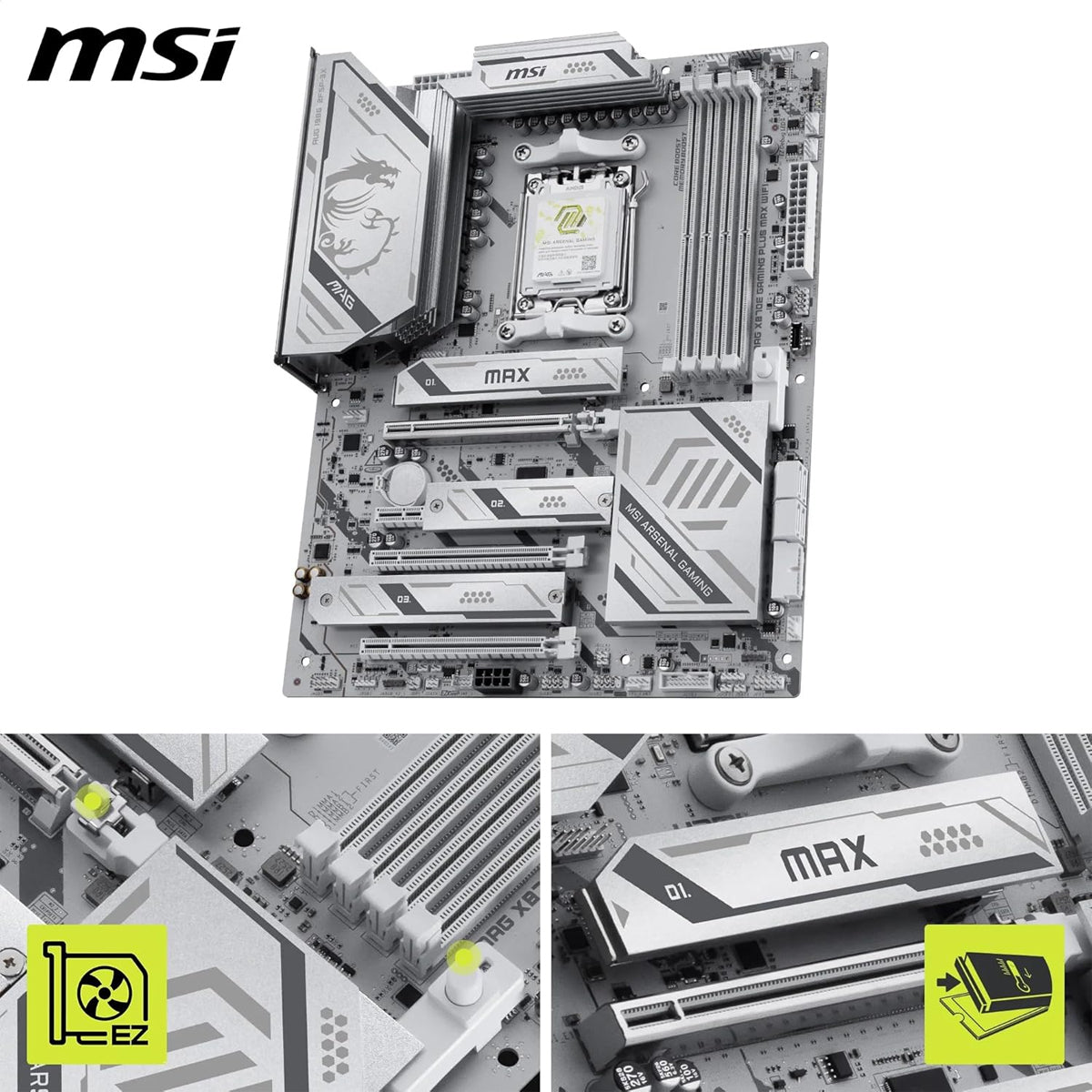

| LED Features | 4× EZ Debug LEDs, 1× EZ Memory Detection LED |
