Description

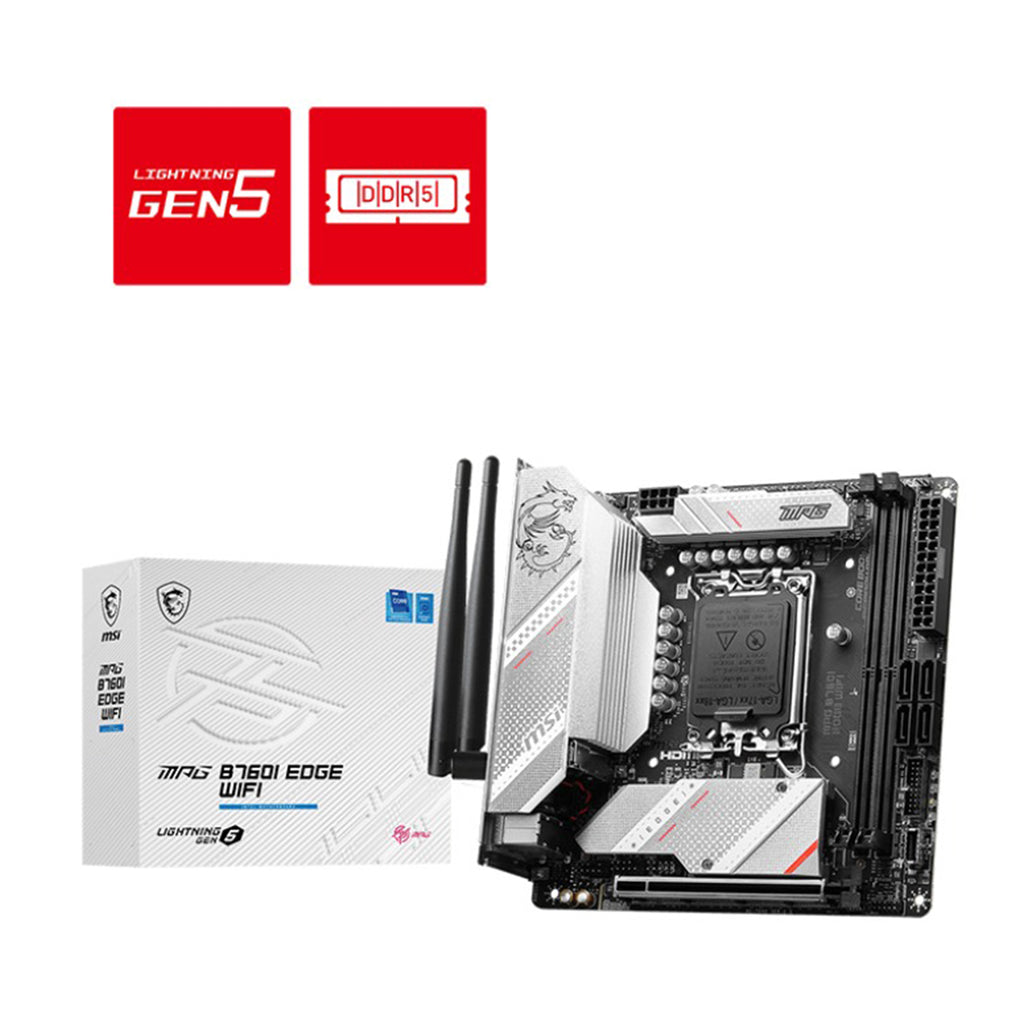

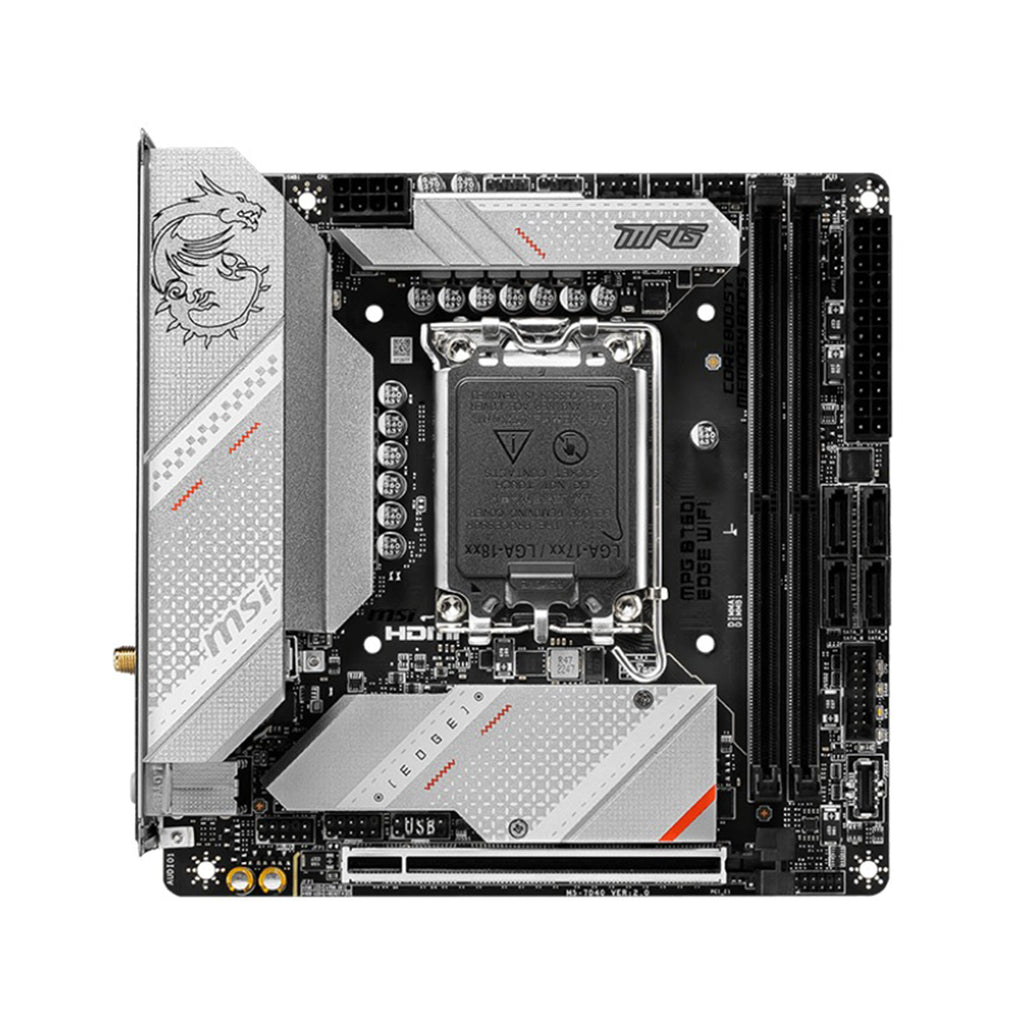

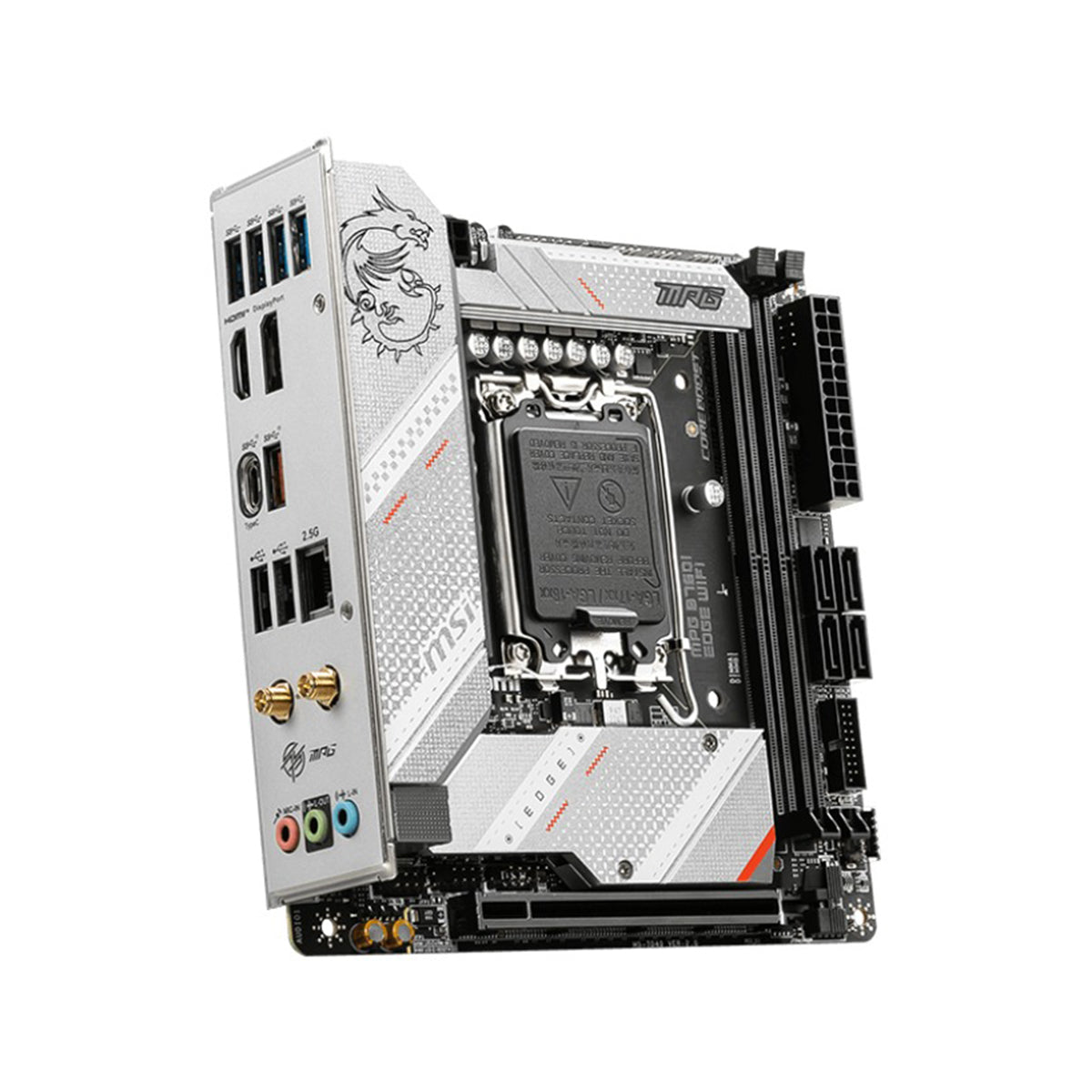

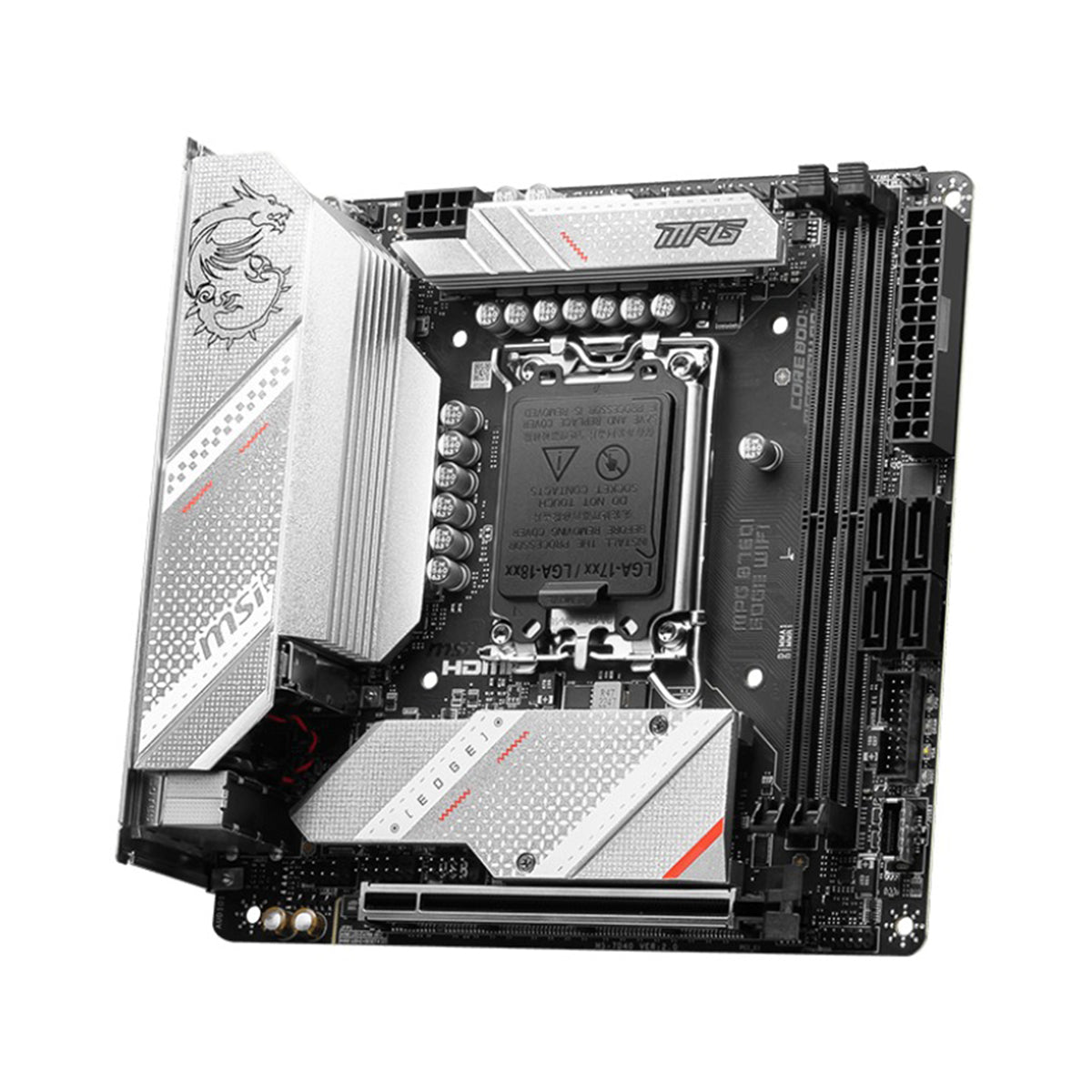

MPG B760I EDGE WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications:
| Chipset | INTEL B760 |
|---|---|
| CPU | Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® Processors (LGA 1700) |
| Memory | 2x DDR5, up to 128GB Supported Frequencies: 7200+(OC) to 4800(JEDEC) MHz Max OC: • 1DPC 1R: up to 7200+ MHz • 1DPC 2R: up to 6600+ MHz Supports Dual-Channel, XMP, Non-ECC, Un-buffered |
| Onboard Graphics | 1x HDMI™ 2.1 (4K@60Hz) 1x DisplayPort 1.4 (8K@60Hz) * Only with CPUs that include integrated graphics |
| Expansion Slots | 1x PCI-E x16 (Gen 5.0 from CPU) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage | 2x M.2 (PCIe 4.0 x4), 2280 4x SATA 6G RAID 0/1/5/10 supported |
| USB Ports | Rear: 2x USB 2.0, 4x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C Front: 2x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless | Intel® Wi-Fi 6E (2.4/5/6GHz), MU-MIMO, up to 2.4Gbps Bluetooth® 5.3, FIPS, FISMA |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR 1x CPU Fan, 1x Pump Fan, 1x System Fan 2x JFP, 1x JAUD, 1x JCI, 1x JARGB_V2, 1x JRGB, 1x TPM USB: 2x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps Type C |

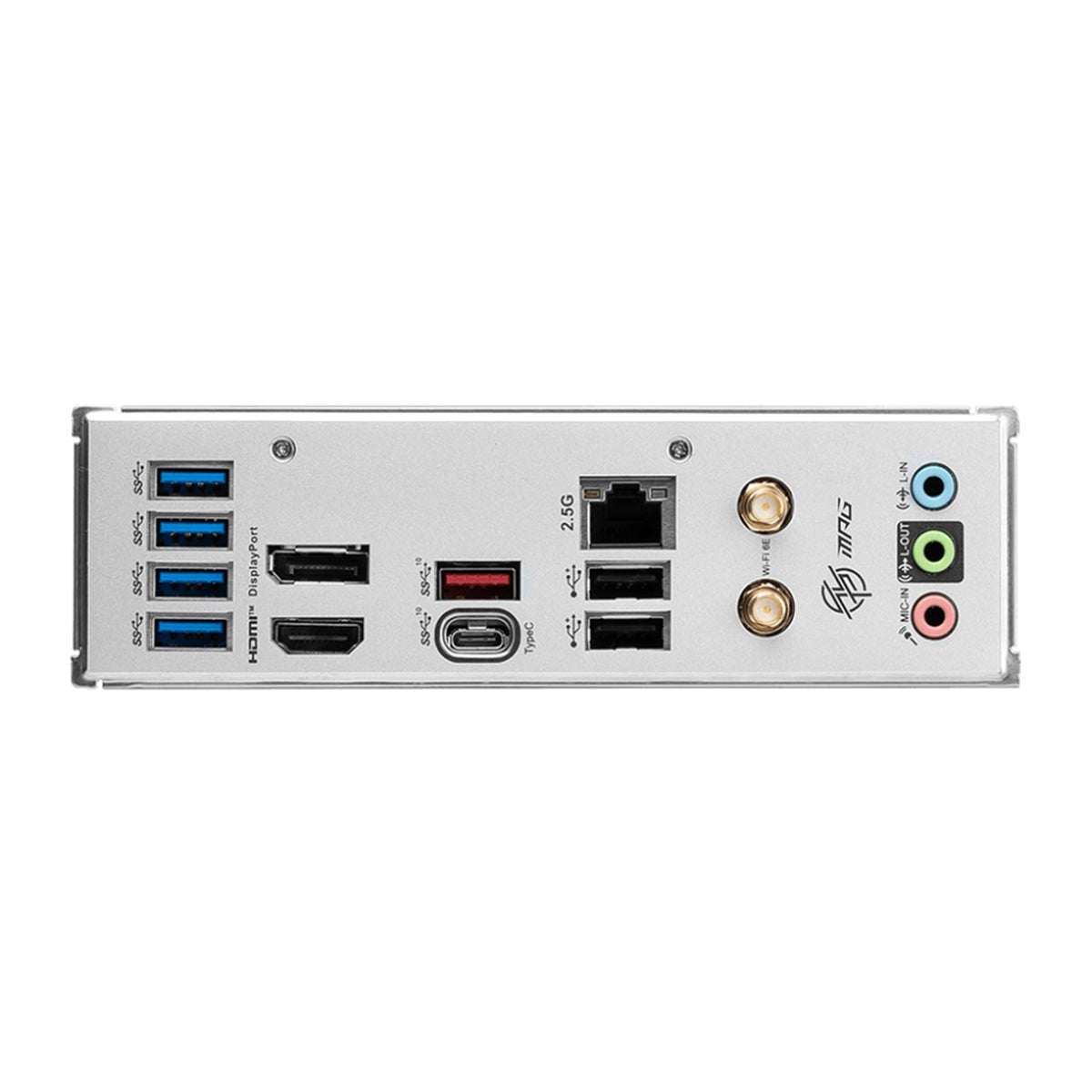

| Back Panel Ports | 1x DisplayPort, 1x HDMI™, Audio Connectors USB: 2x USB 2.0, 4x USB 5Gbps, 1x USB 10Gbps, 1x USB 10Gbps Type-C Wi-Fi / Bluetooth Antenna Ports, 2.5G LAN |
| LED Features | 4x EZ Debug LED |
| OS Support | Windows® 11 64-bit, Windows® 10 64-bit |
