Description
MPG X670E CARBON WIFI
MPG X670E CARBON WIFI employs carbon black color scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.
SPECIFICATIONS
|
CHIPSET |
AMD X670 |
|
CPU |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
|
MEMORY |
4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
ONBOARD GRAPHICS |
1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
SLOT |
3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
MULTI-GPU |
AMD MULTI-GPU Support |
|
STORAGE |
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G |
|
RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
|
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
|
WIRELESS LAN & BLUETOOTH |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
|
AUDIO |
Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
INTERNAL IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
LED FEATURE |
1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
|

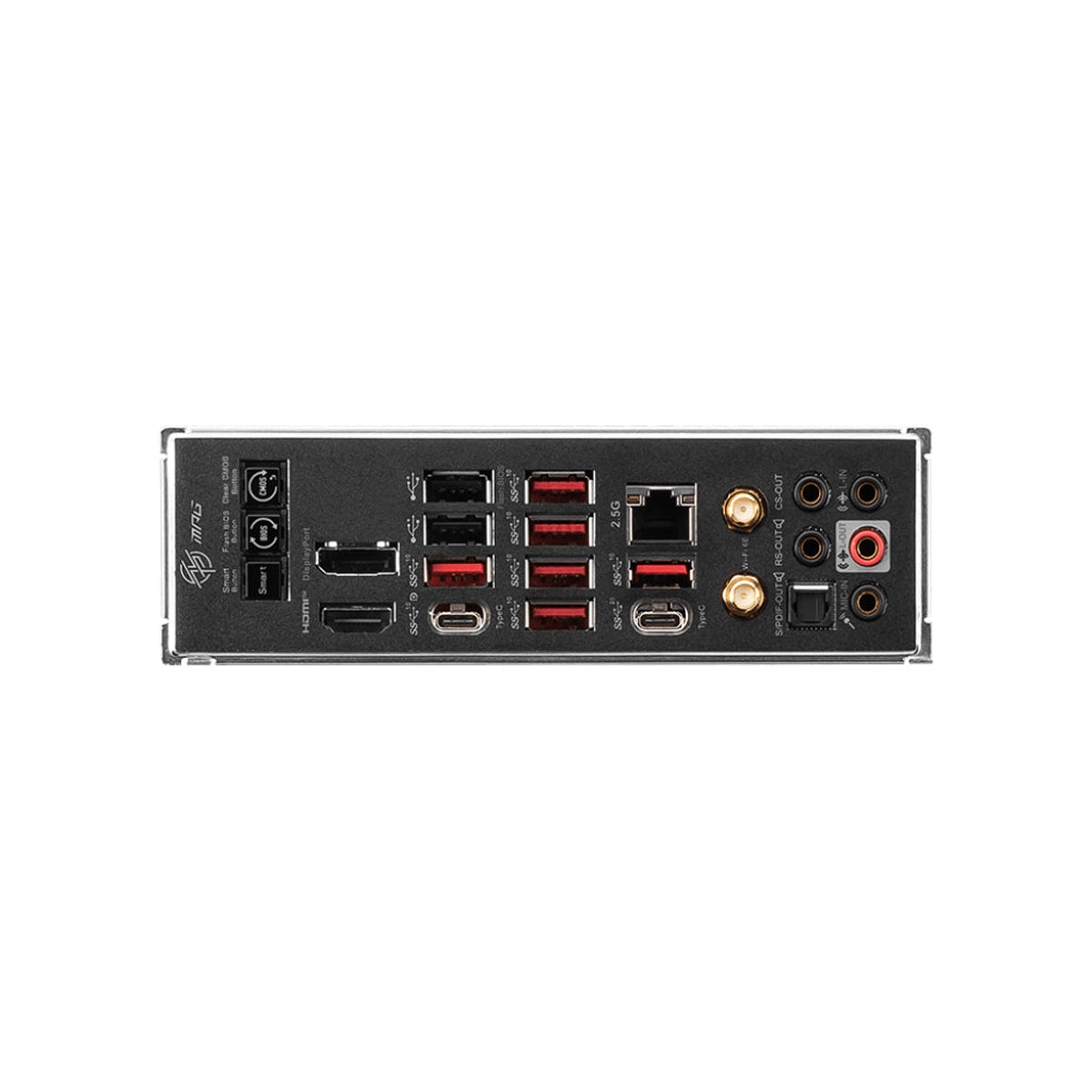

BACK PANEL PORTS |
|
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB INFO |
ATX 304.8mmx243.84mm |
