Description

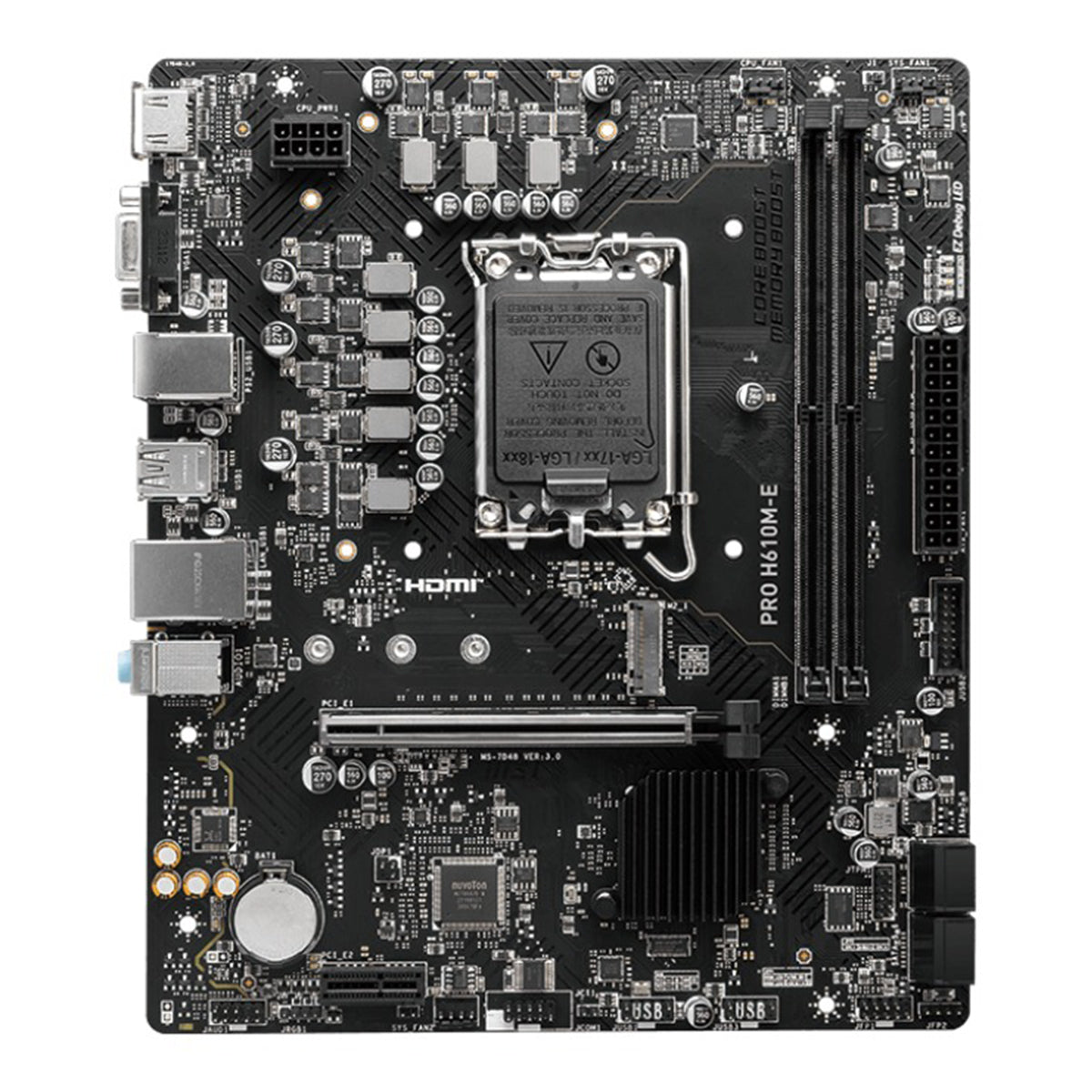

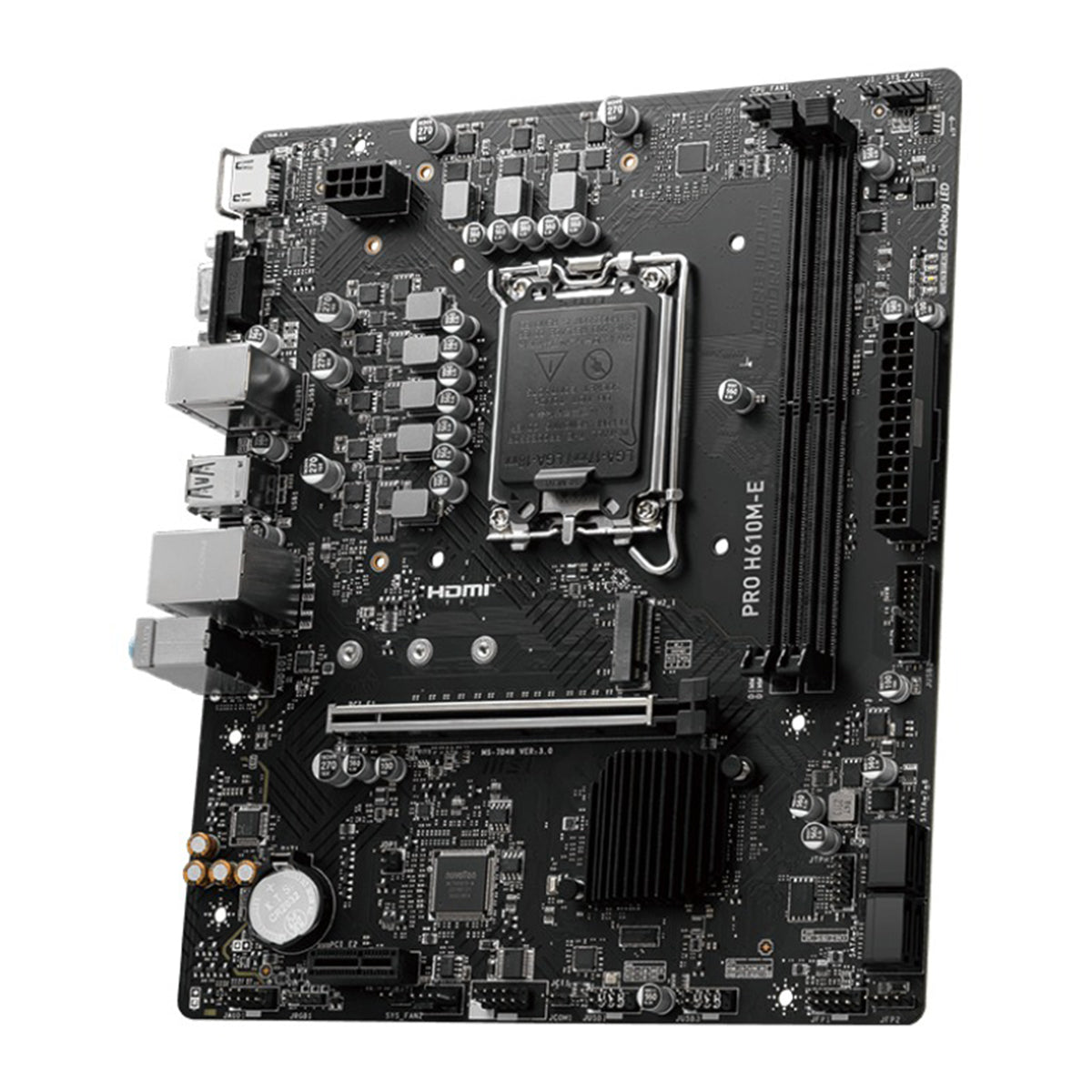

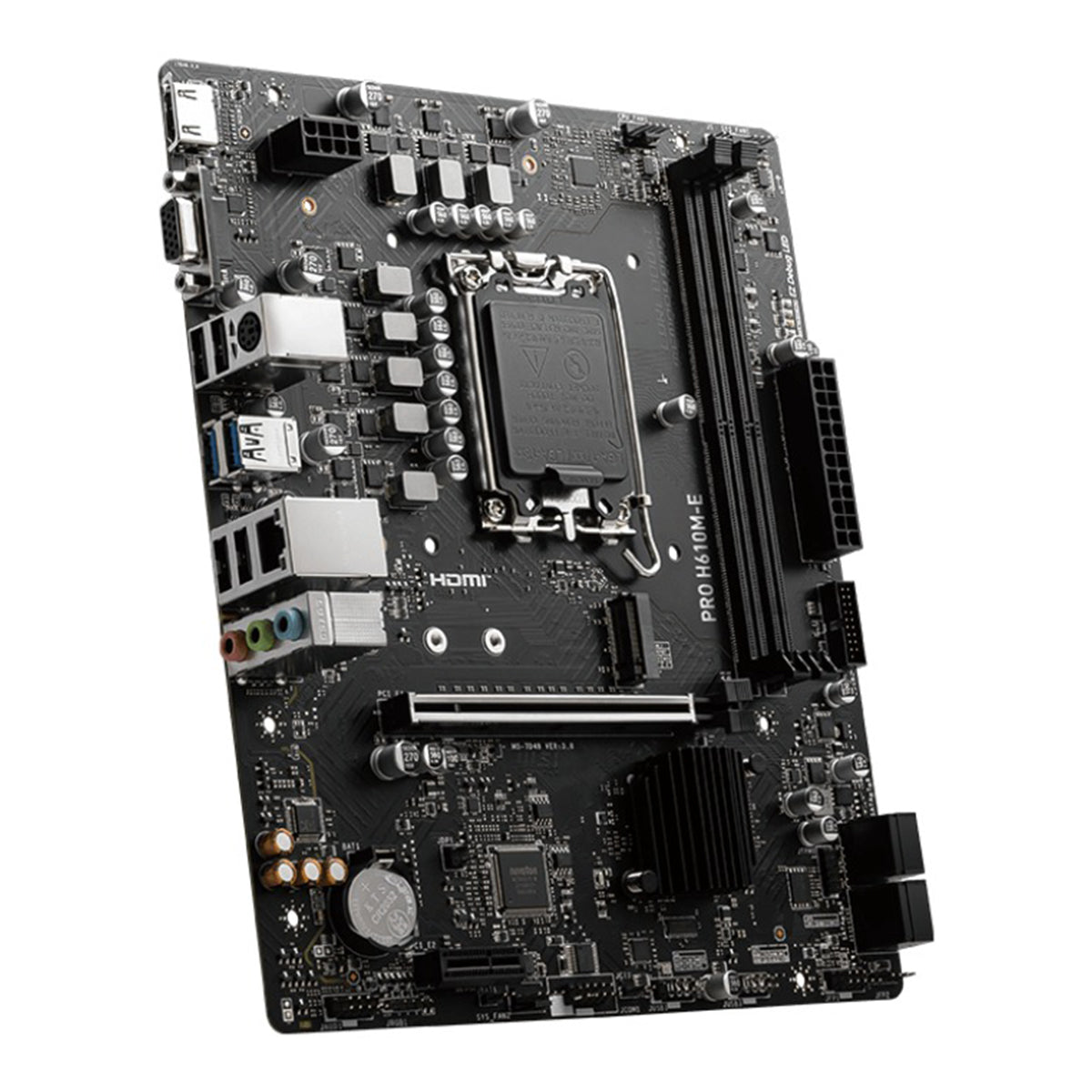

PRO H610M-E
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specifications:
| Chipset | INTEL H610 |
| CPU Support | Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold, Celeron® (LGA 1700) |
| Memory | 2x DDR5, Max 96GB DDR5 5600 MHz (JEDEC & POR) Intel® XMP 3.0 OC Dual-Controller Dual-Channel Non-ECC, un-buffered |
| Onboard Graphics | HDMI™ 1.4 with HDR, up to 4K @ 30Hz* VGA up to 2048x1536 @ 50Hz / 2048x1280 @ 60Hz / 1920x1200 @ 60Hz *Only with CPUs that have integrated graphics |
| Expansion Slots | 1x PCI-E x16 (PCIe 4.0, from CPU) 1x PCI-E x1 (PCIe 3.0, from Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (PCIe 3.0 x4 / SATA, 2280/2260/2242) 4x SATA 6G *SATA5 unavailable when M.2 SATA SSD is installed |
| USB Ports | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A Front: 4x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal I/O | 1x ATX_PWR 1x CPU_PWR 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x RGB LED connector (JRGB) 1x TPM header (TPM 2.0) 4x USB 2.0 2x USB 5Gbps Type-A |
| LED Feature | 4x EZ Debug LED |

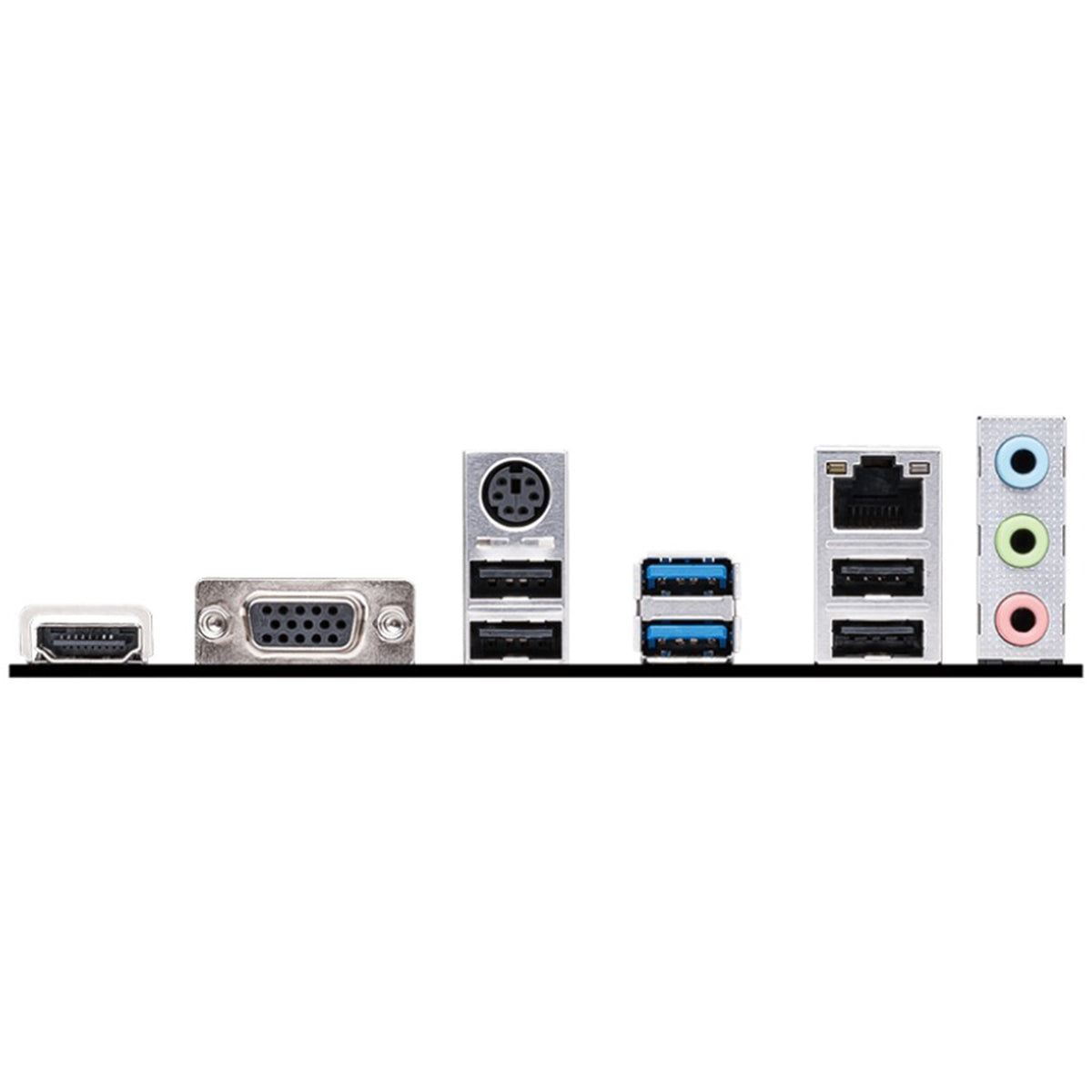

| Back Panel Ports | HDMI™, VGA, Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 x2 |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
