Description

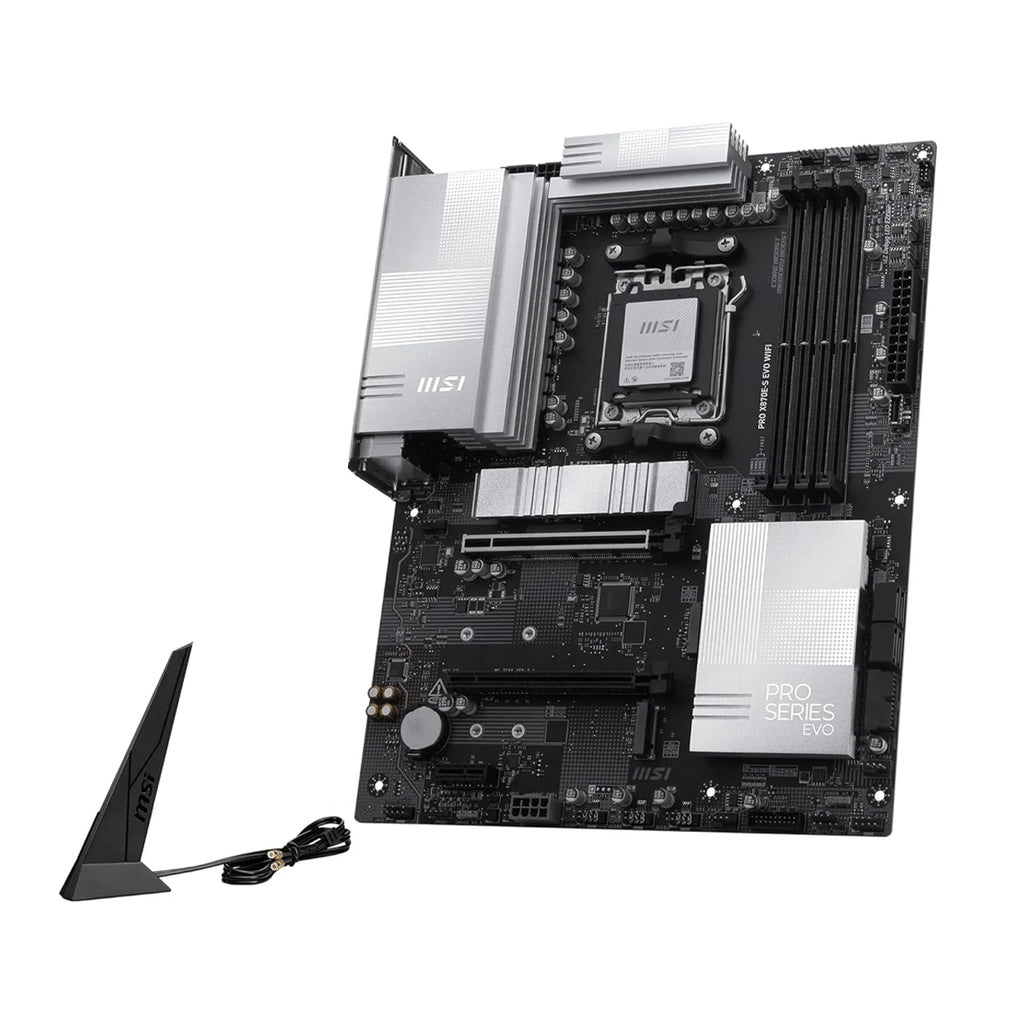

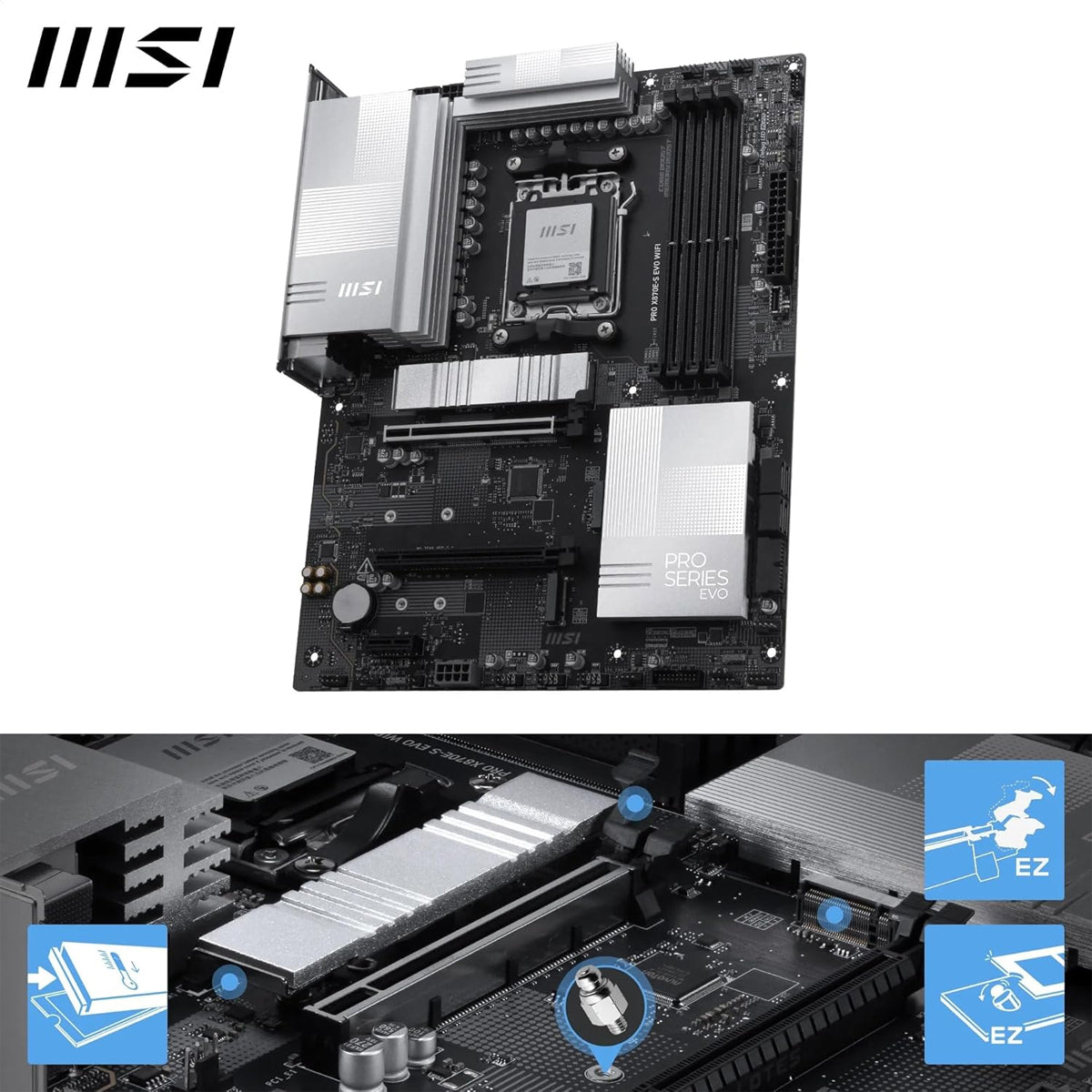

PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4× DDR5 UDIMM, Maximum Memory Capacity: 256GB DDR5 8200–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s Ryzen™ 9000 Series Maximum Overclocking: • 1DPC 1R: Up to 8200+ MT/s • 1DPC 2R: Up to 6400+ MT/s • 2DPC 1R: Up to 6400+ MT/s • 2DPC 2R: Up to 6000+ MT/s Supports AMD POR Speed, JEDEC Speed, AMD EXPO™, Memory Overclocking, Dual-Channel, Non-ECC Un-buffered Memory, and CUDIMM (Clock Driver Bypass Mode Only). * CUDIMM support and boot frequency may vary depending on CPU series. * Single-sided DIMM latch design. * Memory compatibility depends on CPU and memory configuration. |
| Onboard Graphics | 1× HDMI™ 2.1 (TMDS), up to 4K 60Hz* 1× USB4® Type-C with DisplayPort 1.4 (HBR3), up to 4K 120Hz* * Available only with processors featuring integrated graphics. |
| Expansion Slots | 2× PCIe x16 Slots 1× PCIe x1 Slot PCI_E1: PCIe 5.0 x16 (CPU) PCI_E2: PCIe 4.0 x4 (Chipset) PCI_E3: PCIe 3.0 x1 (Chipset) PCI_E1 Supports: • PCIe 5.0 x16 (Ryzen™ 9000 / 7000) • PCIe 4.0 x8 (Ryzen™ 8700 / 8600 / 8400) • PCIe 4.0 x4 (Ryzen™ 8500 / 8300) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |

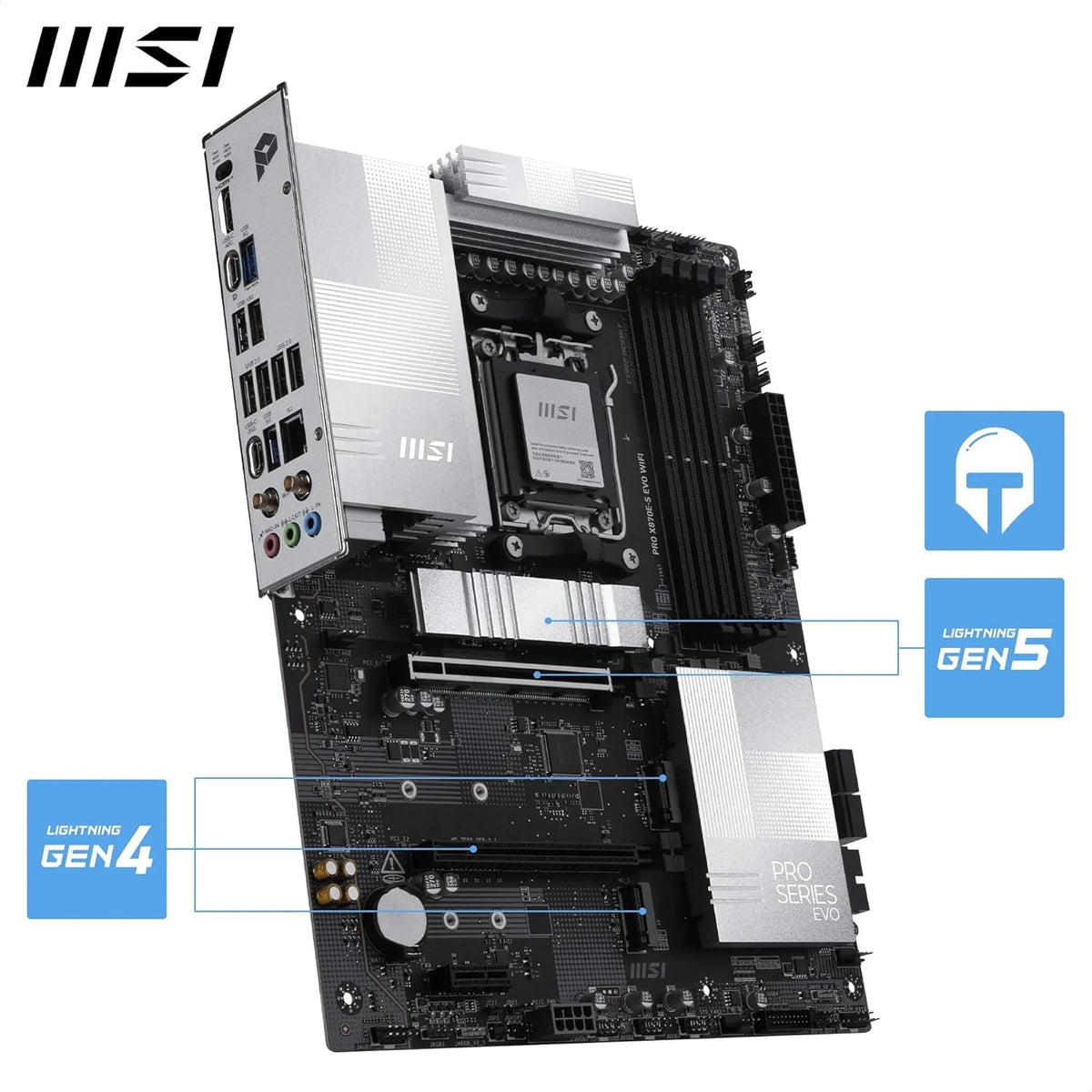

| Storage | 3× M.2 Slots • M.2_1: PCIe 5.0 x4 (CPU), 2280 / 2260 • M.2_2: PCIe 4.0 x4 (Chipset), 22110 / 2280 • M.2_3: PCIe 4.0 x4 (Chipset), 2280 / 2260 4× SATA 6Gb/s M.2_1 supports: • PCIe 5.0 x4 (Ryzen™ 9000 / 7000) • PCIe 4.0 x4 (Ryzen™ 8000) * Refer to the manual for M.2 heatsink restrictions. |
| RAID | SATA: RAID 0 / 1 / 5 / 10 M.2 NVMe: RAID 0 / 1 / 5 * RAID 5 supported only with Ryzen™ 9000 / 7000 Series processors. |
| USB | Rear: • 4× USB 2.0 • 2× USB 5Gbps Type-A • 2× USB 10Gbps Type-A • 1× USB 20Gbps Type-C • 1× USB4 40Gbps Type-C Front: • 6× USB 2.0 • 4× USB 5Gbps Type-A • 1× USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Internal I/O | 1× 24-pin ATX Power 2× 8-pin CPU Power 1× 8-pin PCIe Power 1× CPU Fan 1× Pump/System Fan Combo Header 6× System Fan Headers 2× Front Panel Headers 1× Chassis Intrusion Header 1× Front Audio Header 1× Tuning Controller Header (JDASH) 3× Addressable RGB Gen2 Headers (JARGB_V2) 1× RGB Header (JRGB) 1× TPM Header (TPM 2.0) 6× USB 2.0 Ports (Front) 4× USB 5Gbps Type-A Ports (Front) 1× USB 10Gbps Type-C Port (Front) |
| Wireless & Bluetooth | Wi-Fi 7 (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz (160MHz) Up to 2.9Gbps Supports 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4, MLO, 4KQAM * 6GHz and Bluetooth 5.4 availability depends on regional regulations and Windows 11 version 24H2. |
| LED Features | 4× EZ Debug LEDs 1× EZ Memory Detection LED |

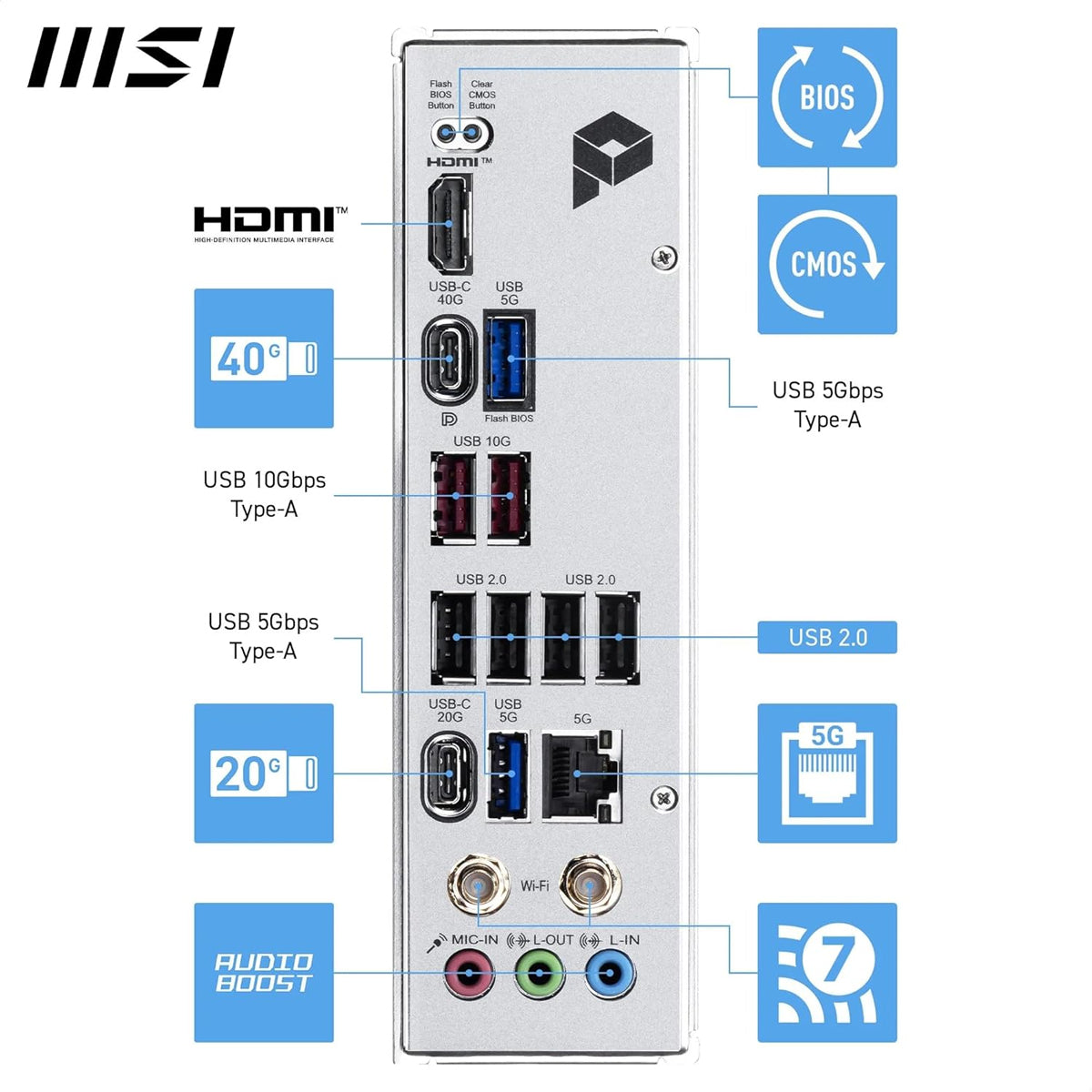

| Back Panel Ports | Clear CMOS Button Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 20Gbps Type-C USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Port Wi-Fi / Bluetooth Antenna Connectors Audio Connectors |
| Operating System | Supports Windows® 11 64-bit |
