Description

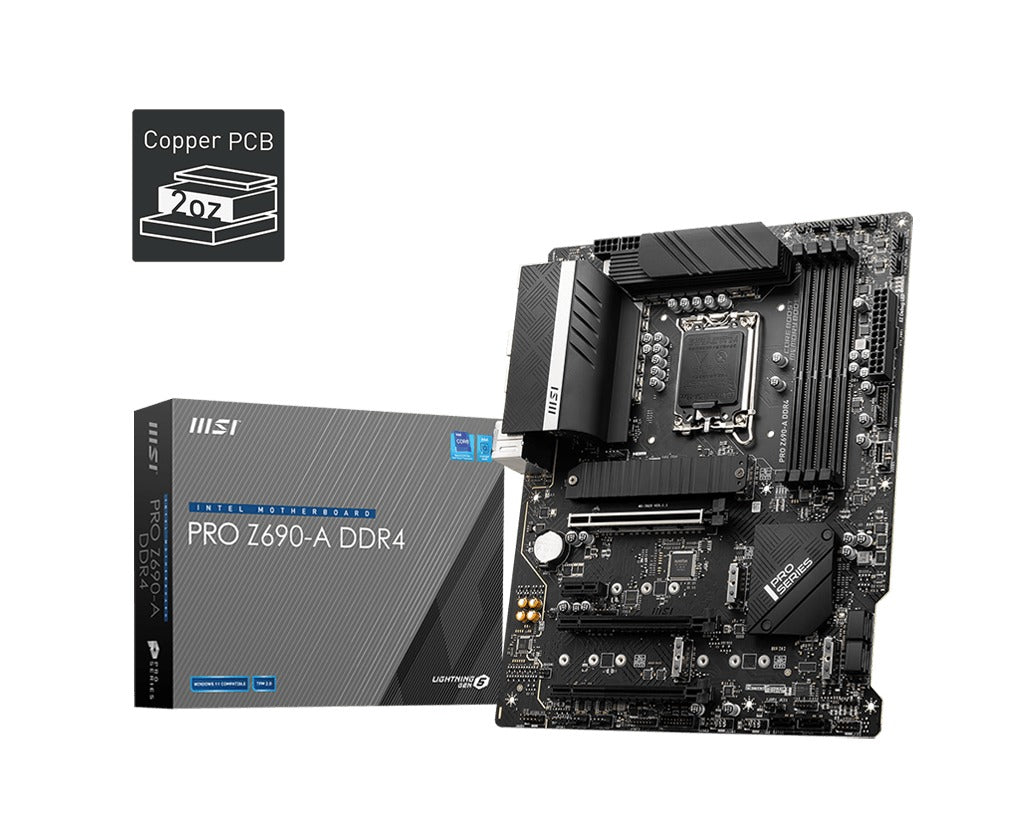

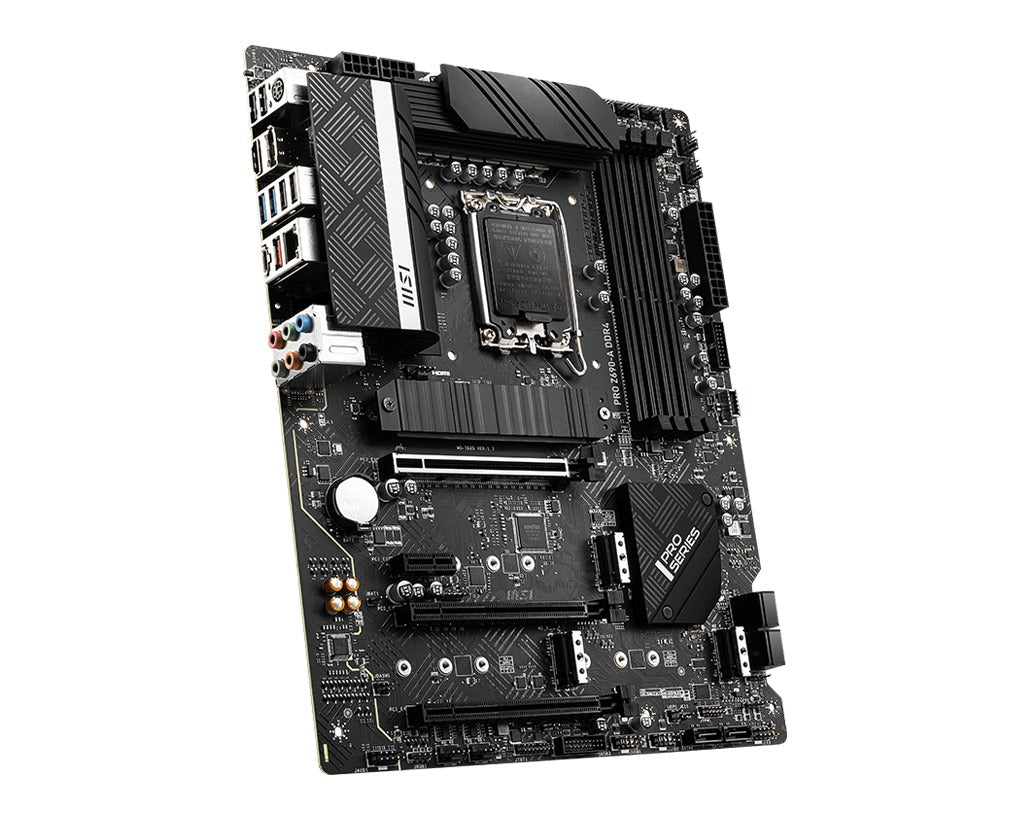

PRO Z690-A DDR4
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
SPECIFICATIONS:
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |

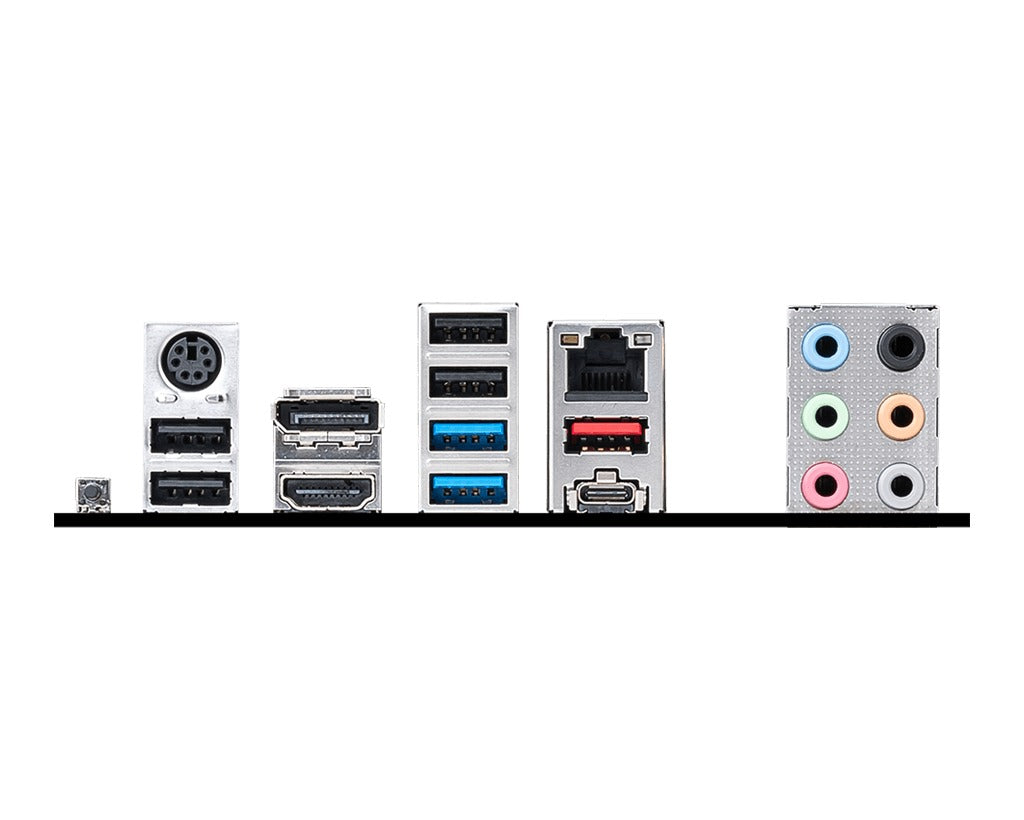

| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 4(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | Realtek® ALC897/ALC892 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
