Description
- Award-winning NH-D15 cooler: more than 200 awards and recommendations from international hardware websites and magazines
- Dedicated special edition for the AMD AM4 socket
- State-of-the-art dual-tower design with 6 heatpipes provides excellent cooling performance for overclocking or near-silent systems
- Two quiet, premium-grade NF-A15 140mm fans with PWM for automatic speed control
Award-winning NH-D15 cooler
Dedicated special edition for AM4/AM5

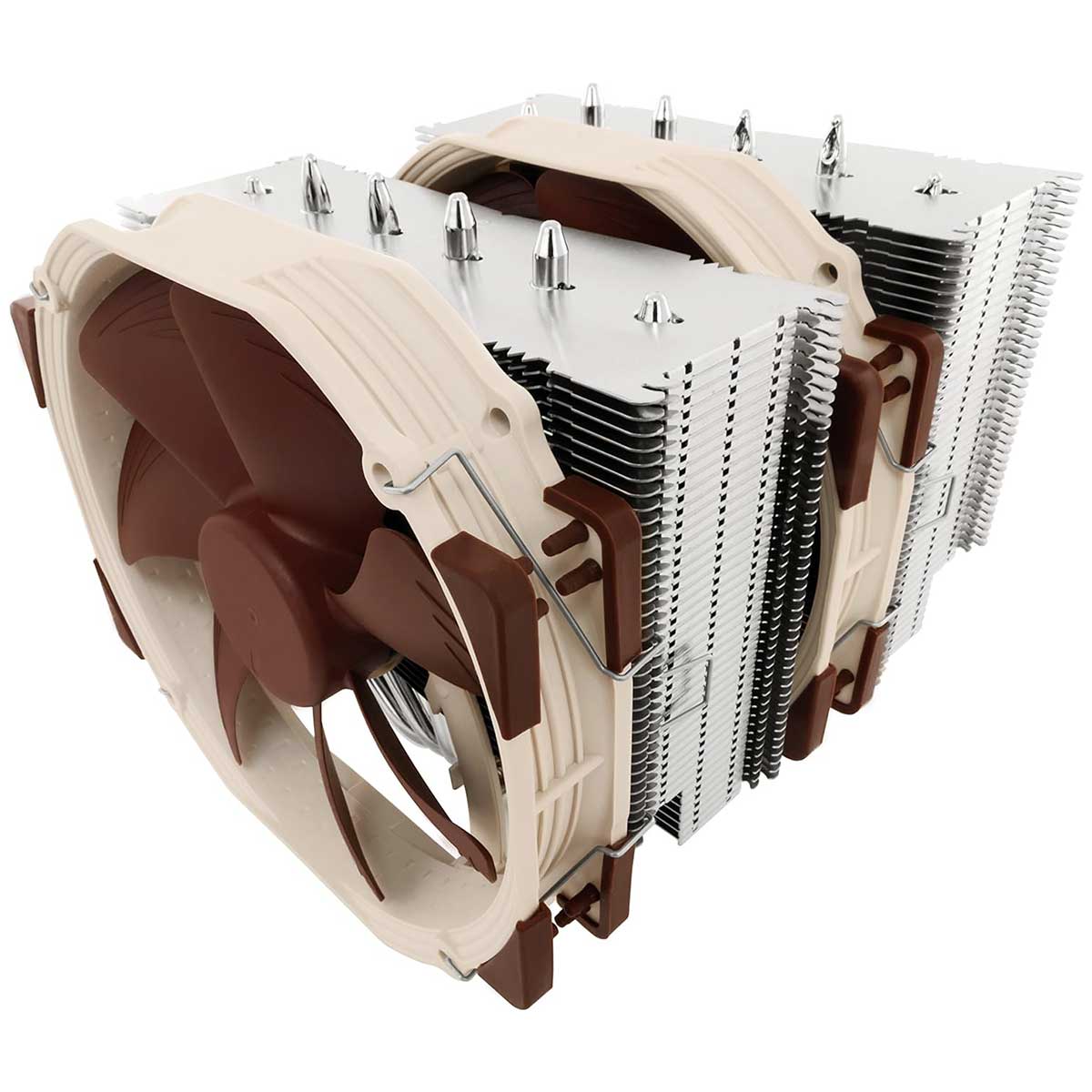

6 heatpipe dual tower design
Widened fin stack and expanded heatpipe layout
High RAM compatibility in single fan mode
Dual NF-A15 140mm fans
PWM support and Low-Noise Adaptors
Excellent component cooling
SecuFirm2™ mounting system for AM4/AM5
NT-H1 thermal compound
SPECIFICATION
Cooler Specification | |
Height (without fan) | 160 mm |
Width (without fan) | 150 mm |
Depth (without fan) | 135 mm |
Height (with fan) | 165 mm |
Width (with fan) | 150 mm |
Depth (with fan) | 161 mm |
Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR | 183 |
Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |

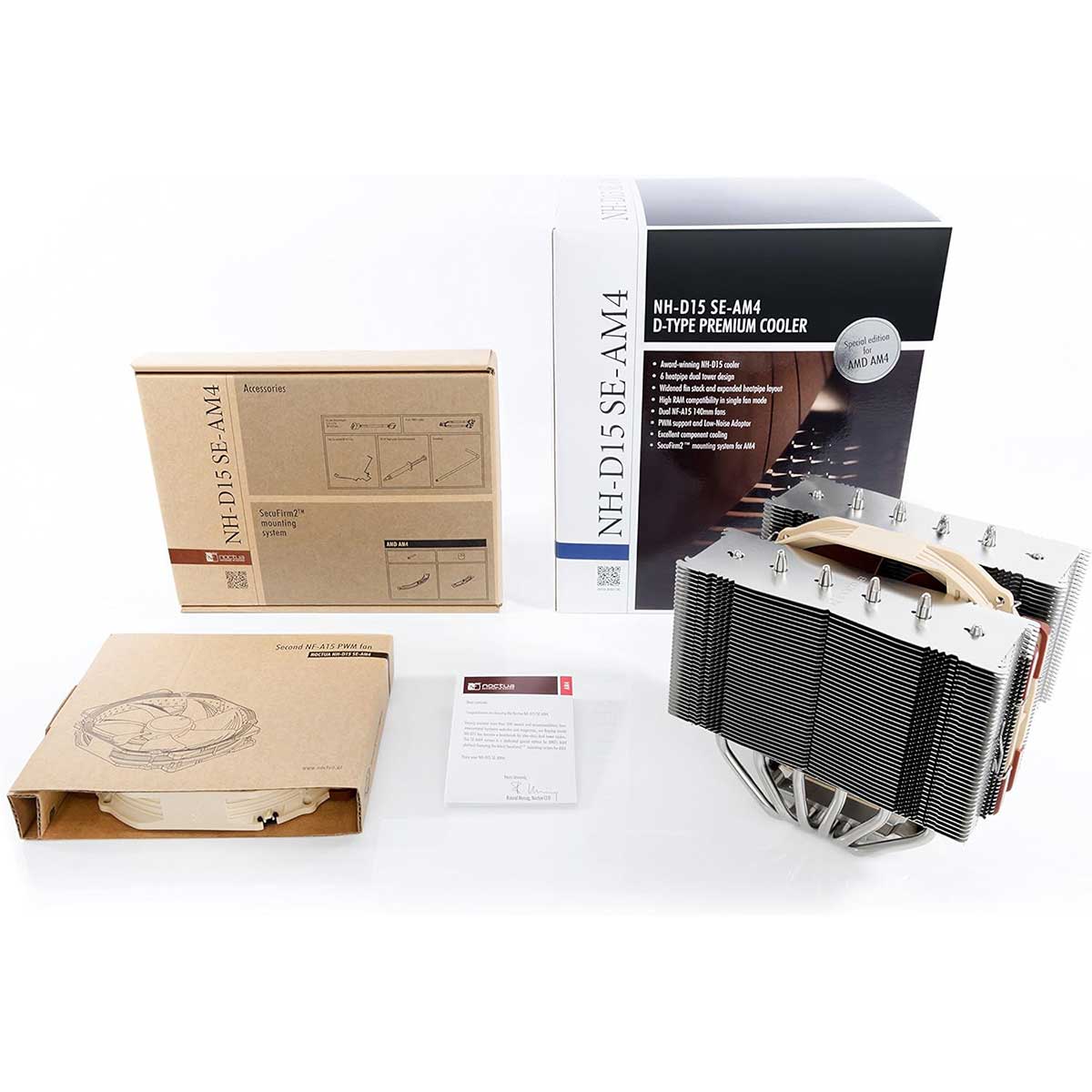

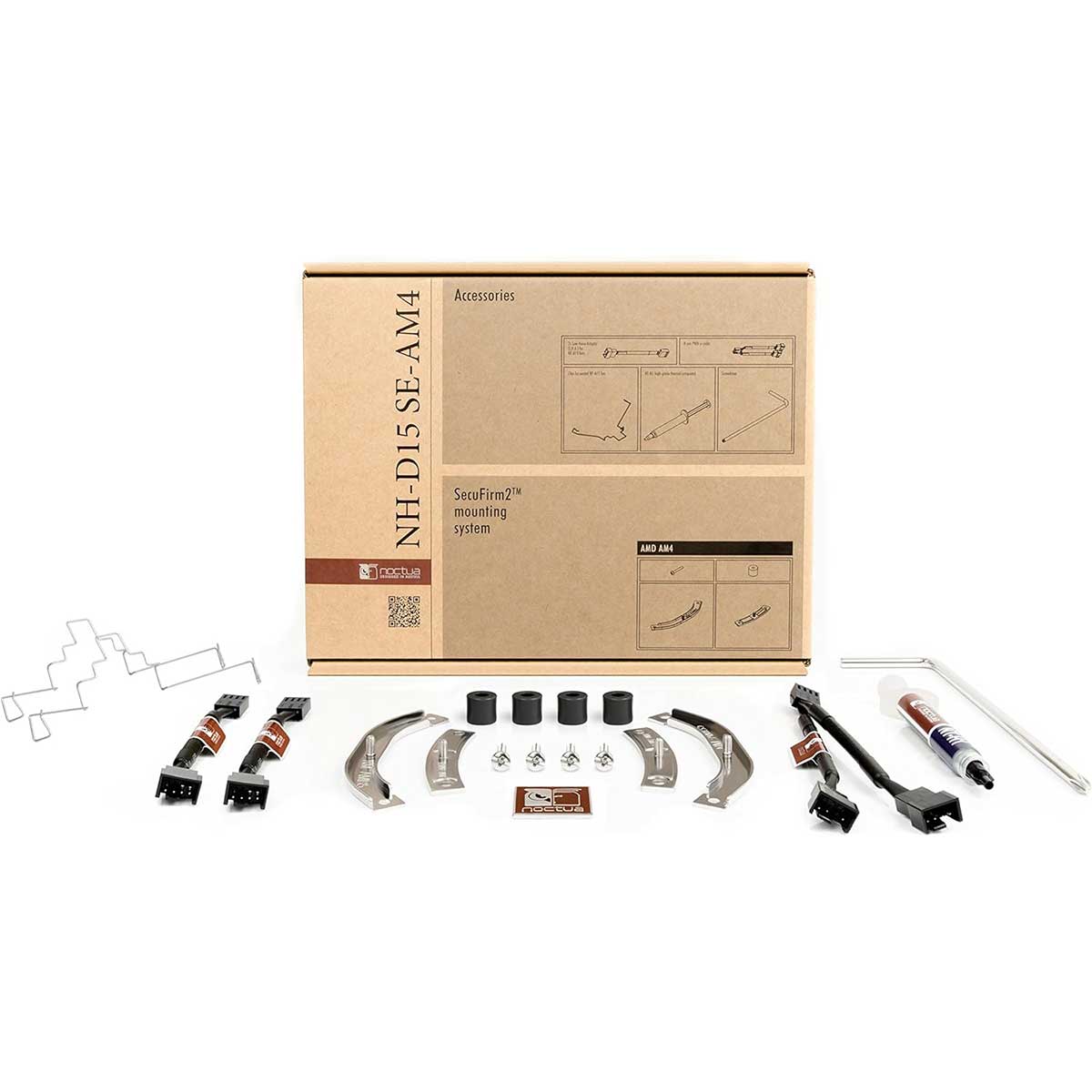

Scope of delivery | 2x NF-A15 PWM premium fan |
2x Low-Noise Adaptor (L.N.A.) | |
4-pin PWM y-cable | |
NT-H1 high-grade thermal compound | |
SecuFirm2 AM4/AM5 mounting-kit | |
Noctua metal case-badge | |
FAN Specification | |
Model | Noctua NF-A15 |
Max. rotational speed (+/- 10%) | 1500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
Min. rotational speed @ 20% PWM (+/-20%) | 300 RPM |
Max. airflow | 140,2m/h |
Max. airflow with L.N.A. | 115,5 m/h |
Max. acoustical noise | 24,6 dB(A) |
Max. acoustical noise with L.N.A. | 19,2 dB(A) |
Input power (max.) | 1,56 W |
Voltage range | 12 V |
MTTF | > 150.000 h |
