Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
- 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
- Built and tested with the strictest standards for trouble-free installation and operation
- 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
- Zero Fan Mode stops the fan when under light loads to reduce system noise

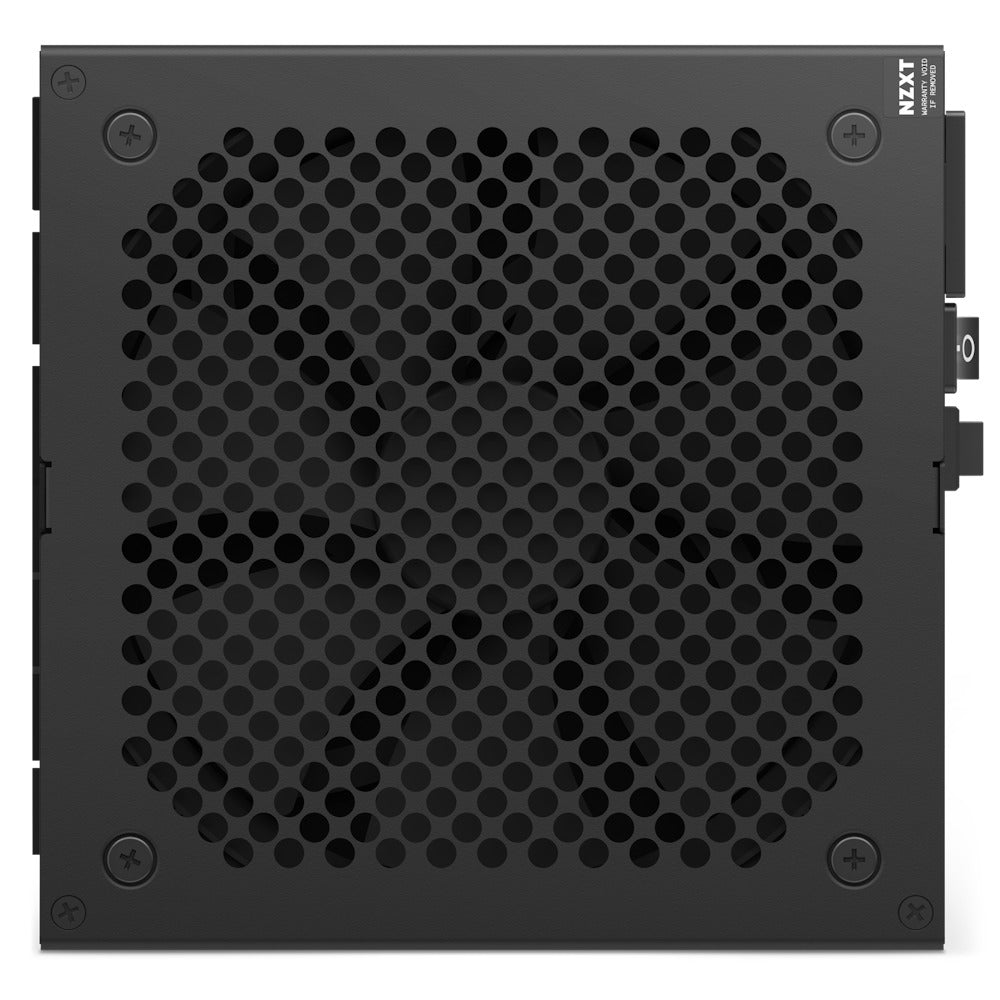

- 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
- Constructed with high-quality Japanese 105°C capacitors
Next-Gen Power
Future-Proof Design
High-Quality Components
Single Cable Connection
Elite Efficiency
Silent Operation
Tech Specs

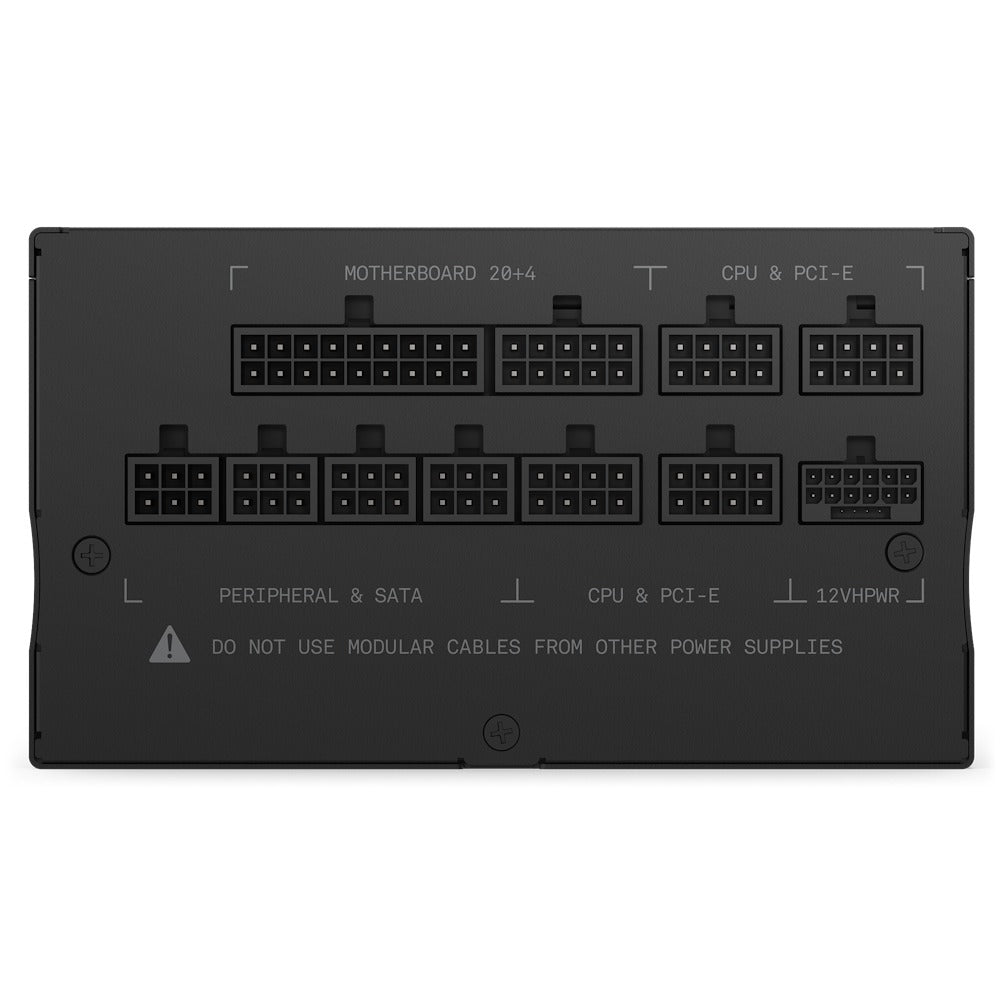

OUTPUT CONNECTORS
-
24-pin ATX power:1
-
4+4-pin CPU power:1
-
8-pin CPU Cable :1
-
6+2-pin PCIe power :2
-
16-pin (12+4) 12VHPWR PCIe Cable:1
-
SATA power :8
-
Peripherals :4
FAN SPECS
-
Dimensions:135 x 135 x 25 mm
-
Speed:0-2300 ± 10% RPM
-
Airflow:93.02 CFM (Tpy.)
-
Noise:44.5 dBA max
-
Bearing:Fluid Dynamic Bearing (FDB)
GENERAL
-
Dimensions:150 x 150 x 86mm
-
Material(s):Steel, PCB and Plastic
-
Compliance Standard:ATX12V v3.0 / EPS12V v2.92
-
Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
CABLE SPECS
-
24-pin ATX power:600 mm, Nylon sleeving
-
4+4-pin CPU power:700 mm, Nylon sleeving
-
8-Pin CPU Power Cable:700mm, Nylon sleeving
-
6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
-
16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving
-
SATA power:500 + 150 mm
-
Peripherals:500 + 150 mm
AC INPUT RATING
-
100 - 240Vac:14A-7A 50Hz-60Hz
DC OUTPUT RATING
-
+3.3V and +5V:22A (120W)
-
+12V:100A (1200W)
-
-12V:0.3A (3.6W)
-
5Vsb:3A (15W)
-
Total:1200W
OPERATION
-
PF Correction:Active @0.96
-
MTBF:100,000 hours
-
Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
ENERGY EFFICIENCY
-
Rating:80 Plus Gold
-
20% loading:90.97% @115Vac
-
50% loading:91.55% @115Vac
-
100% loading:88.51% @115Vac
