Description
The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.
• 140mm AIO liquid cooling
• NZXT CAM enabled fan controller
• SFX 750W Gold PSU included
• Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards
• Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance.
• PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission
Specifications:
| Key Specs | Motherboard Support:Mini-ITX Case Material:SGCC Steel, Tempered Glass |
| Dimensions | Height:405 mm / 15.9 inches Width:196 mm / 7.7 inches Depth:196 mm / 7.7 inches Weight:7.6 kg / 16.7 lb |
| Compatibility & Clearance | Max GPU Clearance:324mm Max GPU Thickness:58mm Memory Height:46mm |

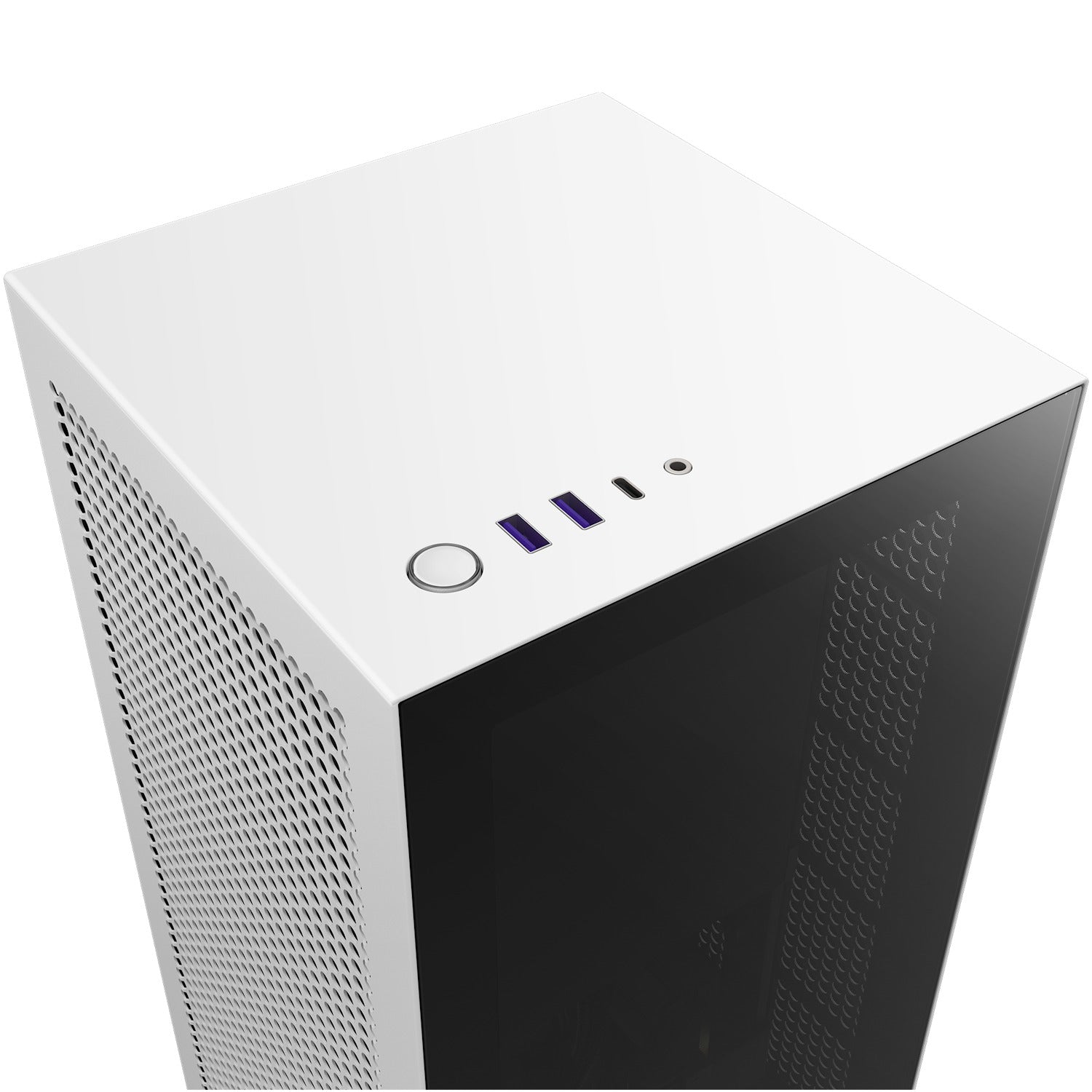

| Front I/O Ports | USB 3.2 Gen 1 Type-A:2 USB 3.2 Gen 2 Type-C:1 Headset Audio Jack:1 |
| Expansion Slots | Standard:2 |
| Drive Bays | 2.5":2 3.5":- |
| Compatible Socket & CPU | Intel: Socket LGA 1700, 1200/115X AMD:AMD Socket AM5, AM4 |
| Radiator | Dimensions:139 x 174 x 28 mm Material: Aluminum |
| Pump | Dimensions (D x H):65 x 26 mm Motor Speed:4200 ± 10%RPM Power:12V DC, 0.35A |
| Fan Controller | Channel:2 Controller Method:PWM Input:12V DC Output:12V DC |
| Fan Specs | Model:Aer P140mm PWM fan Quantity:1 Speed:500 - 1,800 ± 300RPM Airflow:27.27 - 98.17 CFM Static Pressure:0.21 - 2.71 mm-H₂O Noise:21 - 38 dBA Fan Connector:4-pin |
| Inside the Box | H1 Case1 140mm AIO Liquid Cooler1 SFX 750W 80 Plus Gold Power Supply1 Aer P140mm Fan1 92mm PWM Fan1 PCIe x16 Gen4 Compatible High-Speed Riser Card1 Installation Accessories1 Manual |
