Description

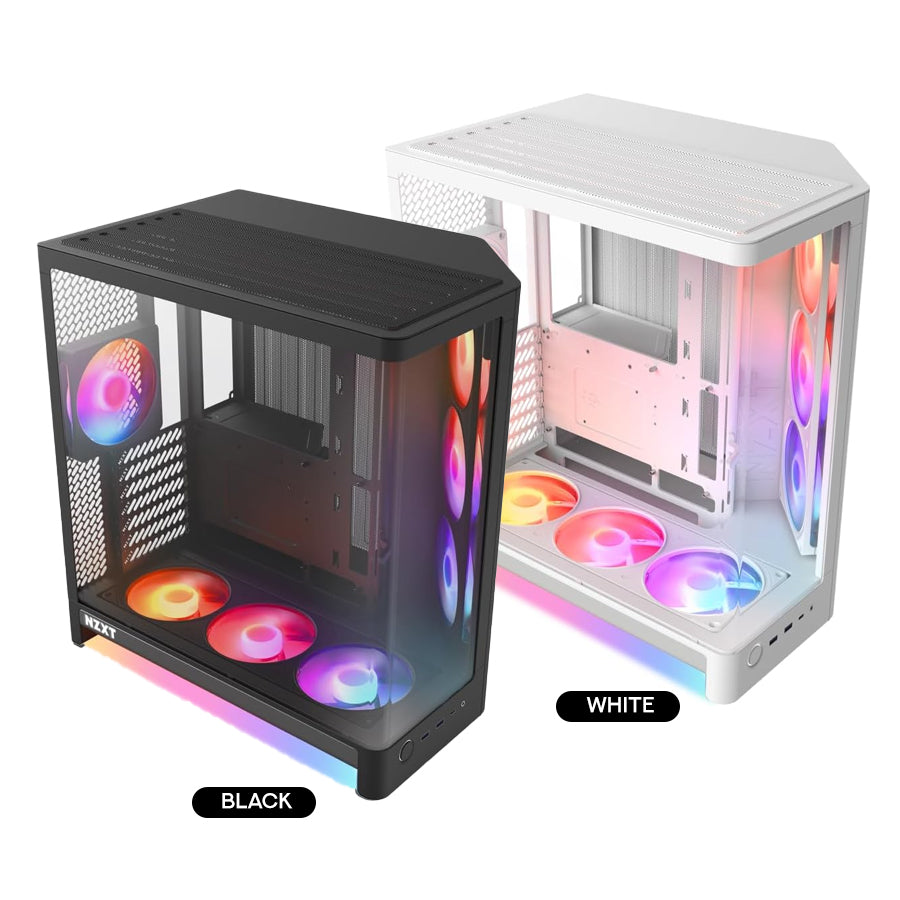

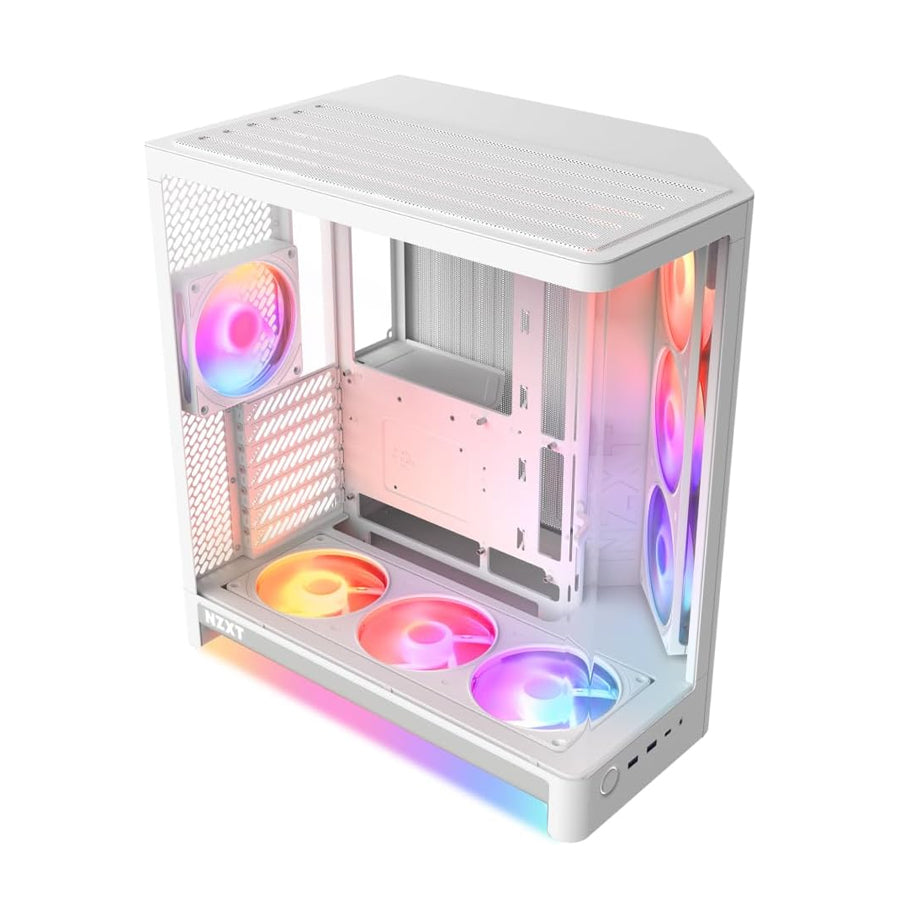

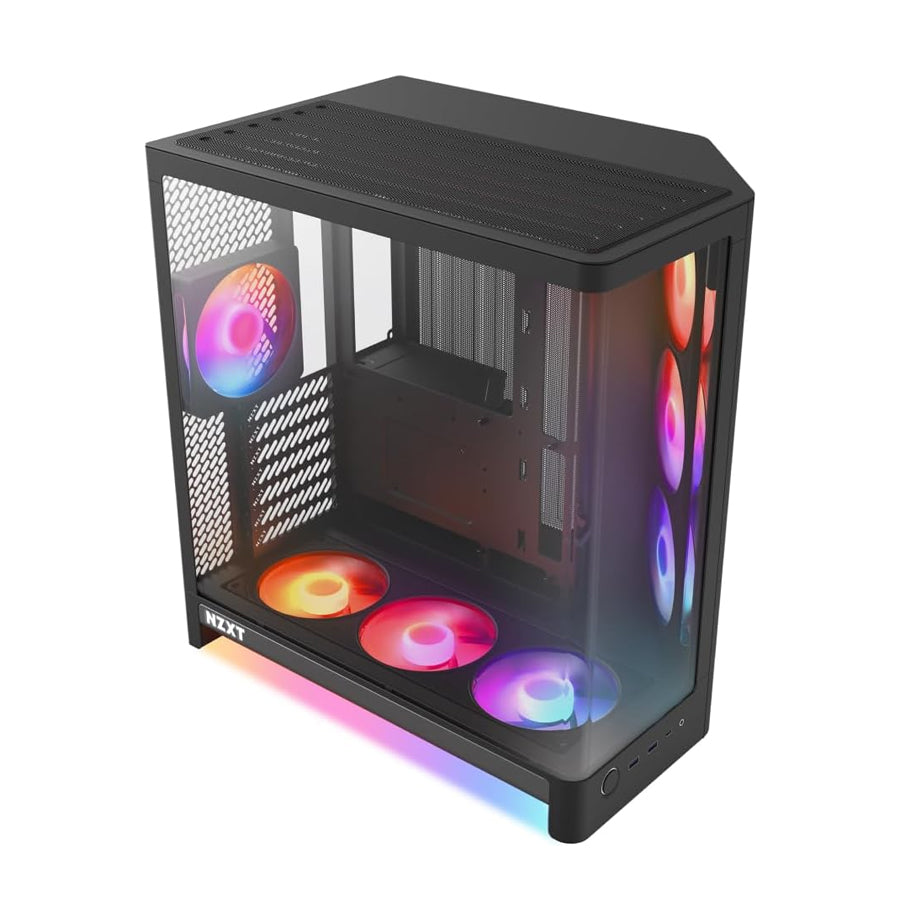

The H6 is a compact mid-tower PC case built for builders who want a seamless blend of performance and design. Its dual-chamber layout, redesigned high-airflow mesh, and angled front-right fans deliver targeted, powerful cooling, while one piece of tempered glass — bent to a tight radius for minimal distortion — puts your build on full display. Support for up to 10 x 120 mm fans, radiators up to 360 mm, a built-in GPU anti-sag bracket, and back-connect motherboard compatibility make the H6 fully equipped for modern, high-performance builds. Available as the H6 (no fans included) or the H6 RGB+ (pre-installed F360 RGB Reverse intake fans, F120 RGB exhaust, and Control Hub Lite).
- Compact 55 L dual-chamber ATX mid-tower
- One-piece curved tempered glass — tight bend radius, minimal distortion
- High-airflow mesh across top, front-right, and right panels
- Support for up to 10 x 120 mm fans
- Radiator support up to 360 mm at the top
- Built-in GPU anti-sag bracket
- Back-connect motherboard compatibility (BTF, Project Zero, Project Stealth)
- Tool-less side panels and smart cable routing
- H6 RGB+ ships with pre-installed RGB fans and Control Hub Lite
| Enclosure Type | Dual-chamber ATX case |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Back-Connect Motherboard Support | Yes (ATX) |
| Power Supply Type | ATX |
| Materials | Steel, tempered glass |
| Dimensions (H x W x D) | 448 x 292 x 420 mm (17.6 x 11.5 x 16.5 in) |
| Volume | 55 L |
| Weight | 7.94 kg (17.5 lb) |
| CPU Cooler Height | Up to 165 mm (6.5 in) |
| GPU Length | Up to 390 mm (with 30 mm front-right fan) |
| PSU Length | Up to 200 mm (7.9 in) |
| Cable Routing Space | Up to 90 mm (3.5 in) |
| Front-Right Fan Thickness | Up to 30 mm (without limiting GPU length) |
| Top Radiator + Fan Thickness | Up to 67 mm (2.6 in) |
| USB 3.2 Type-A | 2 |
| USB 3.2 Gen 2x2 Type-C | 1 |
| Headset Jack | 1 |
| Expansion Slots | 7 |
| 2.5" Drive Bays | 2 |
| 3.5" Drive Bays | 1 |
| Front-Right Fans | 3 x 120 mm |
| Top Fans | 3 x 120 mm |
| Bottom Fans | 3 x 120 mm |
| Rear Fan | 1 x 120 mm |
| Top Radiator | Up to 360 mm (Up to 400 mm) |
| Rear Radiator | Up to 120 mm |
| Fixed Velcro Straps | Yes |
| Included Zip Ties | Yes |
| Fan Model | F360 RGB Reverse / F120 RGB |
| Fan Quantity | 2 / 1 |
| Fan Speed | 2,200 ± 220 RPM / 2,400 ± 240 RPM |
| Airflow | 62.14 CFM / 70.67 CFM |
| Static Pressure | 2.7 mmH₂O / 3.7 mmH₂O |
| Noise Level | 34.39 dBA / 33.05 dBA |
| Fan Connector | 8-pin (4-pin PWM and NZXT RGB combo) / 4-pin |
| Fan Channels | 2 x NZXT 8-pin (PWM only) / 1 x 4-pin PWM (DC+PWM control) |
| RGB Channels | 2 x NZXT 8-pin / 1 x NZXT RGB |
| Max LED Support | Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to 5 NZXT devices. |
| System Requirements | USB 2.0 Internal Header / SATA Power |
