Description
H7 Elite (2022)

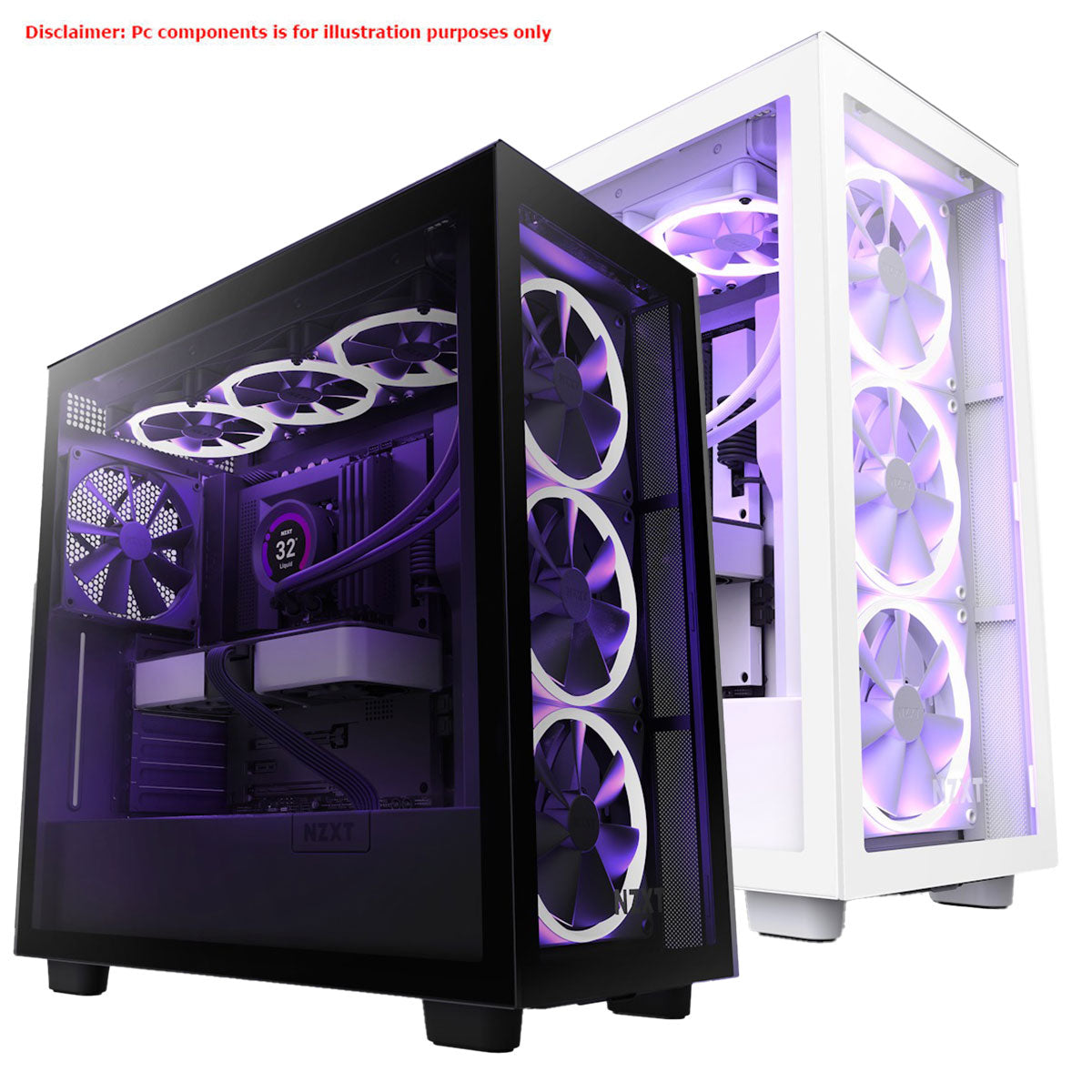

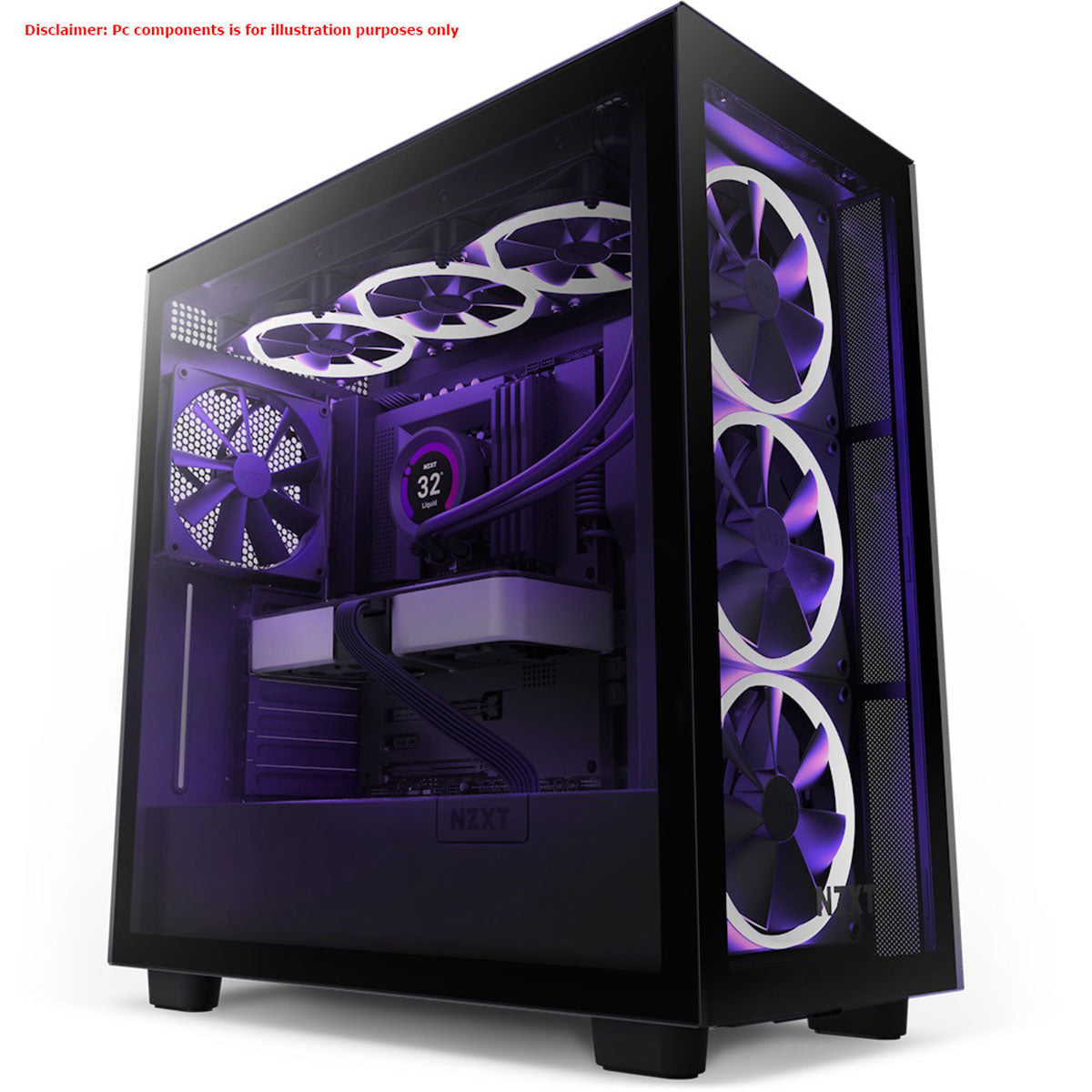

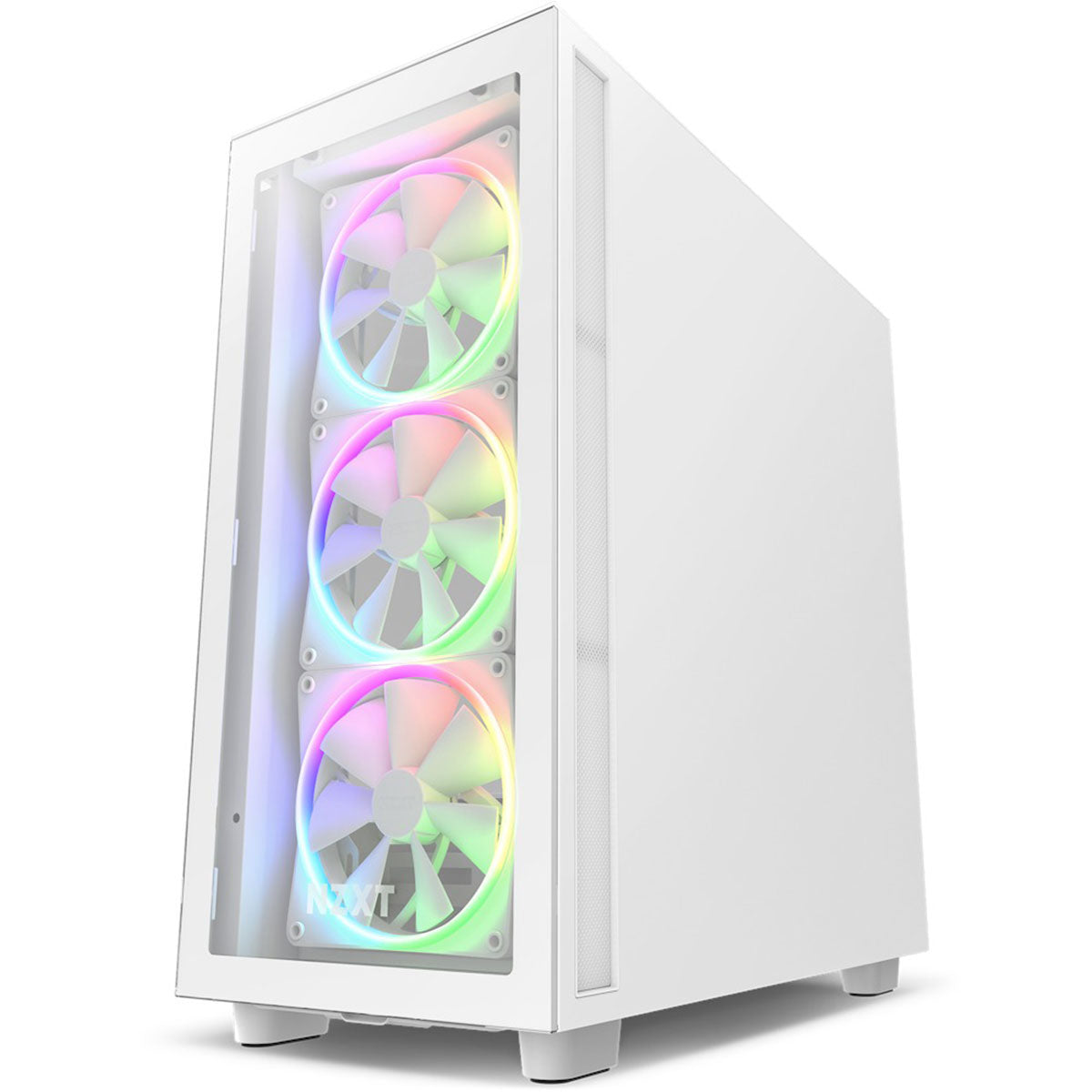

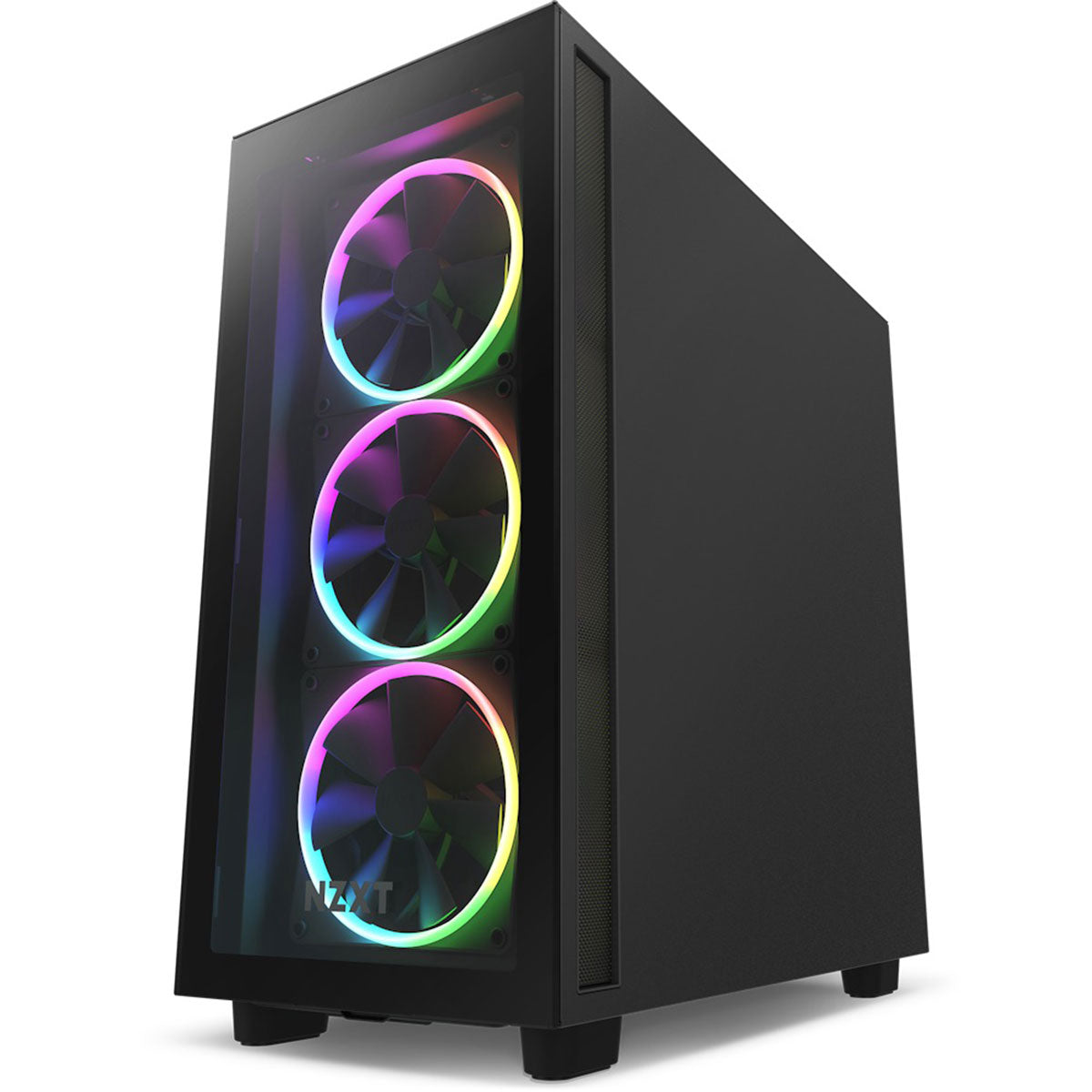

This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel

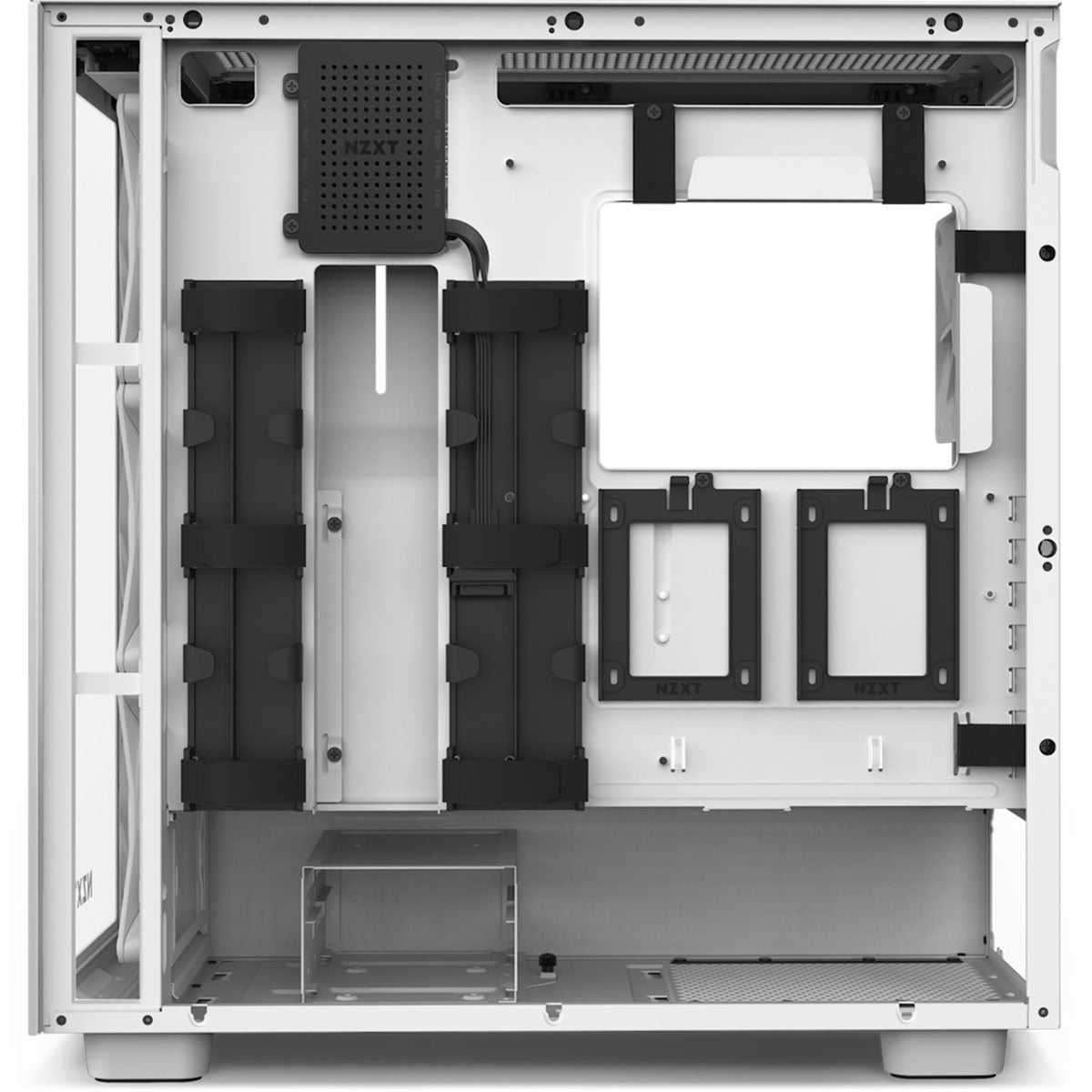

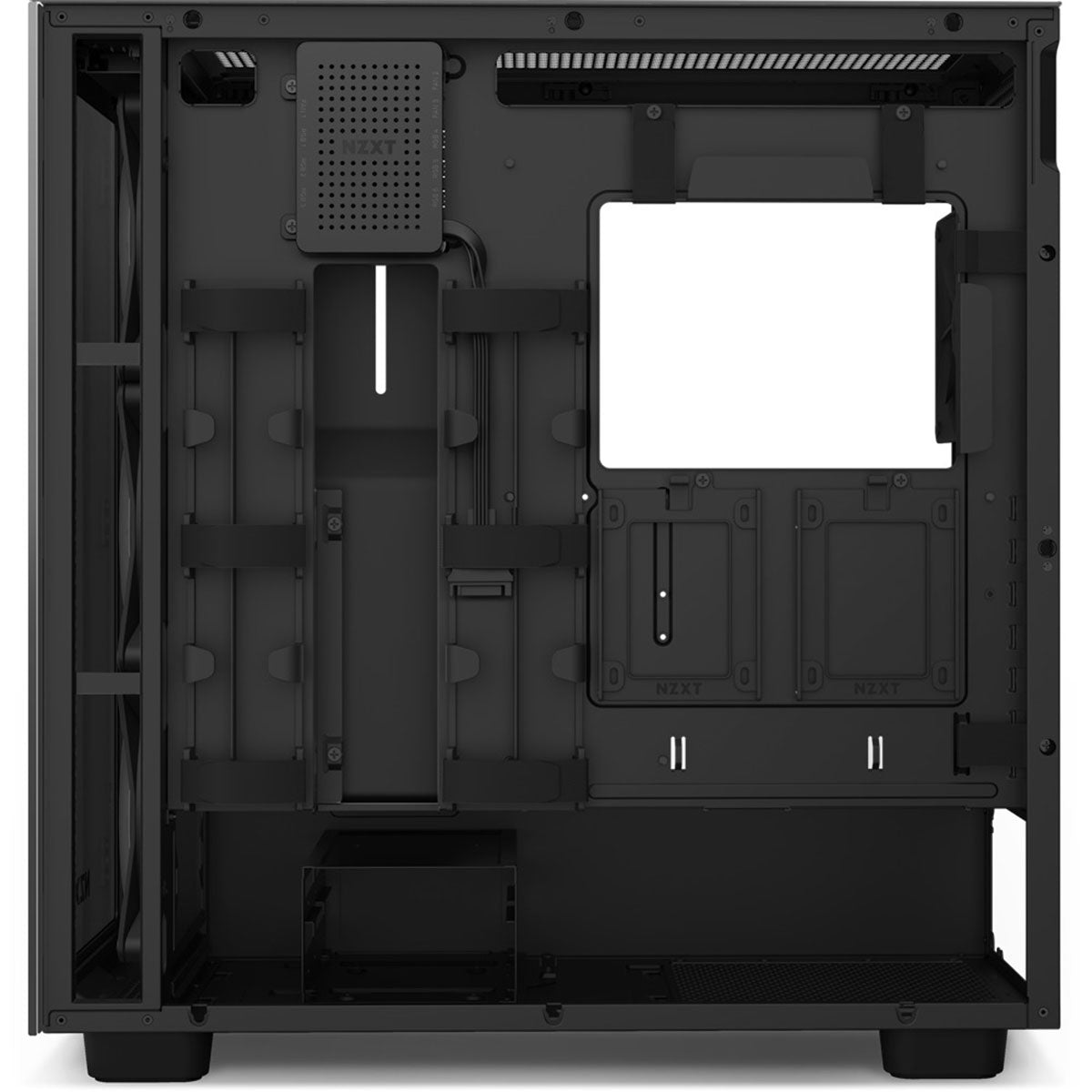

- Intuitive cable management system with wide channels, hooks, & straps

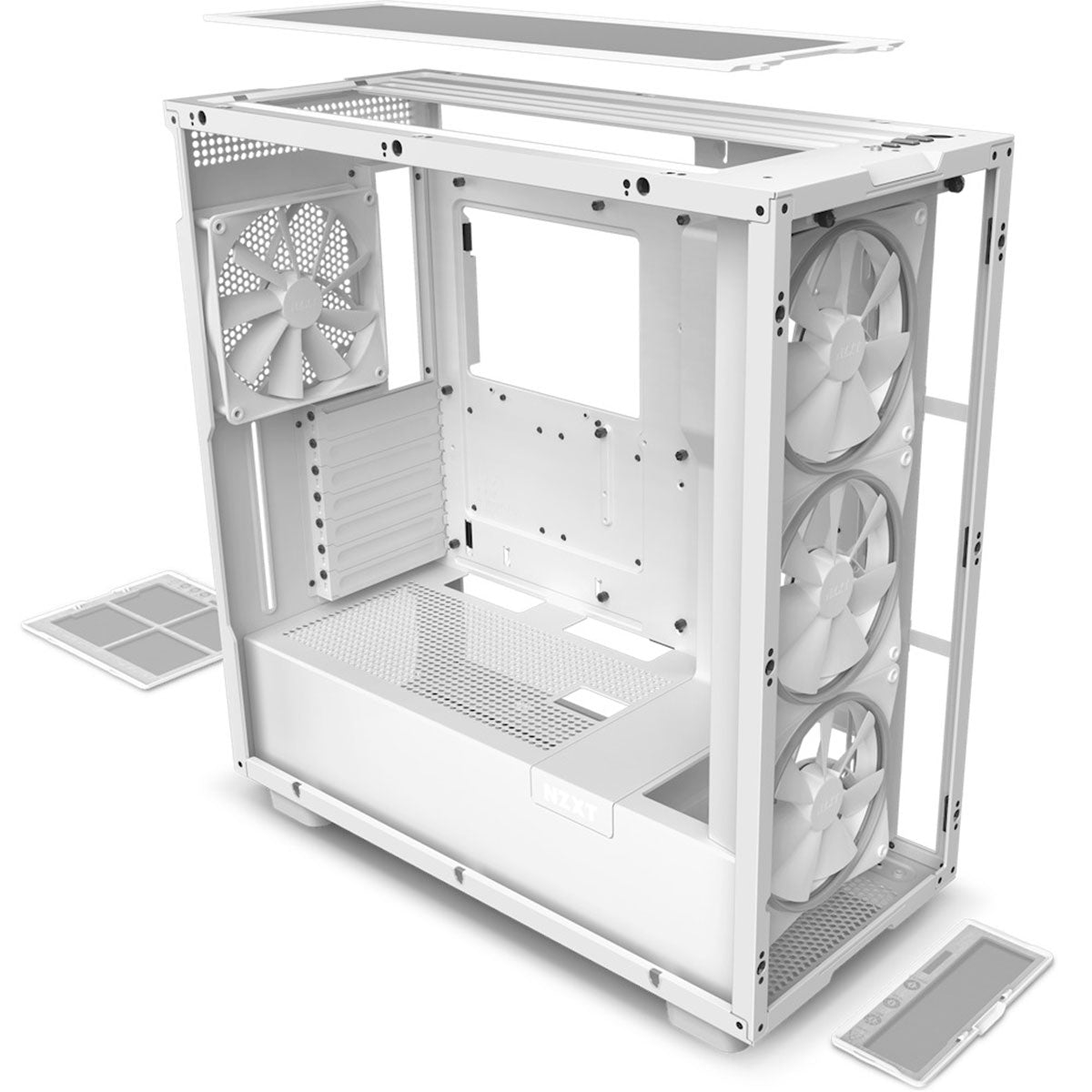

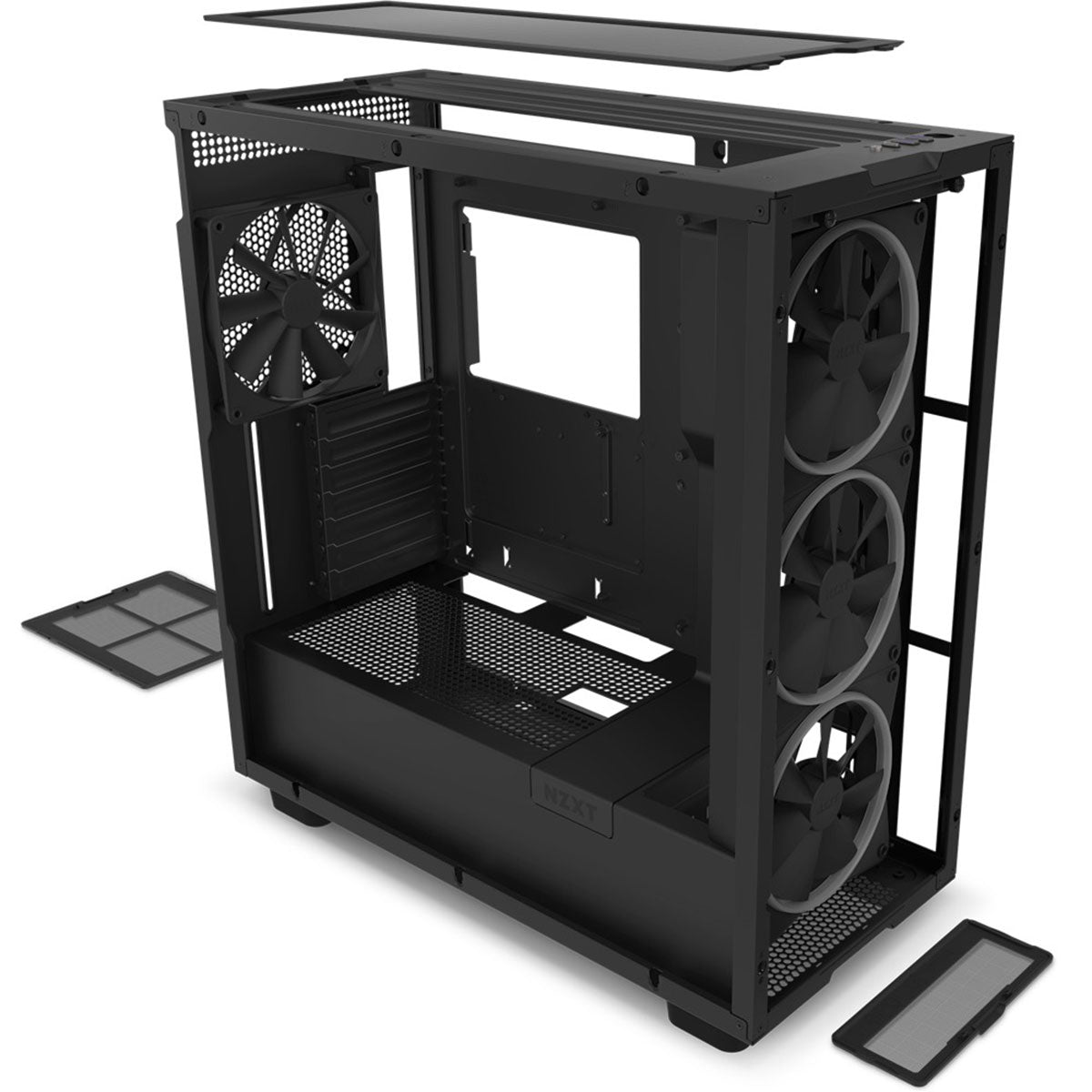

- Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels

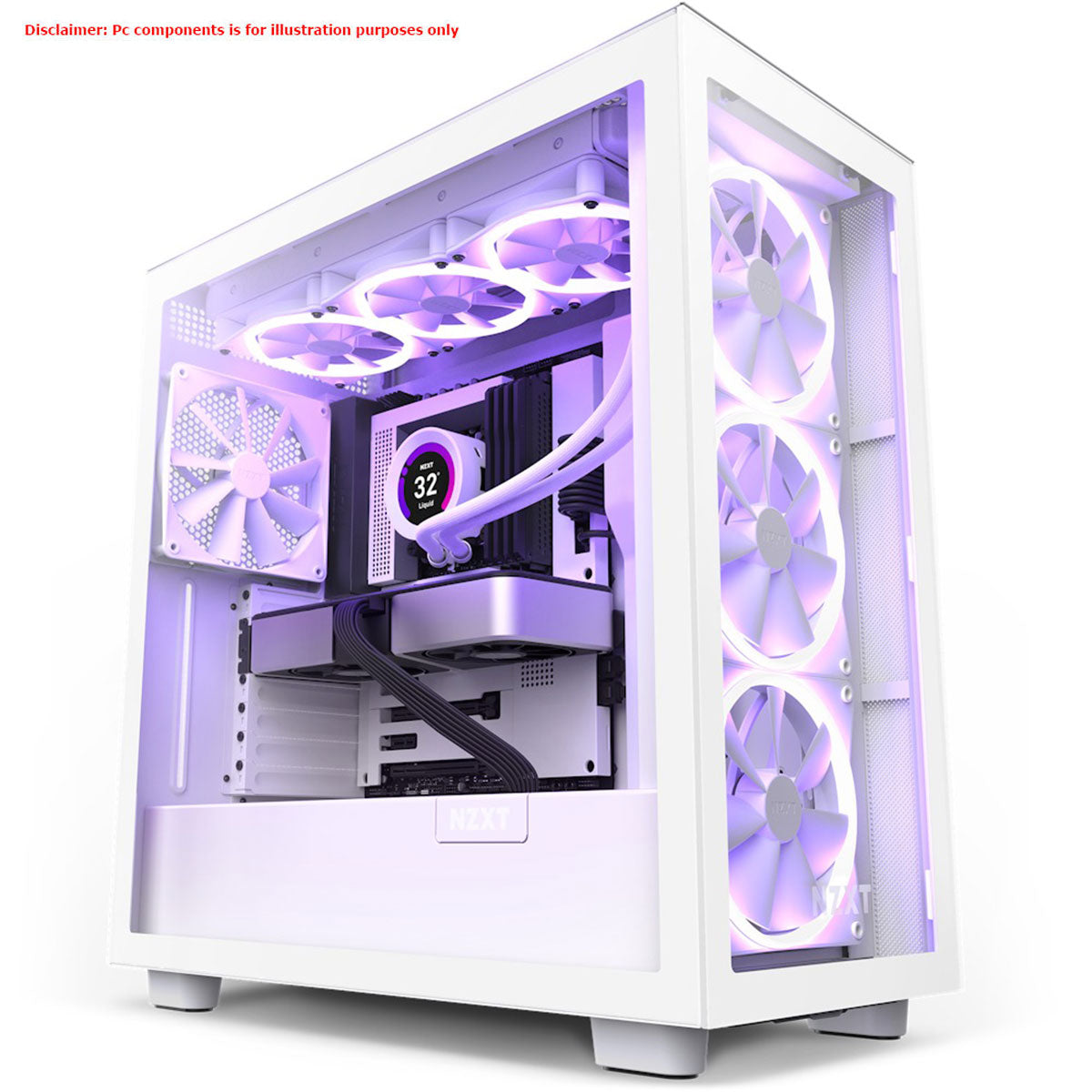

- Front & top support radiators up to 360mm
- Three pre-installed F Series RGB 140mm Fans
- One pre-installed 140mm F Series Quiet Airflow Fan (Case Version)
- Supports vertical GPU mounting (Sold Separately)
- Built-in RGB & Fan Controller V2 w/ NZXT CAM

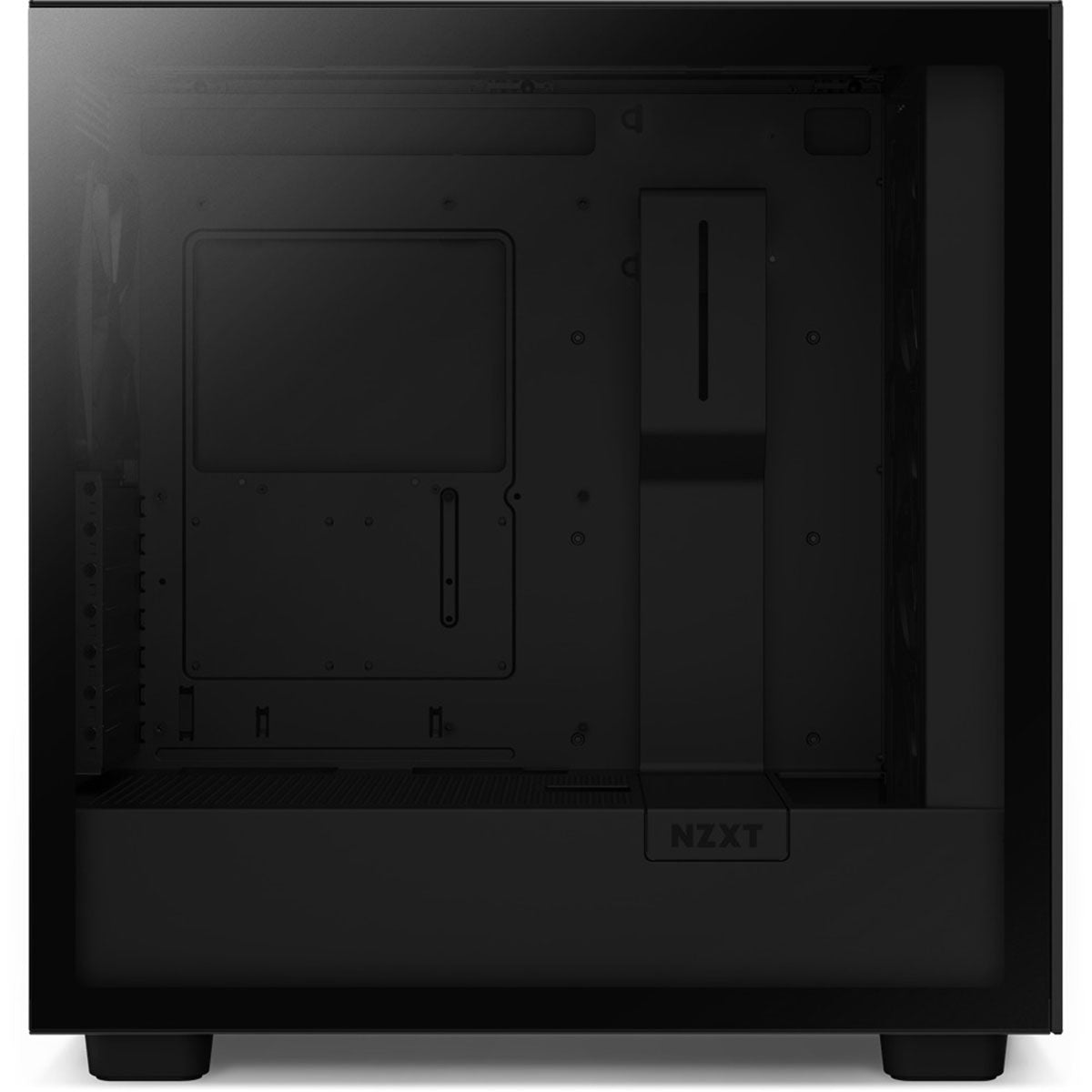

- Tempered glass front panel

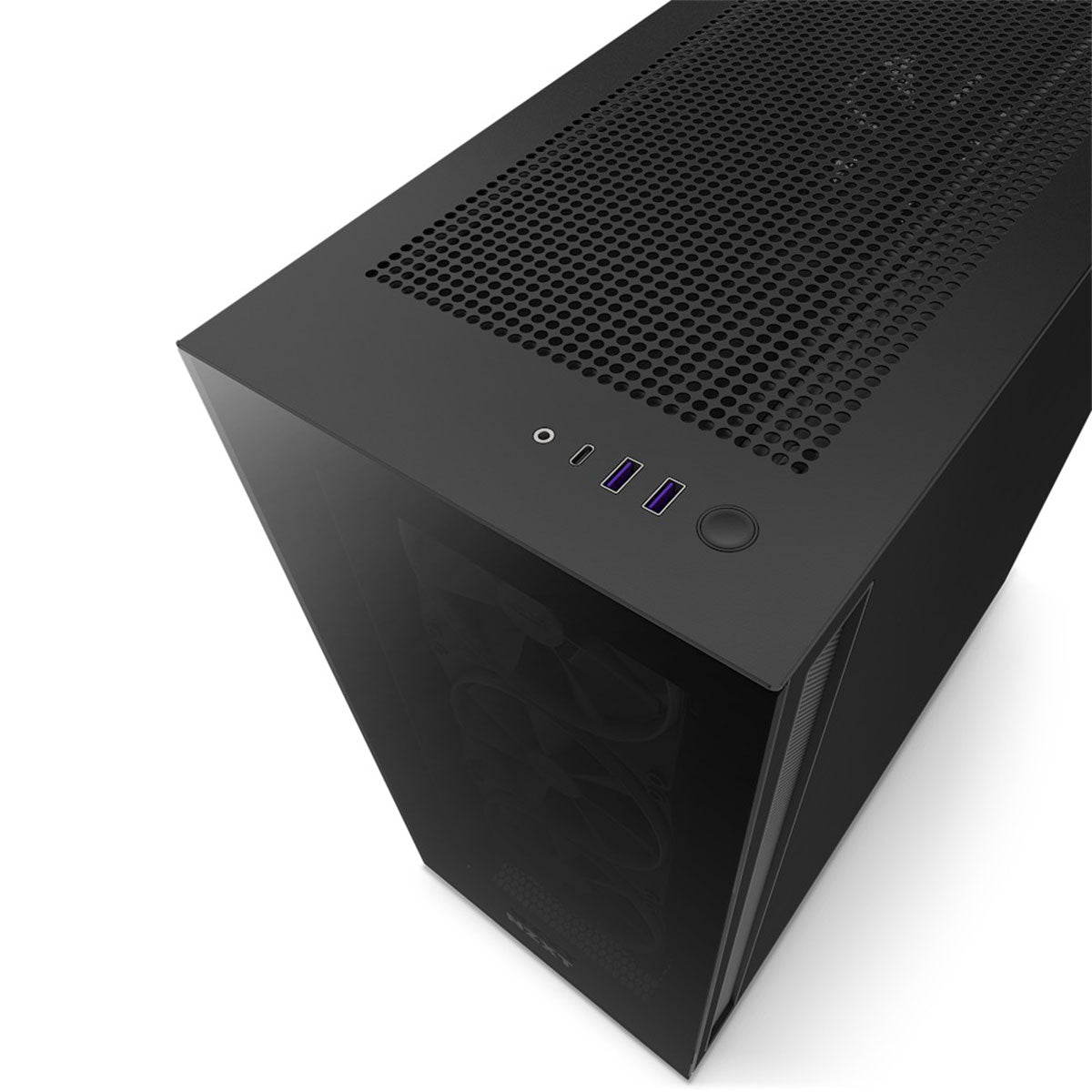

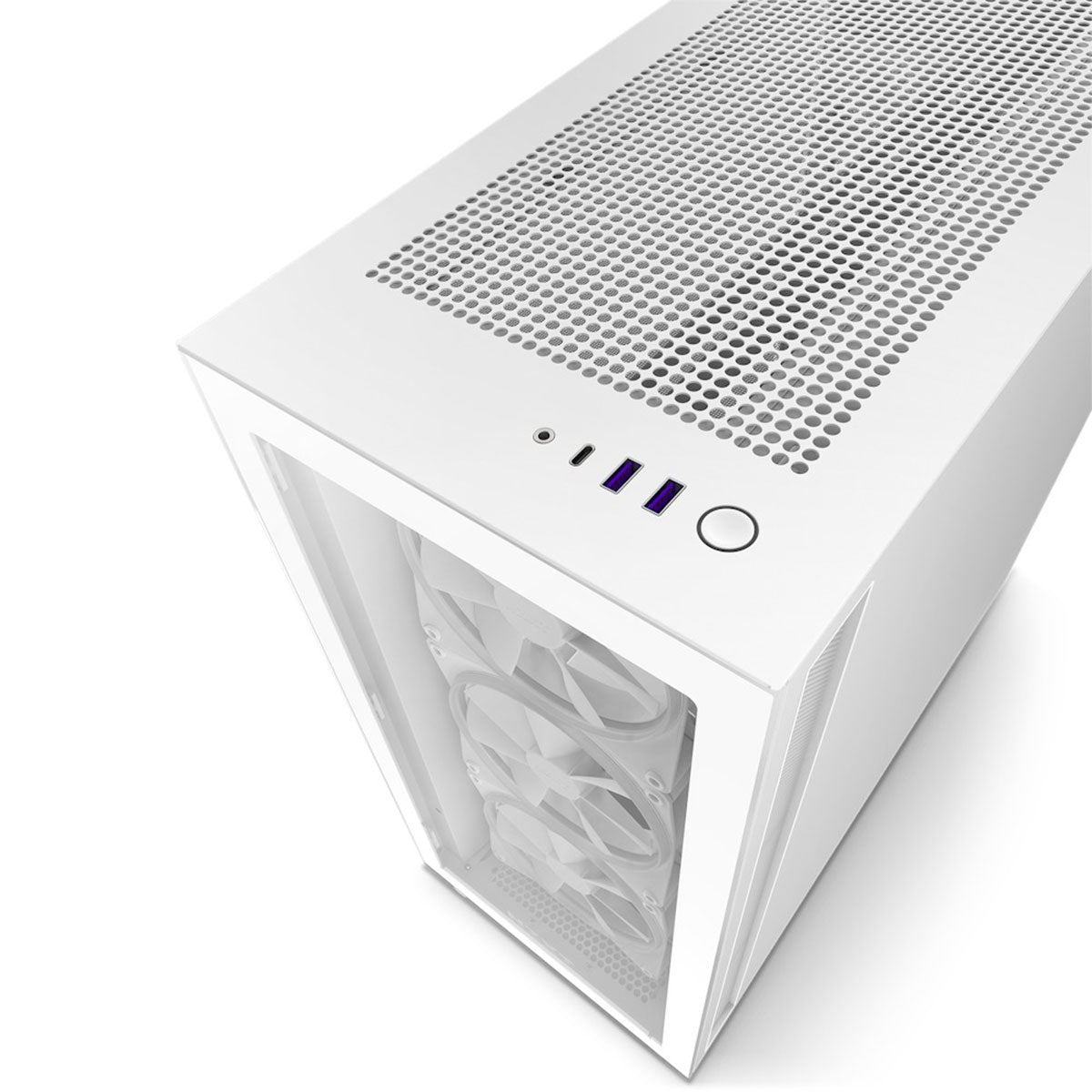

- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port

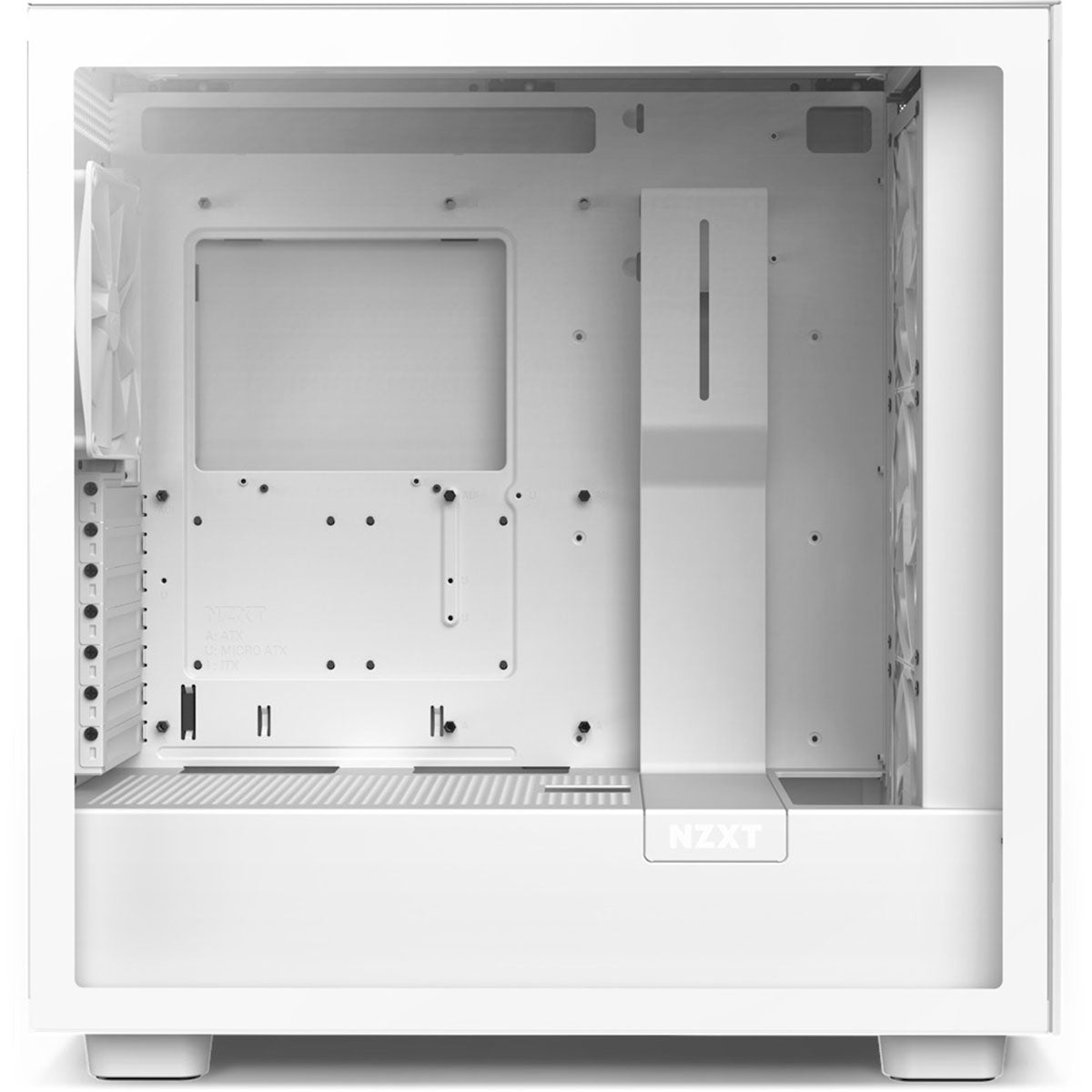

- Two color options (Matte Black, Matte White)
SPECIFICATION
| Key Specs | Motherboard Support:Mini-ITX, Micro-ATX, ATX |
| Enclosure Type:Mid-Tower | |
| Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only) | |
| Fan Support | Front:3 x 120mm / 3 x 140mm |
| Top:3 x 120mm / 2 x 140mm | |
| Rear:1 x 120mm / 1 x 140mm | |
| Filters:All Air Intakes | |
| Dimensions | Height:505mm (With Feet) |
| Width:230mm | |
| Depth:480mm | |
| Weight:11.36 kg | |
| Radiator Support | Front:Up to 360mm with Push/Pull |
| Top:Up to 360mm | |
| Rear:Up to 140mm | |
| Compatibility & Clearance | Max CPU Cooler Clearance:Up to 185mm |
| Max GPU Clearance:Up to 400mm | |
| Front Radiator Clearance:60mm | |
| Top Radiator Clearance:30mm | |
| Cable Management:18-22mm | |
| Fan Specs | Model:F140Q (Case Version) |
| Speed:1200 240RPM | |
| Airflow:99.56 CFM | |
| Static Pressure:1.14 mm-H2O | |
| Noise:24.18 dBA | |
| Fan Connector:3-pin | |
| Front I/O Ports | USB 3.2 Gen 1 Type-A:2 |
| USB 3.2 Gen 2 Type-C:1 | |
| Headset Audio Jack:1 | |
| Fan Specs | Model:F140 RGB |
| Speed:500 - 1800 RPM | |
| Airflow:24.85 - 89.48 CFM | |
| Static Pressure:0.94 - 3.39 mm-H2O | |
| Noise:20 - 32.5 dBA | |
| Fan Connector:4-pin | |
| RGB and Fan Controller | Fan Channels:3 |
| NZXT RGB Connector:6 (Support up to 120 LEDs) | |
| Expansion Slots | Standard:7 |
| Vertical:0 | |
| Drive Bays | 2.5":4+2 |
| 3.5":2 |
