Description

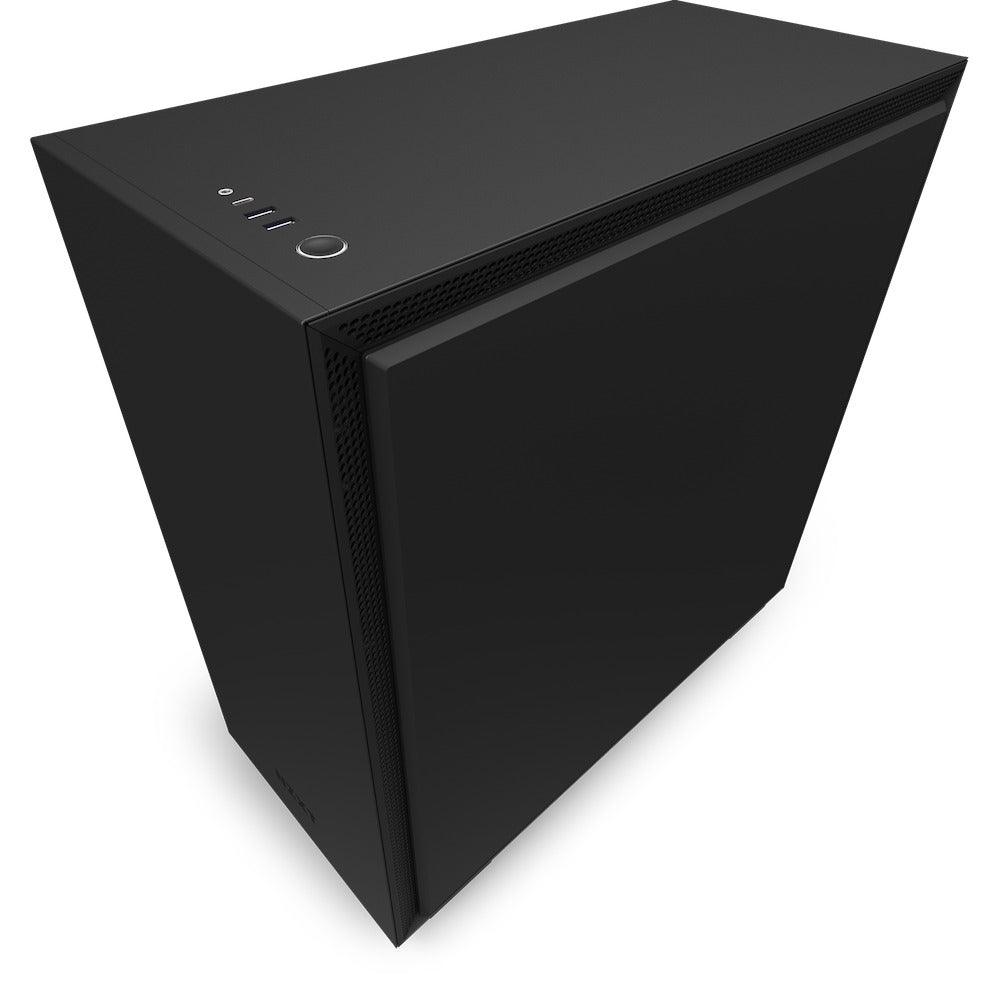

This mid-tower case is excellent for ambitious builds with plenty of space for 360mm AIOs and other premium components while bringing the easy-to-build-in features of the compact H510 case series.
- USB 3.2 Gen2-compatible USB-C connector on the front panel
- Iconic cable management bar and uninterrupted tempered-glass side panel showcase stunning RGB builds.
- Cable routing kit with pre-installed channels and straps

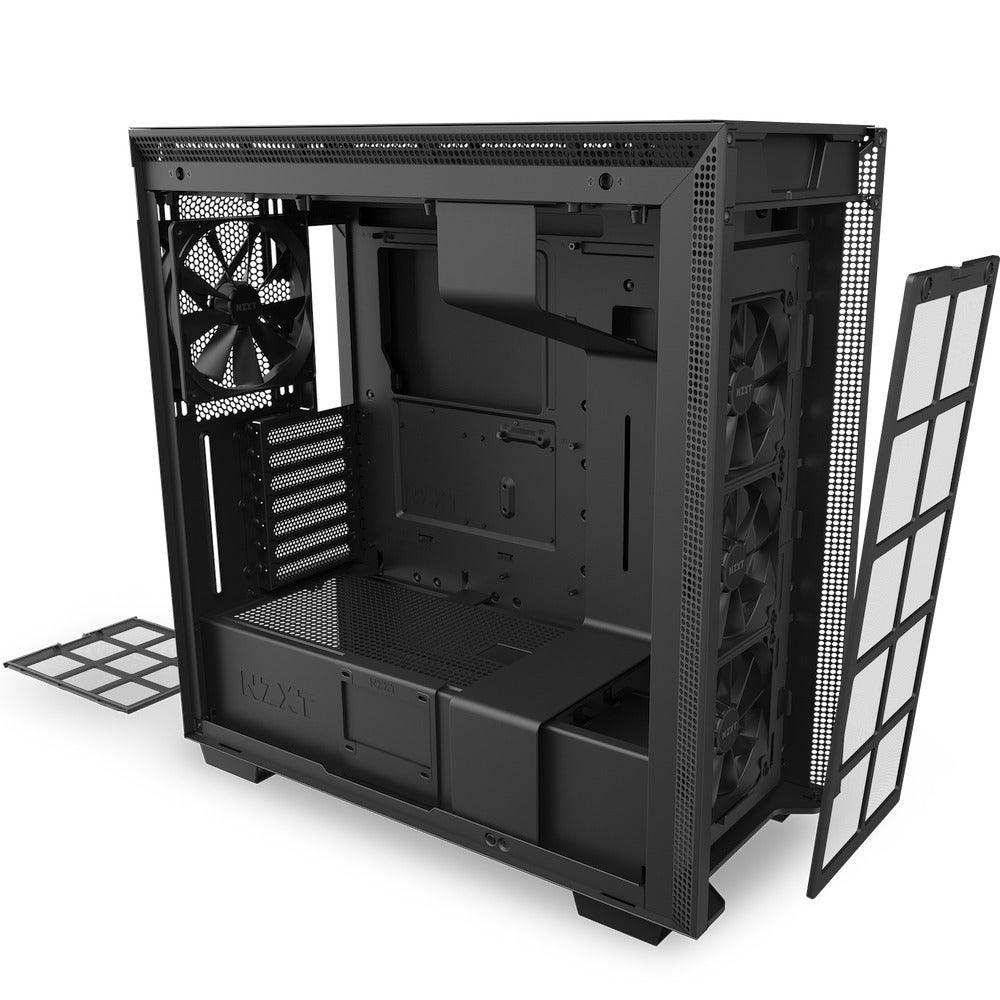

- Two Aer F120mm fans and removable filter on PSU intake
- Removable bracket designed for radiators up to 360mm
Specifications :
| DIMENSIONS | Height:516mm Width:230mm Depth:494mm Weight:12.1 kg / 26.68 lb |
| COMPATIBILITY & CLEARANCE | Max CPU Cooler Clearance:185mm Max GPU Clearance:413mm Front Fan & Radiator Clearance:60mm Top Fan & Radiator Clearance:30mm Cable Management:18 - 22mm |

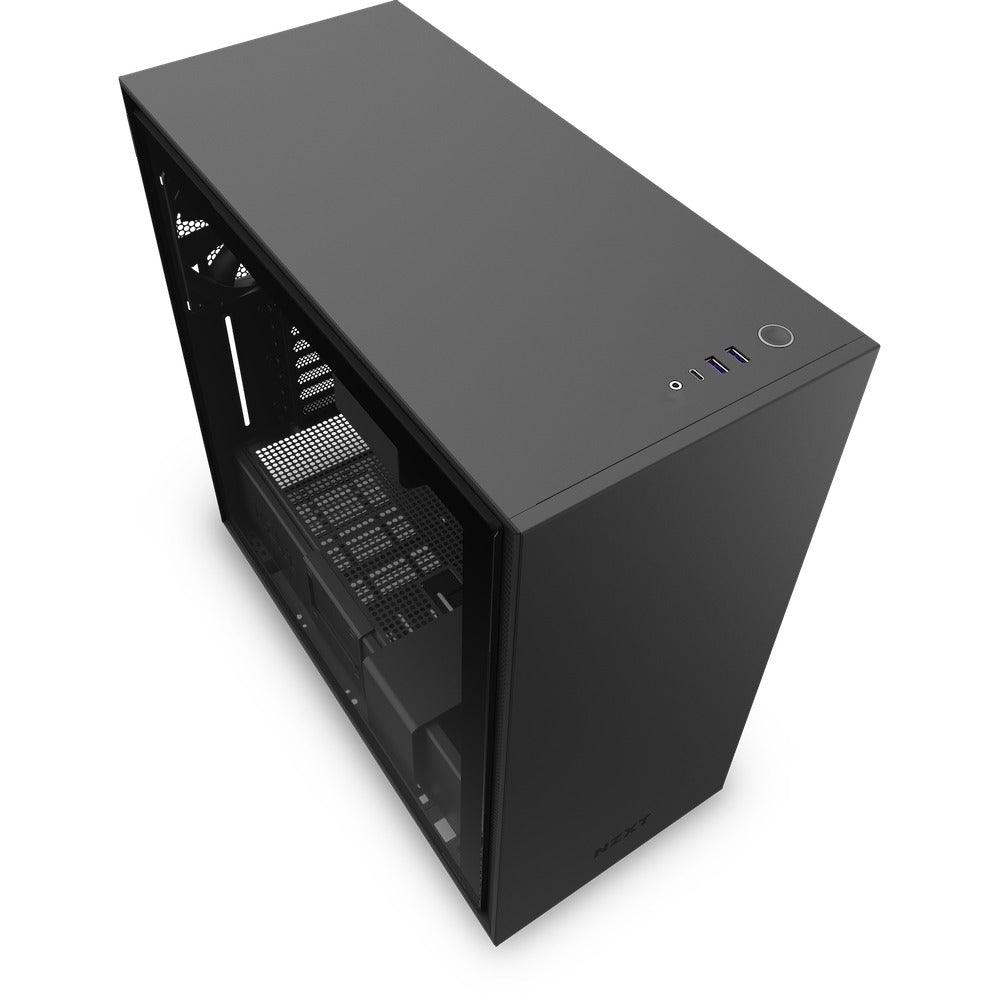

| FRONT I/O PORTS | USB 3.2 Gen 1 Type-A:2 USB 3.2 Gen 2 Type-C:1 Headset Audio Jack:1 |

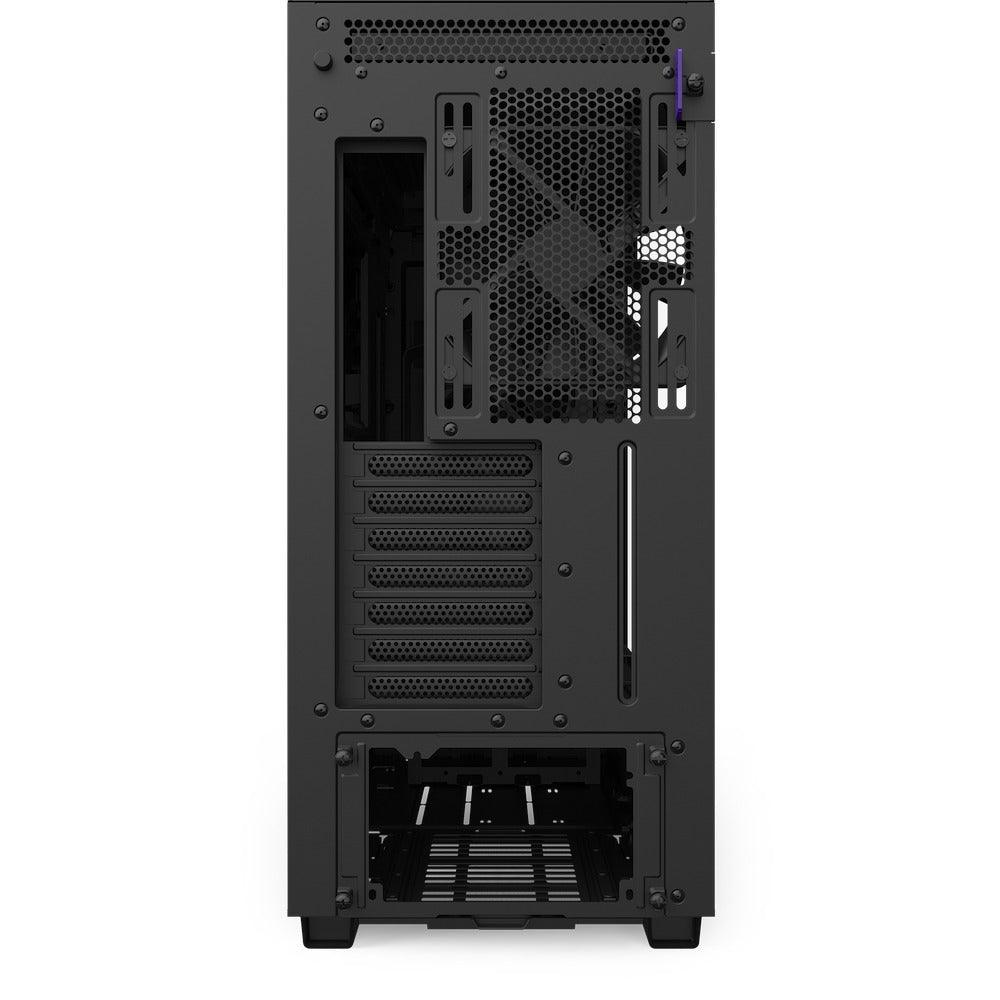

| EXPANSION SLOTS | Standard:7 Vertical:- |
| DRIVE BAYS | 2.5":5 + 1 3.5":2 + 1 |
| FAN SUPPORT | Front:3 x 120mm / 2 x 140mm Top:3 x 120mm / 2 x 140mm Rear:1 x 120mm / 1 x 140mm Filters:All air intakes |
| RADIATOR SUPPORT | Front:360mm Top:360mm Rear:140mm |
| FAN SPECS | Model:Aer P 140mm (Case Version) Speed:1,000 ± 200RPM Airflow:68.95 CFM Noise:29 dBA Fan Connector:3-pin |
| FAN SPECS | Model:Aer P 120mm (Case Version) Speed:1,200 ± 200RPM Airflow:50.42 CFM Noise:28 dBA Fan Connector:3-pin |
