Description
Get high-performance cooling and display a favorite image or GIF, monitor real-time PC performance metrics, and more with NZXT CAM software.

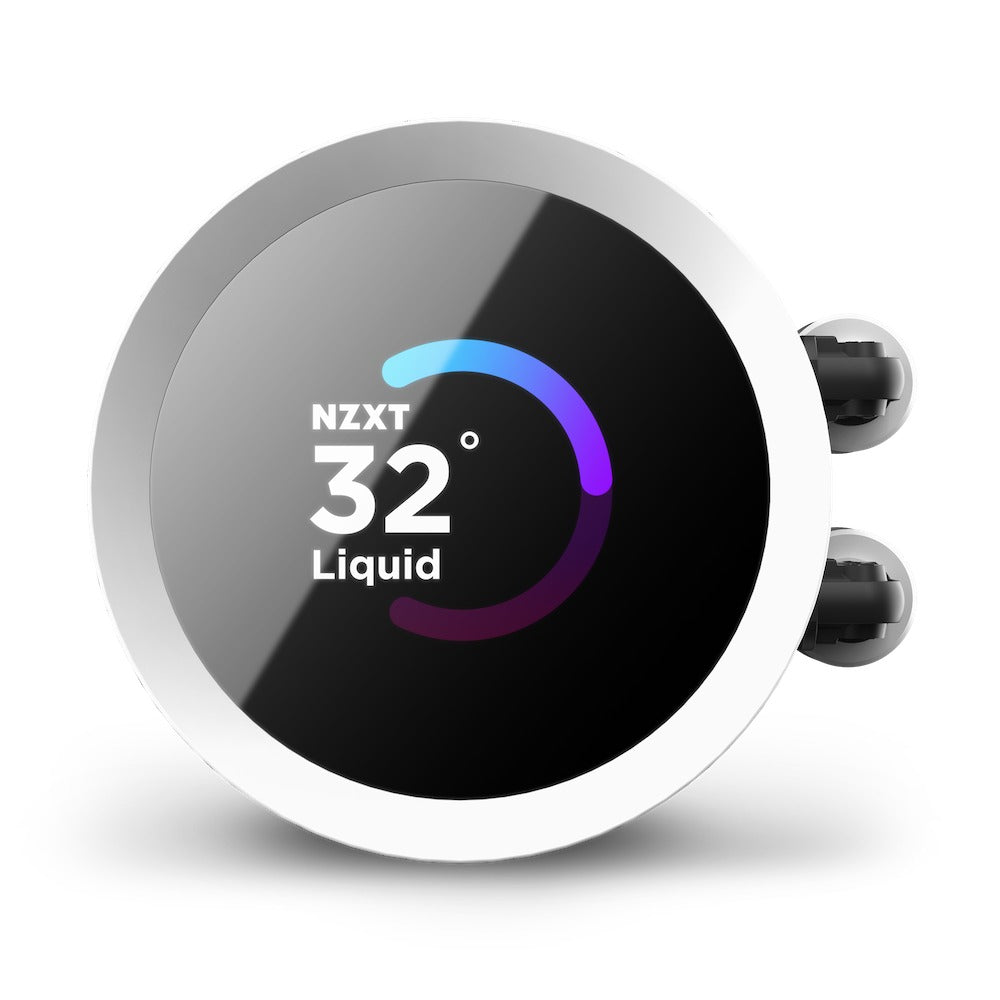

- Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images
- Adjustable screen orientation accommodates pump head position
- Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
- Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
- Includes F140/F120 RGB Core fans
- Single breakout cable simplifies installation
- Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
- Control custom screen content, pump speed, and zero-noise fan curves with NZXT CAM
- Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software.
SPECIFICATIONS:
CAP
-
Material:Aluminum and plastic
-
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
-
Display Panel Active Area:1.54" (39.1mm)
-
Display Resolution:240 x 240 px
-
Display Brightness:300 cd/m²
-
Display Panel Type:Transmissive TFT, 262K color
WATER BLOCK
-
Dimensions:Diameter: 74.7mm H: 55.97mm
-

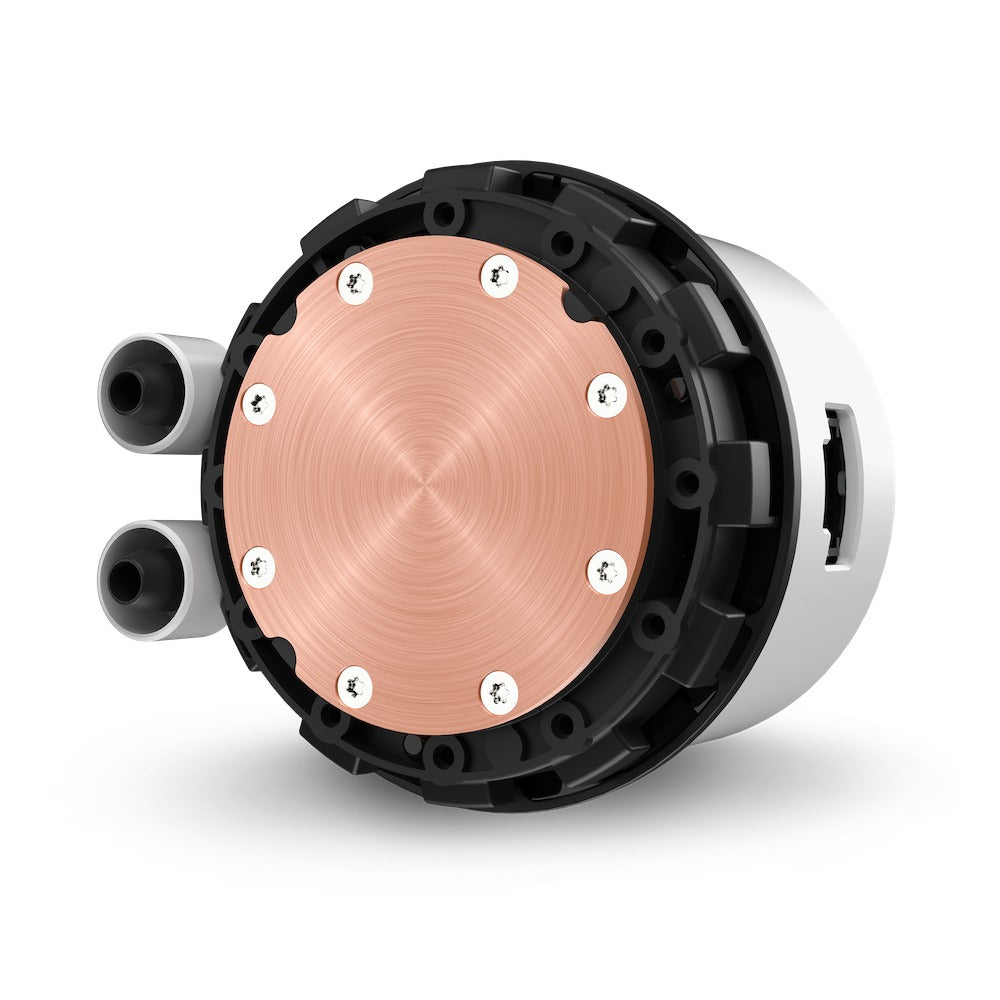

Material:Block: Copper Housing: Plastic
PUMP
-
Motor Speed:800 - 2,800 ± 300RPM
-
Power:12V DC, 0.3A
RADIATOR
-
Dimensions:123 x 275 x 30mm
-
Material:Aluminum
TUBE
-
Length:400mm
-
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve
FAN
-
Model:F120 RGB Core Fans
-
Quantity:2
-
Dimension:120 x 120 x 26mm
-
Speed:500-1,800 ± 180 RPM
-
Air Flow:21.67 - 78.02 CFM
-
Air Pressure:0.75 - 2.7mm-H2O
-
Noise:17.9 - 30.6dBA
-
Bearing:Fluid Dynamic Bearing
-
Power Consumption:12V DC, 0.23A, 2.76W
-
Connector:4-pin PWM
-
Life:60,000 hours / 6 Years
RGB CONTROLLER
-
Dimensions:63.2 x 53.2 x 12.8mm
-
Weight:52.8g
-
Mounting:Magnet and 3M Dual Lock
-
Connection Cables:1x USB 2.0 internal connector 1x SATA power cable
-
Input Connector:12V DC / 2.6A
-
RGB Lighting Channels:3
-
Output Channel Voltage:5V DC
-
NZXT RGB Channel Output LED Qty.:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
COMPATIBLE SOCKET & CPU
-
Intel:Intel Socket LGA 1700 & 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
-
AMD:AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
