Description

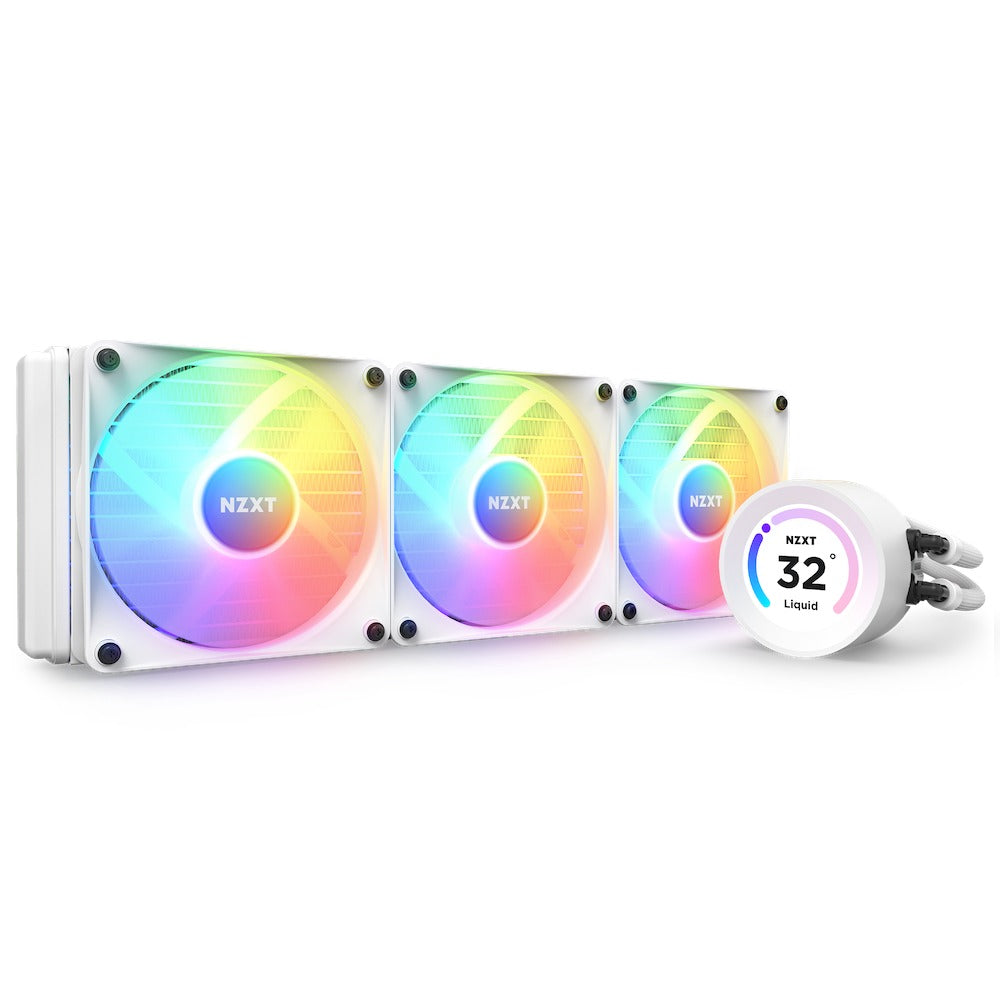

Get high-performance cooling, display a favorite animated GIF or static image, monitor real-time PC performance metrics, see music that's currently playing, stream browser content and more with NZXT CAM software.

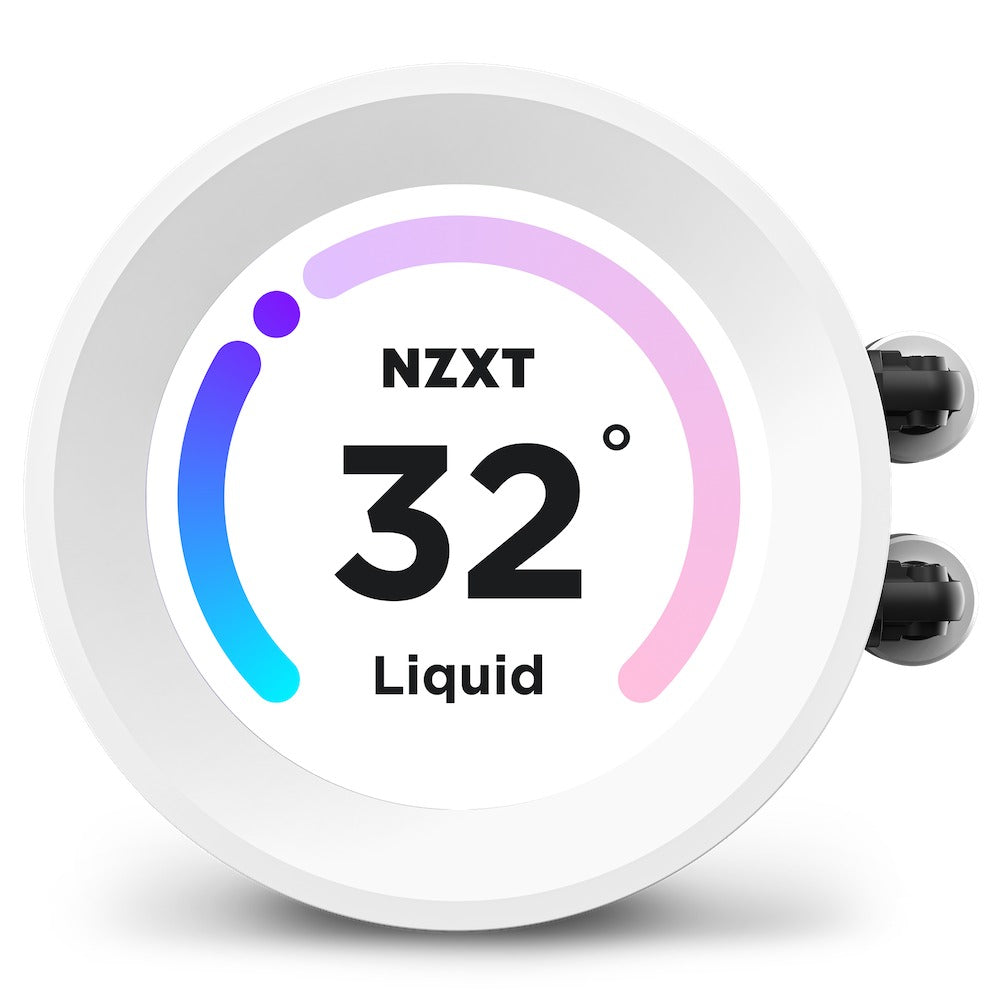

- 2.36” diameter wide-angle LCD display with 640x640 resolution and 60 Hz refresh rate provides a sharp image from any viewing angle
- Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
- Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
- Includes F140/F120 RGB Core fans
- Includes RGB Controller, RGB Fans, & USB Y-Cable
- Single breakout cable simplifies installation
- Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
- Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software.
SPECIFICATIONS:
CAP
-
Material:Aluminum, Plastic
-
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
-
Display Panel Active Area:2.36” (60mm) diameter
-
Display Color:24-bit true color LCD
-
Display Resolution:640 x 640 px
-
Display Brightness:690 cd/m²
-
Display Panel Type:TFT-LCD (Wide Viewing Angle)
WATER BLOCK
-
Dimensions:Diameter: 81.9mm H: 59.5mm
-

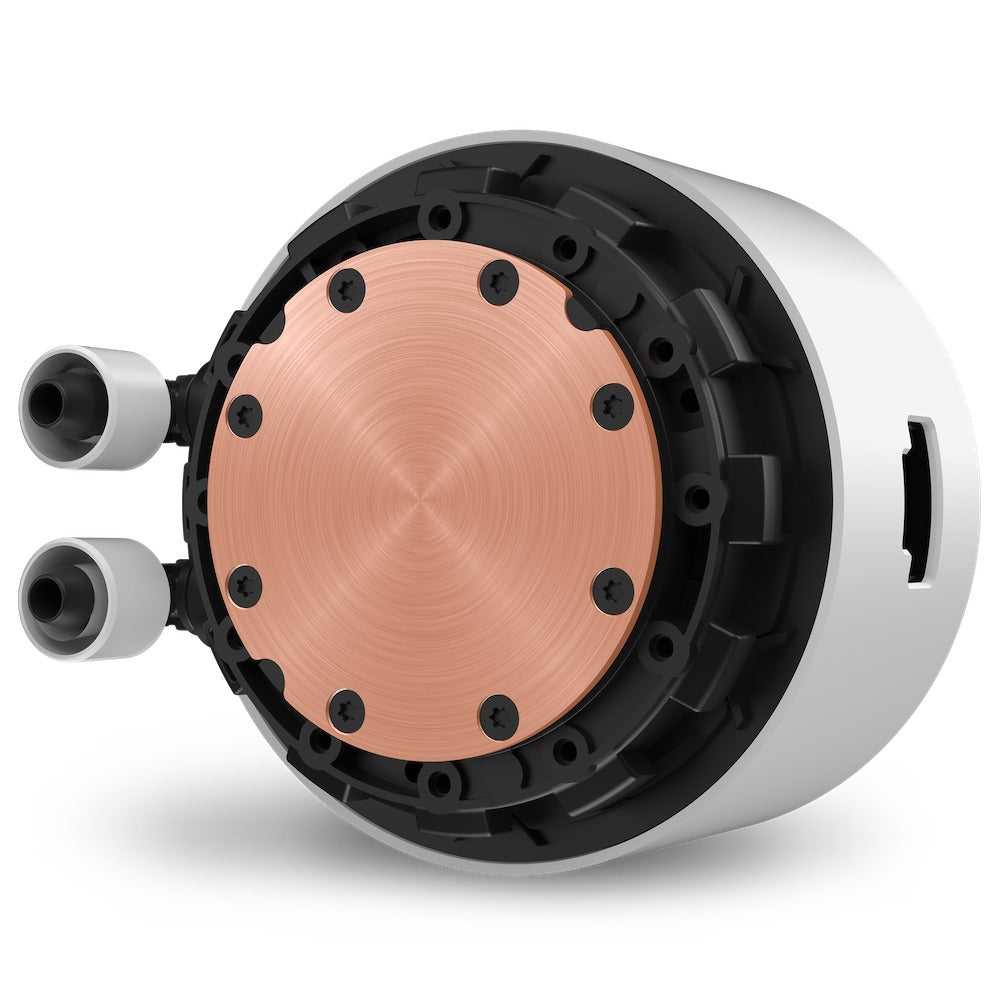

Material (Block):Copper
-
Material (Housing):Plastic
PUMP
-
Motor Speed:800 - 2,800 ± 300 RPM
-
Power:12V DC, 0.3A
RADIATOR
-
Dimensions:121 x 394 x 27mm
-
Material:Aluminum
TUBE
-
Length:400mm
-
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve
FAN SPECS
-
Model:F120 RGB Core Fans
-
Quantity:3
-
Dimension:120 x 120 x 26mm
-
Speed:500-1,800 ± 180 RPM
-
Airflow:78.86 CFM
-
Air Pressure:2.57 mm H2O
-
Noise:33.88 dBA
-
Bearing:Fluid Dynamic Bearing
-
Power Consumption:12 V DC, 0.2 A, 2.4 W
-
Fan Connector:4-pin PWM
-
Life:60,000 hours / 6 Years
-
Limited Warranty:6 Years
RGB CONTROLLER
-
Dimensions:63.2 x 53.2 x 12.8mm
-
Weight:52.8g
-
Mounting:Magnet and 3M Dual Lock
-
Connection Cables:1x USB 2.0 internal connector 1x SATA power cable
-
Input Connector:12V DC / 2.6A
-
RGB Lighting Channels:3
-
Output Channel Voltage:5V DC
-
NZXT RGB Channel Output LED Qty.:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
COMPATIBLE SOCKET & CPU
-
Intel:Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
-
AMD:AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
