Description

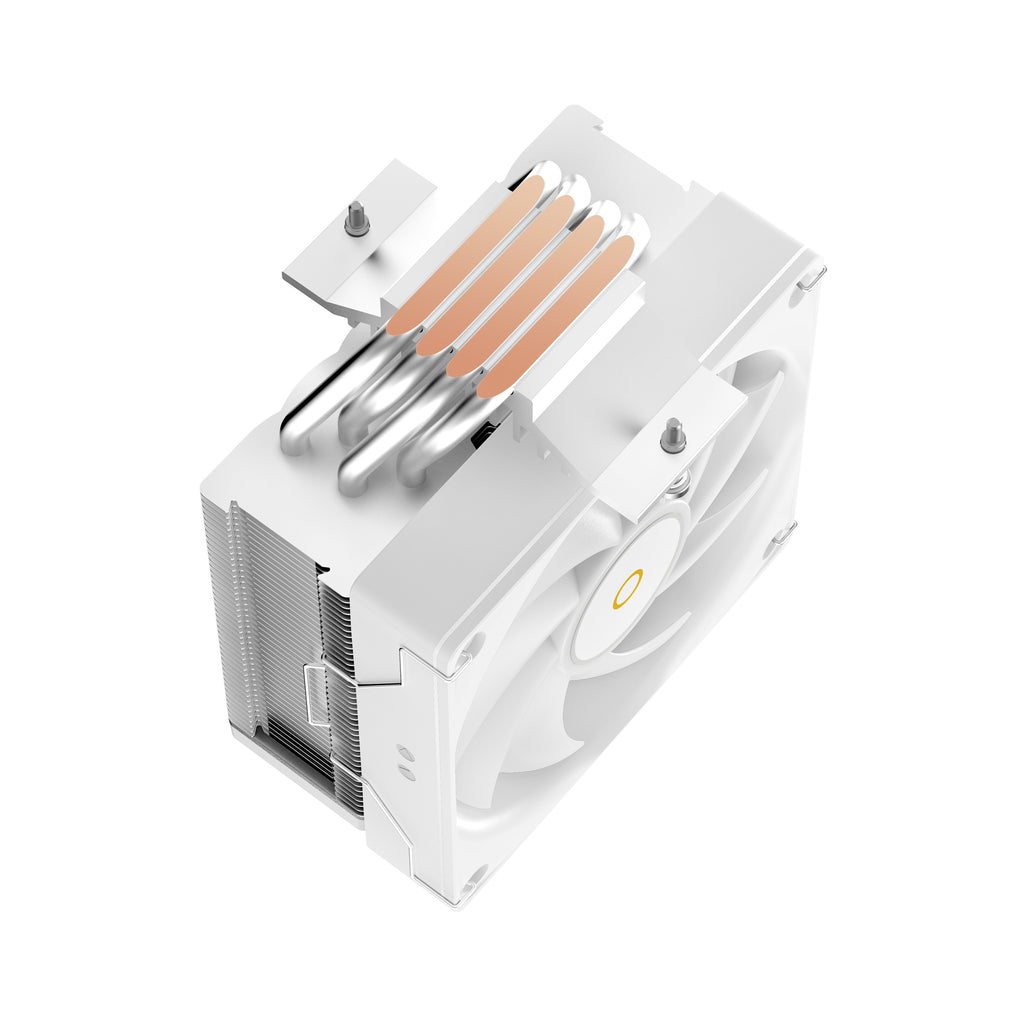

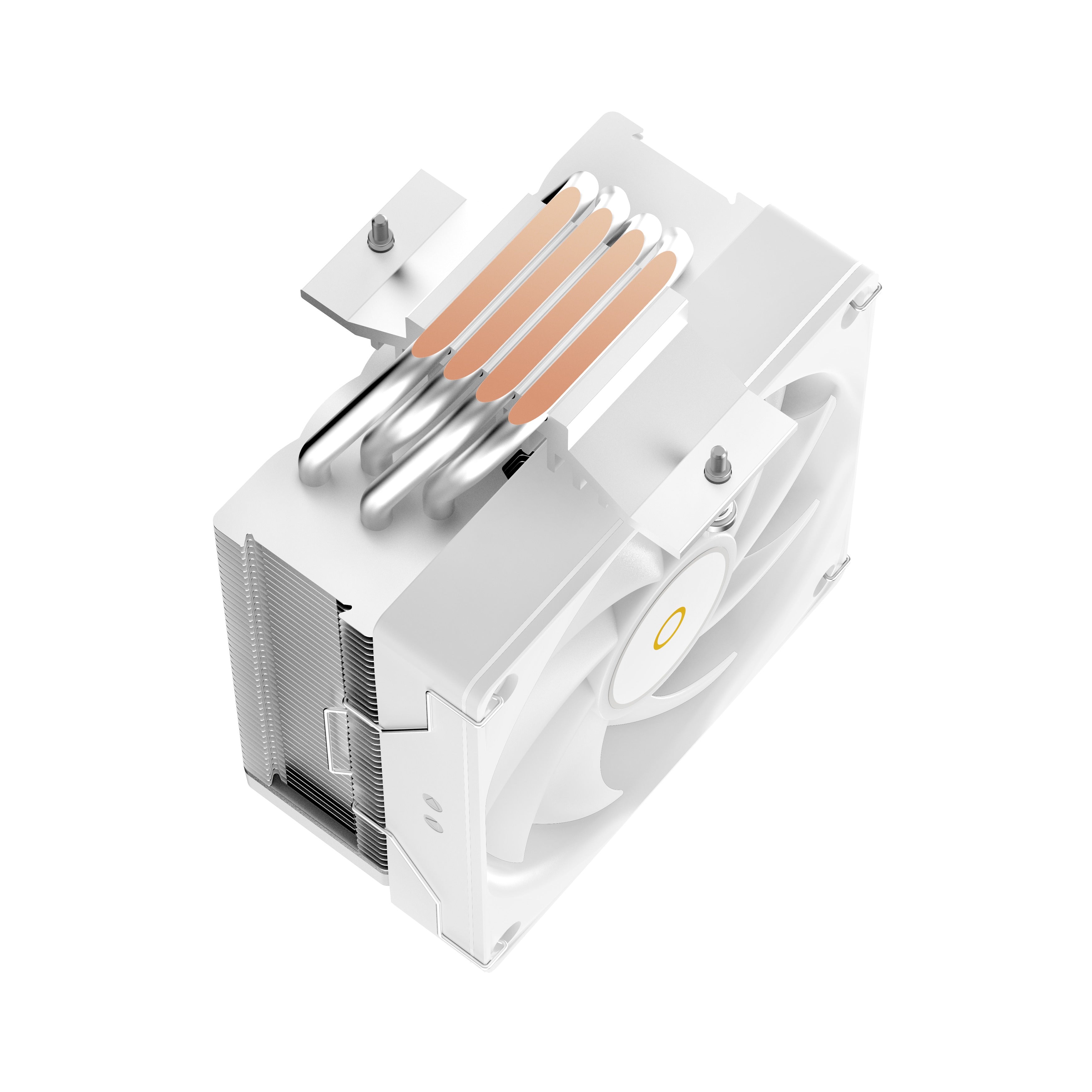

- Direct heatpipe contact with nickel-plated coating for efficient heat dissipation.
- Stylish and unique top cover design for a personalized look.
- High-performance fan delivering quiet operation with low noise levels.
- ARGB lighting on both top cover and fan: connect to 12V 4-pin for a seven-colorful light effect and then connect 5V 3-pin for synchronized lighting effects.
- Compatible with both Intel and AMD platforms, ensuring easy and straightforward installation.
Specifications:
| TDP | 190W |
| CPU Socket Support | Intel LGA: 115X / 1200 / 1700 / 1851 AMD: AM4 / AM5 |
| Product Dimension | 123 * 65 * 147 mm (L × W × H) |
| Net Weight | 464g |
| Heatpipes | Φ6mm * 4 |
| Fan Quantity | 1 |
| Fan Dimension | 120 * 120 * 25 mm (L × W × H) |
| Bearing Type | Hydraulic Bearing |
| Fan Speed | 800 ~ 1800 ± 10% RPM |
| Air Flow (Max) | 60 CFM |
| Static Pressure (Max) | 1.66 mmH2O |
| Noise Level | ≤ 31 dB(A) |
| Rated Voltage (Fan) | 12V DC |
| Rated Current (Fan) | 0.27A |
| Power Consumption (Fan) | 3.24W |
| Fan Connector | 4-Pin PWM |
| LED Type | ARGB |
| LED Connector | 3-Pin (5V) |
| Rated Voltage (LED) | 5V DC |
| Rated Current (LED) | 0.27A |
| Power Consumption (LED) | 1.35W |
