Description
Specifications:
| Basic | |
|---|---|
| TDP | 300W |
| CPU Socket | Intel LGA: 115X/1200/1700/1851 AMD: AM4/AM5 |
| Tube | 400*IDΦ6.5*ODΦ12.5mm |
| Fan Quantity | 3 |
| Net Weight | 1530g |

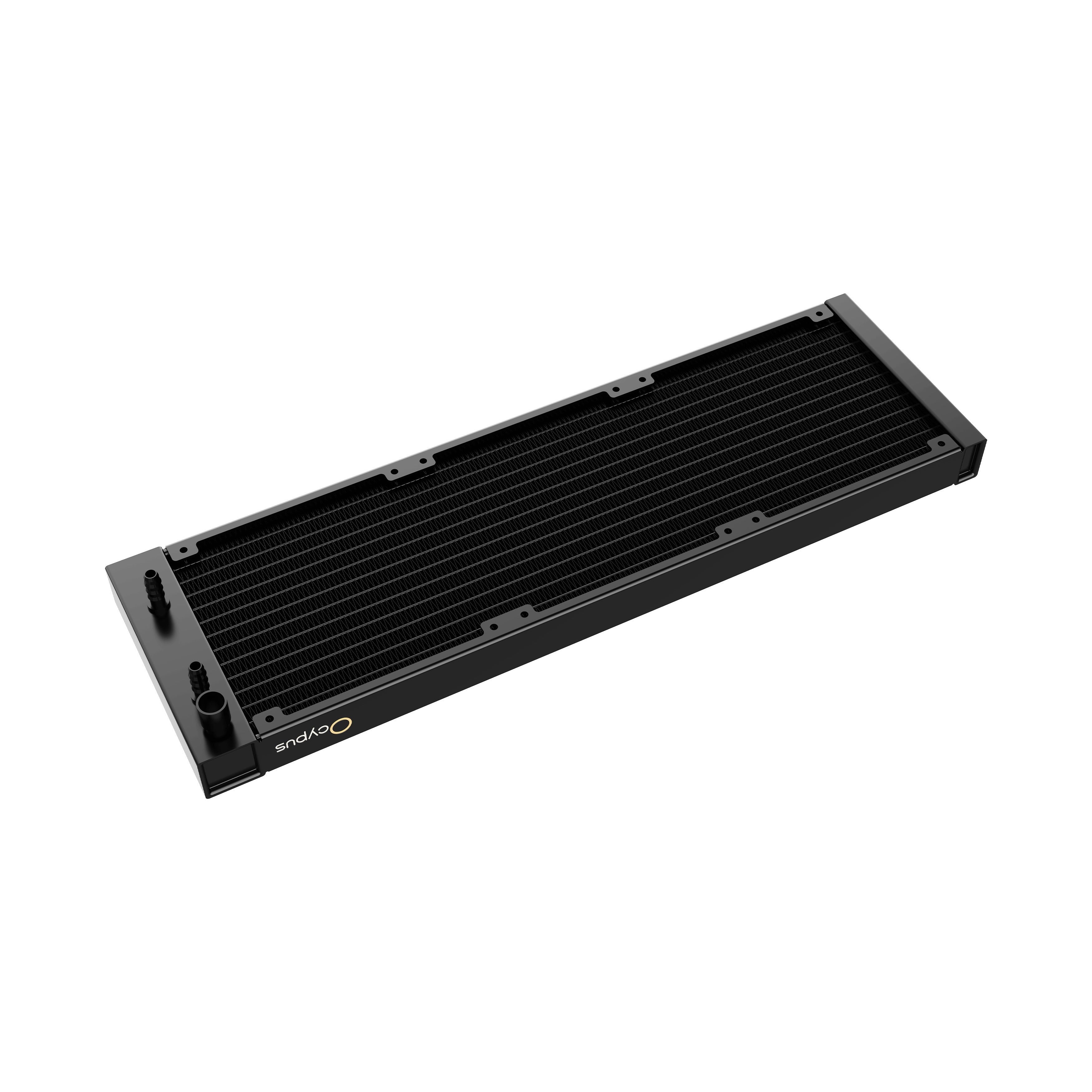

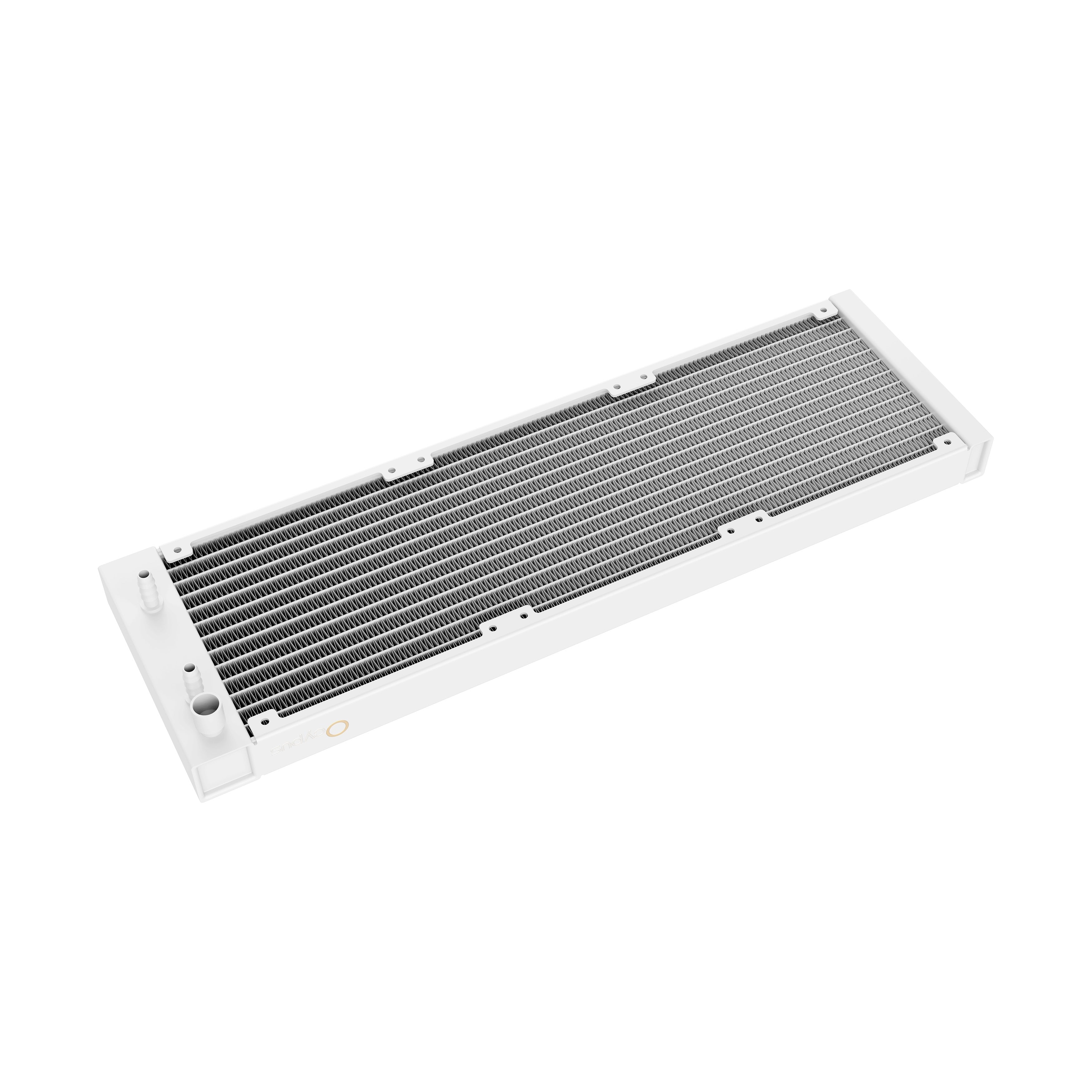

| Radiator | |
| Dimension | 397*120*27mm (LxWxH) |
| Material | Aluminium |

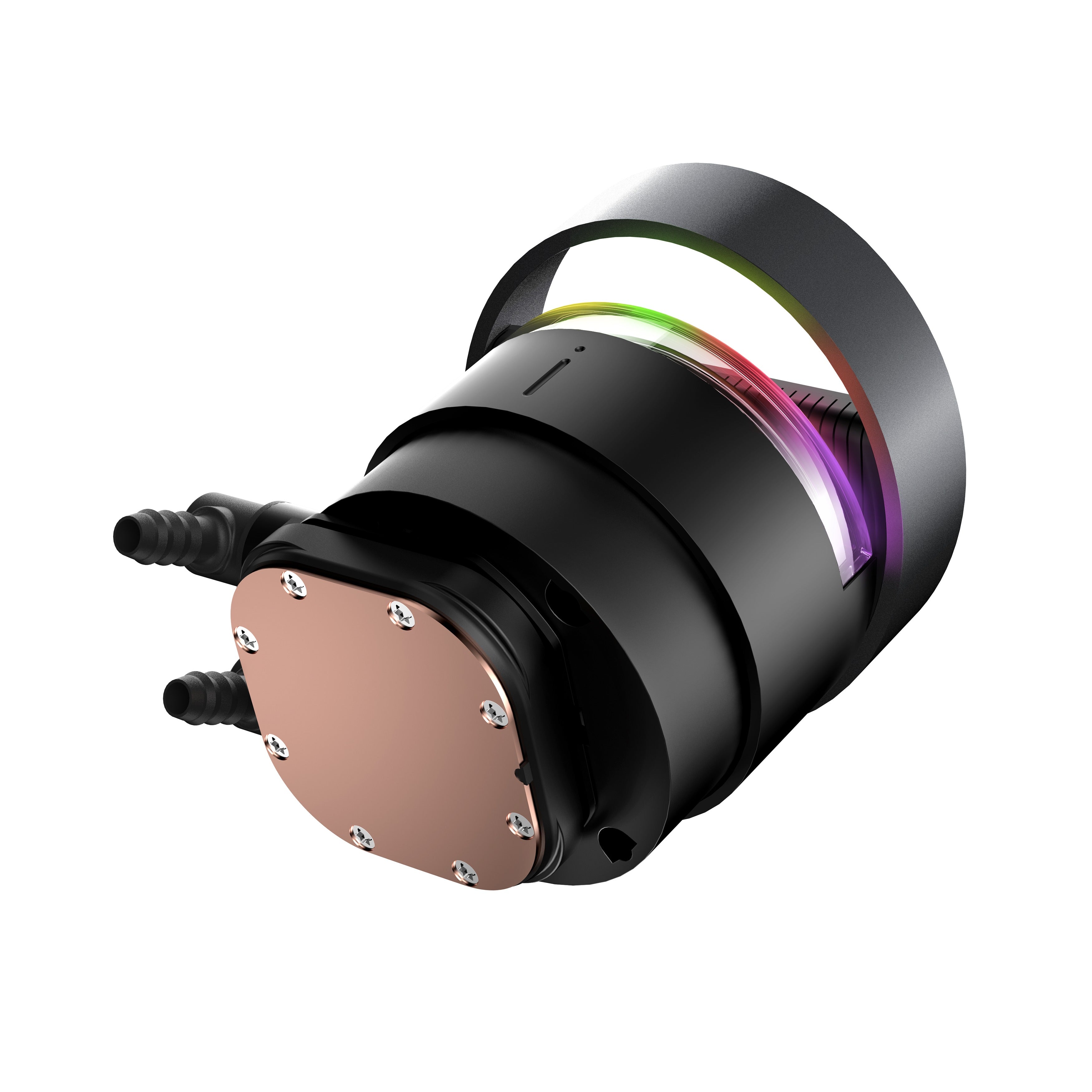

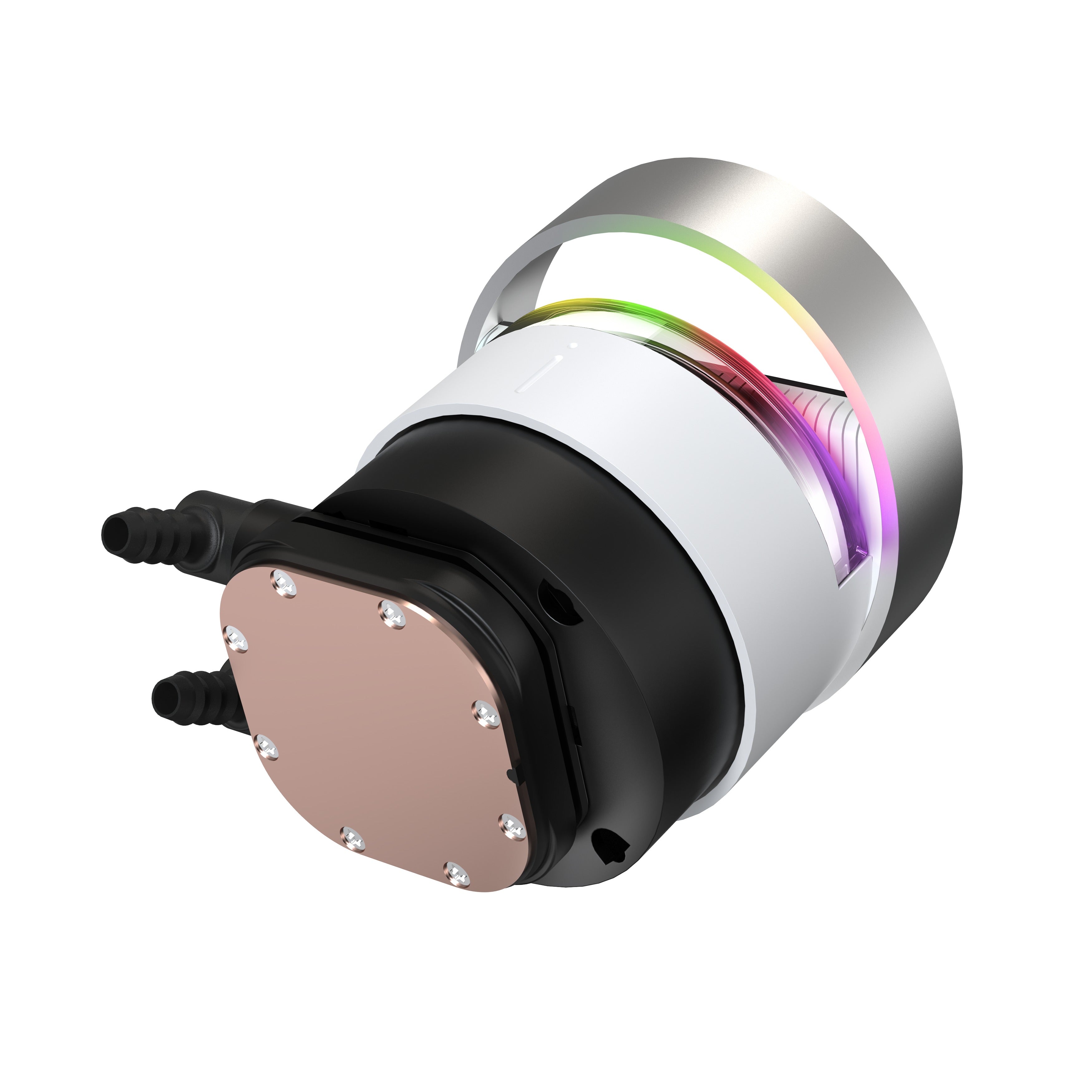

| Pump | |
| Dimension | Φ90*99mm |
| Speed | 3100±10% RPM |
| Noise | ≤27dB(A) |
| Connector | 3-Pin |
| Rated Voltage | 12VDC |
| Rated Current | 0.3A |
| Power Consumption | 3.6W |
| Bearing | Ceramic Bearing |
| Motor | Three-phase Six-pole Motor |
| MTBF | 30,000 Hours |

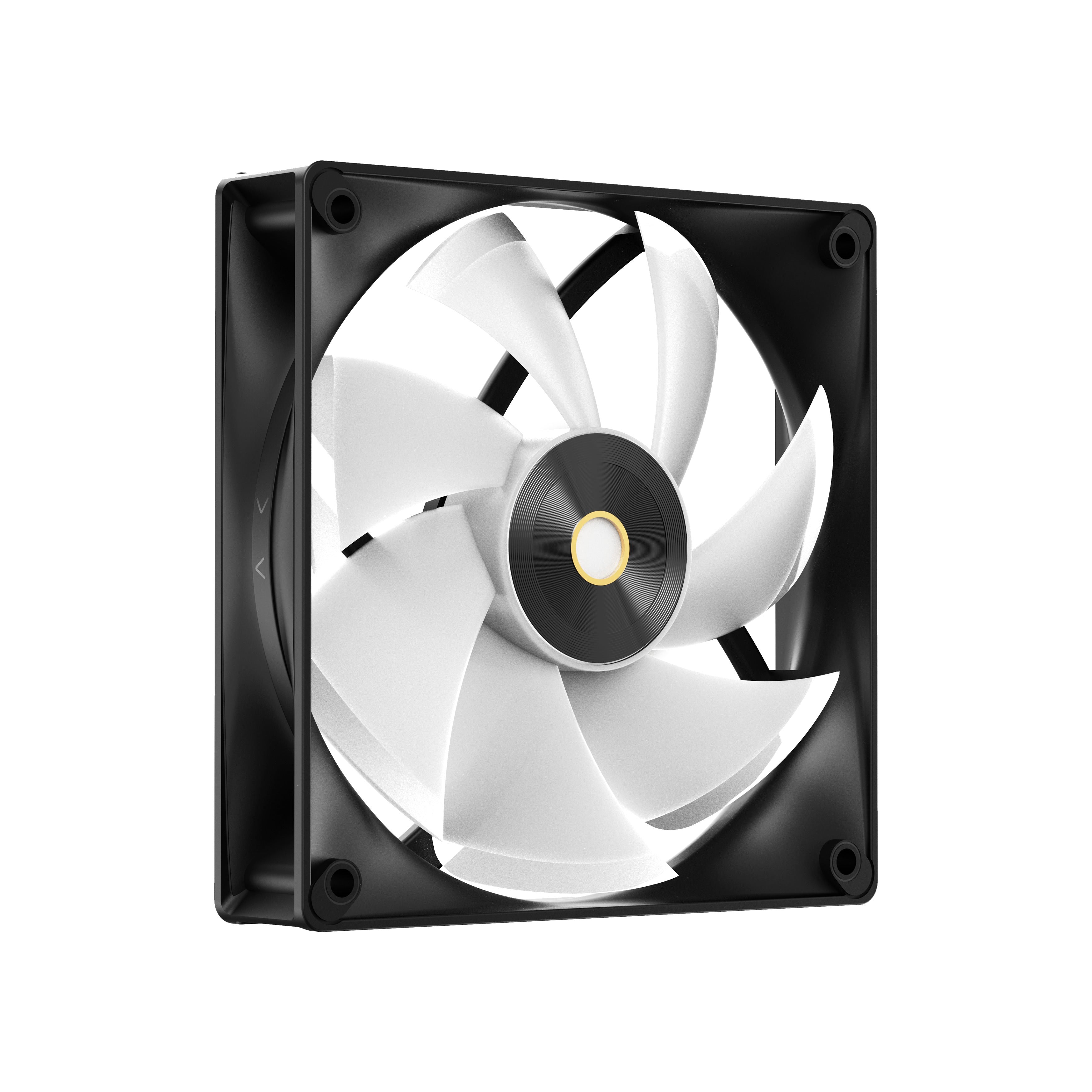

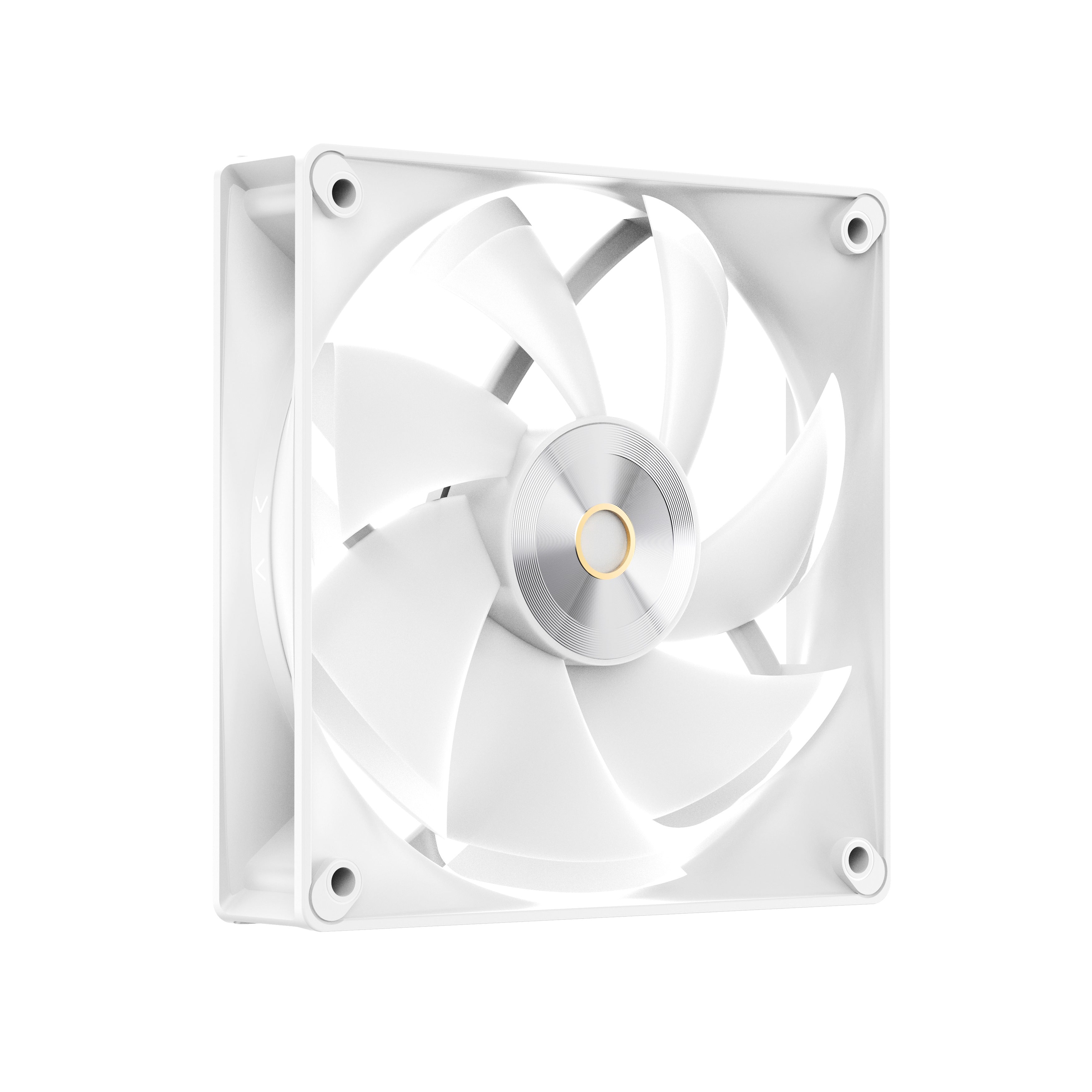

| Fan | |
| Dimension | 120*120*25mm (L×W×H) |
| Bearing Type | Hydraulic Bearing |
| Speed | 500~2000±10% RPM |
| Air Flow | 73 CFM |
| Air Pressure | 4.3 mmH₂O |
| Noise | ≤29dB(A) |
| Rated Voltage | 12VDC |
| Rated Current | 0.2A |
| Power Consumption | 2.4W |
| Connector | 4-Pin PWM |

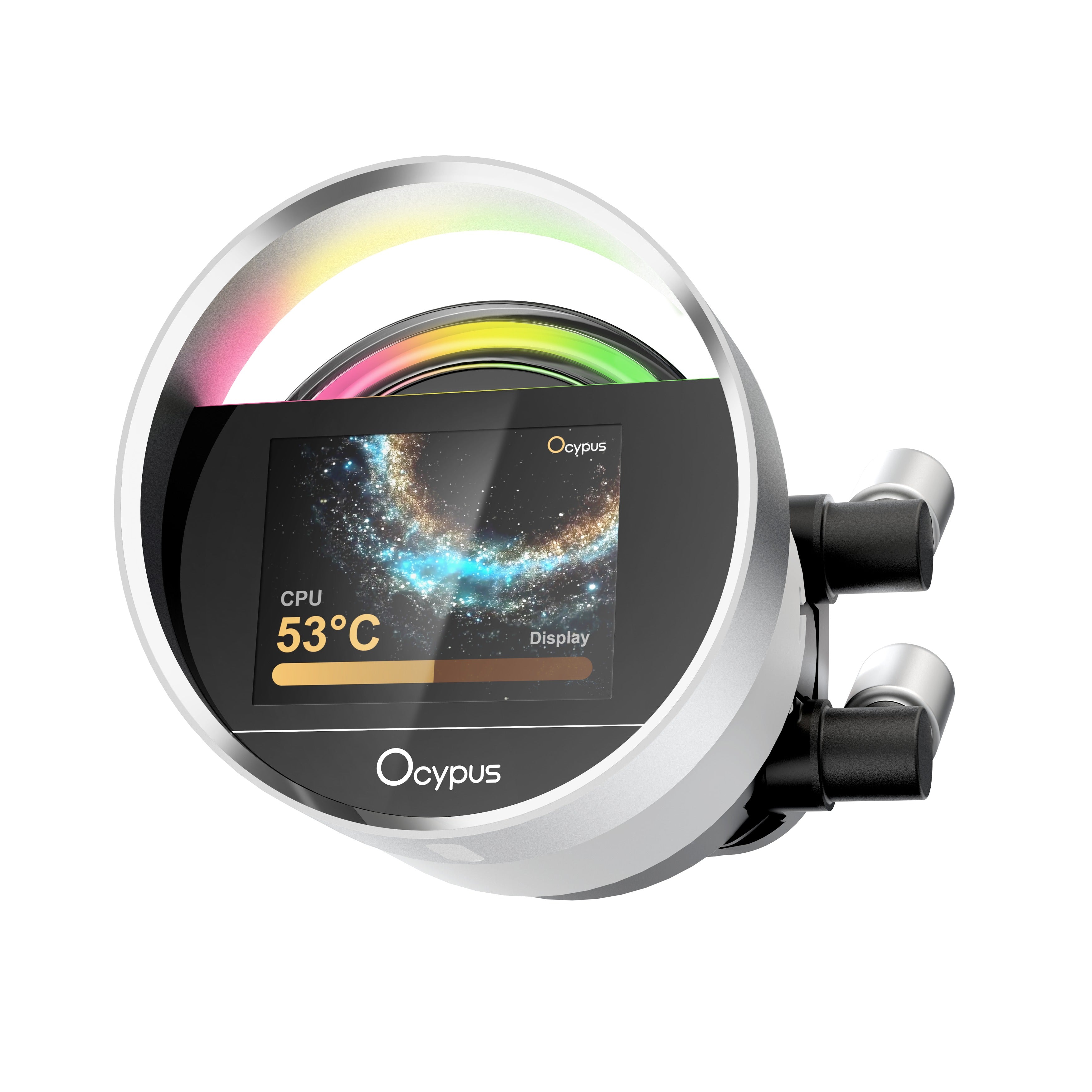

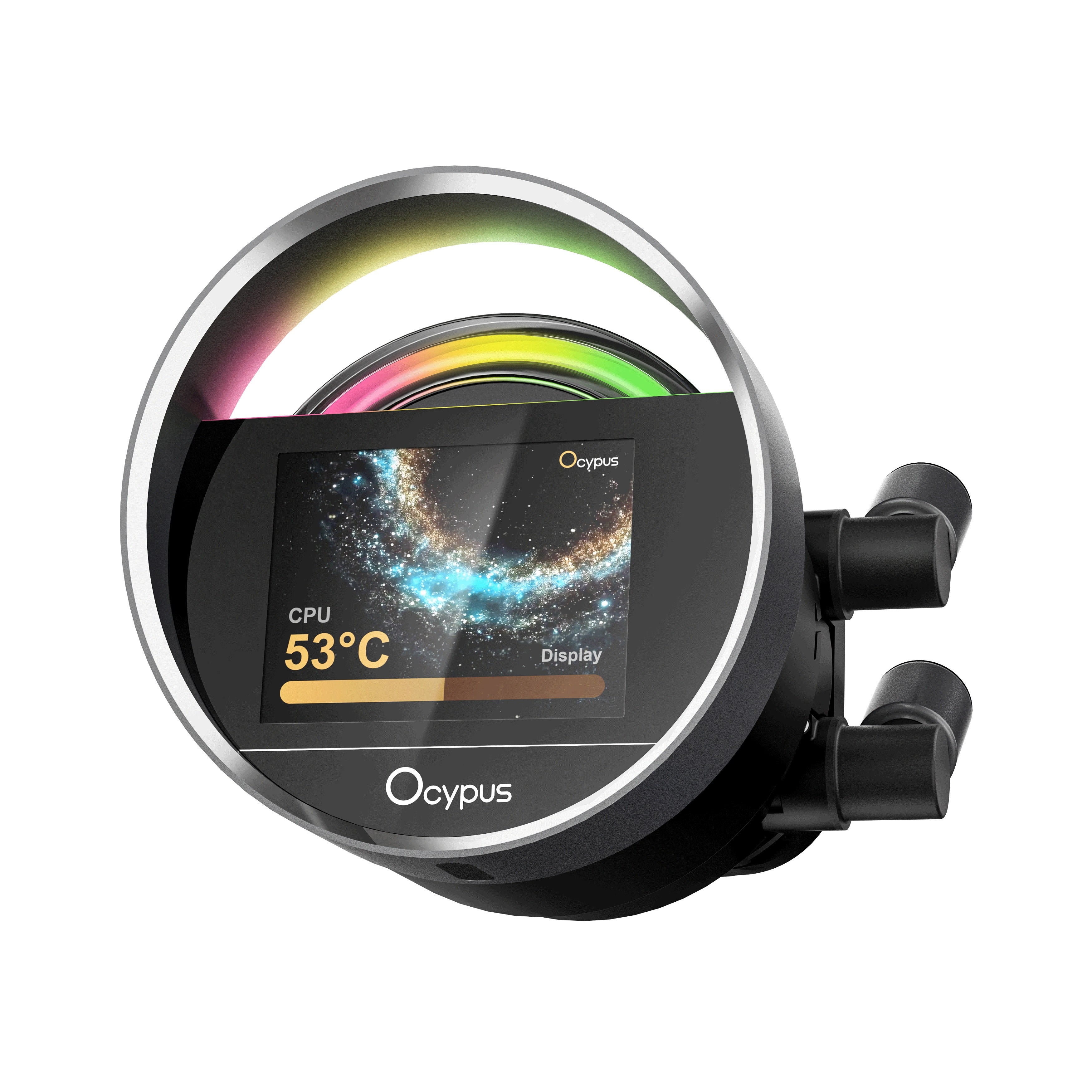

| Pump Display | |
| Size | 2.4 inch |
| Type | IPS |
| Resolution | 320*240px |
| Pump LED | |
| Type | ARGB |
| Connector | 3-Pin |
| Rated Voltage | 5VDC |
| Rated Current | 0.3A |
| Power Consumption | 1.5W |
