Description
Affordable Power, Overclocked Performance

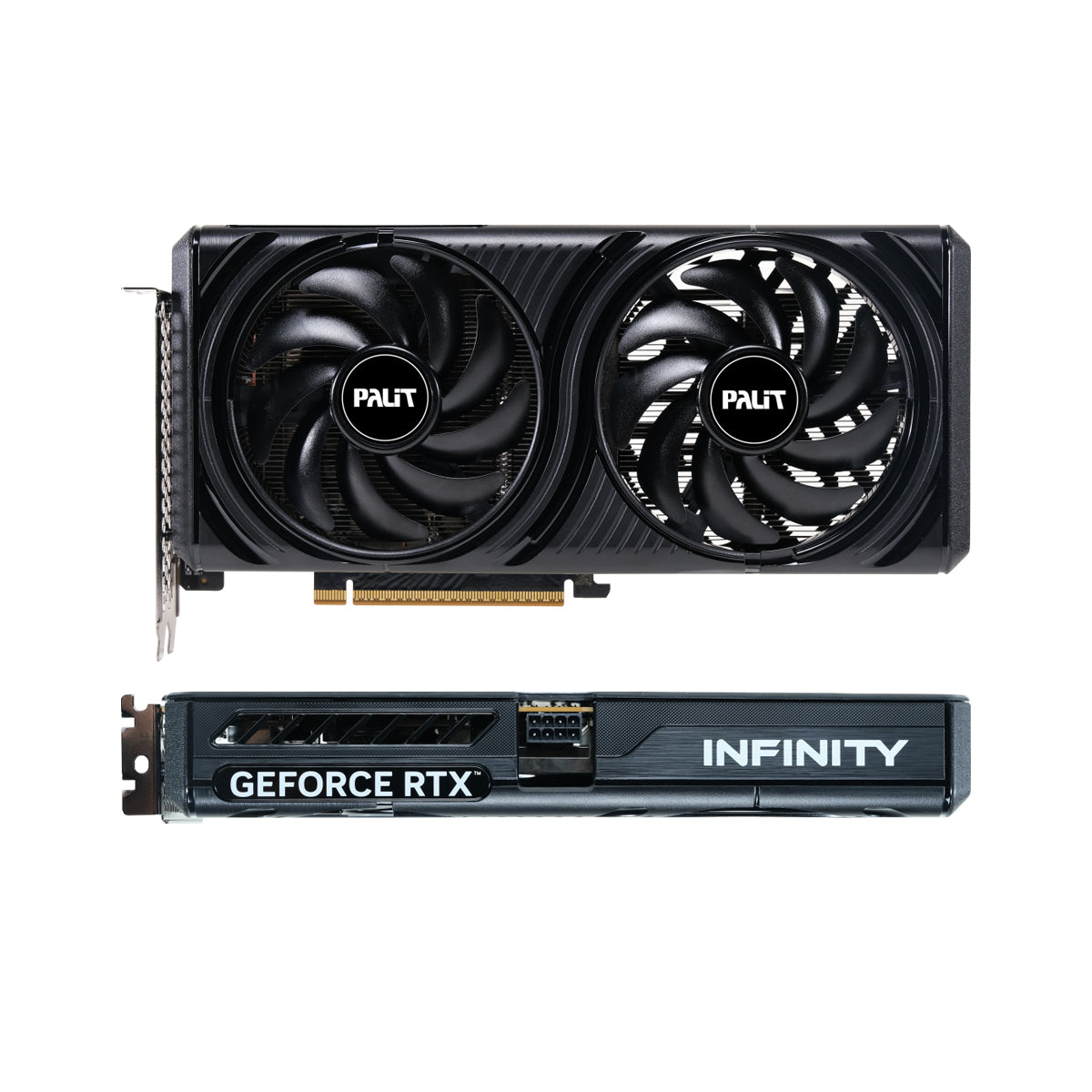

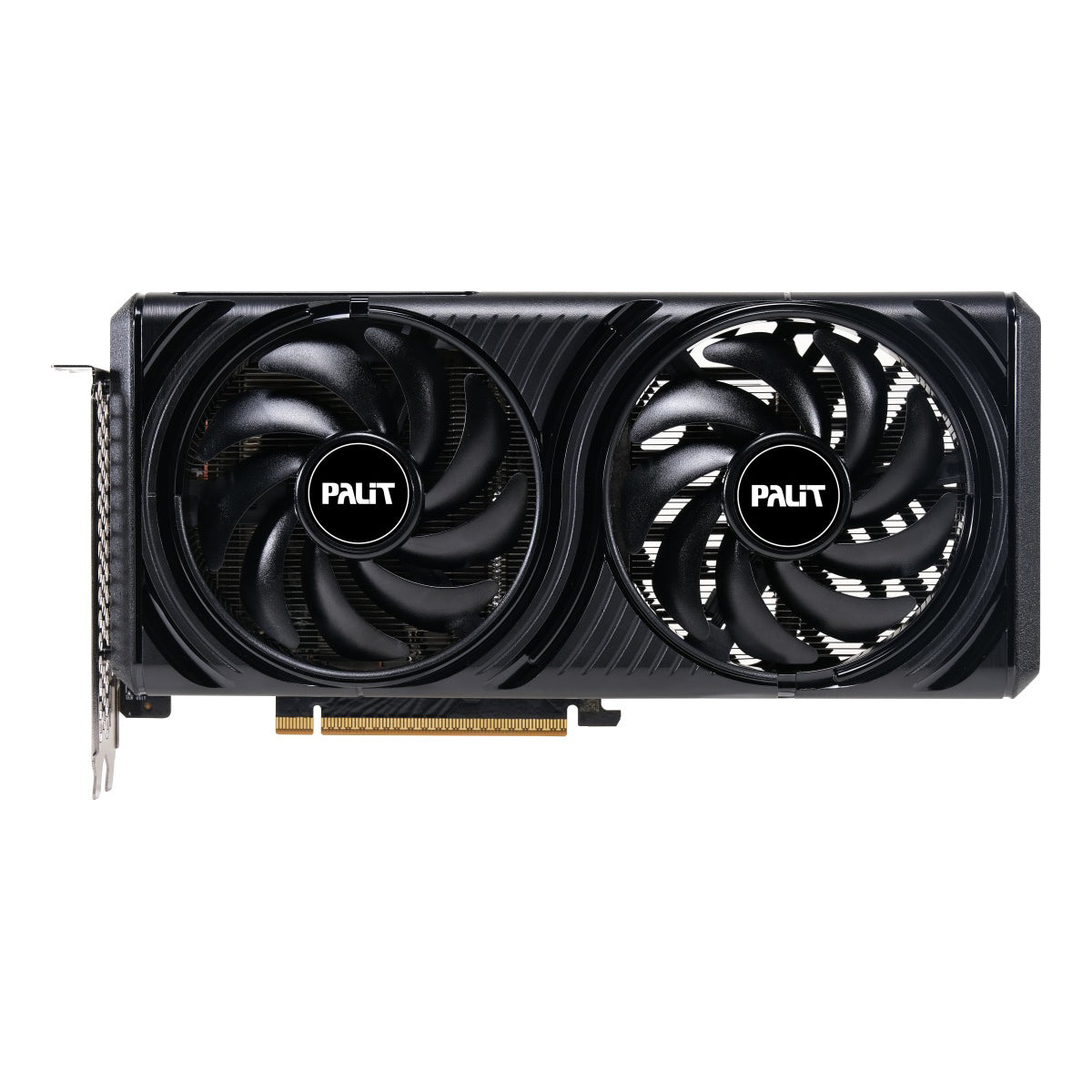

The GeForce RTX™ 5060 Infinity 2 OC comes factory-overclocked, offering higher performance straight out of the box—ideal for users who want an edge without manual tuning.

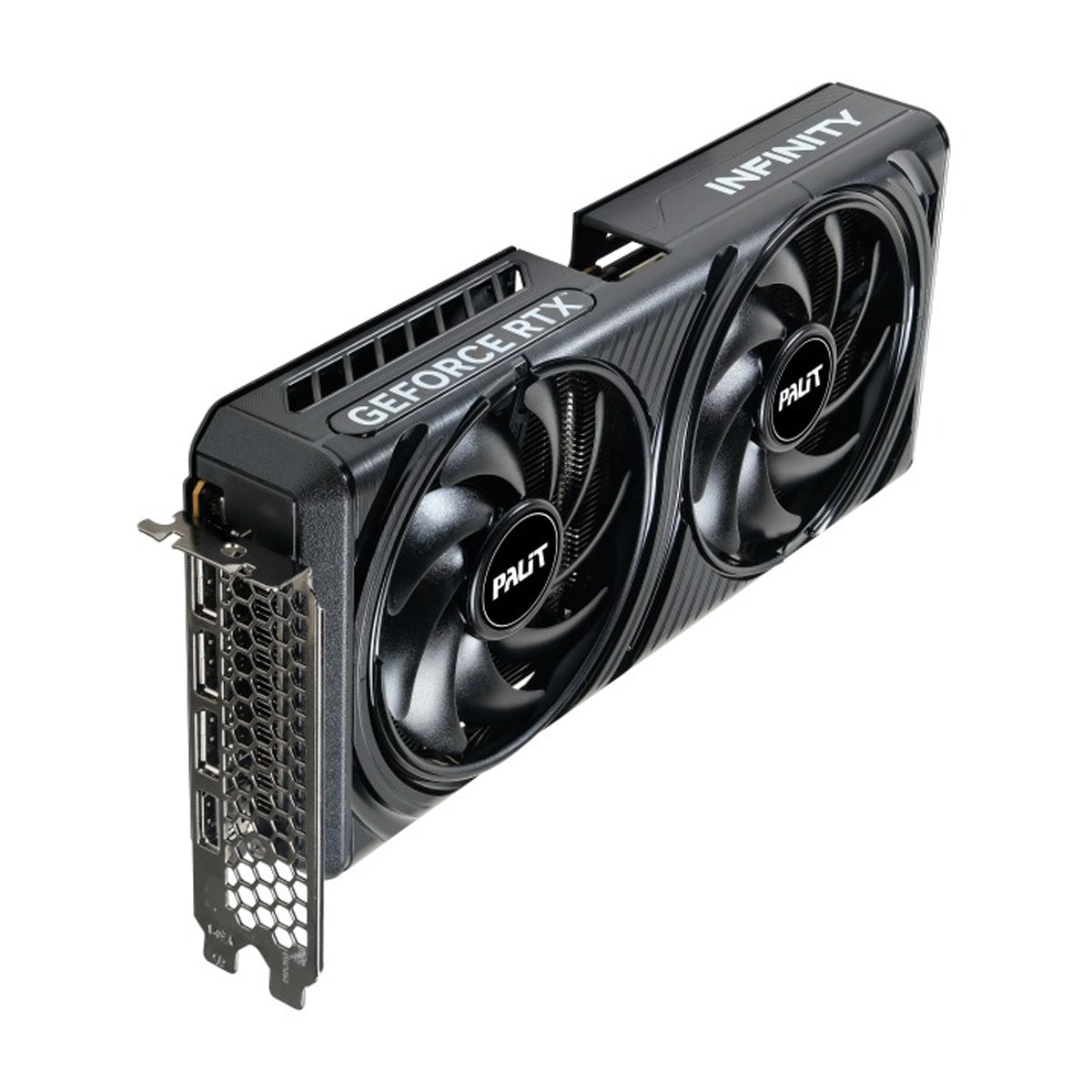

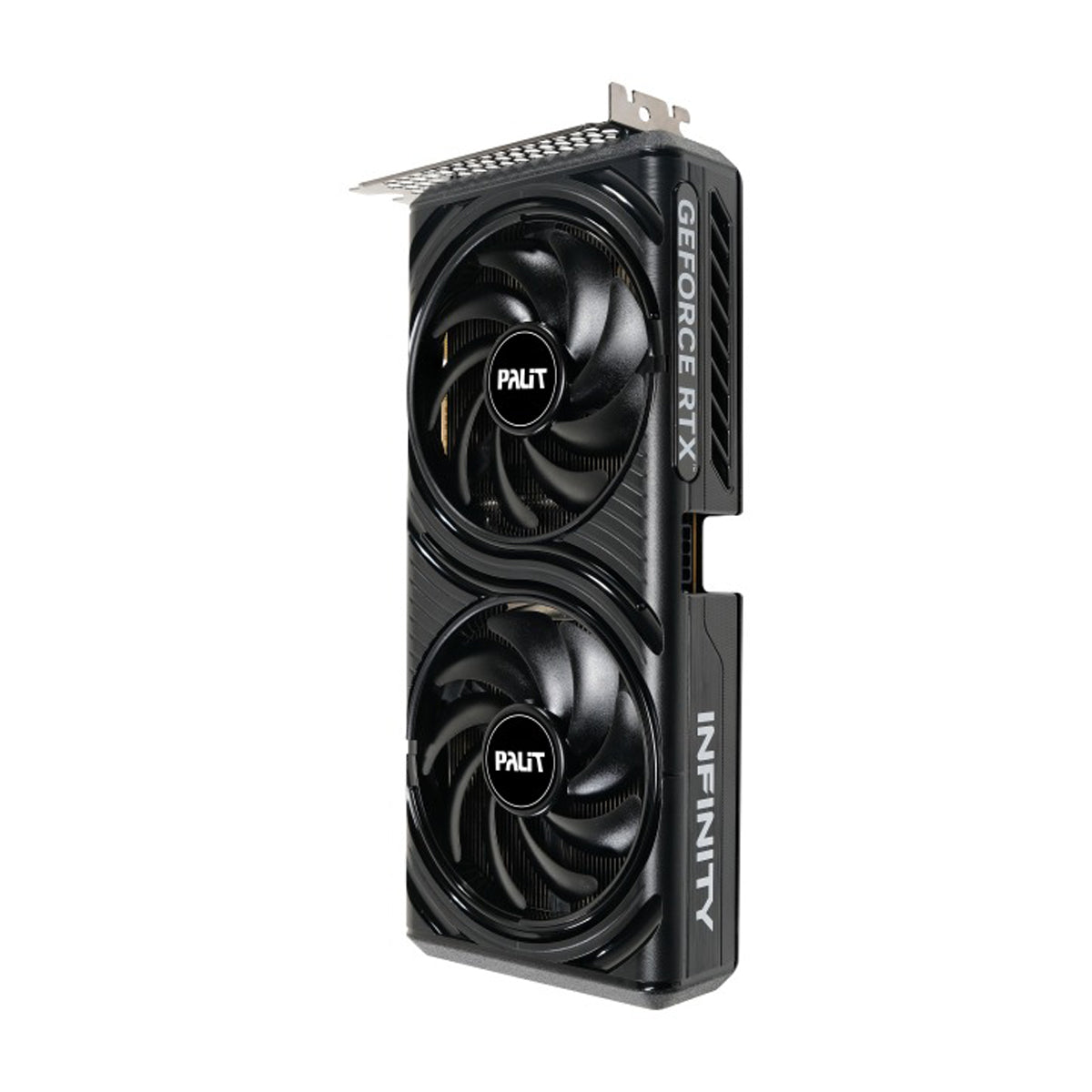

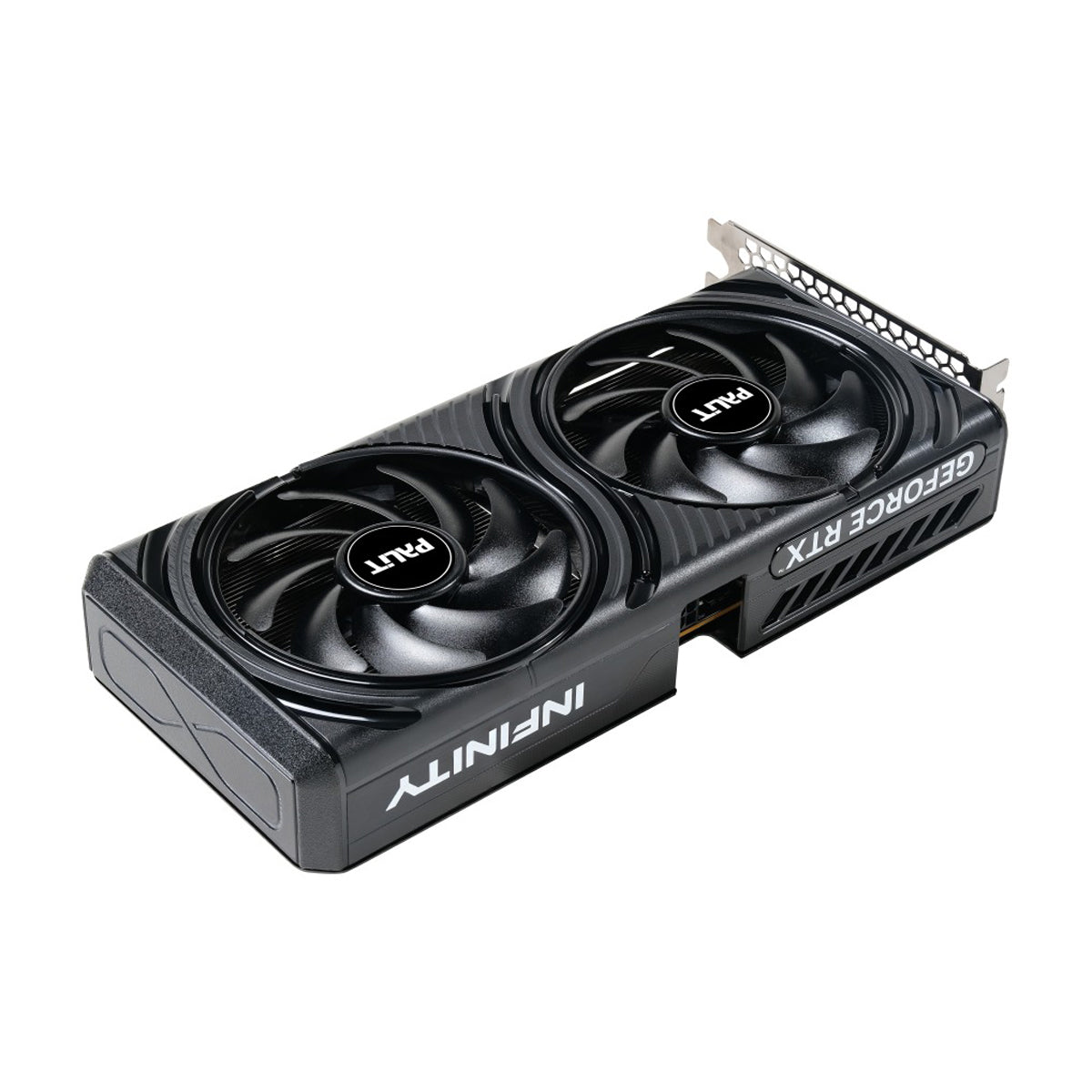

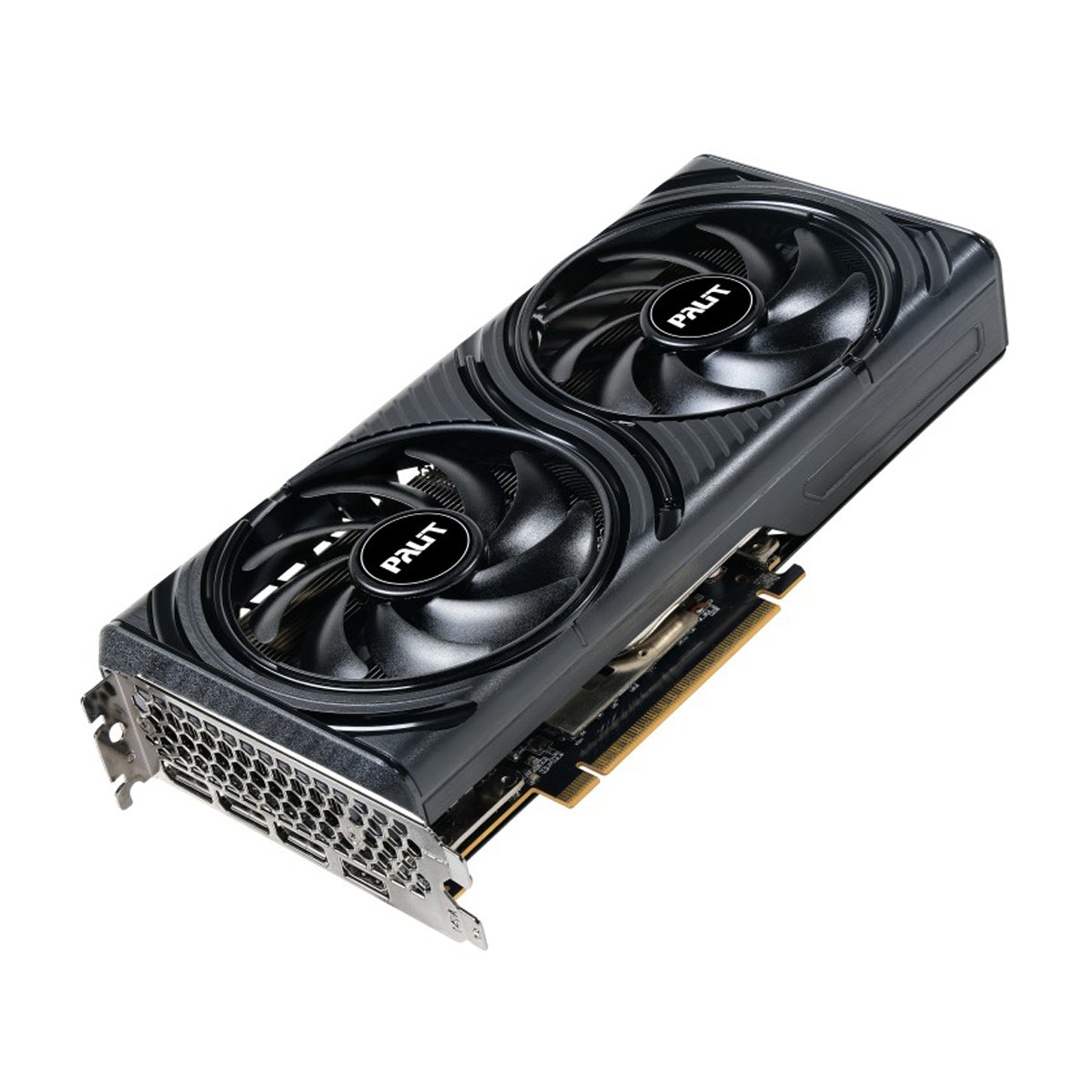

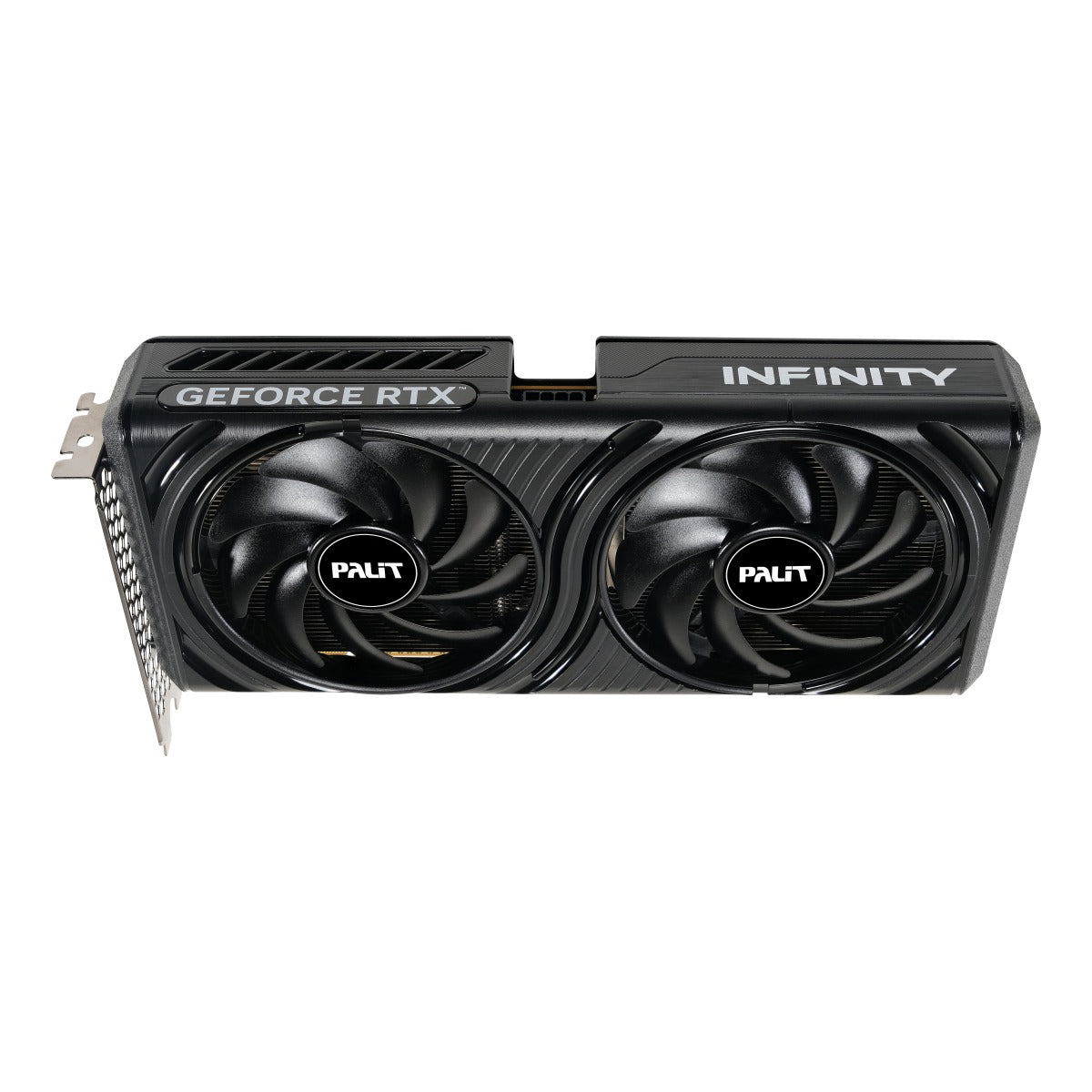

The Infinity 2 OC embodies a philosophy of simplicity and power. Its design, highlighted by the Infinity symbol (∞), not only offers a visually clean aesthetic but also represents smooth airflow, allowing users to game and create without limits. Designed without any lighting effects, and built with a compact 2-slot form factor, it offers a focused aesthetic that fits seamlessly into a wide range of builds.
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.
| Specifications | |
| Memory Amount | 8 GB |
| Memory Interface | 128 bits |
| DRAM Type | GDDR7 |
| Graphics Clock | 2280 MHz |
| Boost Clock | 2512 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 3840 |
| Memory Bandwidth (GB/sec) | 448 |
| Microsoft DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 5.0 |
| HDMI | HDMI 2.1b |

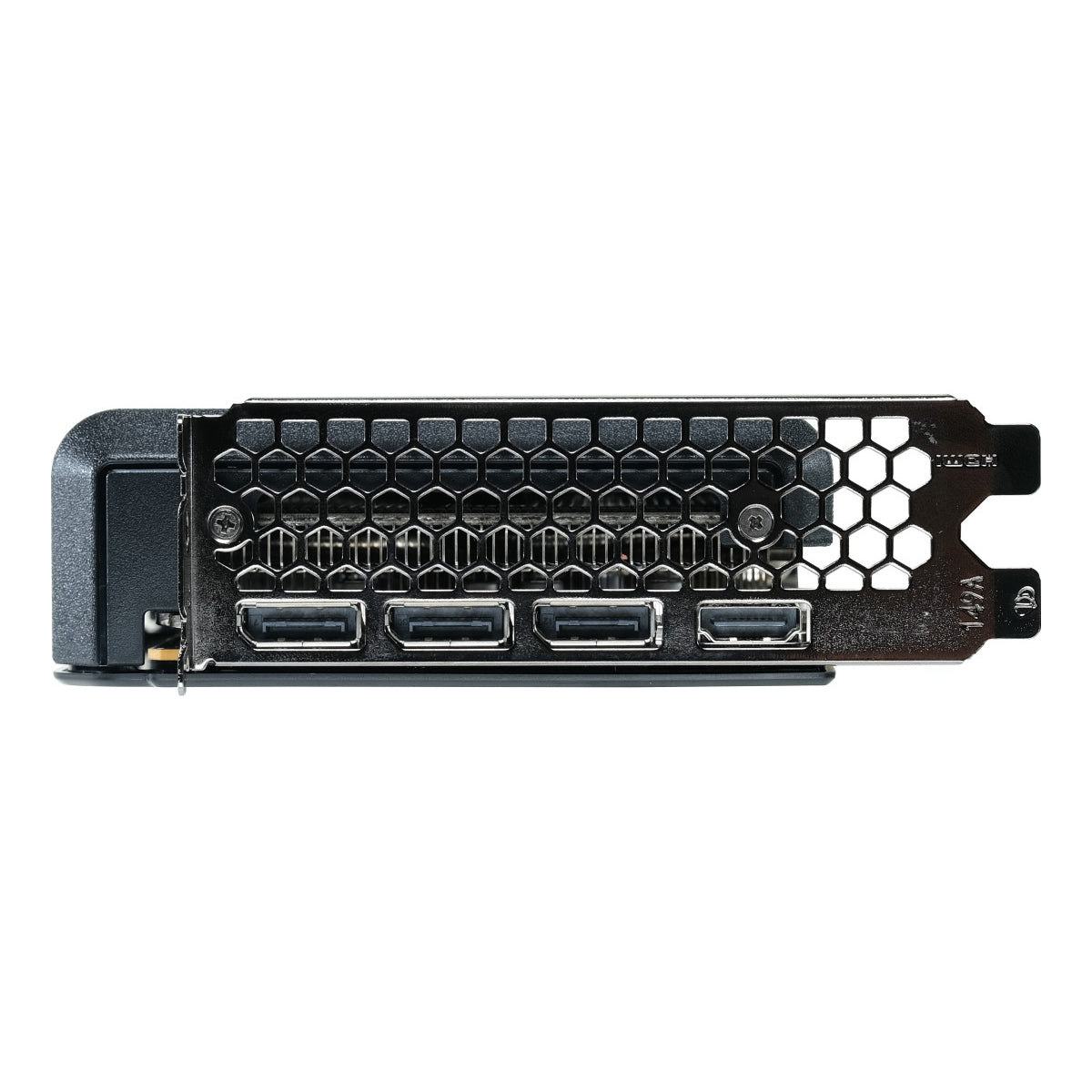

| Display Port | DP2.1b x 3 |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 120Hz with DSC |
| Height | 2 Slot |

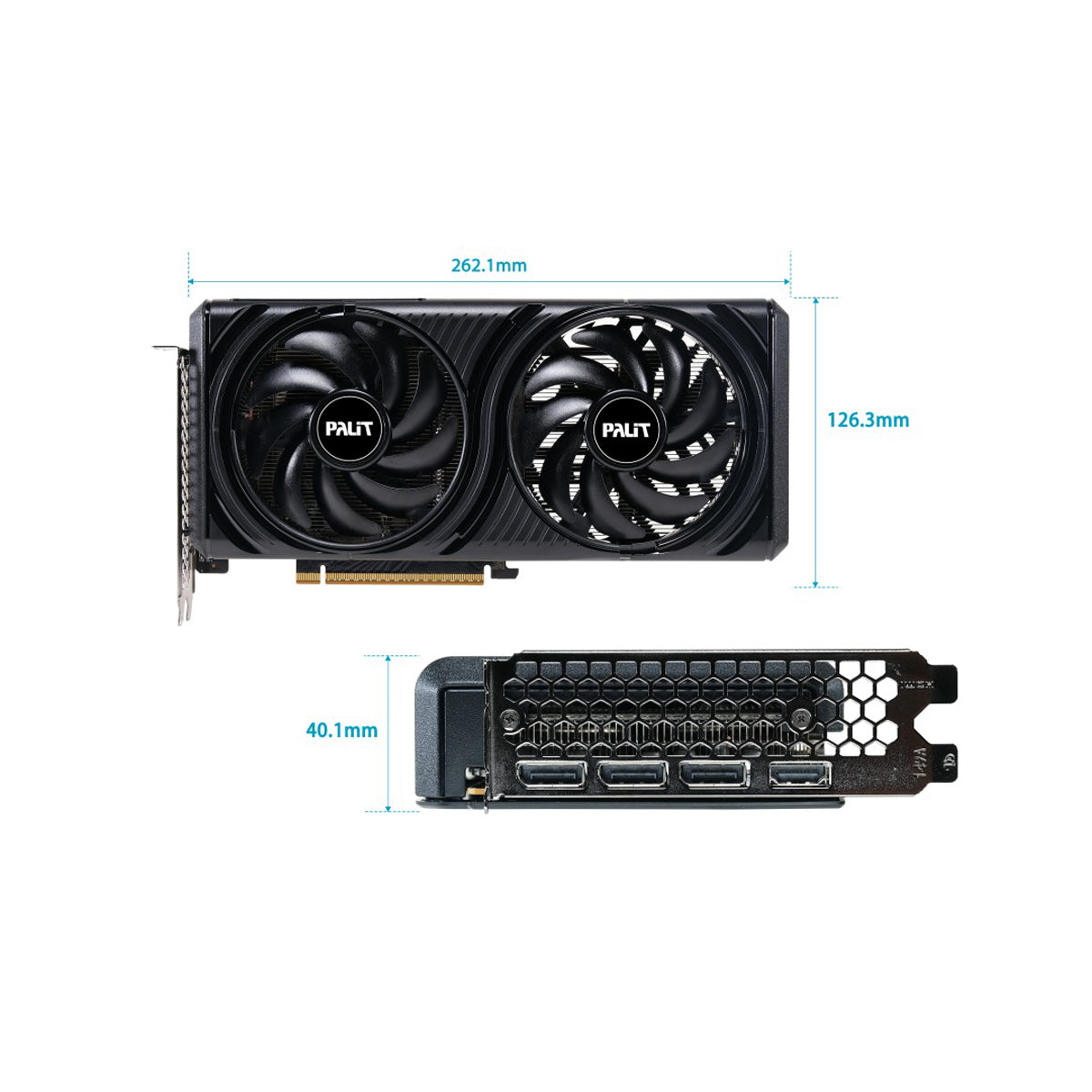

| Board Size | 262.1 x 126.3 x 40.1 mm |
| Graphics Card Power | 145 W |
| Recommended System Power | 550 W |

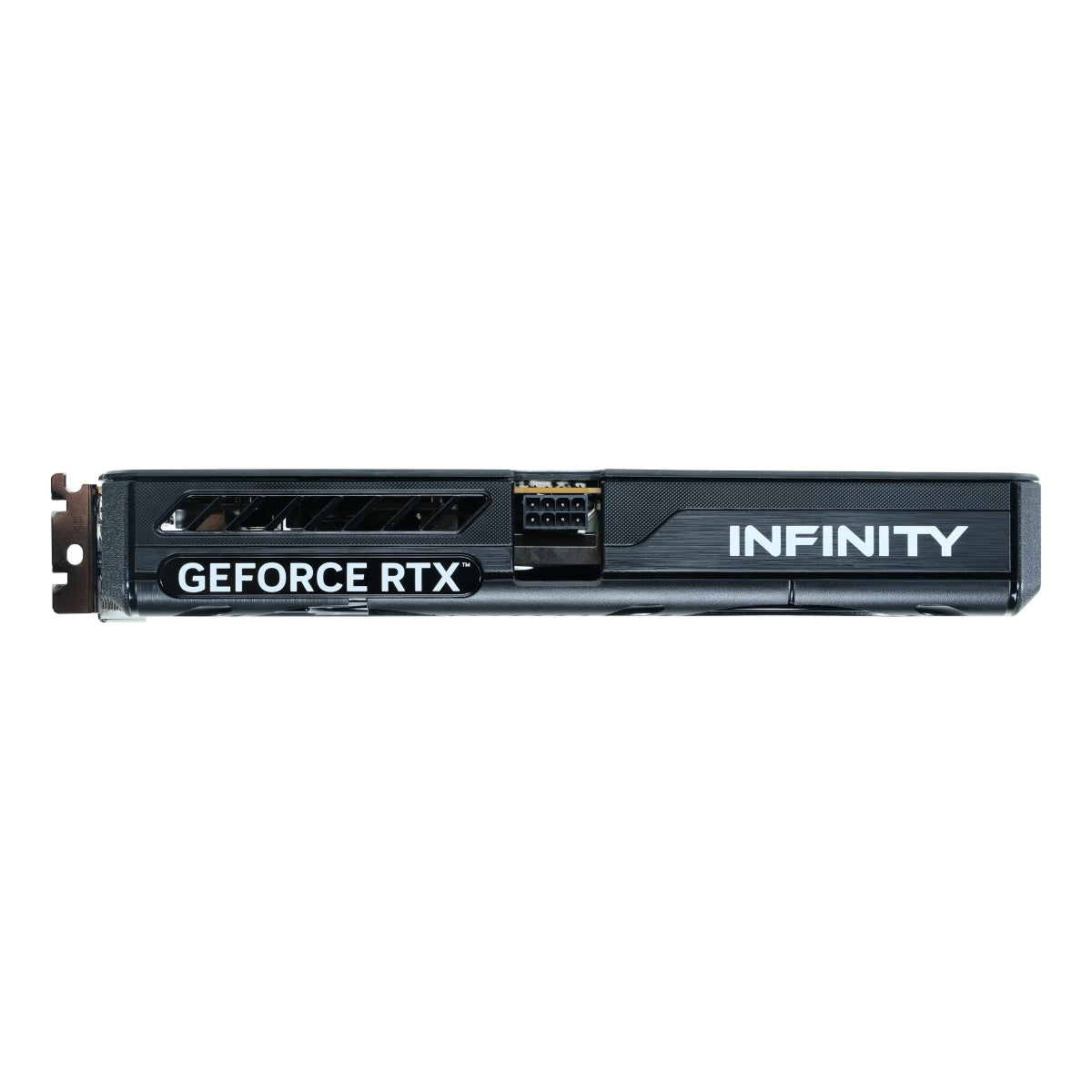

| Supplementary Power Connectors | 8-pin x 1 |
| Composite Heat Pipe | ✓ |
| Copper Base | ✓ |
| DrMOS | ✓ |
| 0-dB TECH | ✓ |
| NVIDIA Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS 4 | ✓ |
| NVIDIA Reflex 2 | ✓ |
| NVIDIA Broadcast | ✓ |
| Resizable BAR | ✓ |
| NVIDIA App | ✓ |
| NVIDIA Ansel | ✓ |
| NVIDIA FreeStyle | ✓ |
| NVIDIA ShadowPlay | ✓ |
| NVIDIA® Highlights | ✓ |
| NVIDIA G-SYNC | ✓ |
| Game Ready Drivers | ✓ |
| NVIDIA Studio Drivers | ✓ |
| NVIDIA Omniverse | ✓ |
| RTX Remix | ✓ |
| NVIDIA GPU Boost | ✓ |
| Vulkan 1.4, OpenGL 4.6 | ✓ |
| NVIDIA Encoder (NVENC) | 1x 9th Generation |
| NVIDIA Decoder (NVDEC) | 1 x 6th Generation |
| AV1 Encode | ✓ |
| AV1 Decode | ✓ |
| CUDA Capability | 12.8 |
| VR Ready | ✓ |
| Multi Monitor | 4 |
