Description
AMP GH

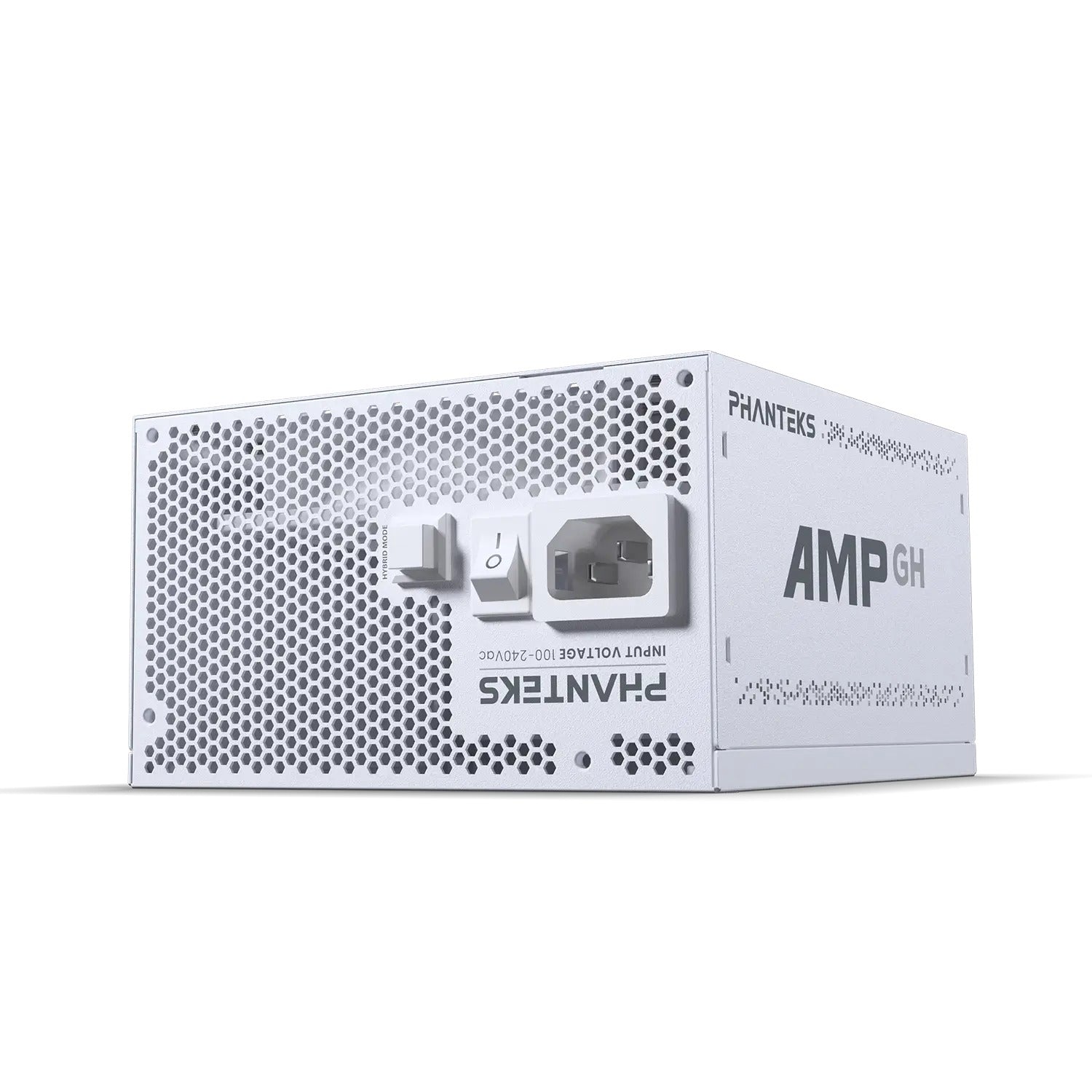

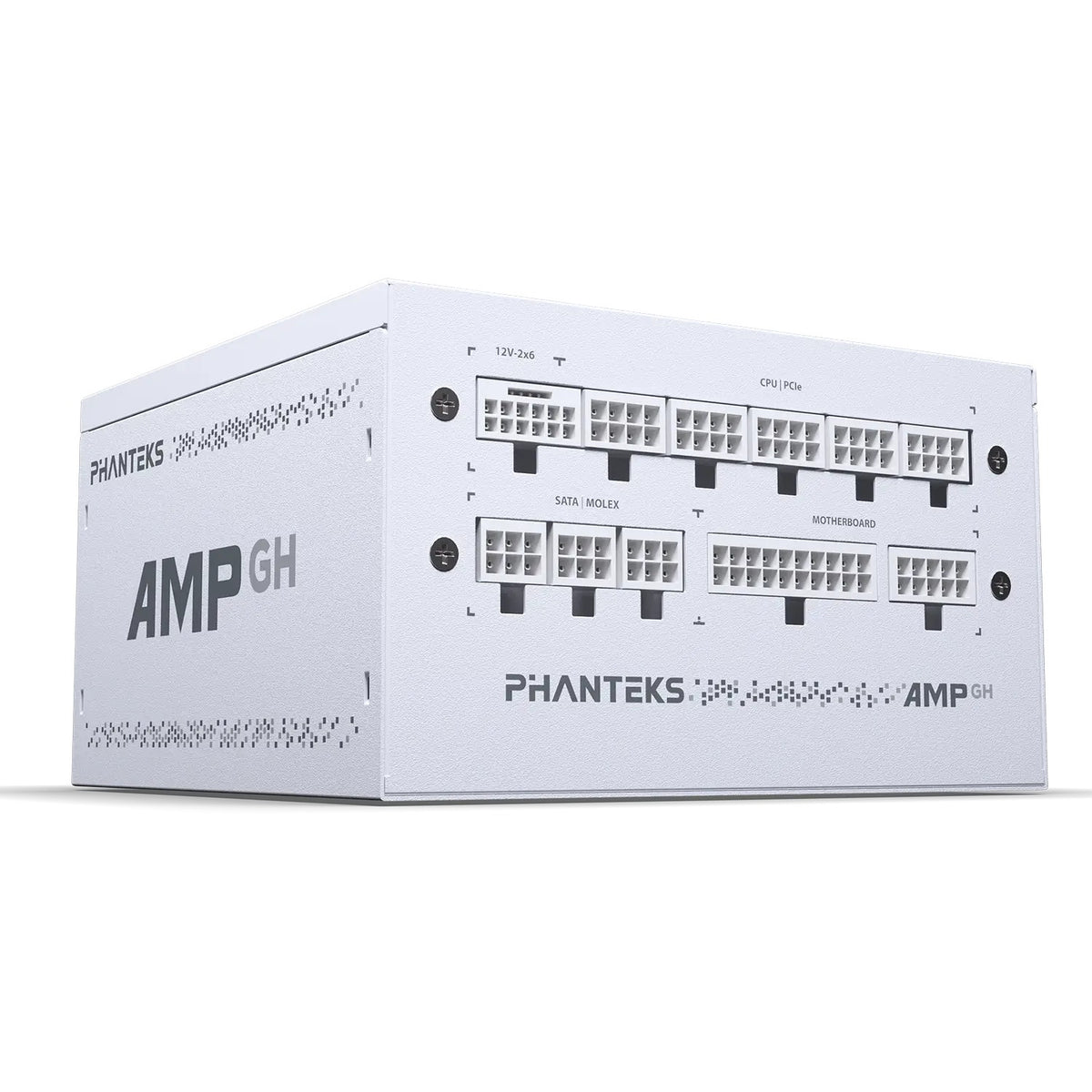

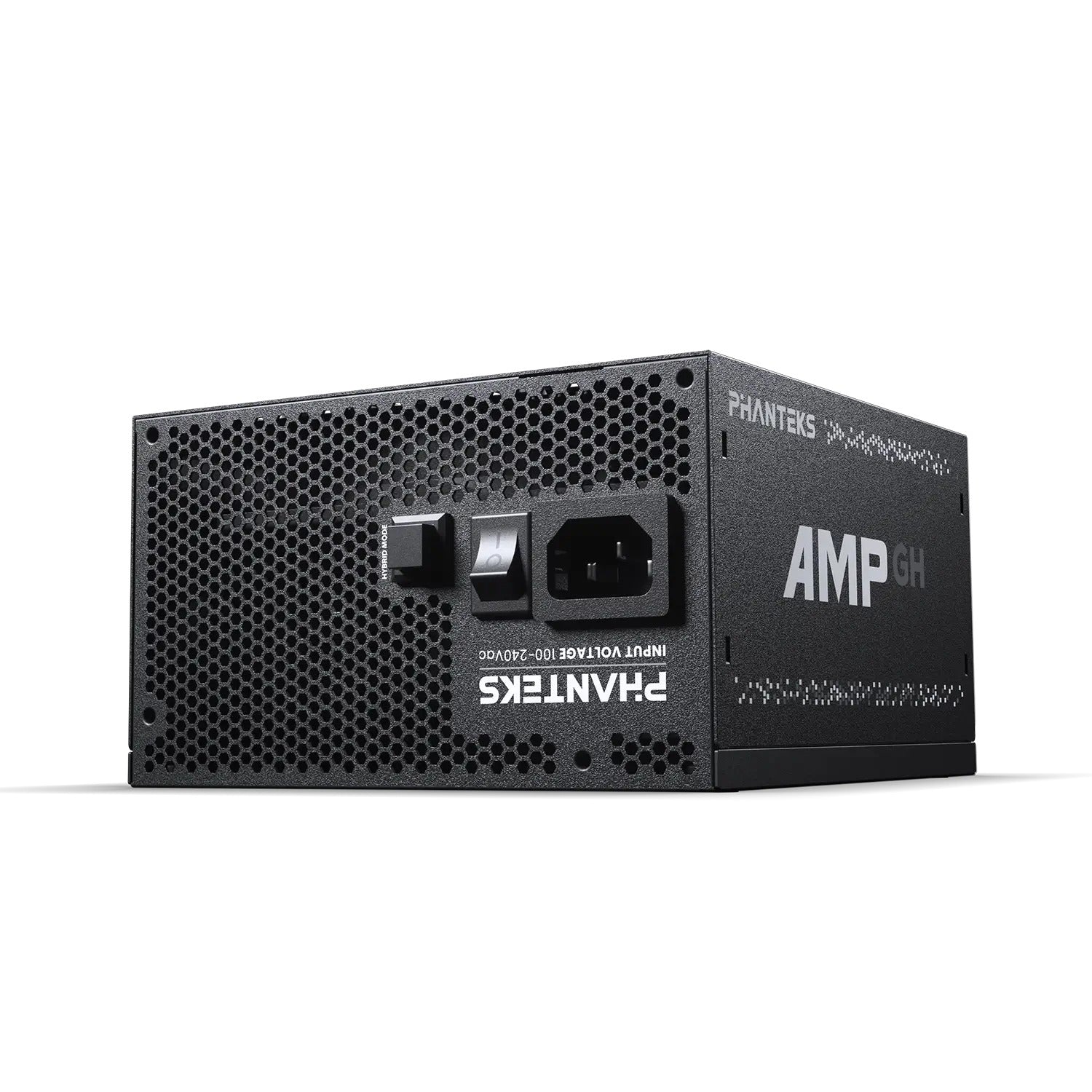

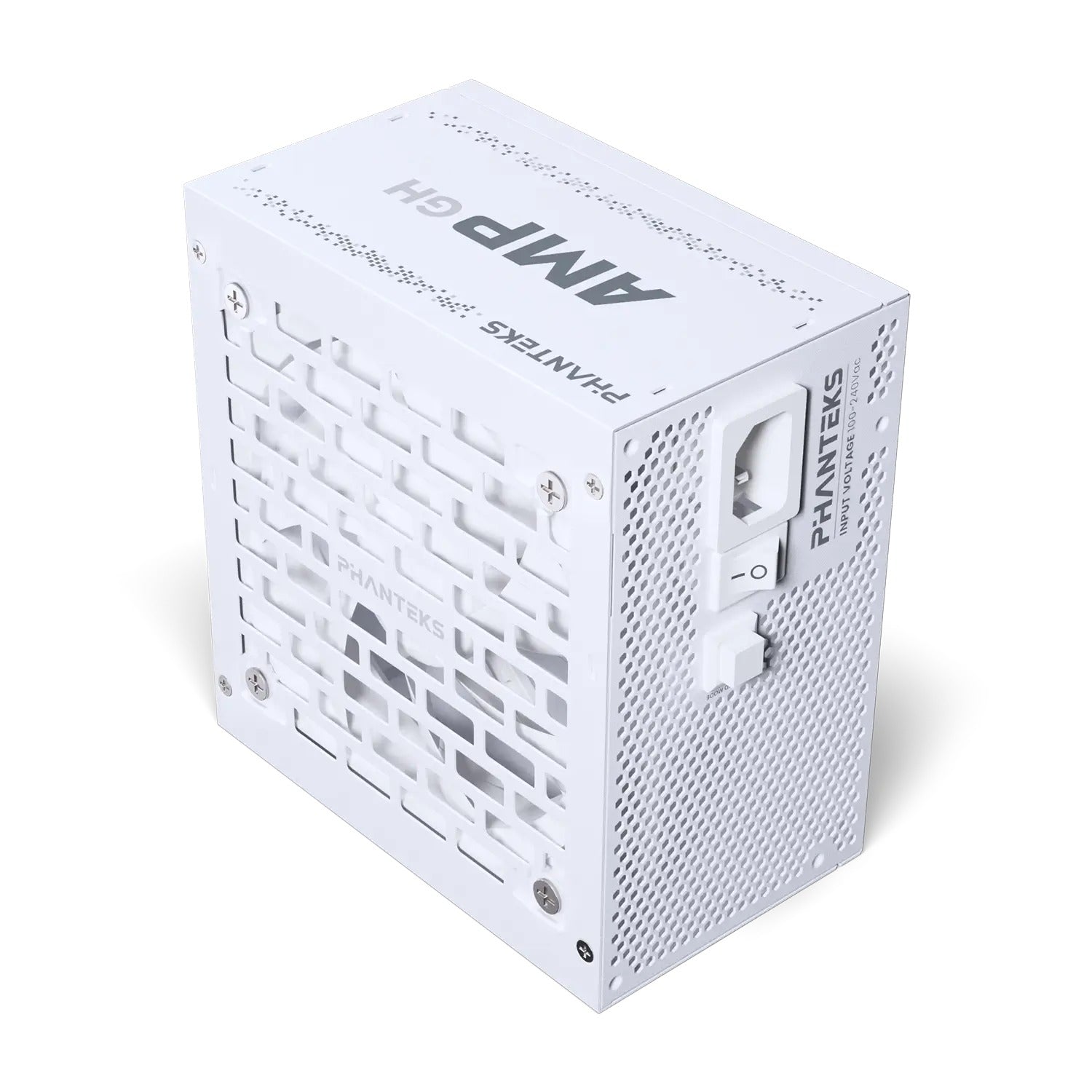

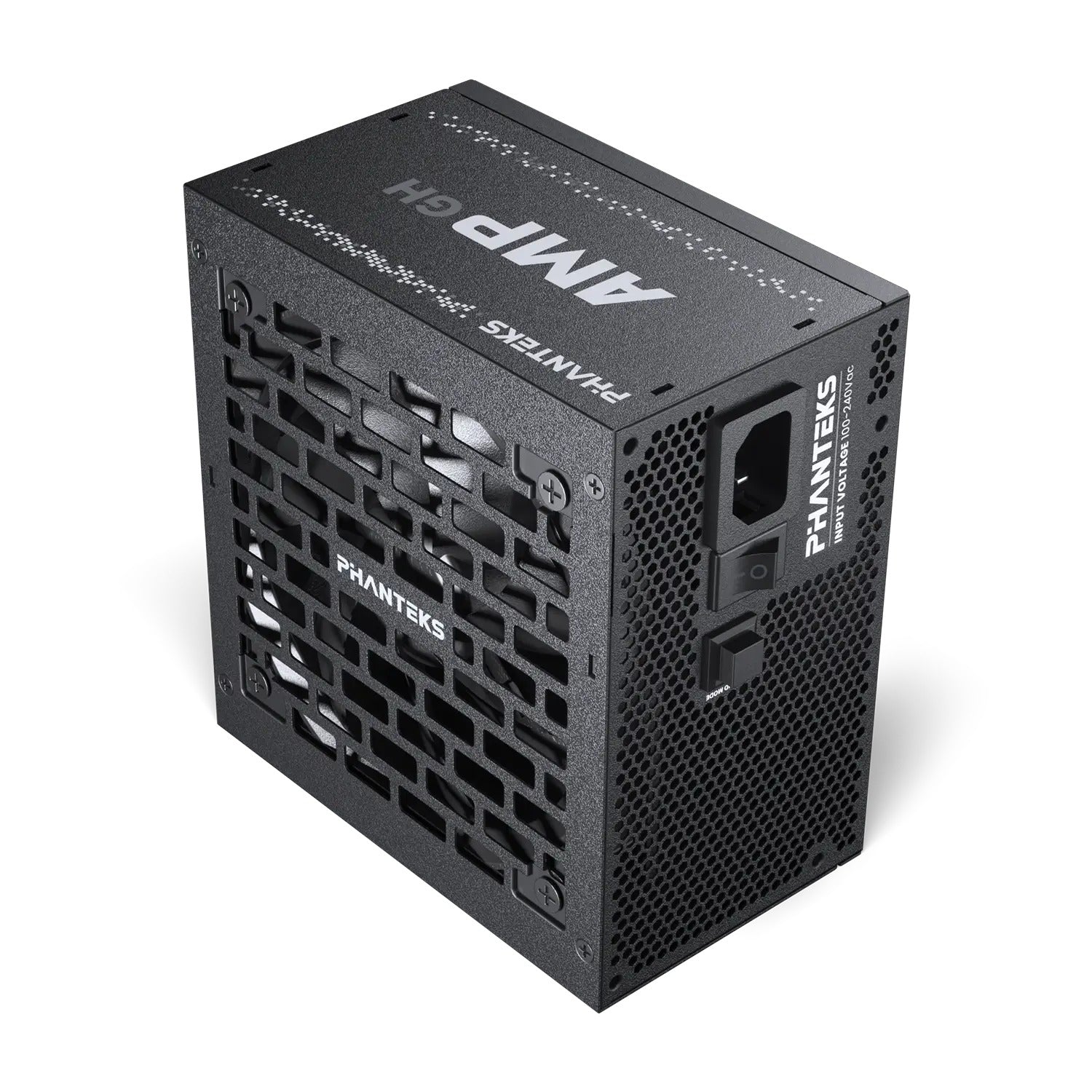

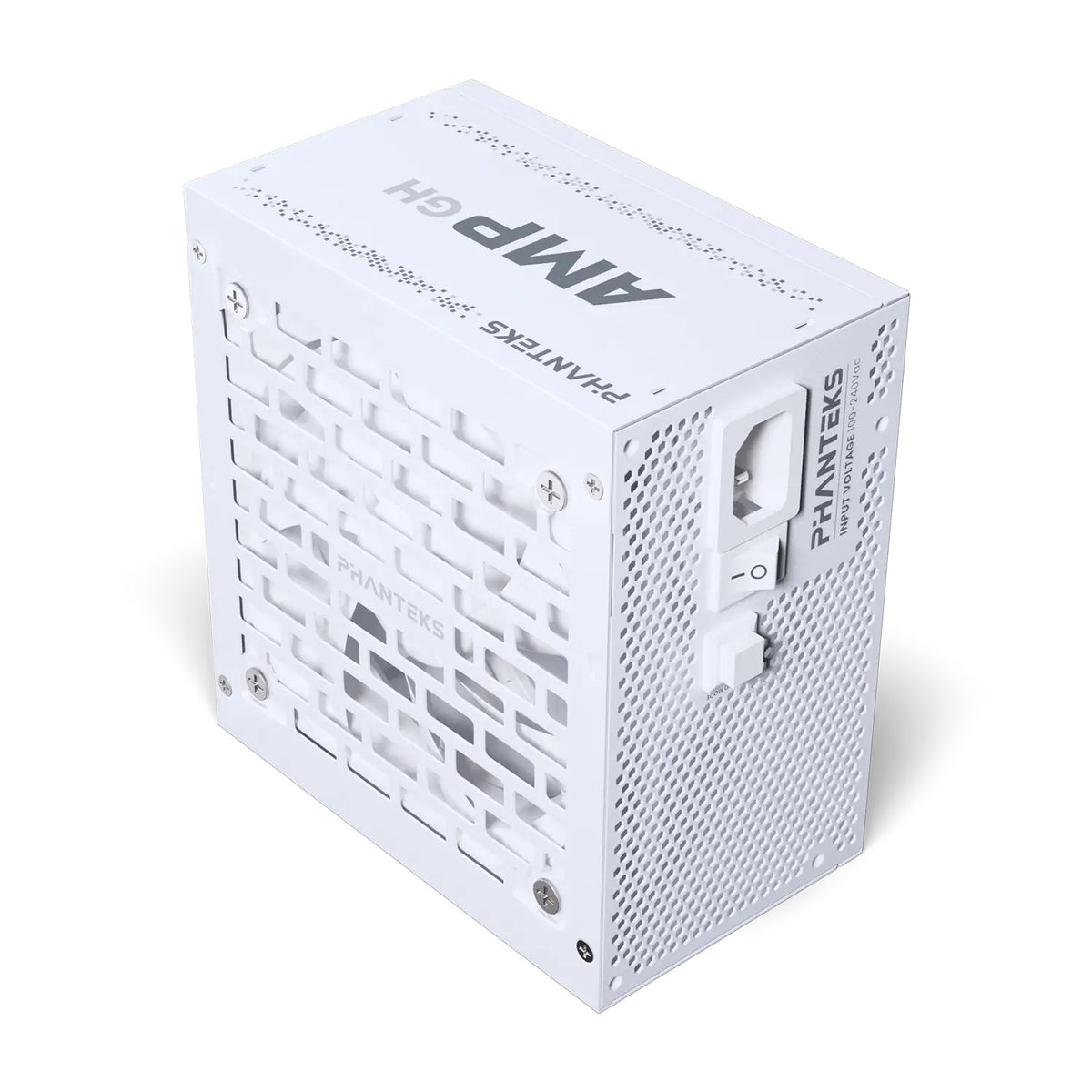

Fully Modular Power Supply | 850

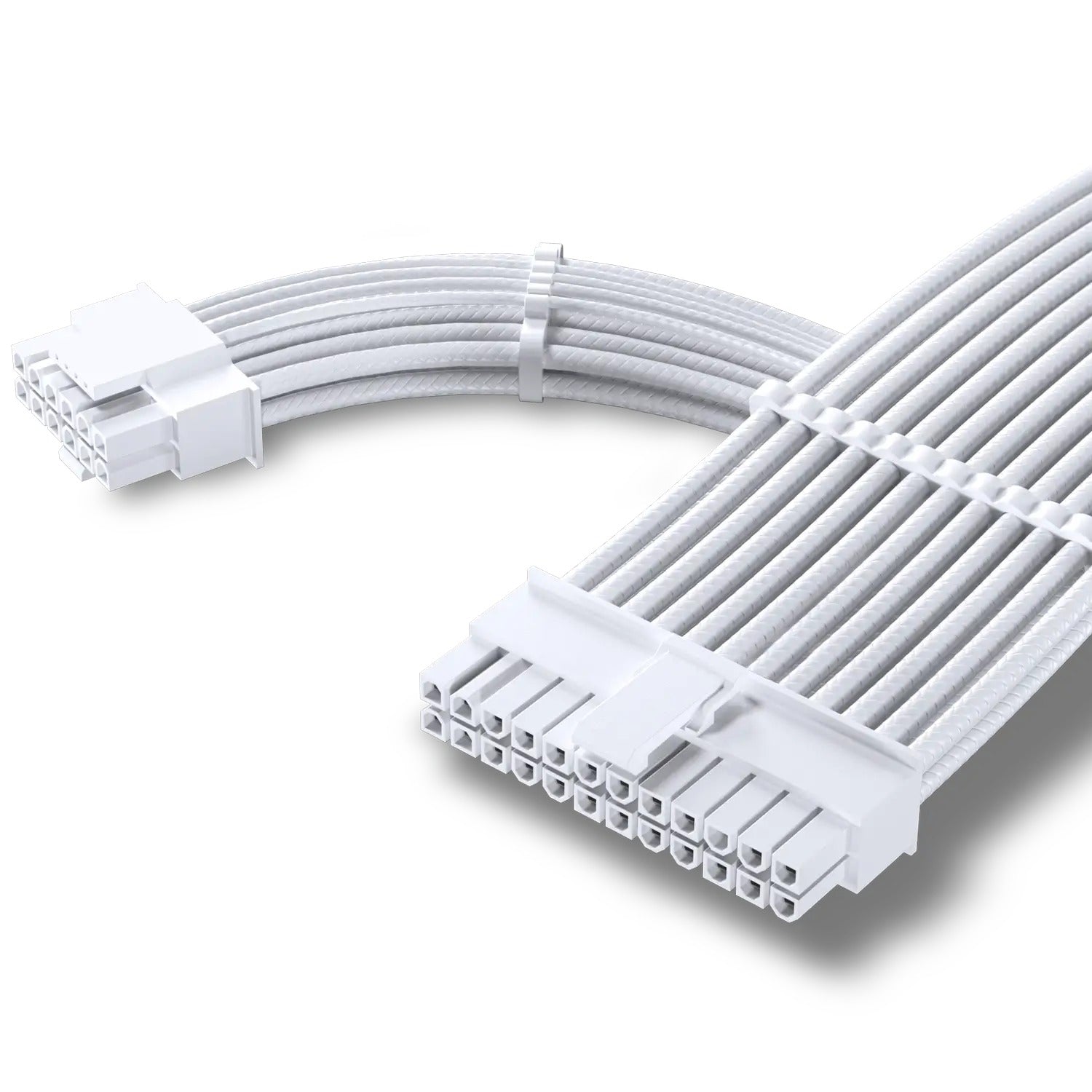

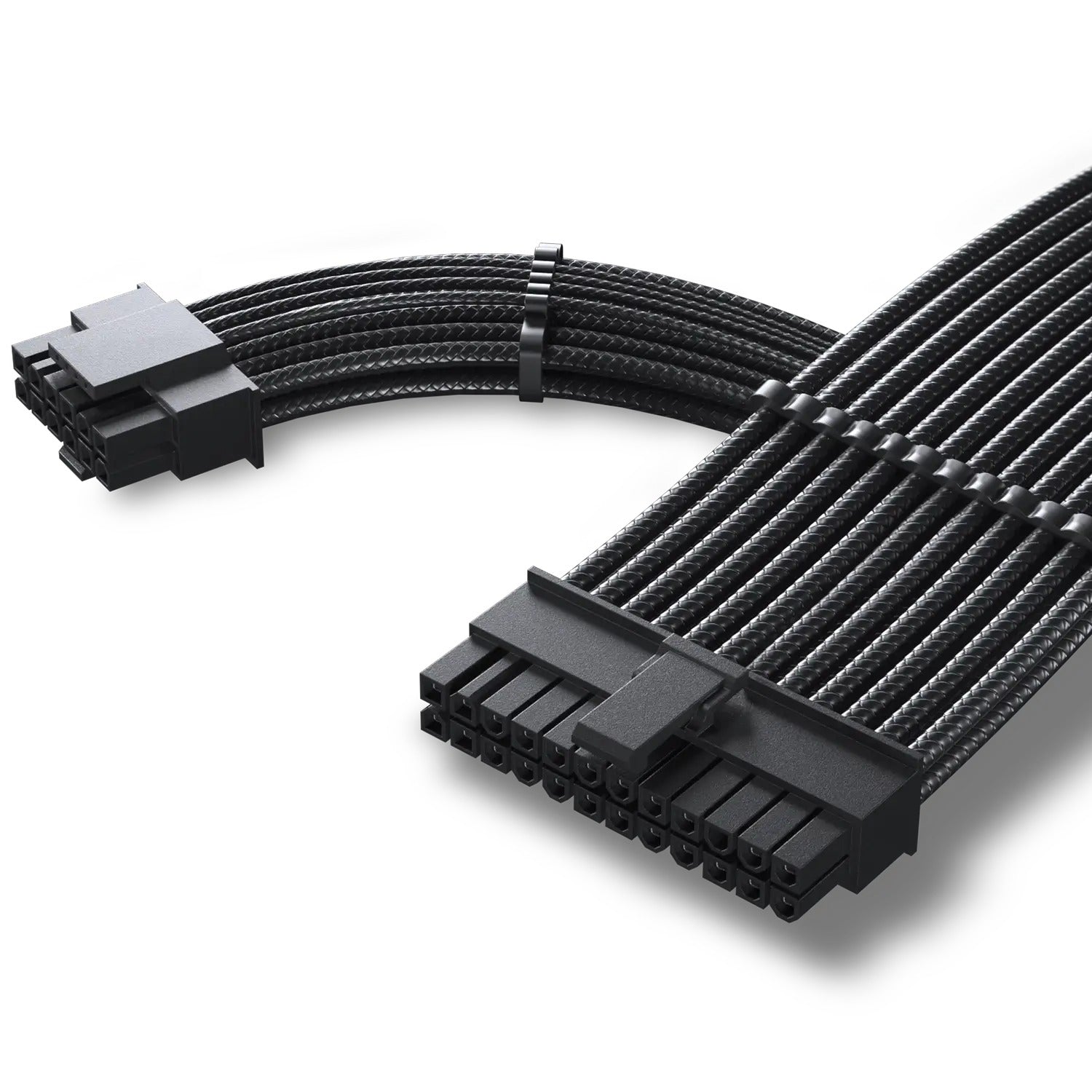

Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2×6 connector delivers up to 450W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
Specification:
| Materials | Steel | ABS plastic |

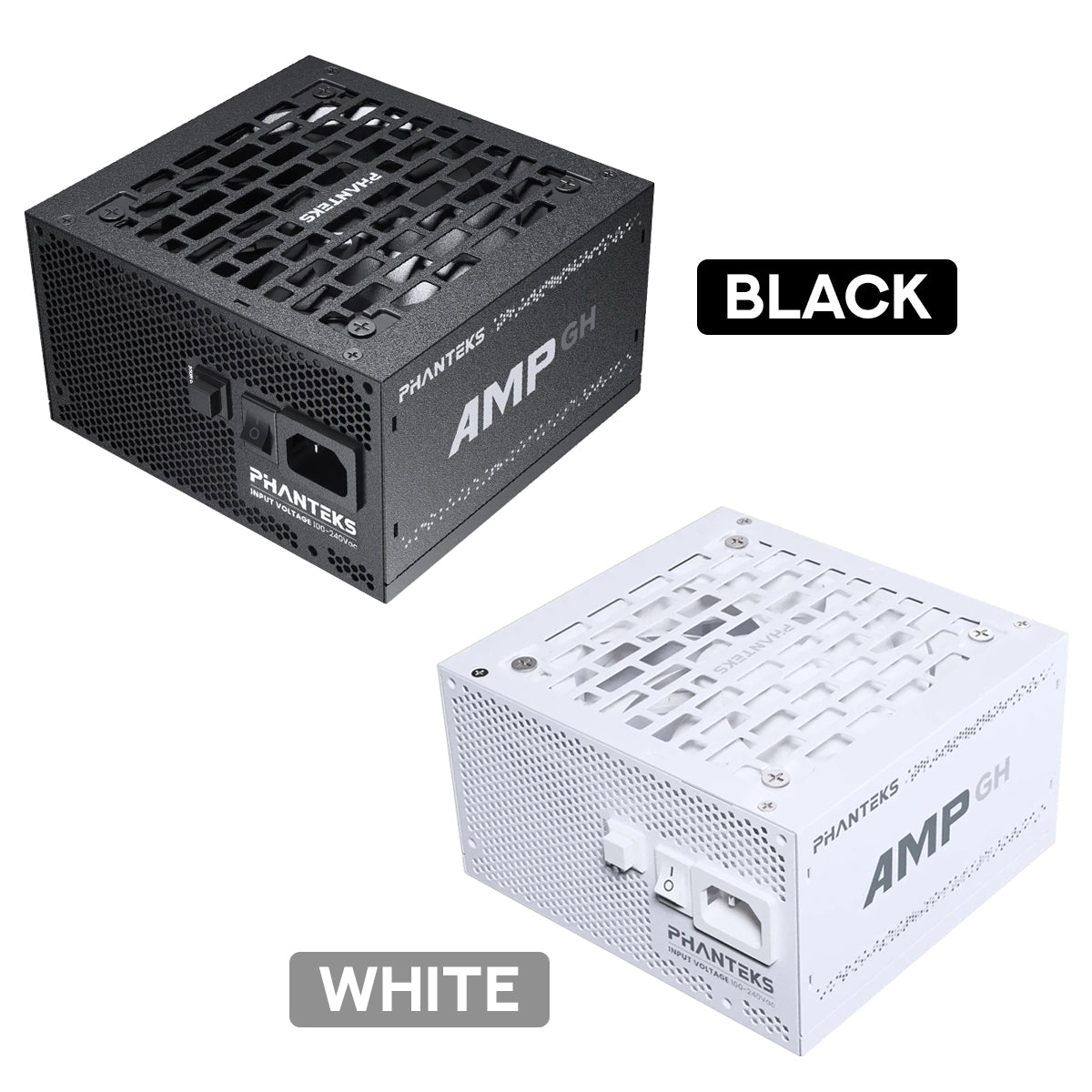

| Color | White, Black |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 in |
| Power Output | 850 W |
| PCIe Gen5 Output | 600 W |
| 80 Plus Certification | Platinum |
| DC Output Ratings | 12 V, 5 V, 3.3 V, -12 V, 5 VSB |
| Maximum Current | 62A, 20A, 20A, 0.3A, 3A |
| Maximum Capacity | 744 W, 130 W, 3.6 W, 15 W |
| AC Input | 100-240 Vac / 9-4.5A, 50-60Hz |
| Operating Temp. | 0 to 50 °C (rated power de-rates 100%→80% from 40-50°C) |
| Operating Humidity | Up to 85% RH (non-condensing) |
| Storage Temp. | -40 to 85 °C |
| Storage Humidity | Up to 95% RH (non-condensing) |
| MTBF | >100,000 hrs at 25 °C (excluding DC fan) |
| Net Weight | 2.33 kg / 5.13 lbs |
| Gross Weight | 3.81 kg / 8.39 lbs |
| Warranty | 8 Years limited |
| Scope of Delivery | 1x PSU, 1x C13 power cord, fully modular cables |
