Description

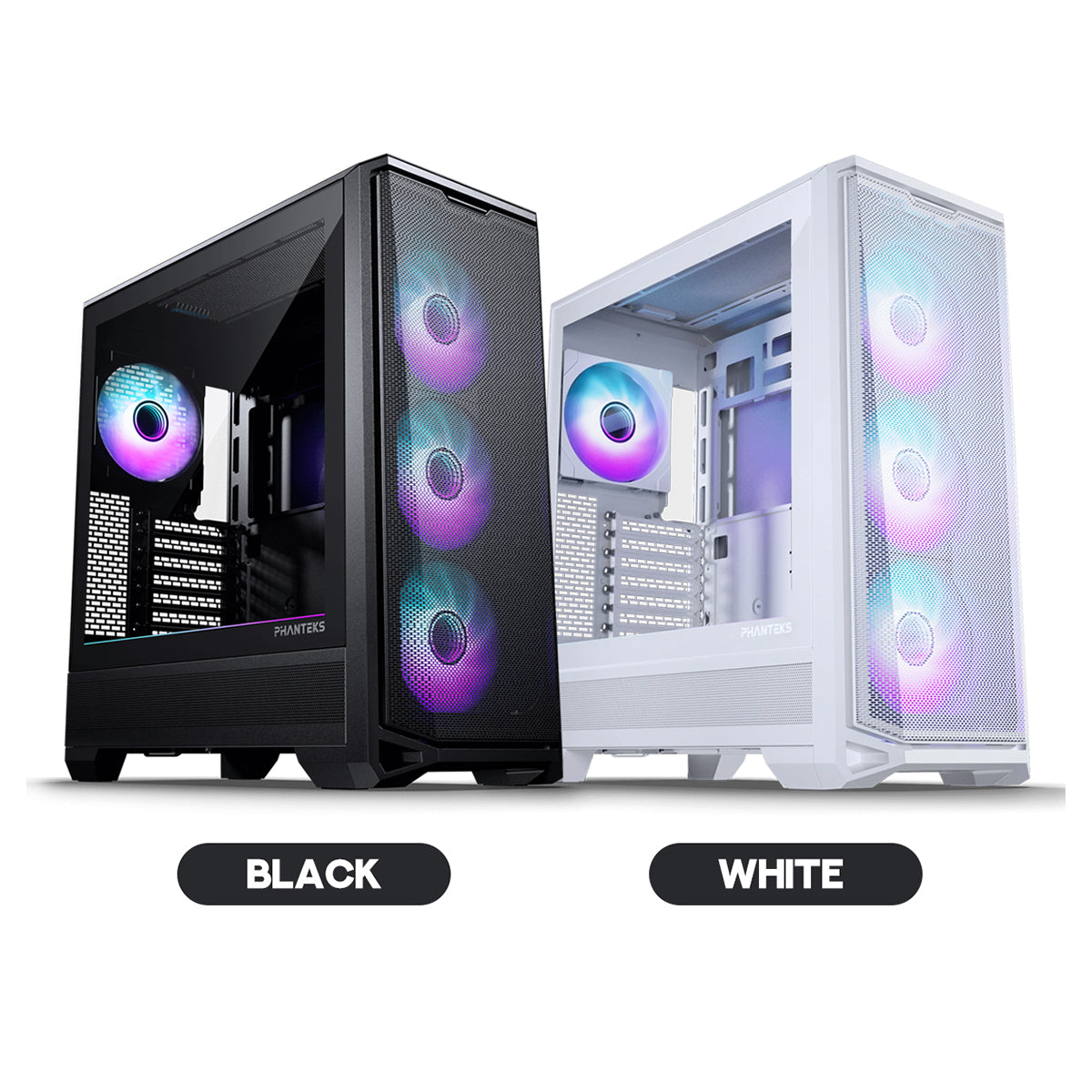

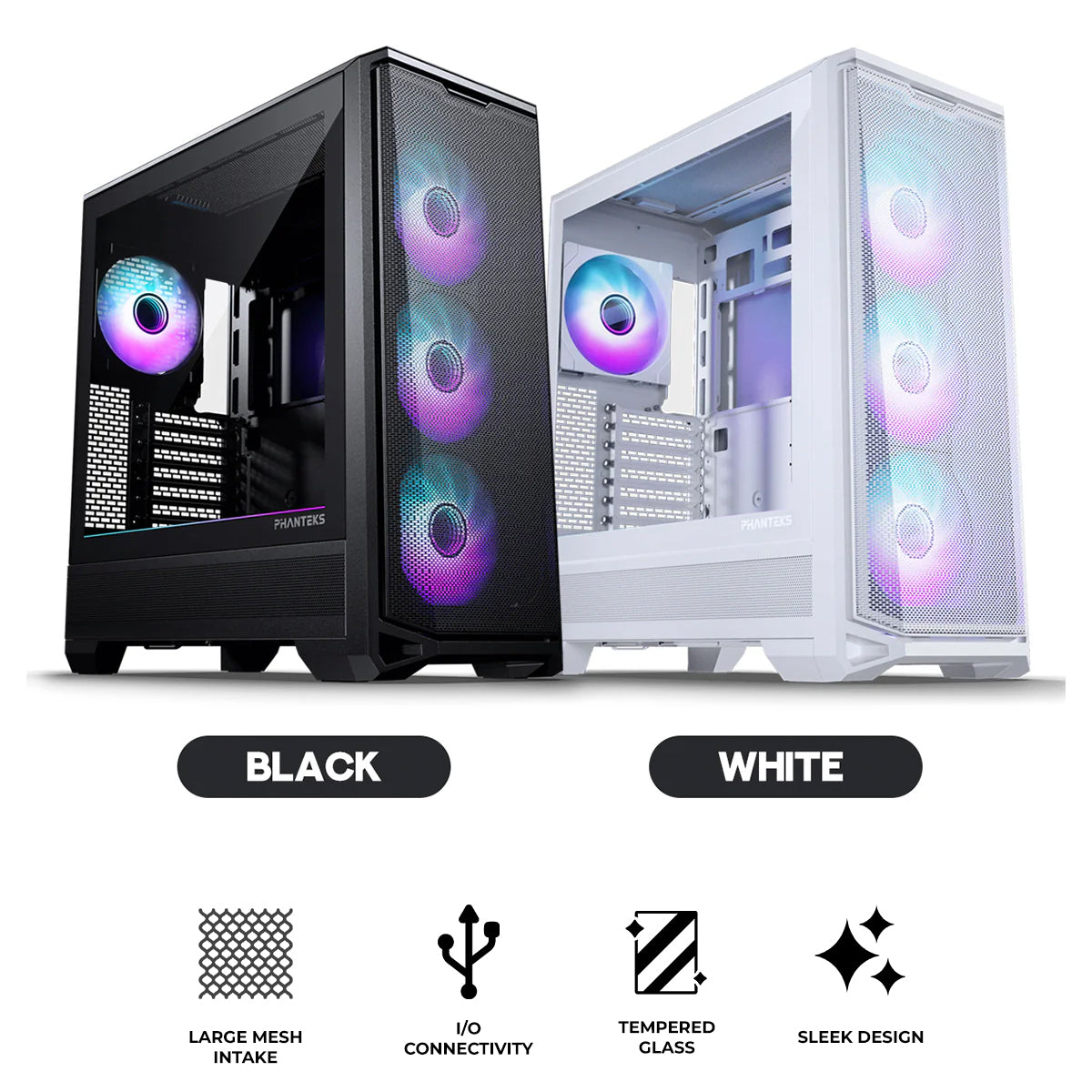

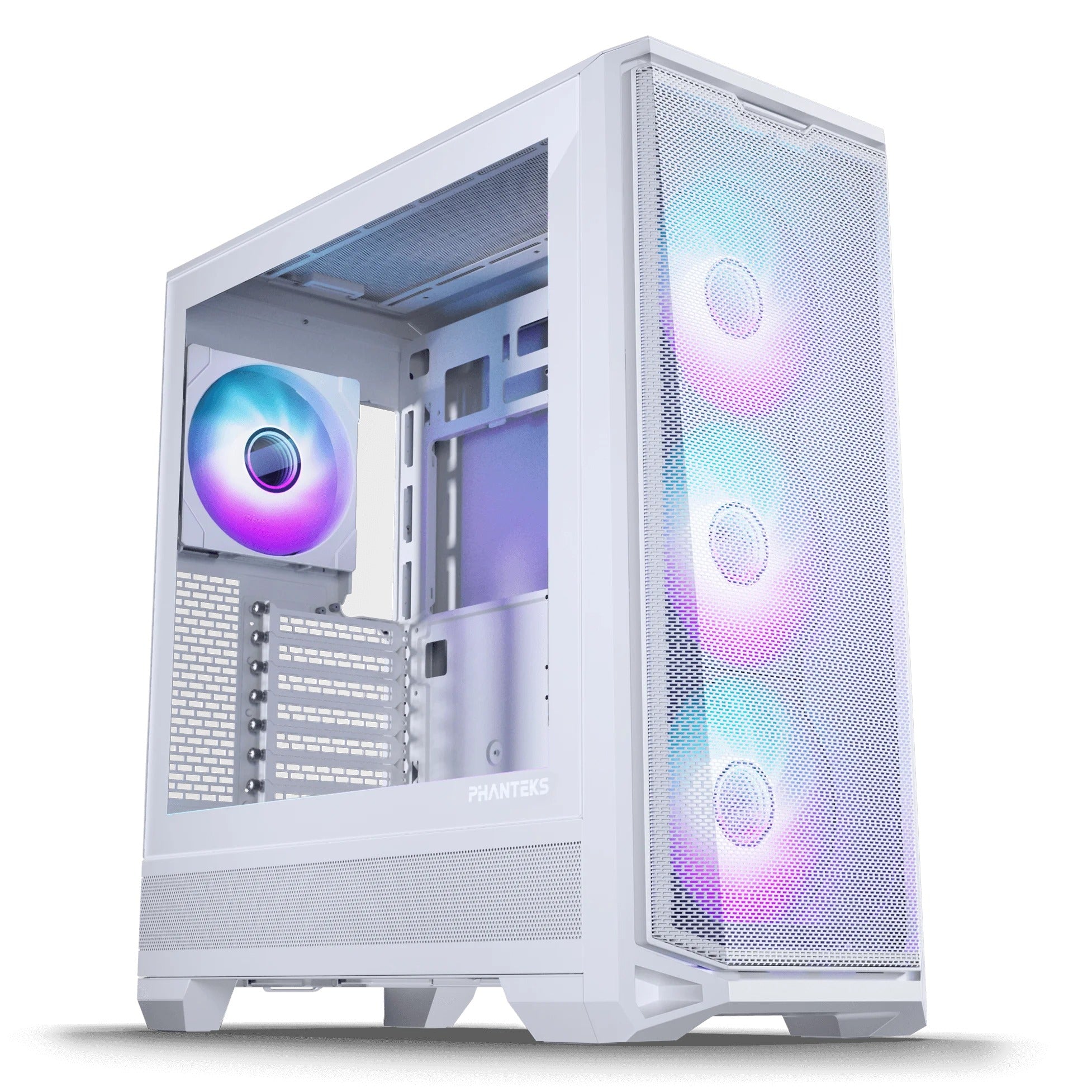

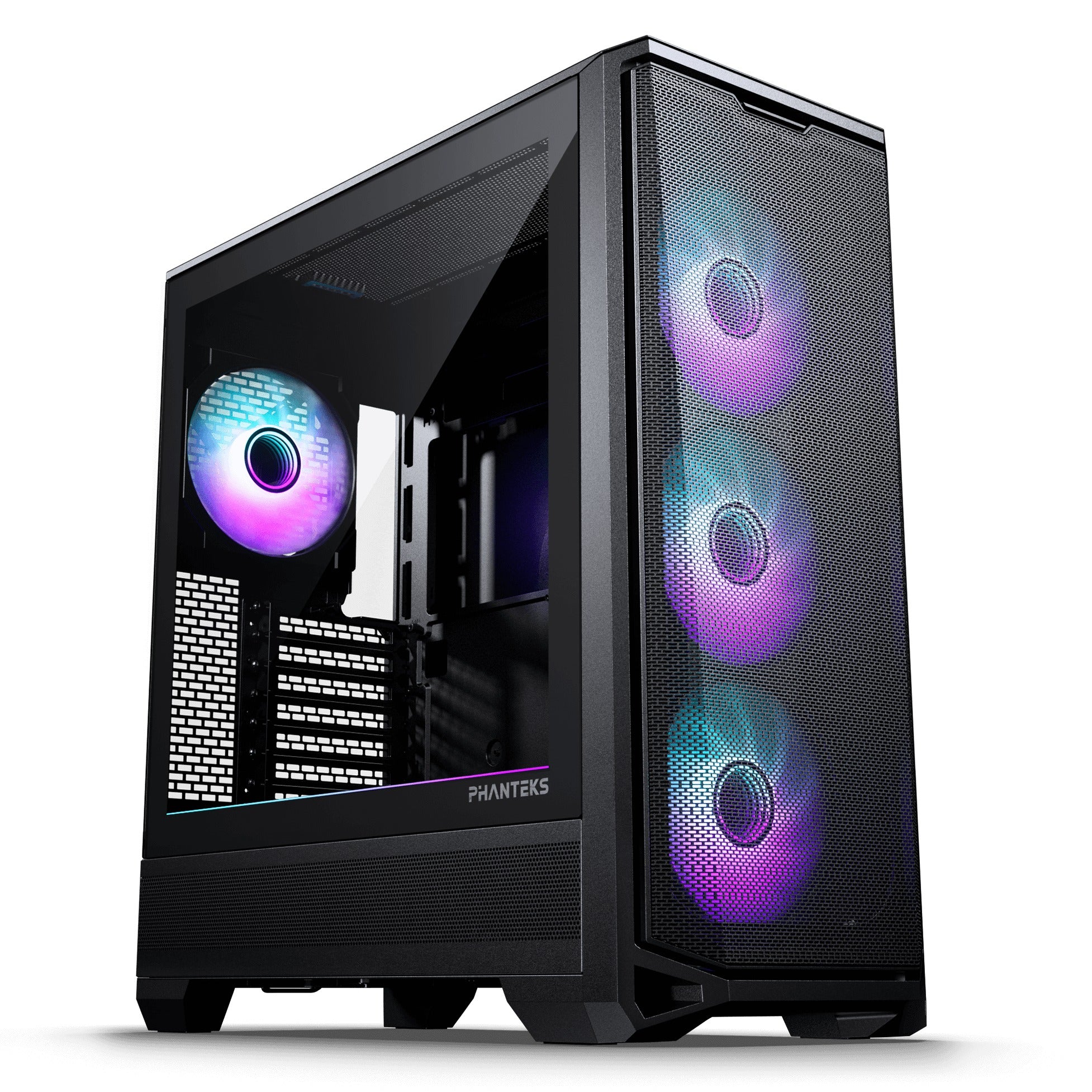

Eclipse G400A
Spacious D-RGB Gaming Chassis
The G400A is the upgraded successor to the popular P400A, featuring a completely redesigned and more spacious chassis. It’s perfect for clean, modern hardware setups, easily accommodating even the largest graphics cards while leaving ample room for cable management. With up to 10 fan mounting points, support for 140 mm fans, and dedicated radiator space at the top, cooling performance has been significantly enhanced.
The G400A also supports the latest mainboards, with rear side connectors hidden to enable a cable-free appearance. Additionally, the graphics card benefits from direct cooling via three 120mm fan mounts on the mid-plate.
| Model No. | PH-EC400GA_DBK01 |
| UPC Code | 886523303558 |
| Case Dimensions | 495 × 230 × 522 mm | 19.5 × 9.05 × 20.55 in |
| Form Factor | Mid-tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide |
| Rear ATX Mainboard Support | MSI Project Zero | ASUS BTF | Gigabyte Project Stealth |
| Materials | Steel chassis | Tempered glass |

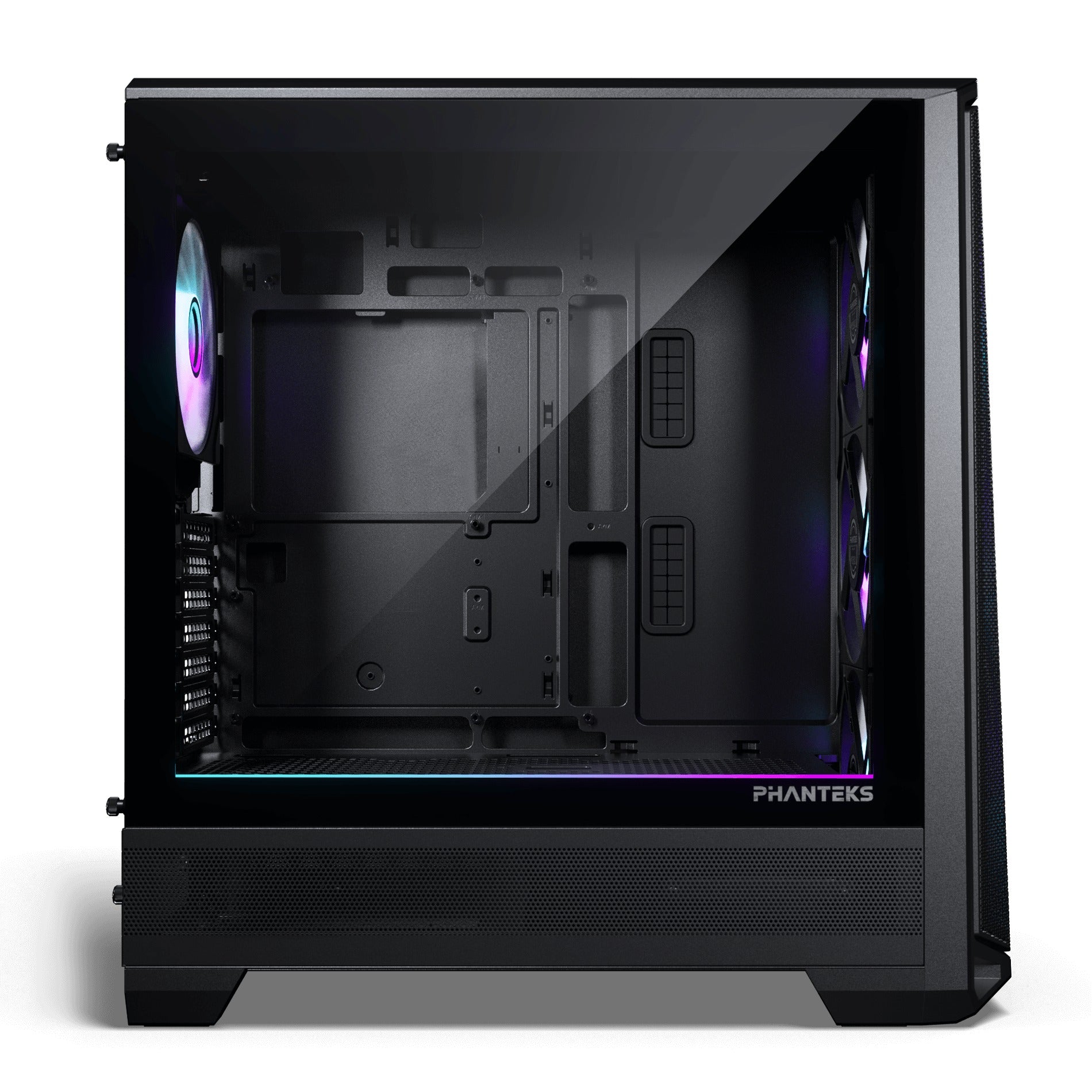

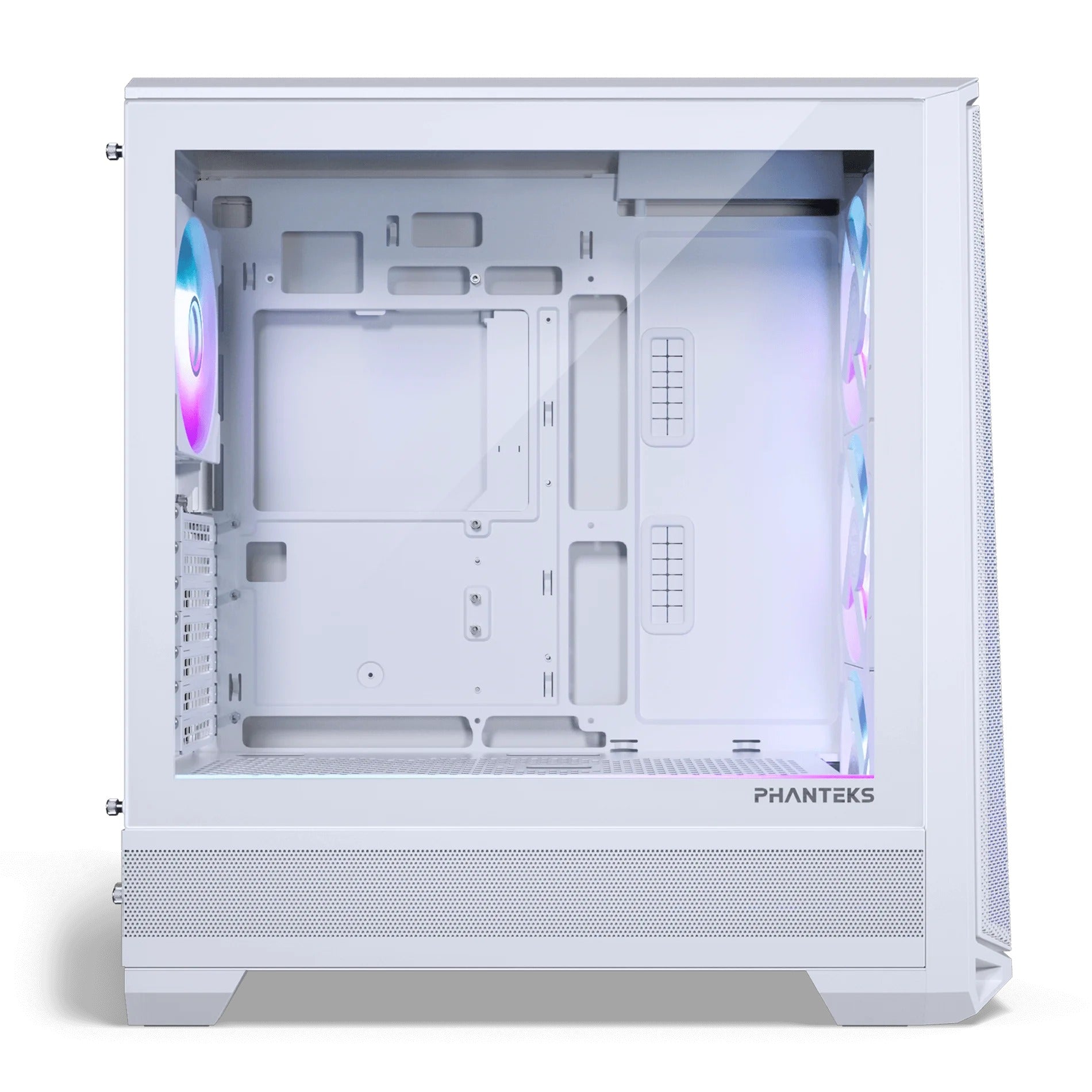

| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support | 3-slots Riser Cable sold separately |
| Internal 2.5″ Bay | 2 + 1x 3.5″ HDD |
| Internal 3.5″ Bay | 2 + 0x 2.5″ SSD |
| Front I/O | 1x USB 3.0 1x USB-C 3.0 Gen2 Microphone | Headphone Combo Reset button Power button + LED |
| Total Fans (120 | 140) | 7x | 6x |
| Top | 3x | 2x |

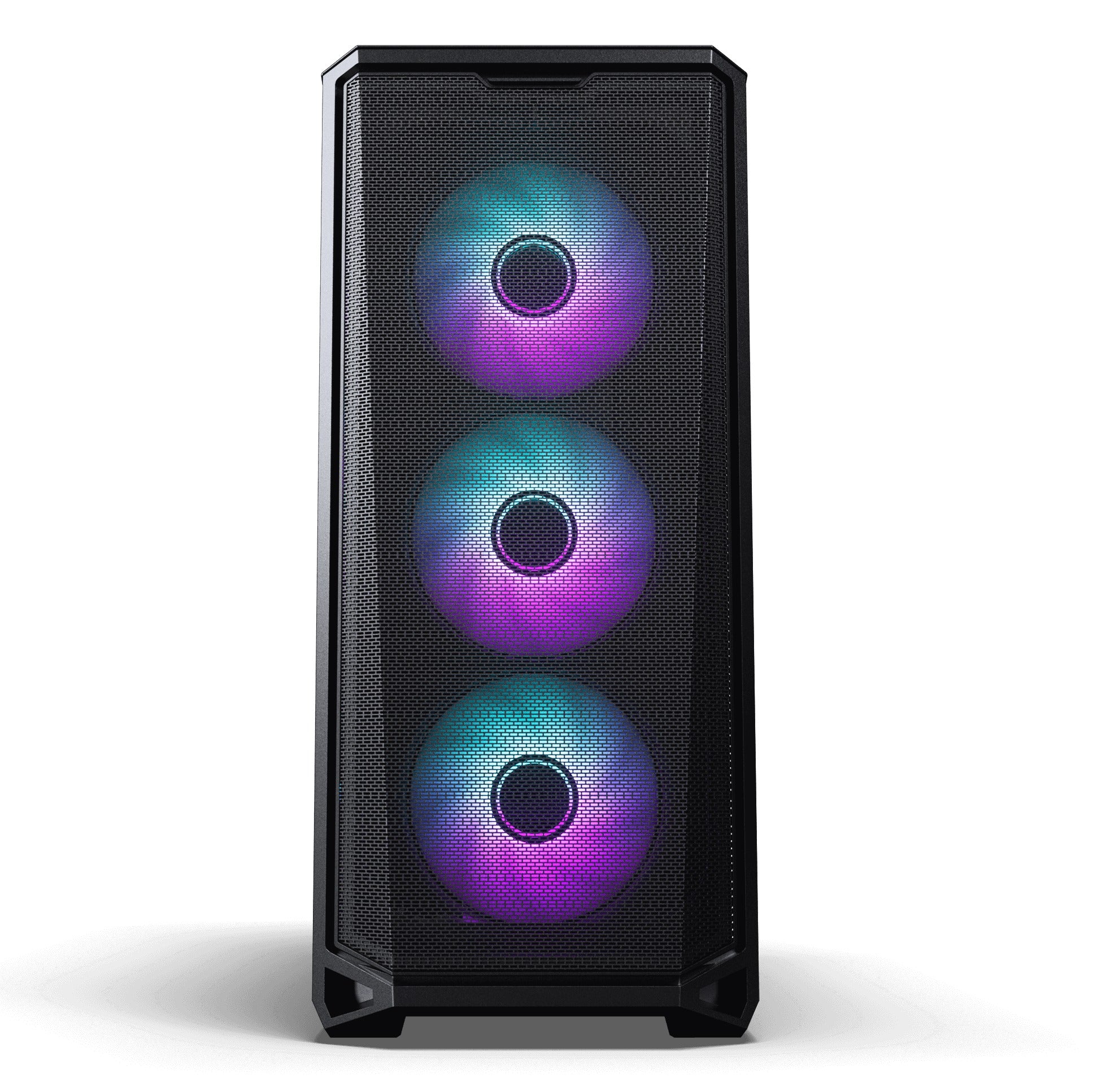

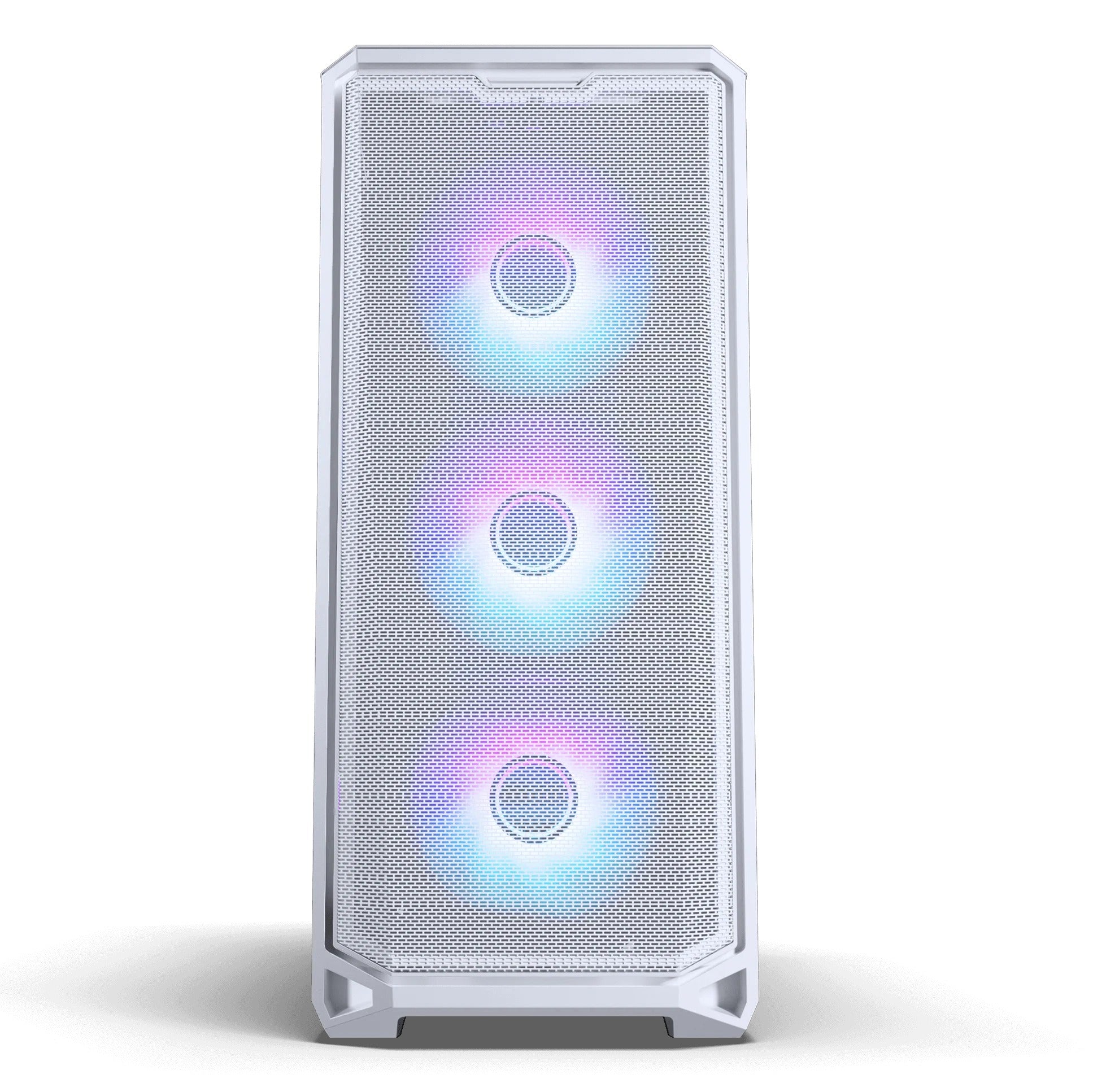

| Front | – | 3x 3x 140 Pre-Installed |
| Side | – | – |
| Rear | 1x | 1x 1x 140 Pre-Installed |
| Bottom | 3x | – |
| Radiators (120 | 140) | |
| Top | Max. 360 | 280 |
| Front | – | – |
| Rear | 120 | – |
| Bottom | – | – |
| CPU Cooler Height Clearance | 184 mm | 7.24 in |
| GPU Length Clearance | 415 mm | 16.33 in |
| GPU Width Clearance | 184 mm | 7.24 in |
| Power Supply Length Clearance | 270 mm | 10.60 in |
| Top Radiator (360) | 415 × 138 × 60 mm | 16.33 × 5.43 × 2.36 in |
| Top Radiator (280) | 360 × 147 × 65 mm | 14.17 × 5.78 × 2.55 in |
| Rear Radiator | 170 × 132 mm | 6.69 × 5.19 in |
